Sheet 05.870
LIGHT SKY · PAR and static light

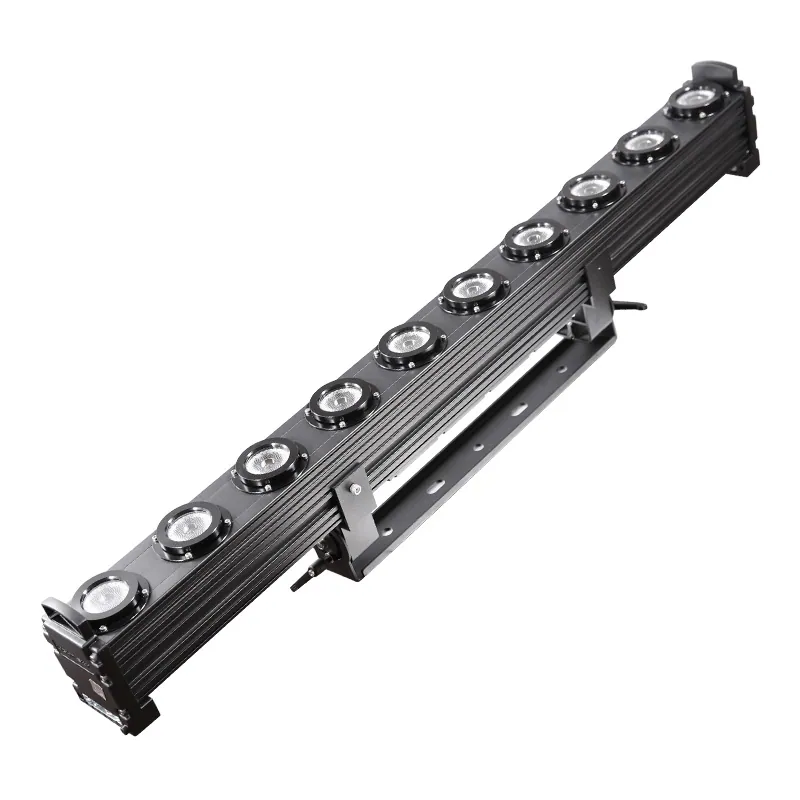

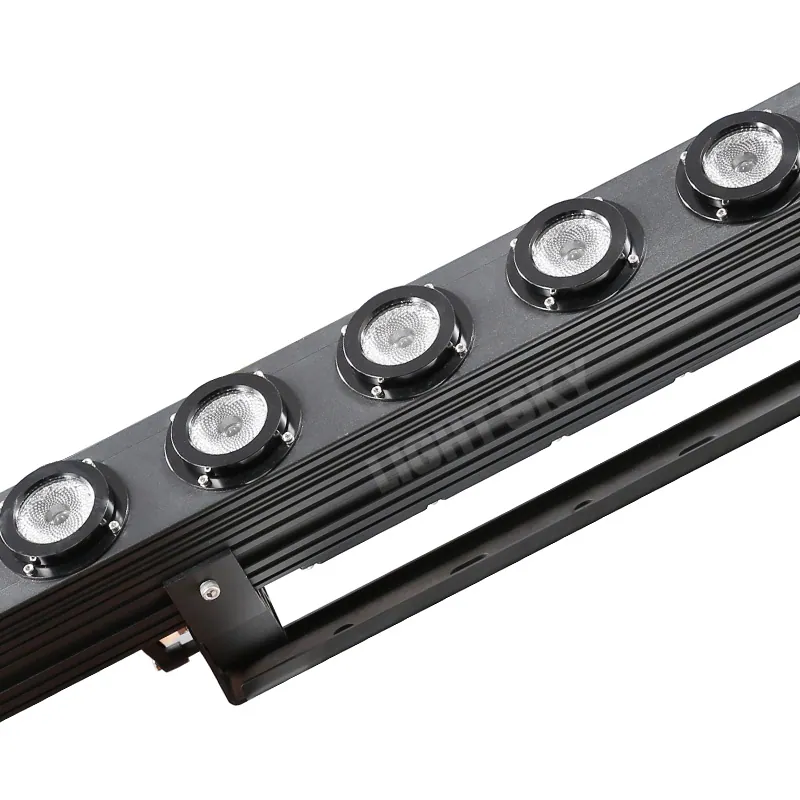

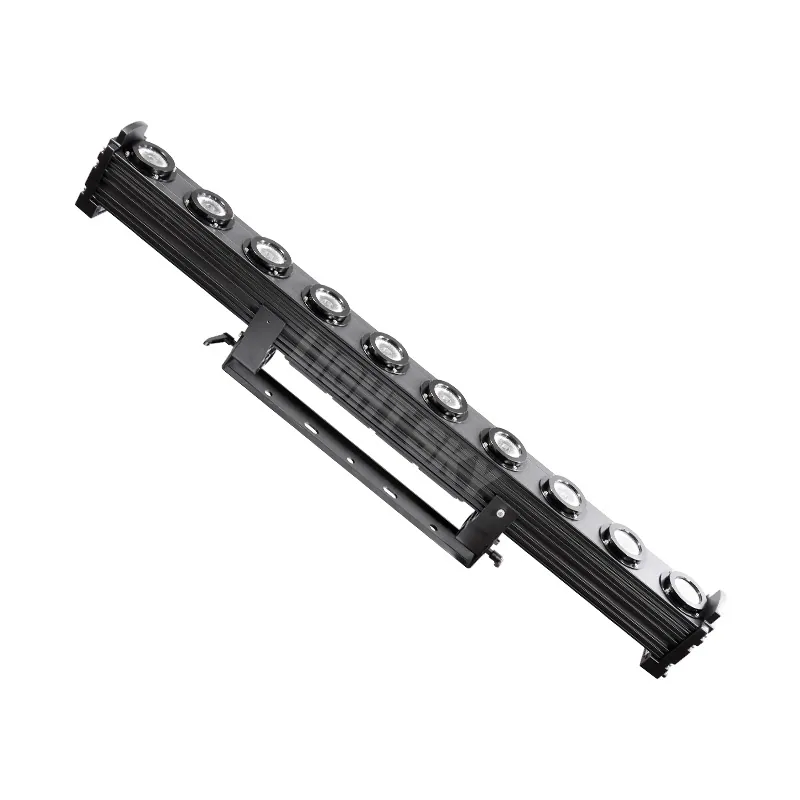

PL1015W
Suitable for large-scale performances, bars, and KTV venues, delivering beam effects and pixel-controlled lighting designs.
- Light source
- Tian xin 15W,RGBW 4 in 1 LED chip
- Power supply
- AC100-240V,50/60Hz
- DMX channels
- Standard channel : 9CH; Extend channel : 45CH; 25; 18CH; 40CH.
- Net weight
- 7.3Kg G.W. : 9.45Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PL1015WPrice on requestRequest a quotation
01SpecificationManufacturer's data · 5 groups · 23 values
What this product is, in numbers.

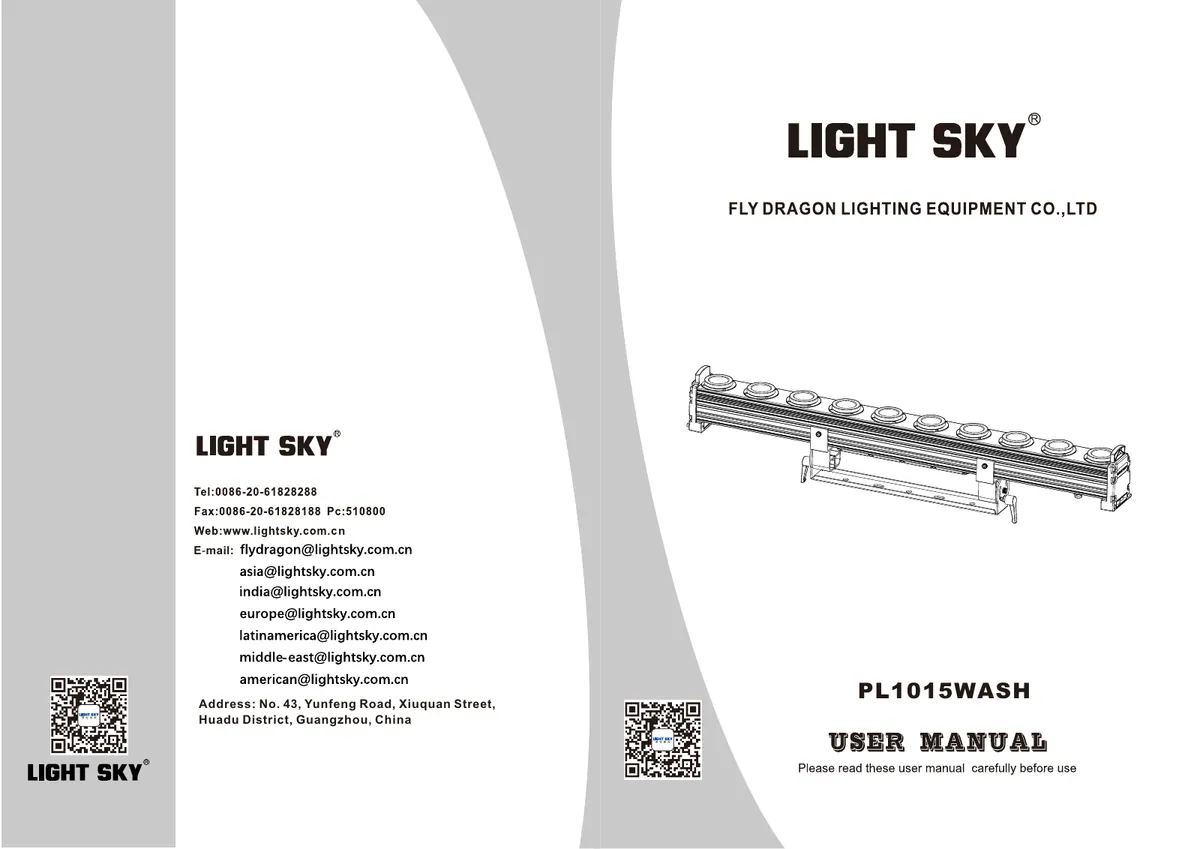

PDFUser manualEN · 29 pages · 2.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source / Power System8
- Voltage
- AC100-240V,50/60Hz
- Power
- 100W
- Power factor
- PF 0.988
- LED chip
- Tian xin 15W,RGBW 4 in 1 LED chip
- LED QTY
- 10PCS.
- Average life
- >50000h
- Strobe
- 1-30 times/second electronic strobe and random strobe.
- Dimmer
- 65536 class dimmer
02Color / GOBO / Effects2
- Color
- RGBW macro color system. LED can be controlled pixel by pixel, delivering versatile effects。

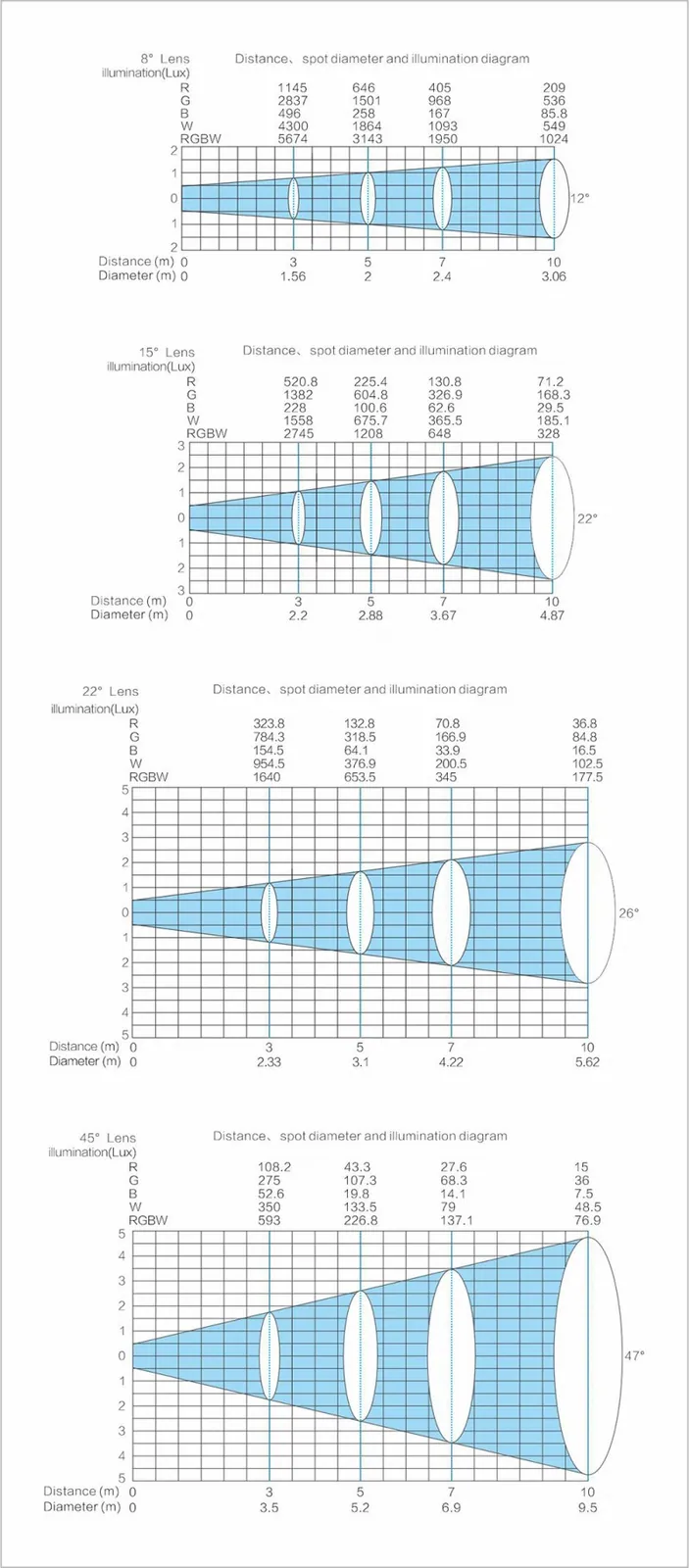

- Lens degree
- 22°(standard); (optional)8°; 15° ; 45°.
03Control System2
- Control Mode
- DMX512, RDM
- Channel
- Standard channel : 9CH; Extend channel : 45CH; 25; 18CH; 40CH.
04Other functions1

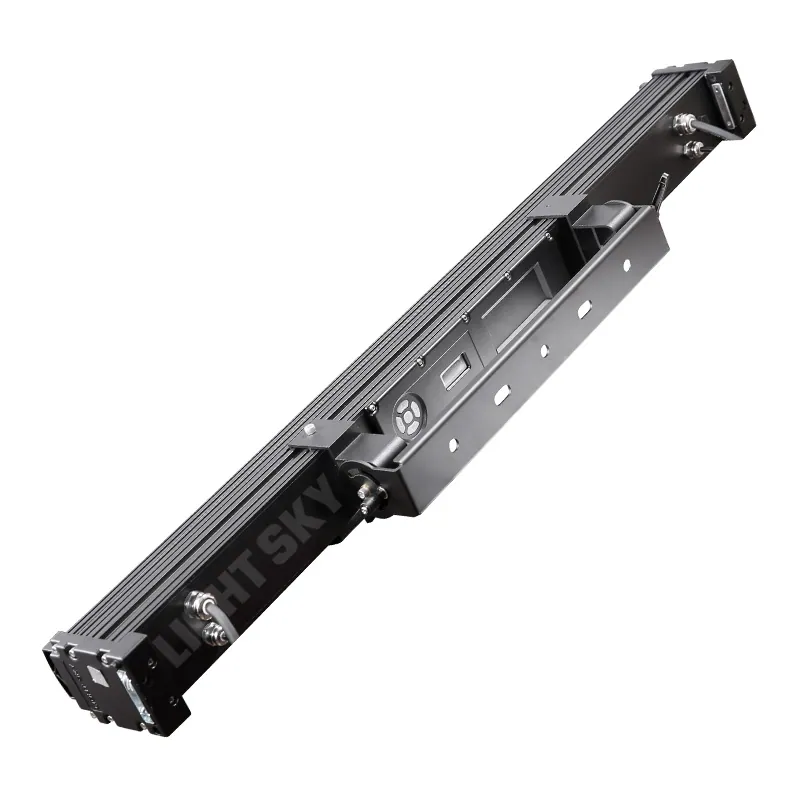

- Attachment Devices
- Quick lock seamless splicing (same light source distance after splicing)
05Appearance Parameters10
- IP rate
- IP65

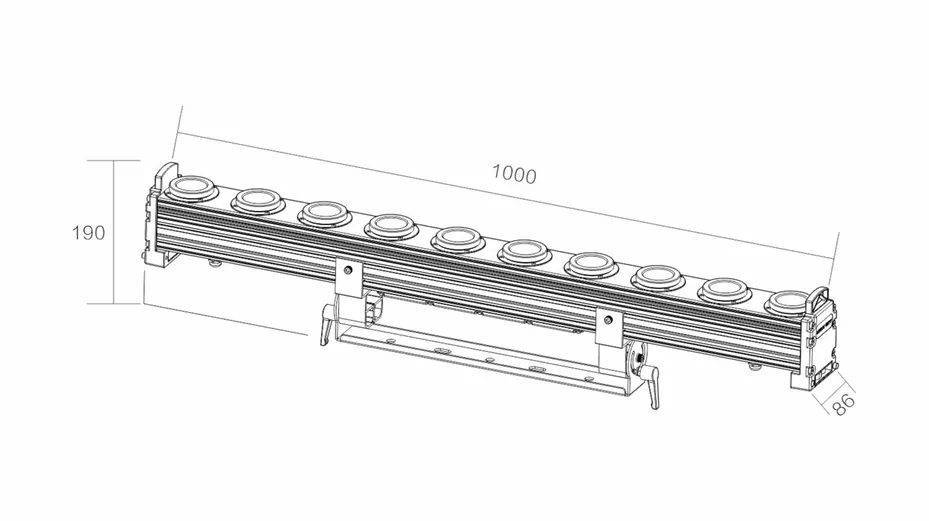

- Light size
- 1000×86×190 (mm)
- Box Size
- 1020X100X215 (mm) (1 sets- The inner packing)
- N.W.
- 7.3Kg G.W. : 9.45Kg
- 1035X580X235 (mm) (5 sets-The outer packing)
- N.W.
- 36.5Kg G.W. : 41.5Kg
- Flycase Size (5SETS-standard)
- 1065X630X385(mm)
- N.W.
- 36.5Kg G.W. : 65.00Kg
- Flycase Size (8SETS-optional)
- 1060X510X640 (mm)
- N.W.
- 58.4Kg G.W. : 99.5Kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
FEATURES
Quick-lock seamless connection (uniform LED spacing after linking).
Imaging optical system; each beam can display multiple colors, with pixel-mapping LED control for various lighting effects.
- Two optional installation methods.
- 10 × 15W 4-in-1 LEDs.
- Individual pixel and single-color control.
- IP65 protection rating.
