SUPER SHARK BEAM

Light source: OSRAM 550W LAMP
Power supply: AC100-240V 50/60Hz
Beam angle / zoom: 1.6°
Protocols: DMX-512、RDM、ARTNET(Optional)
Net weight: 41.5 Kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 10 groups · 37 values

What this product is, in numbers.

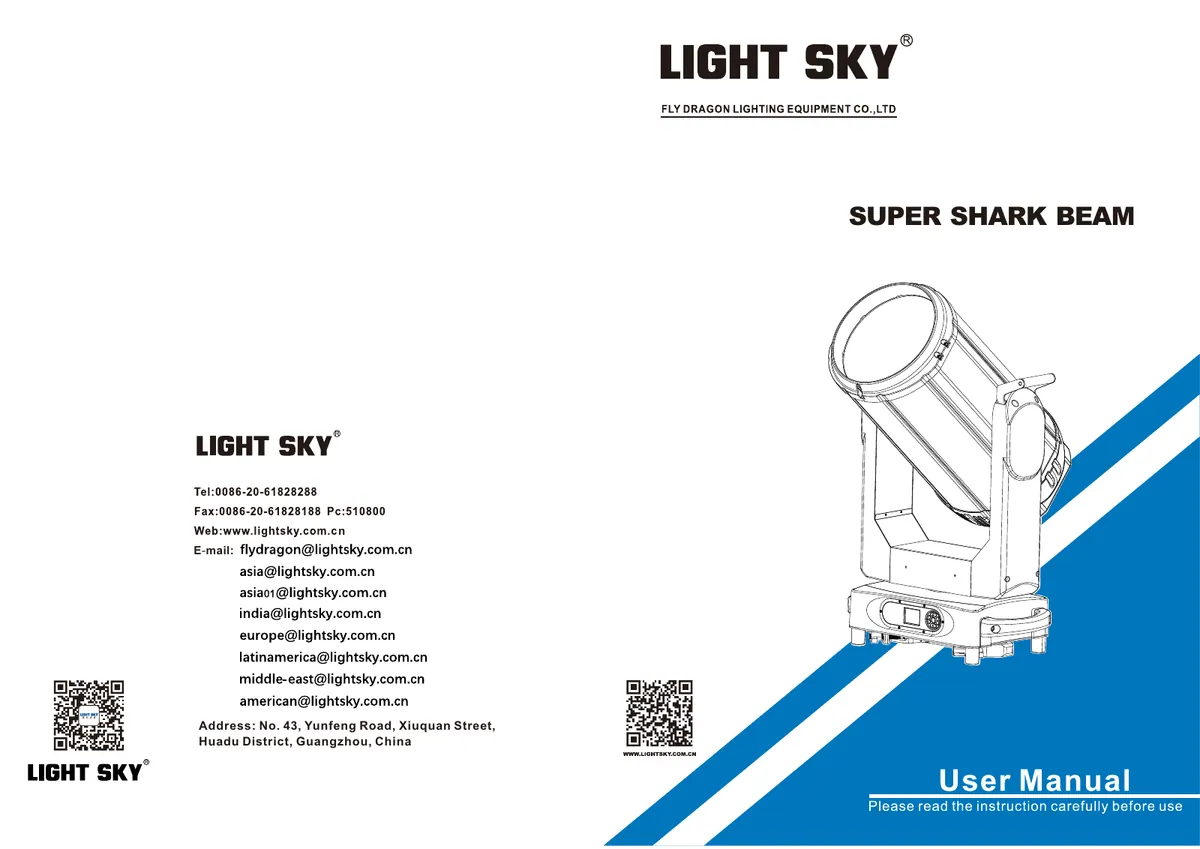

PDFUser manualEN · 31 pages · 4.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL8

Light source: OSRAM 550W LAMP
Light source average lifespan: 1500h
Beam angle: 1.6°
Front lens diameter: 252mm
Output color temperature: 7400K
CRI: Ra≥76
Total lumen output: 18700 Lm

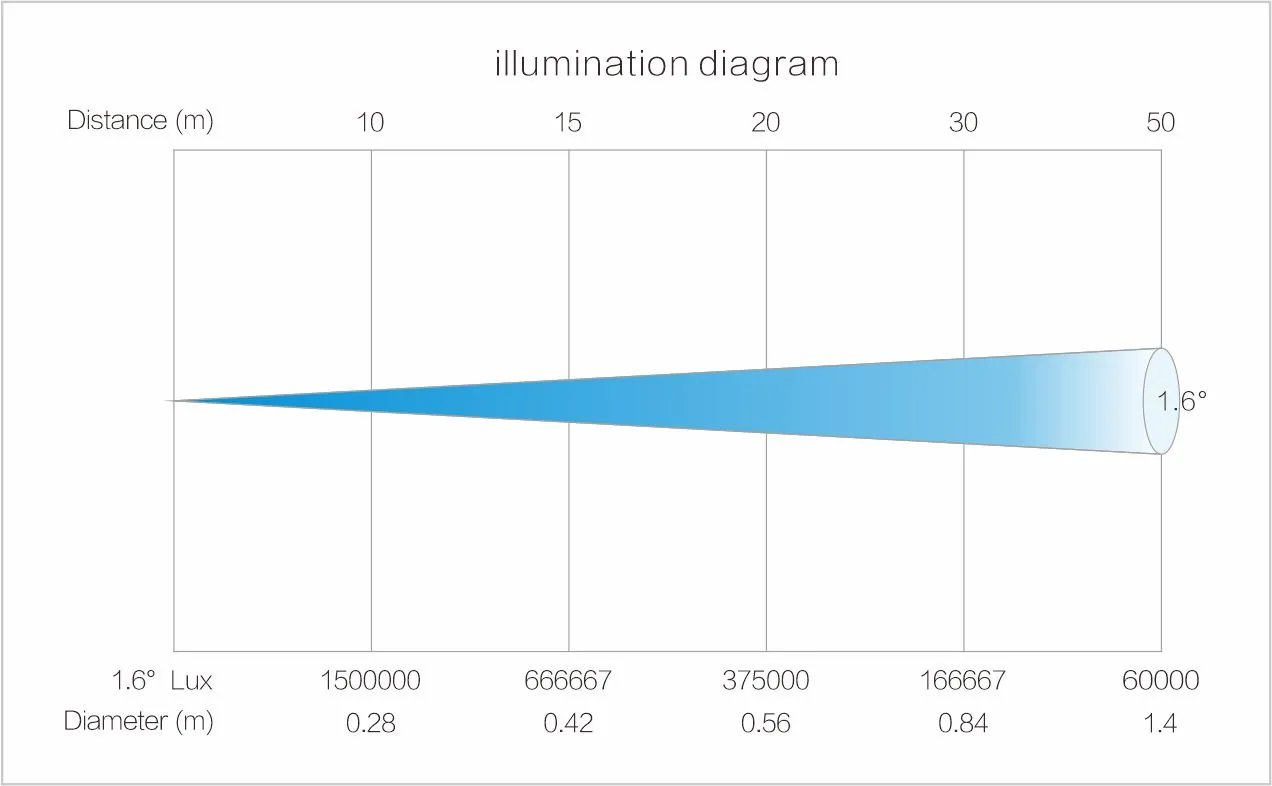

Illuminance: 1500000lux@10m at beam mode

02COLOR2

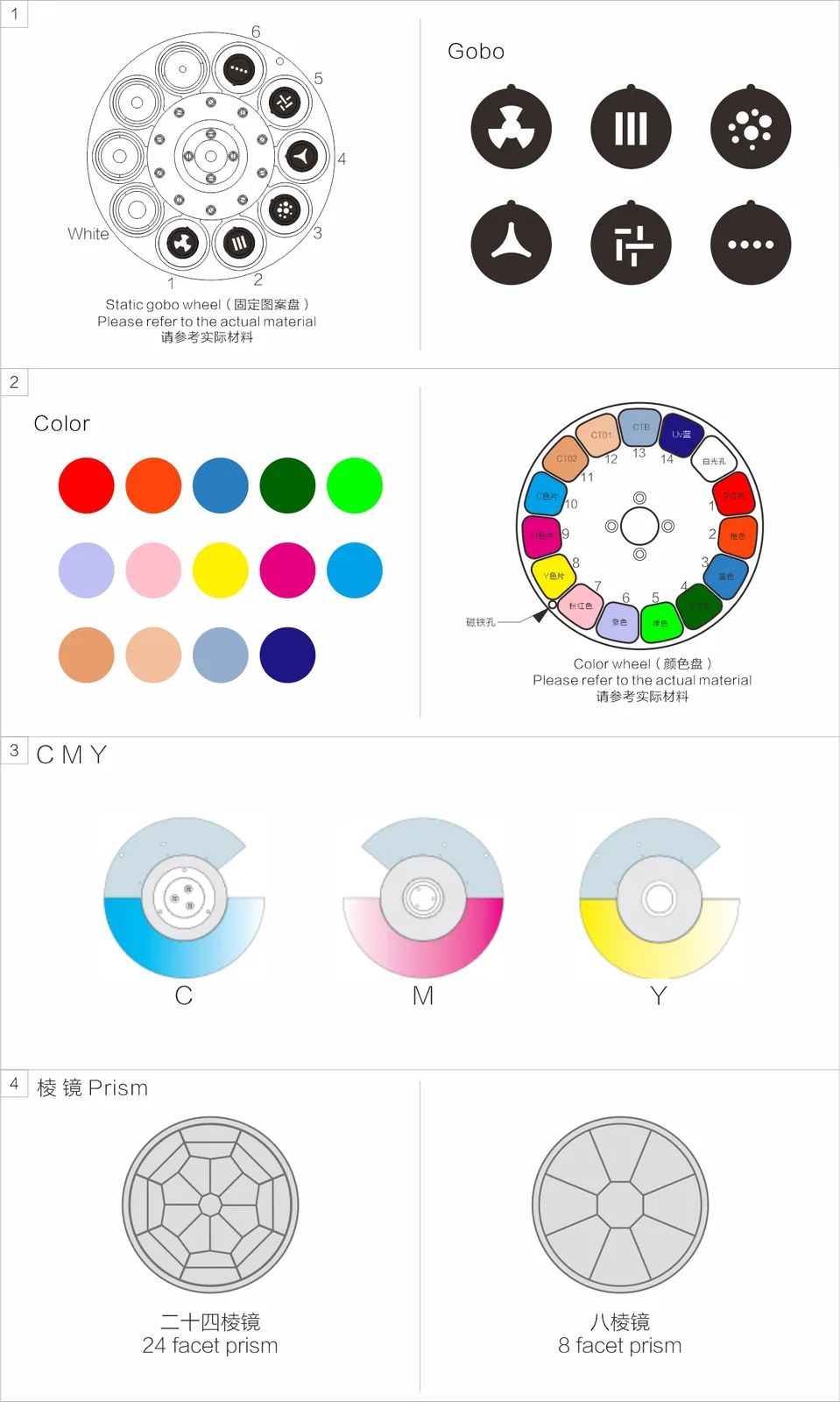

Color wheel: 12 color + 2 CTO + blank
C M Y: Linear CMY colour mixing

03GOBO1

Static gobo wheel: 9 gobos + white, two-way shaking and flowing water effect, pluggable and replaceable (the outer diameter of the gobo is 14mm, the inner diameter of the gobo is 8mm)

04EFFECTS5

Prism: 8-facet prism and 24-facet prism, can be rotated in both directions and superimposed
Frost: independent frost effect
Dimmer: 0 to 100% linear dimmer
Strobe: Electronic pulse strobe and random strobe
Focus: Motorized focus

05CONTROL5

Channel mode: 15CH,18CH
Control protocol: DMX-512、RDM、ARTNET(Optional)
DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Power connector: Seetronic one in one out
Display: OLED screen

06SOFTWARE2

Software upgrade: Upgrade with DMX
Intelligent temperature control: Intelligent temperature control to extend Lamp lifespan

Show the full specificationHide the rest of the specification4 more groups · 14 values

07PAN/TILT MOVEMENT1

Pan/Tilt: 540°/250°

08POWER2

Voltage: AC100-240V 50/60Hz
Power: 770W

09SIZE & WEIGHT8

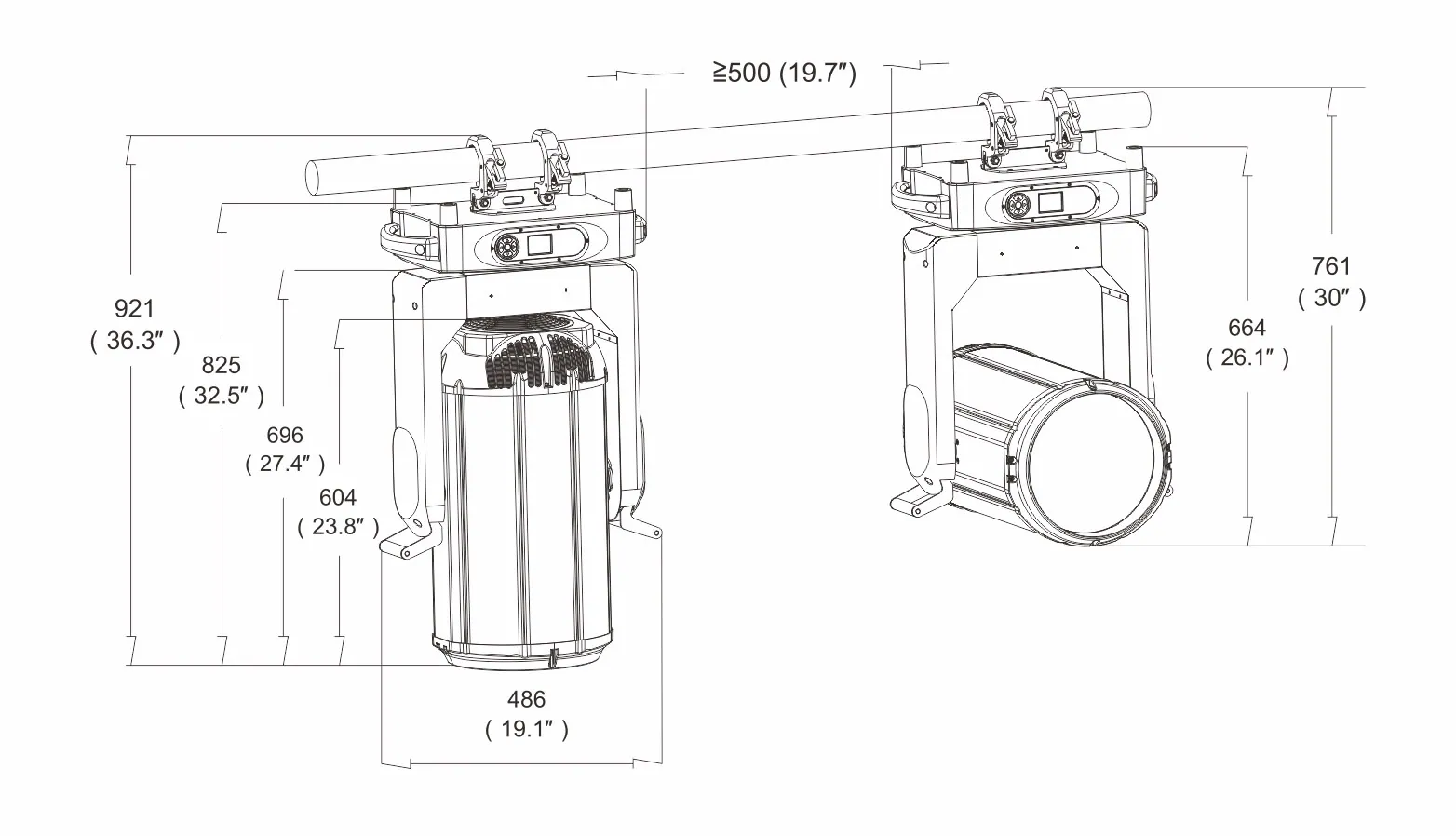

Hanging system: foldable light hook
Housing: Aluminum

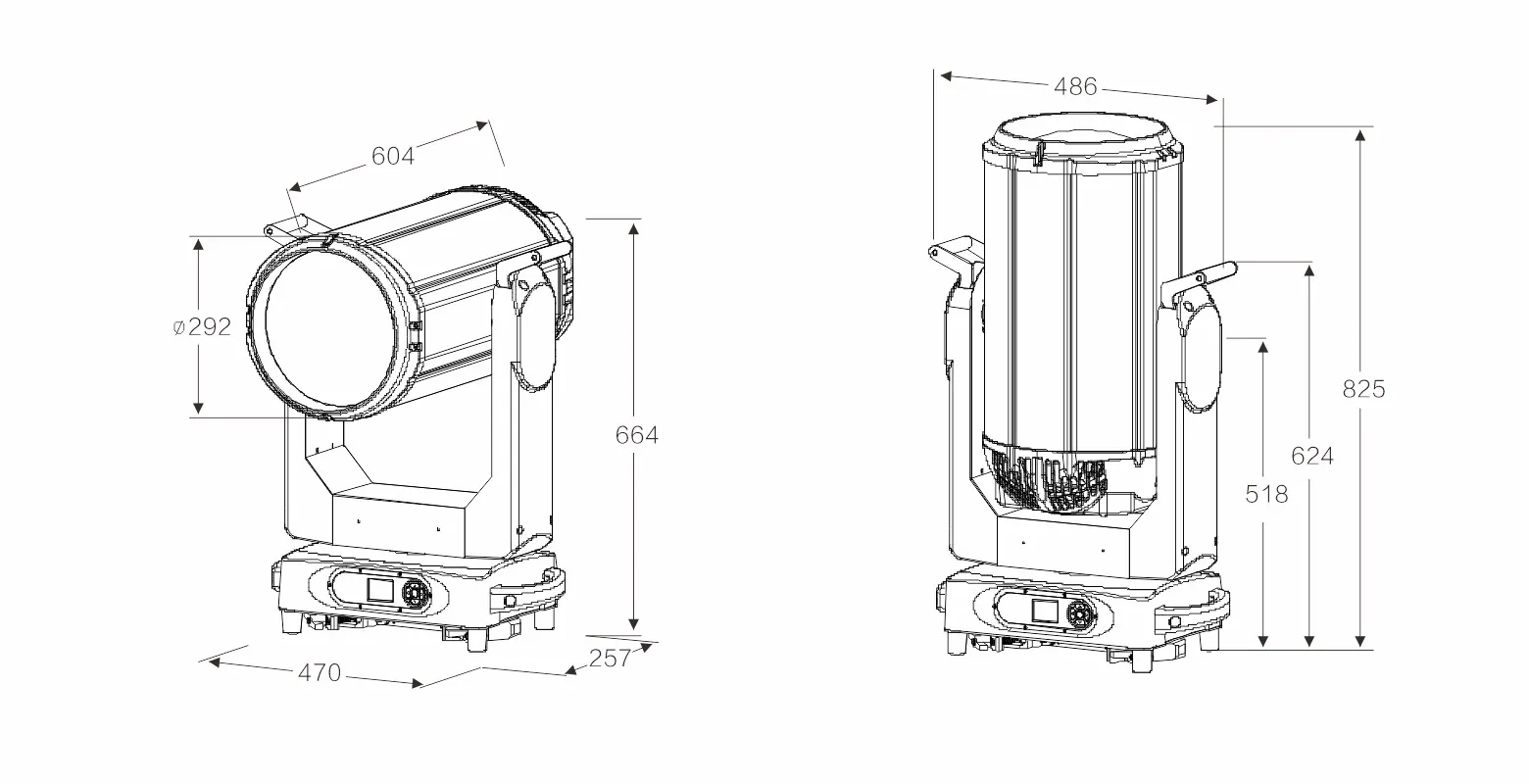

Light Dimension: 486 x 257 x 825(mm)
N.W: 41.5 Kg/pcs
Carton dimension: 915 x 565 x 380(mm)
G.W with carton: 46.3 Kg
Flycase dimension: 700 x 550 x 865mm
G.W with fly case: 77.5Kg(1 in 1)

10OTHERS3

Protection class: IP66
Working environment: -20°C ~ 40°C
Maximum surface temperature of the lamp body: ≤80°C

02DescriptionManufacturer's description

What it is.

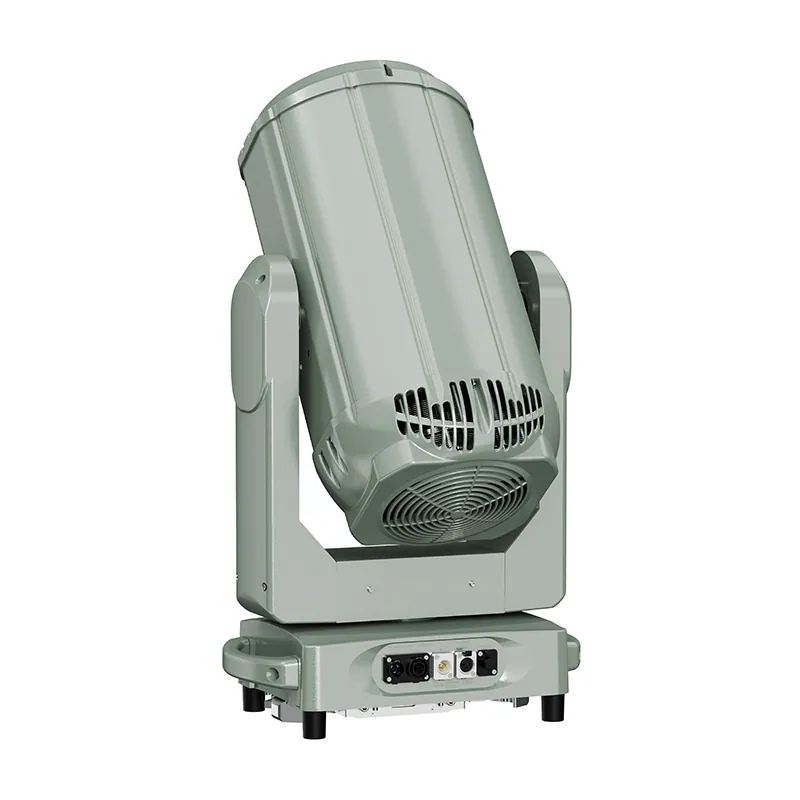

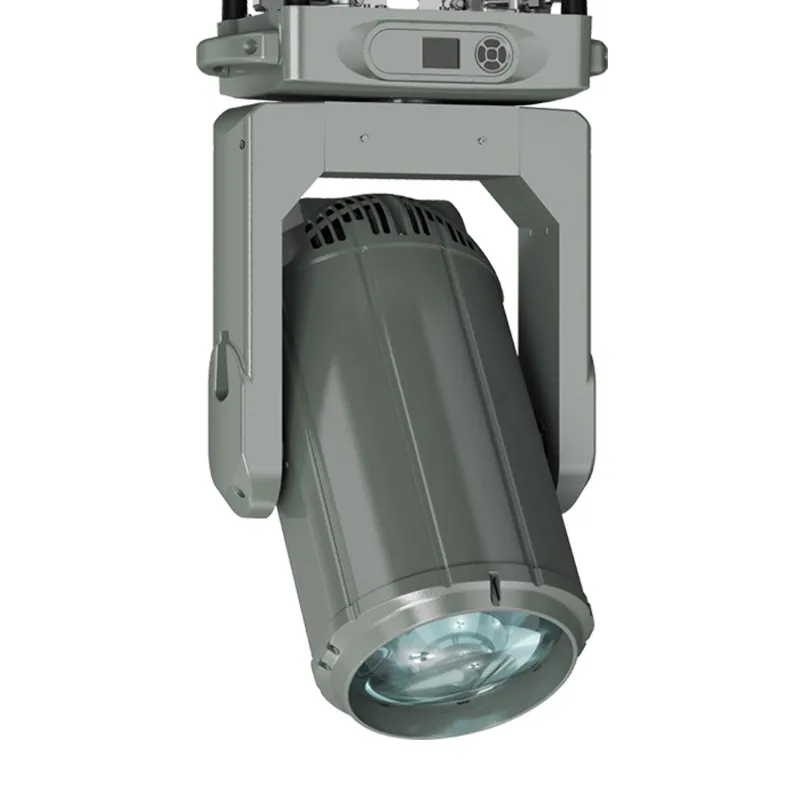

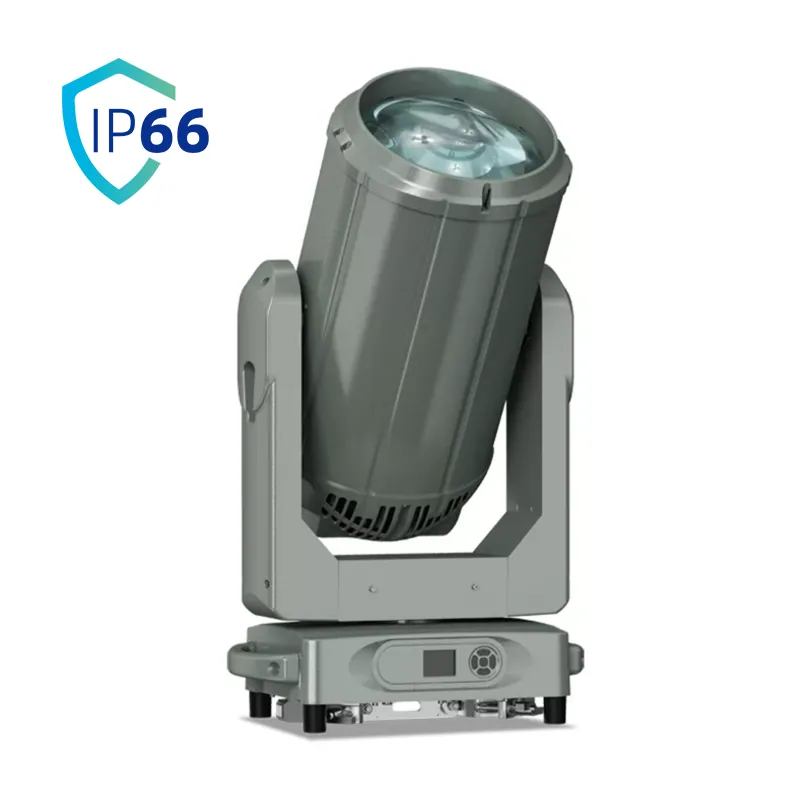

Meet the Super Shark Beam, a high-power waterproof moving head light. This outdoor moving headlight adopts a high-definition and precision lens, a CMY infinite color mixing system, and IP66-level waterproofing. It is capable of delivering stunning, sharp illuminance for both indoor and outdoor large-scale commercial performances, such as music festivals and cultural tourism performances. Contact us now for further information about this advanced waterproof moving head beam light!

FEATURES

Advanced Lens: Super Shark Beam series outdoor moving head lights equipped with high-definition and high-precision optical front lenses.

Powerful Beam:With a diameter of 252mm lens, Super Shark Beam delivers a strong and sharp beam.

Advanced Color Mixing System: The Super Shark Beam Series waterproof moving head beam light utilizes the CMY infinite color mixing system for stunning illumination performance.

ultra-high illuminance: With a beam angle of 1.6 degrees, the Super Shark Beam series waterproof moving head beam can produce ultra-high illuminance that reaches 1500000 lux at 10m.

High-level Waterproof: The Super Shark beam adapts to IP66 waterproofing, making it versatile for both indoor and outdoor illumination.

03Documents9 files · 14 MB
