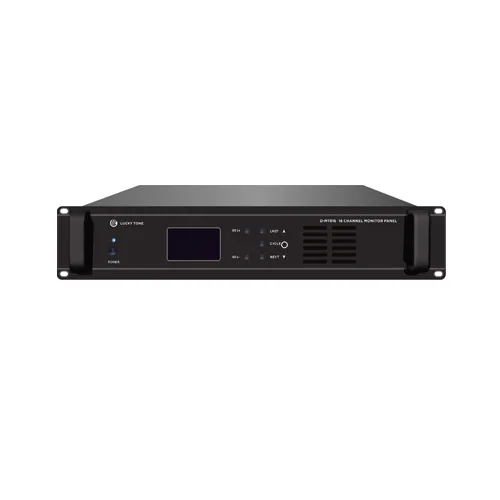

16-channel Monitor Panel

ModelD-MTR16

● Monitor up to 16 loudspeaker lines with built-in high fidelity loudspeaker

Dimensions: 89(H) x 483(W) x 350(D) mm
Weight: 5.10kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 10 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications10

MODEL: D-MTR16
Input: 70/100V audio signal
Trigger Out: 0V signal for Power activation
Monitor Speaker: Built-in stereo HiFi full range speaker, power>500mW
Controls: 1 Power switch,2 volume controls
Protection: AC Fuse: 0.5A
Volume Level: 7 levels, controllable by D-COM central processor
Power Consumption: 10~15W
Dimensions: 89(H) x 483(W) x 350(D) mm
Net Weight: 5.10kg

02DescriptionManufacturer's description

What it is.

Features

● With LCD display to show level meter of 16 loudspeaker lines
● Volume of monitoring can be adjusted
● Menu control over loudspeaker line selection and volume level
