Sheet 05.378
Lucky Tone · Public address

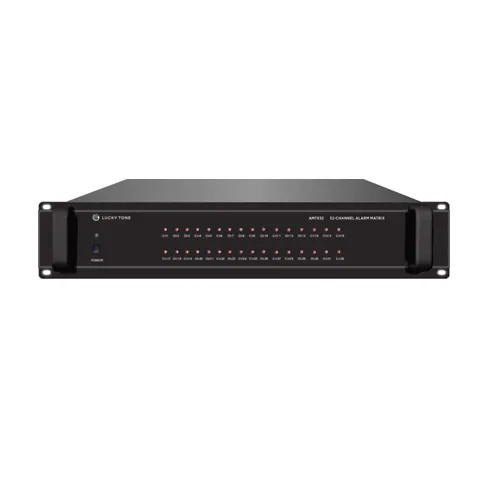

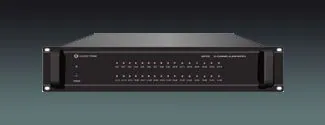

32-channel Alarm Matrix
ModelD-AMTX32
● 32 contacts I/O interfacing with FIRE ALARM system for emergency triggering
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Weight
- 5.2kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
32-channel Alarm MatrixPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- MODEL
- D-AMTX32

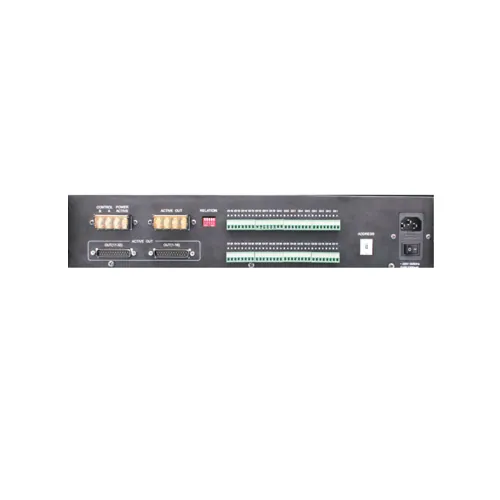

- Input
- 32 channel alarm signals, 0v
- Output
- 32 channels divided into 2 groups of 16,
- Output
- 0V Active out: 0V short circuit signal
- Adjacent Zones Range
- 0,+/- 1, +/- 2, +/- 3, +/- 4
- Controls
- Power switch, address setting dip,and adjacent zone selector
- Indicators
- POWER indicator, CH1 ~ CH32 alarm status indicators
- Protection
- AC Fuse: 0.5A
- Power Consumption
- 15~20W
- Power Requirement
- AC 220V ± 10% 50-60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Built-in Dimensions
- 2U rack 19 inch
- Net Weight
- 5.2kg
- Gross Weight
- 6.4kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
● Support up to 9 adjacent zones of alarm setting
● Can be monitored by D-COM through RS-485 interface
