Sheet 05.371
Lucky Tone · Public address

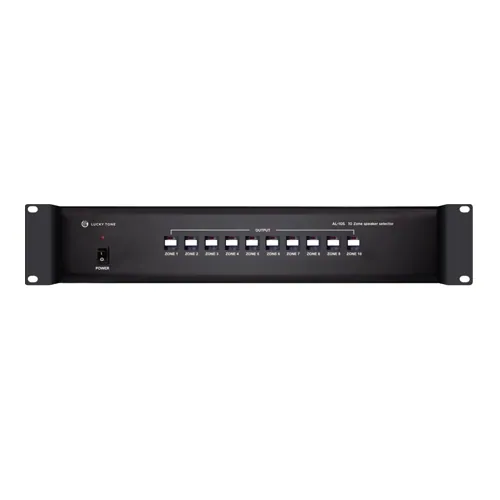

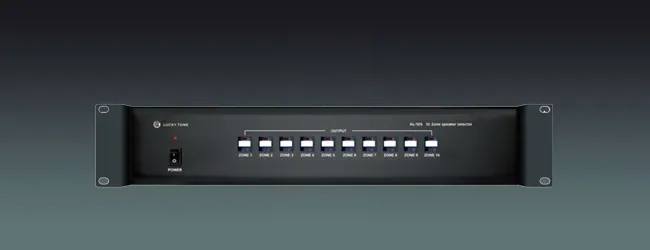

10 Zone Speaker Selector
ModelAL-10S
● With flexible A/B amplifier inputs for auto switch from BGM and Emergency amplifier
- Dimensions
- 89(H) x 483(W) x 366(D) mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
10 Zone Speaker SelectorPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 9 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications9
- MODEL
- AL-10S

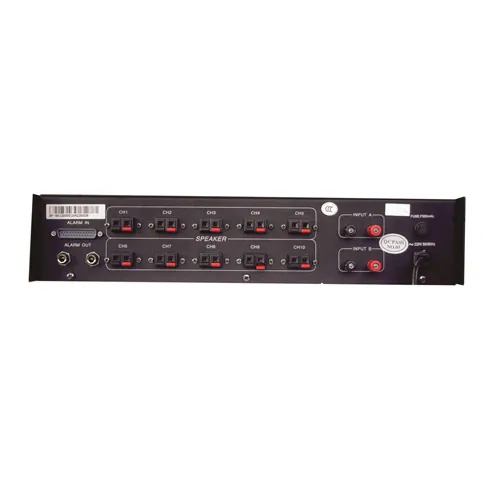

- Input
- 1 program and 1 priority channels, 70/100V audio signal
- Speaker Output
- 1 groups of 10 zones, 70/100V audio signal
- Priority Bus
- 10 channels, activated by 0V signal
- Power Handling
- 1.5KW total capacity, 150W per zone
- Alarm Output
- 0V signal
- Controls
- 10 pushbutton zone selectors, 1 power switch
- Power Requirement
- 110~120V or 220~240V AC, 50/60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 366(D) mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- ● Control up to 10 speaker zone outputs
- ● Essential for analog medium PA system
- ● LED status indicators
- ● 10-channel priority bus
- ● 2 alarm activation outputs
03Documents1 file · 510 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
