Sheet 05.370
Lucky Tone · Public address
10 Zone All-in-one System
ModelDCM-100M

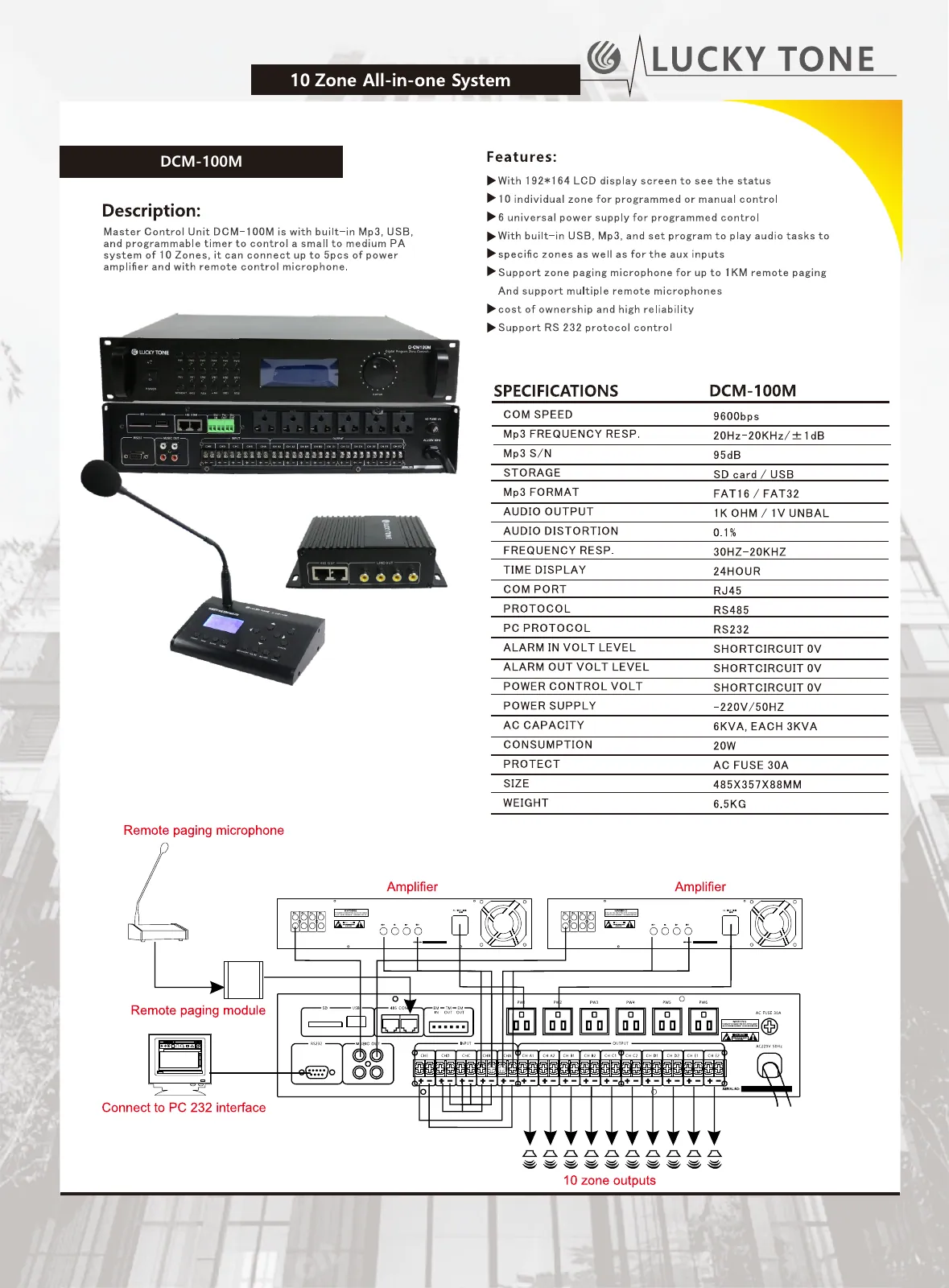

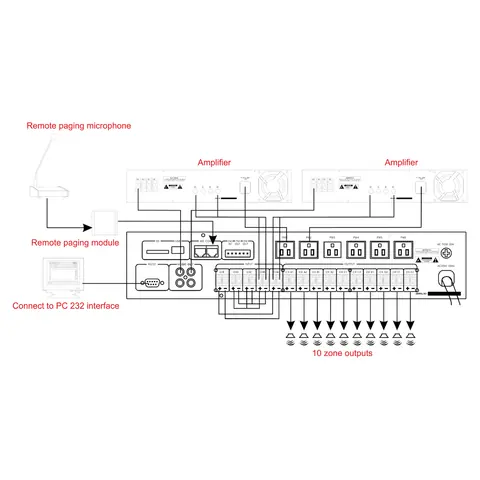

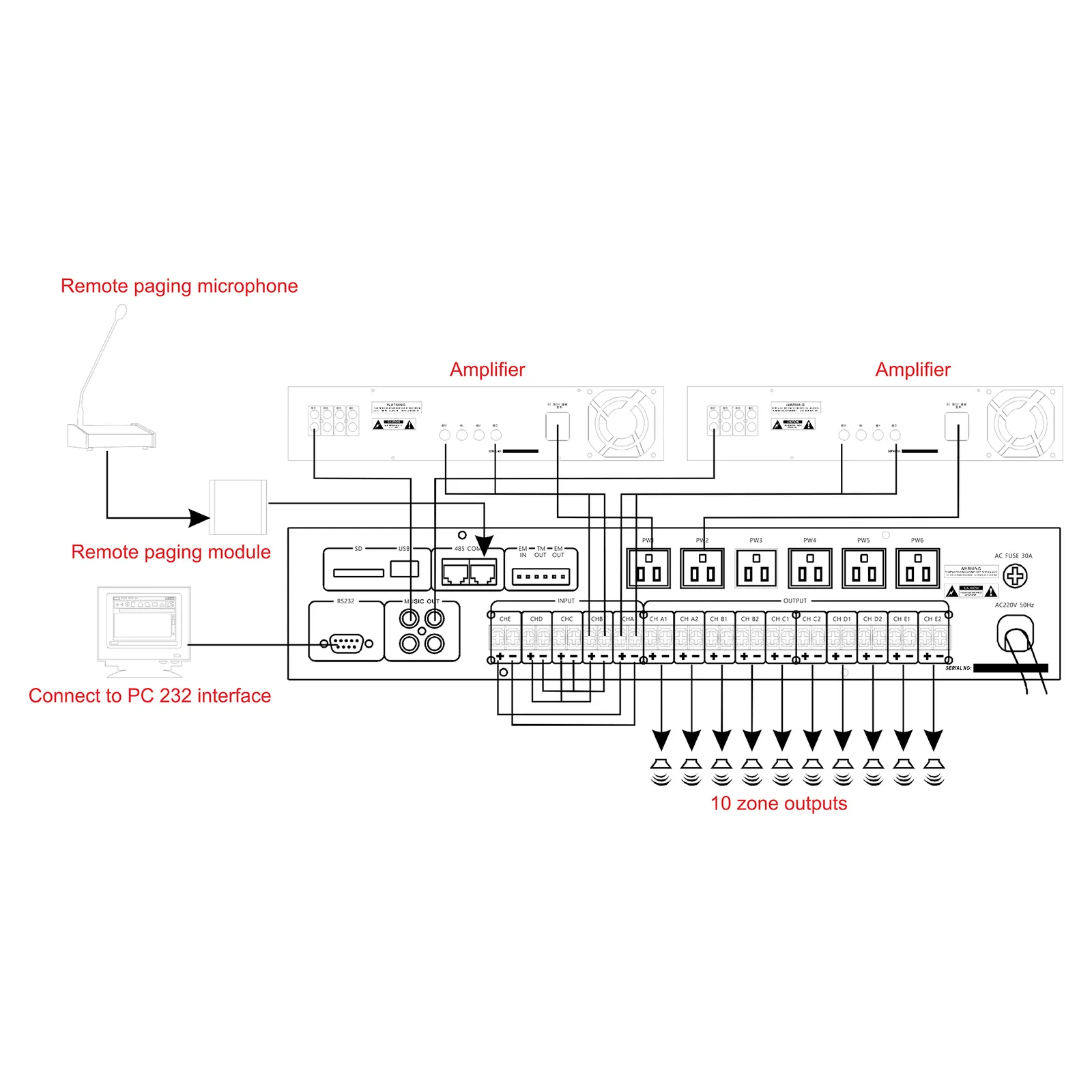

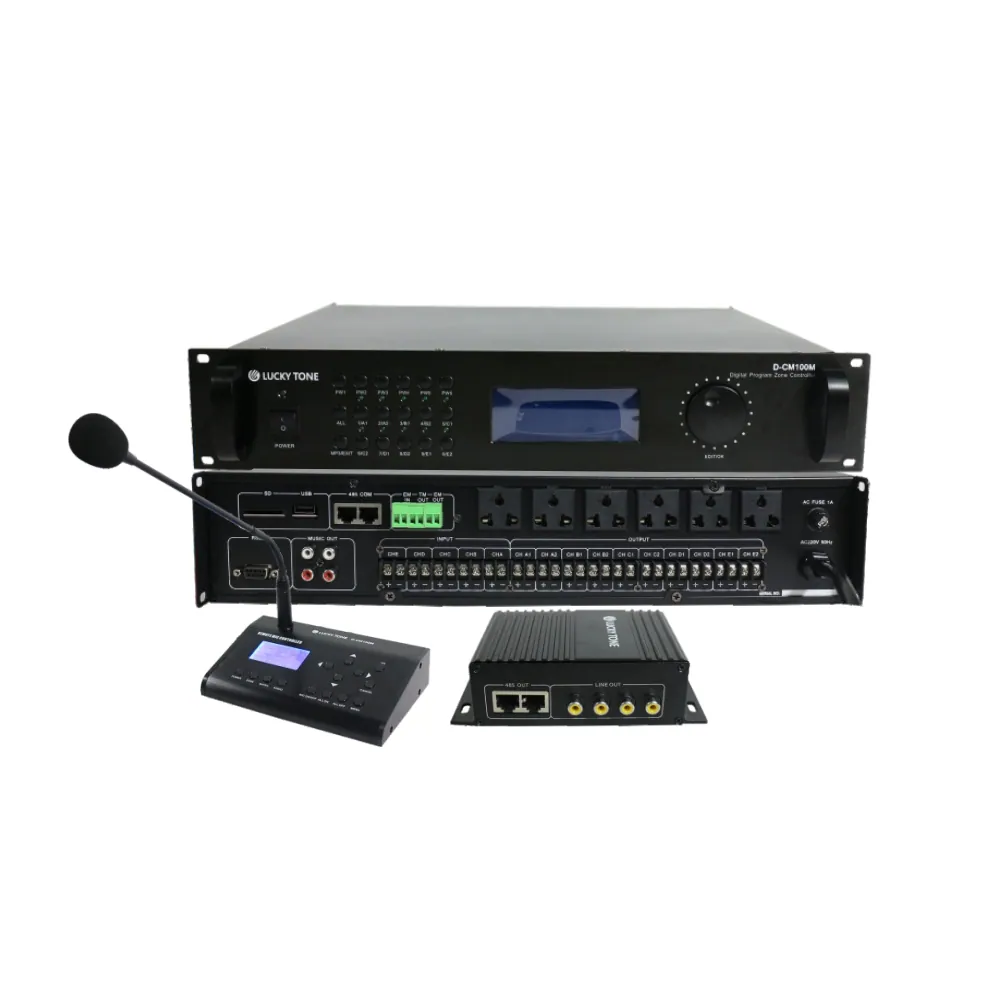

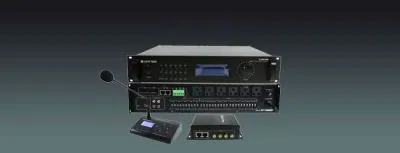

Master Control Unit DCM-100M is with built-in Mp3, USB, and programmable timer to control a small to medium PA system of 10 Zones, it can connect up to 5pcs of power amplifier and with remote control microphone.
- Power supply
- -220V/50HZ
- Weight
- 6.5KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
10 Zone All-in-one SystemPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 22 values
What this product is, in numbers.
PDFSpecifications1.7 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications22
- MODEL
- DCM-100M
- COM SPEED
- 9600bps
- Mp3 FREQUENCY RESP.
- 20Hz-20KHz/±1dB
- Mp3 S/N
- 95dB
- STORAGE
- SD card / USB
- Mp3 FORMAT
- FAT16 / FAT32
- AUDIO OUTPUT
- 1K OHM / 1V UNBAL
- AUDIO DISTORTION
- 0.10%
- FREQUENCY RESP.
- 30HZ-20KHZ
- TIME DISPLAY
- 24HOUR

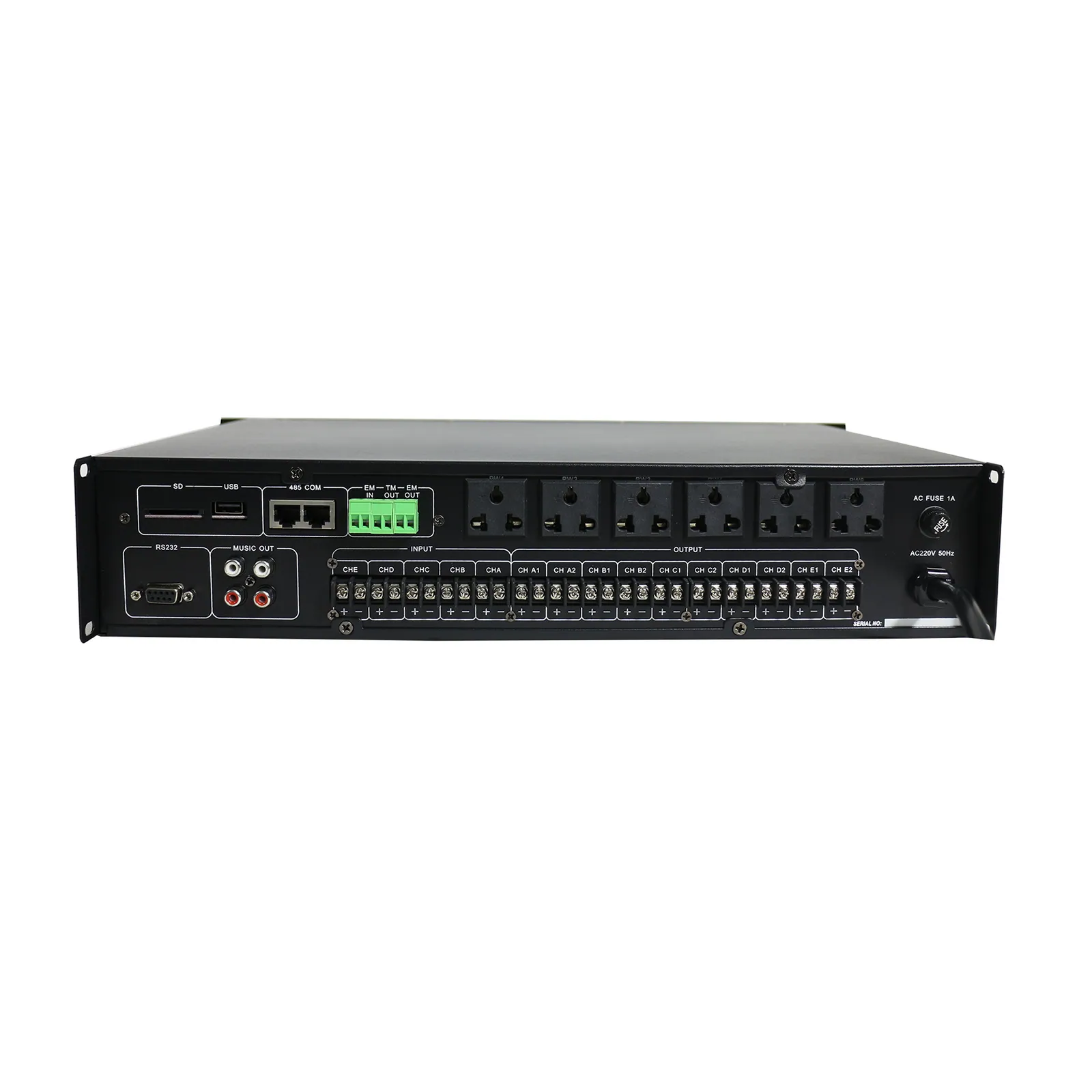

- COM PORT
- RJ45
- PROTOCOL
- RS485
- PC PROTOCOL
- RS232
- ALARM IN VOLT LEVEL
- SHORTCIRCUIT 0V
- ALARM OUT VOLT LEVEL
- SHORTCIRCUIT 0V
- POWER CONTROL VOLT
- SHORTCIRCUIT 0V
- POWER SUPPLY
- -220V/50HZ
- AC CAPACITY
- 6KVA, EACH 3KVA
- CONSUMPTION
- 20W
- PROTECT
- AC FUSE 30A
- SIZE
- 485X357X88MM
- WEIGHT
- 6.5KG
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features

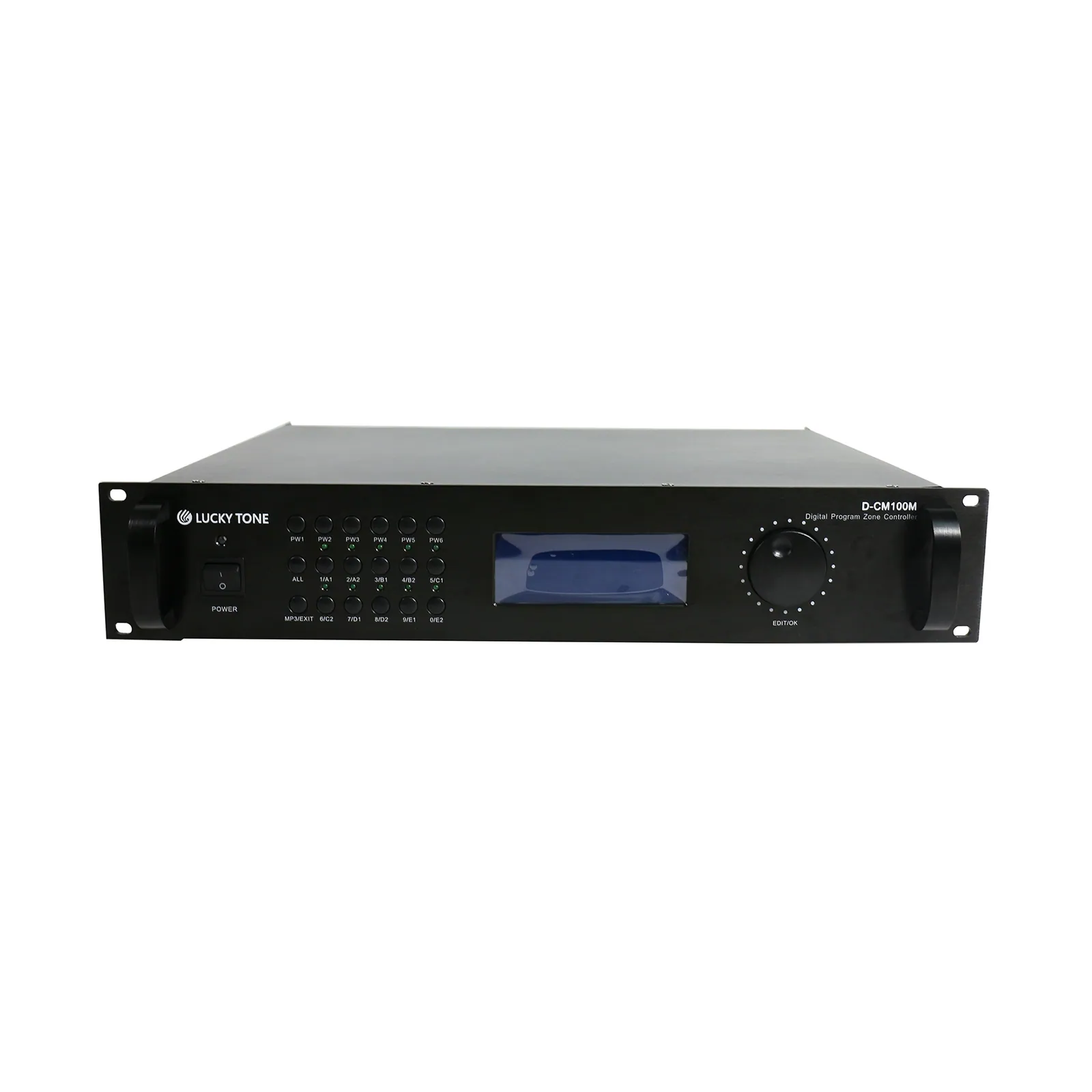

- With 192*164 LCD display screen to see the status
- 10 individual zone for programmed or manual control
- 6 universal power supply for programmed control
- With built-in USB, Mp3, and set program to play audio tasks to specific zones as well as for the aux inputs
- Support zone paging microphone for up to 1KM remote paging
- And support multiple remote microphones cost of ownership and high reliability
- Support RS 232 protocol control
03Documents1 file · 1.7 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
