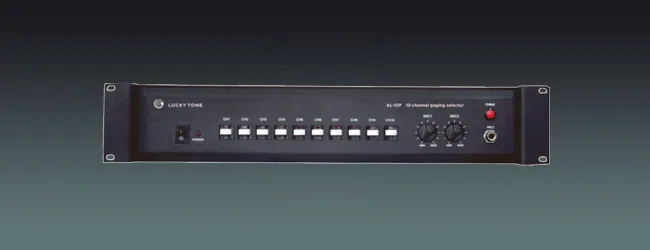

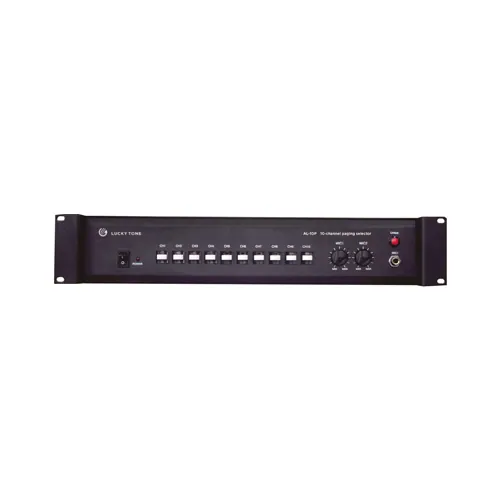

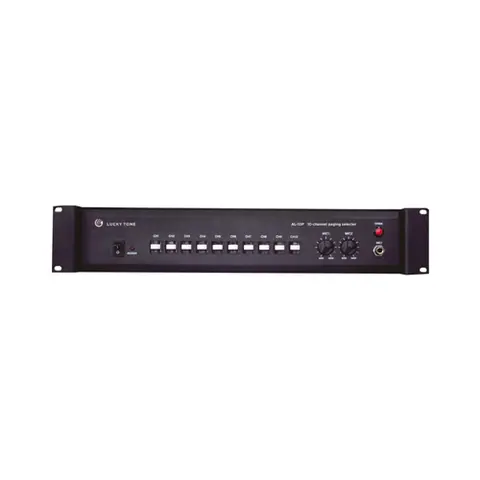

10-channel Paging Selector
ModelAL-10P
● With 1 mic, 2 aux and 4 remote paging microphone inputs
- Frequency response
- MIC:100Hz – 15KHz; Line: 60Hz – 15KHz at +/-3dB
- Dimensions
- 89(H) x 483(W) x 366(D) mm
- Weight
- 6.40kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- AL-10P
- MIC Input
- 600 Ohm 5mV, unbalanced
- Line Input
- 10K Ohm, bigger or equals to 220mV unbalanced
- Line Output
- Bigger than 775mV at 0dB, unbalanced
- Frequency Response
- MIC:100Hz – 15KHz; Line: 60Hz – 15KHz at +/-3dB
- S/N Ratio
- Better than 70dB
- THD
- Less than 0.01% at 1KHz
- Protection
- AC Fuse: 0.5A
- Mute Attenuation
- Line1 and MIC mute Line2 at 0~30dB
- Power Requirement
- 220~240V AC, 50/60Hz
- Dimensions
- 89(H) x 483(W) x 366(D) mm
- Built-in Dimensions
- 2U rack 19 inch
- Net Weight
- 6.40kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
Features
- ● Paging up to 10 speaker zones
- ● With 10 try contact in and out
- ● Built-in pleasant chime
- ● 4 priority levels MIC1 highest priority to EMC MIC, remote paging MIC and aux as last
- ● LED indicator for all the zones
