Sheet 05.372
Lucky Tone · Public address

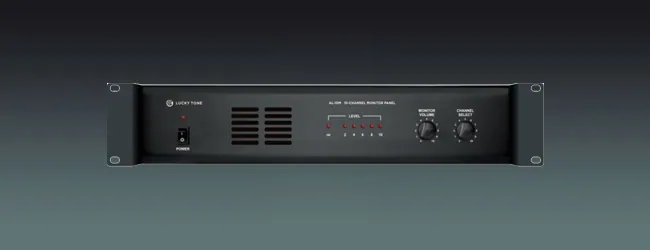

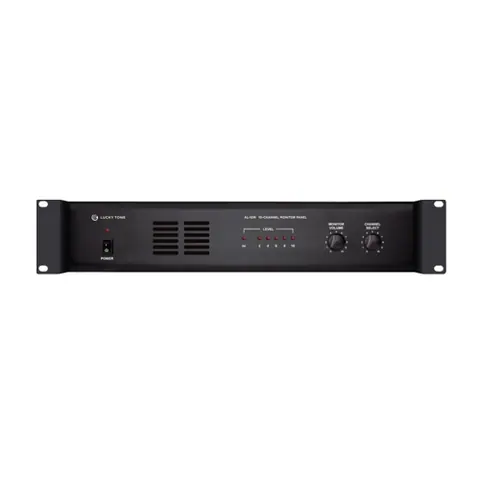

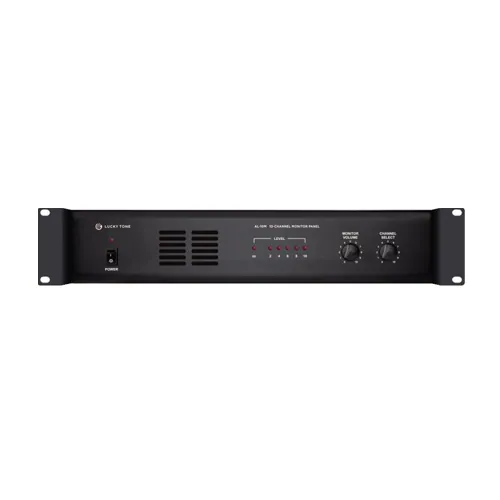

10-channel Monitor Panel
ModelAL-10M
● With built-in high fidelity loudspeaker monitoring up to 10 zones.
- Dimensions
- 89(H) x 483(W) x 366(D) mm
- Weight
- 6.10kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
10-channel Monitor PanelPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- AL-10M

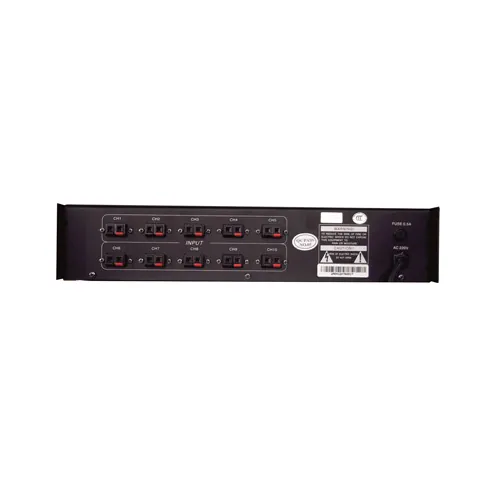

- Input
- 70/100V audio signal
- Monitored Channels
- 10
- Audible Monitor
- Full-range loudspeaker, 500mV
- Visual Monitor
- 6-element LED display, infinite, 0, 2, 4, 6, 8, 10 dB
- Controls
- Monitor volume, channel select and power switch
- Indicators
- Power LED
- Protection
- AC Fuse: 0.5A
- Power Consumption
- 10~15W
- Power Requirement
- 110~120V or 220~240V AC, 50/60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 366(D) mm
- Built-in Dimensions
- 2U rack 19 inch
- Net Weight
- 6.10kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
● 6 LED dB level meter clearly indicates the channel level status.
● The monitoring volume is adjustable as well as the 10 channel position selection.
03Documents1 file · 586 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
