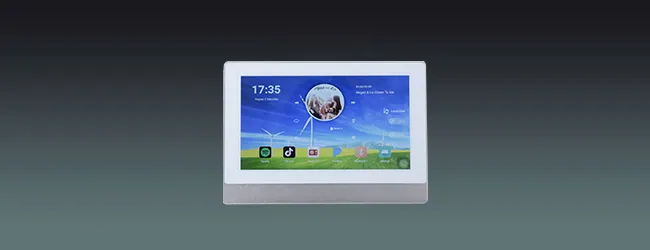

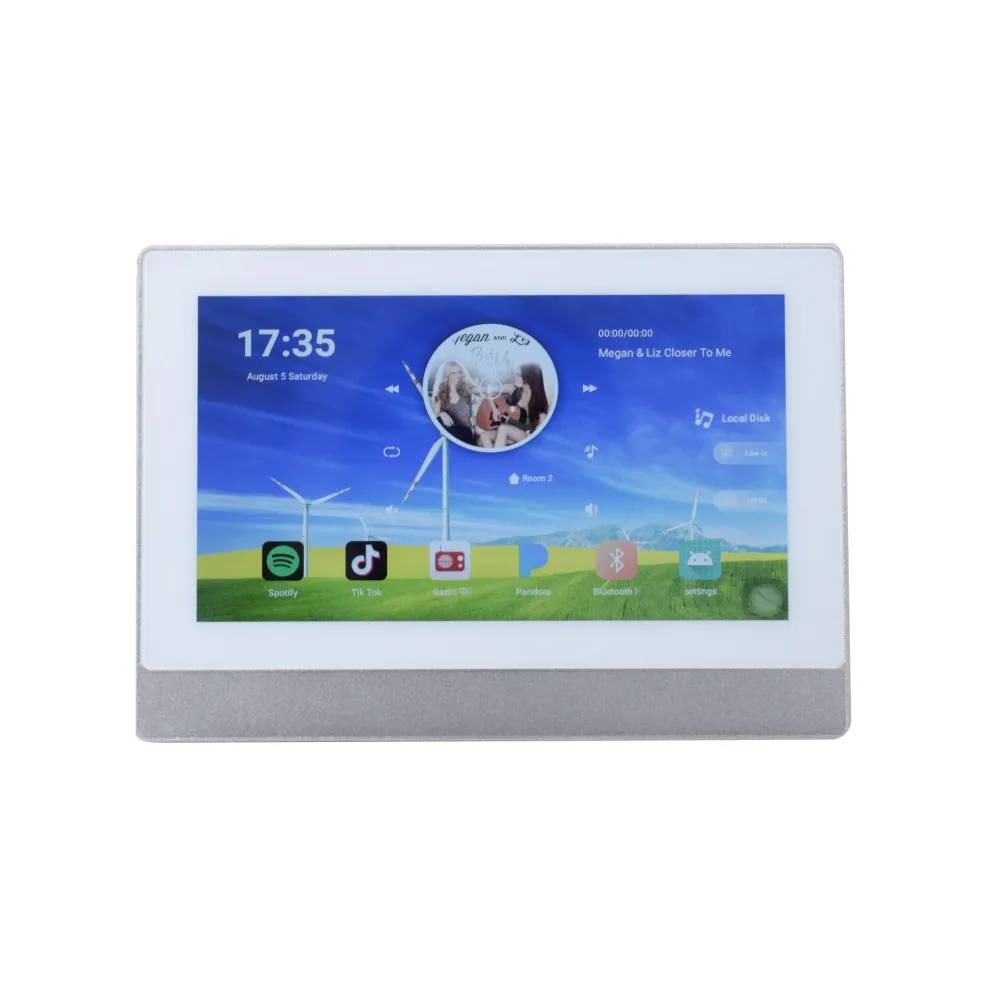

8-CH Wall Amplifier with Tuya

ModelBA-820ADT

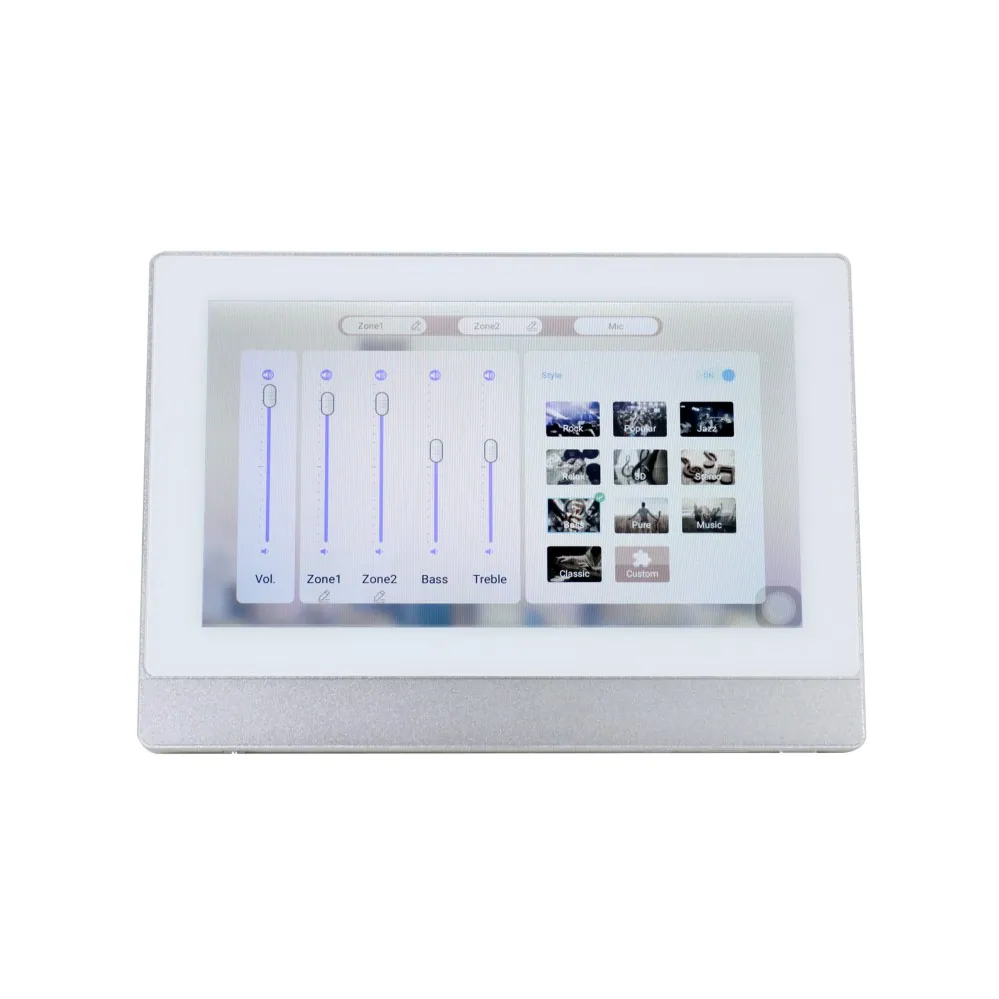

2 Zone control of music, 7 inch touch screen for easy access and control of the system.

Output power: 8*20W
Frequency response: 20 Hz-20 kHz (+/-2dB)
Weight: 0.7kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 22 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications22

Model: BA-820ADT
Output power: 8*20W
Max. power: 8*40W
Speaker Impedance: 4-8ohm
System: Android 8.1
RAM: 2GB
ROM: 16GB
Network: WIFI
CPU: ARM Quad-Core Cortex-A35 1.5GHz
Display: 7inch HD touch screen
Resolution: 1024*600 IPS
Bluetooth wireless range: 10M
USB: OTG USB
THD: 0.03% (1W.1KHZ)
Frequency response: 20 Hz-20 kHz (+/-2dB)
SNR: 98db
Music format: Mp3, WMA, WAV, AAC, WAW, APE, OGG, etc.
Video format: MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB,AVI, 3GP, H, 264, etc.
Power Requirements: 110-250VAC

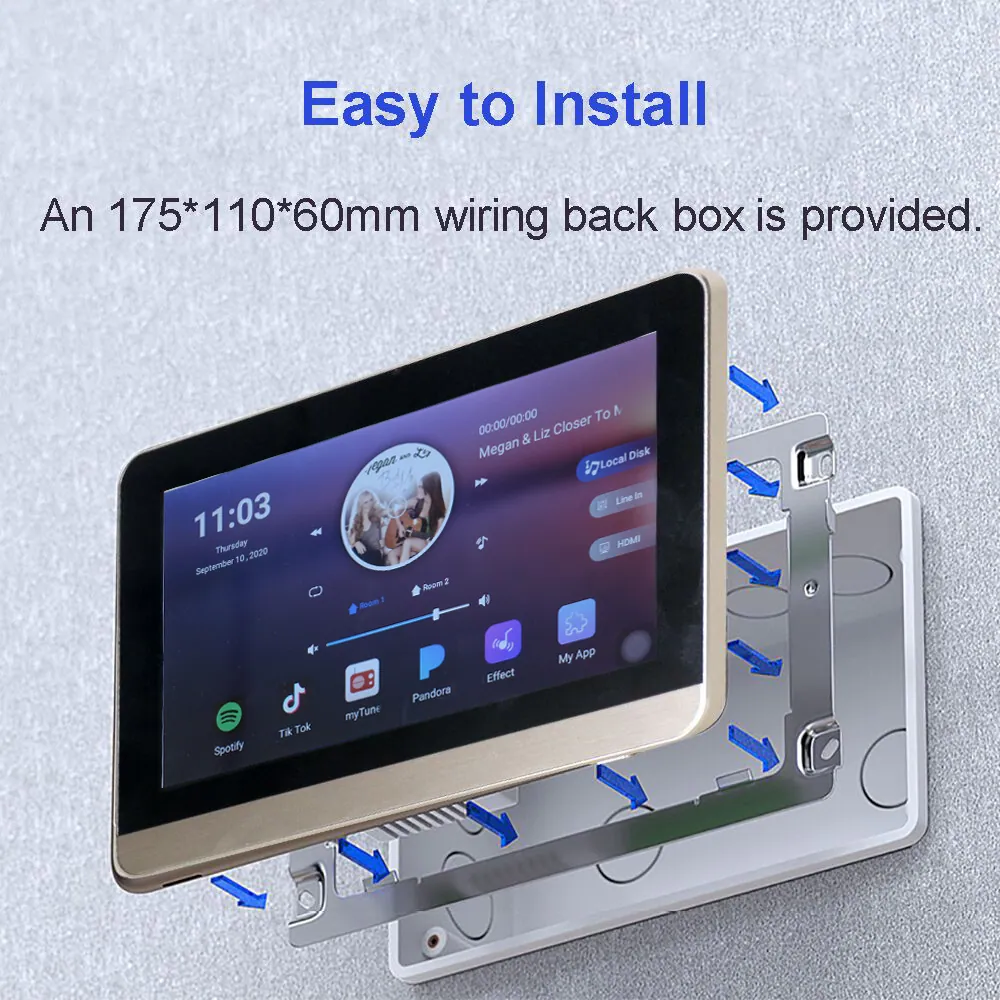

Wiring box size: 110*175*59mm
Product size: 129*184.6*10.5mm
Weight: 0.7kg

02DescriptionManufacturer's description

What it is.

Multi-protocol smart home docking including 485, ZIGBEE, WIFI, etc.

Can install Spotify, Pandora music APPs to play real time music via WiFi.

Support for external Bluetooth devices such as mobile phones to achieve audio playback, two-way control of playing external Bluetooth device music.

Support wireless microphone and family karaoke (optional function);
Support audio input and output function; Support subwoofer access;
Support TF card and OTG 2.0USB interface, USB can be connected to the hard disk;
Suitable for homes, commercial areas, kid’s room, etc.
With RS 485 control.
