Sheet 05.214
Lucky Tone · Loudspeakers

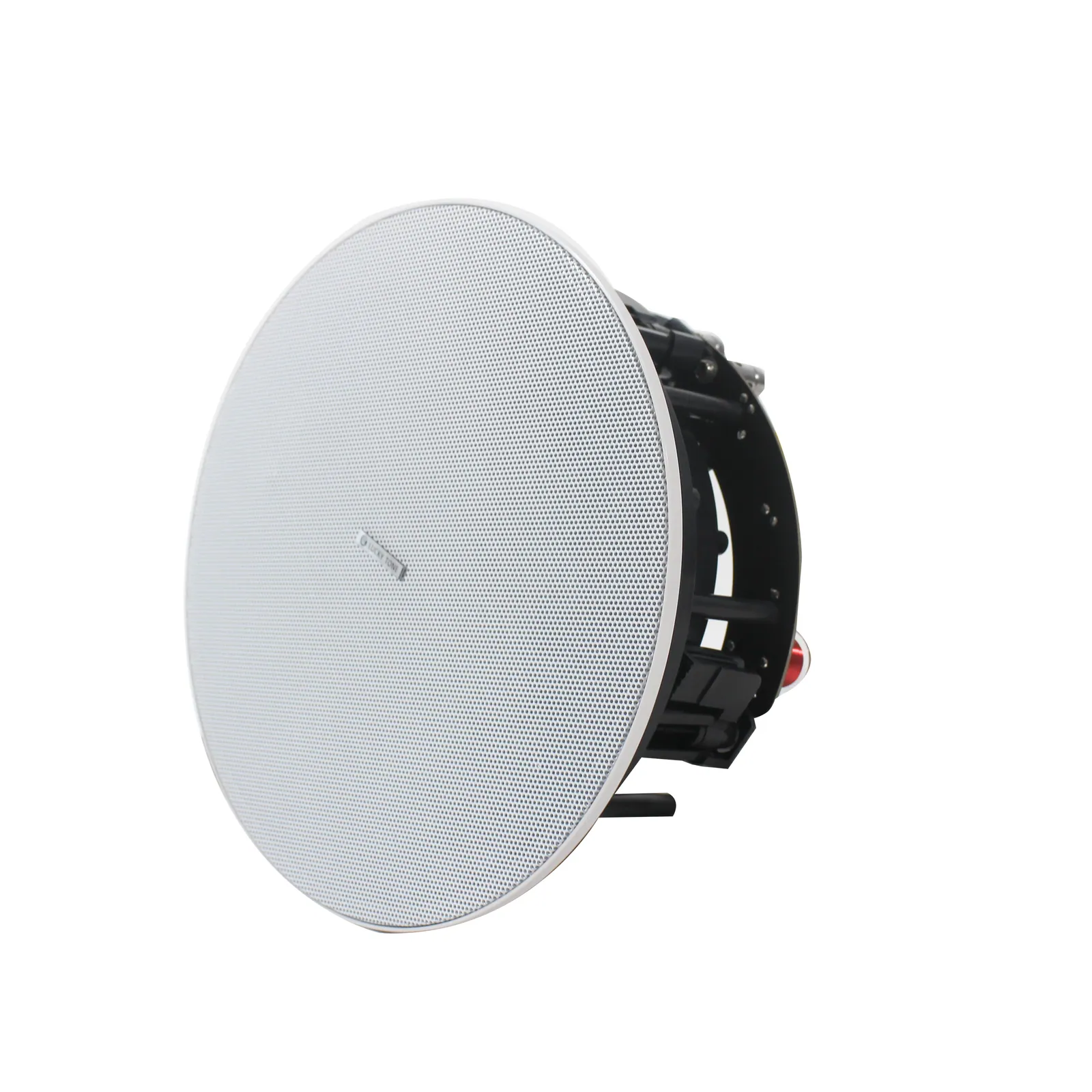

Tilted Rimless Ceiling Speaker
ModelSM-6100T / SM-6100TS / SM-8120T / SM-8120TS
Tilted rimless design for versatile installation options and aesthetic appeal.
- Output power
- SM-6100T: 100W; SM-6100TS: 100W; SM-8120T: 120W; SM-8120TS: 120W
- Weight
- SM-6100T: 1.66kg; SM-6100TS: 1.7kg; SM-8120T: 2.66kg; SM-8120TS: 2.7kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Tilted Rimless Ceiling SpeakerPrice on requestRequest a quotation
01Models4 models in the family
Models compared.
| Model | SM-6100T | SM-6100TS | SM-8120T | SM-8120TS |
|---|---|---|---|---|
| Shape of Grille | Round | Square | Round | Square |
| Output Power | 100W | 100W | 120W | 120W |
| Impedance | 8ohm | 8ohm | 8ohm | 8ohm |
| SPL (1W/1M) | 89dB | 89dB | 90dB | 90dB |
| Freq. Response | 60-20KHz | 60-20KHz | 40-20KHz | 40-20KHz |
| Crossover | 12dB | 12dB | 12dB | 12dB |
| Installation | In-ceiling | In-ceiling | In-ceiling | In-ceiling |
| Enclosure Material | ABS | ABS | ABS | ABS |
| Net Weight | 1.66kg | 1.7kg | 2.66kg | 2.7kg |
| Finish | White | White | White | White |
| Woofer | 6.5§ fiberglass woofer, rubber surround | 6.5§ fiberglass woofer, rubber surround | 8§ fiberglass woofer, rubber surround | 8§ fiberglass woofer, rubber surround |
| Tweeter | 25mm voice coil silk soft dome | 25mm voice coil silk soft dome | 25mm voice coil silk soft dome | 25mm voice coil silk soft dome |
02DescriptionManufacturer's description
What it is.
- Available in both 6/8-inch variations to suit different room sizes and acoustic needs.

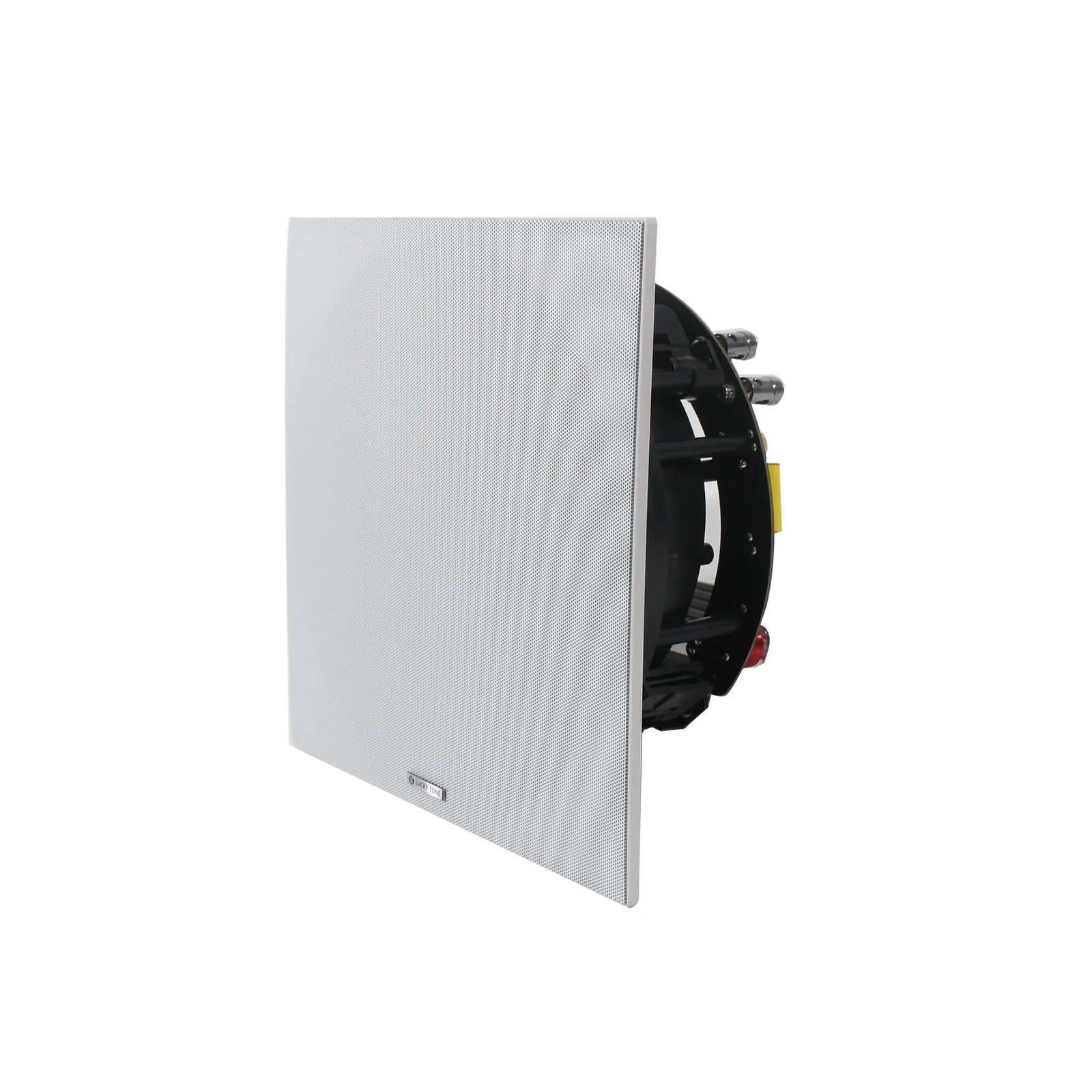

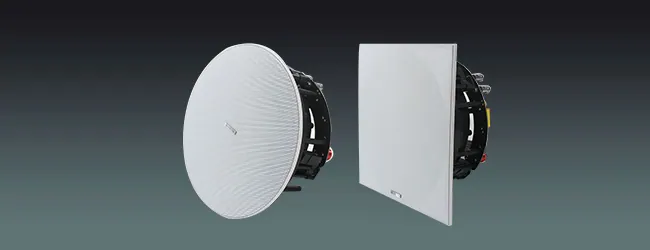

- Offers square and round grille versions for seamless integration with various architectural styles.

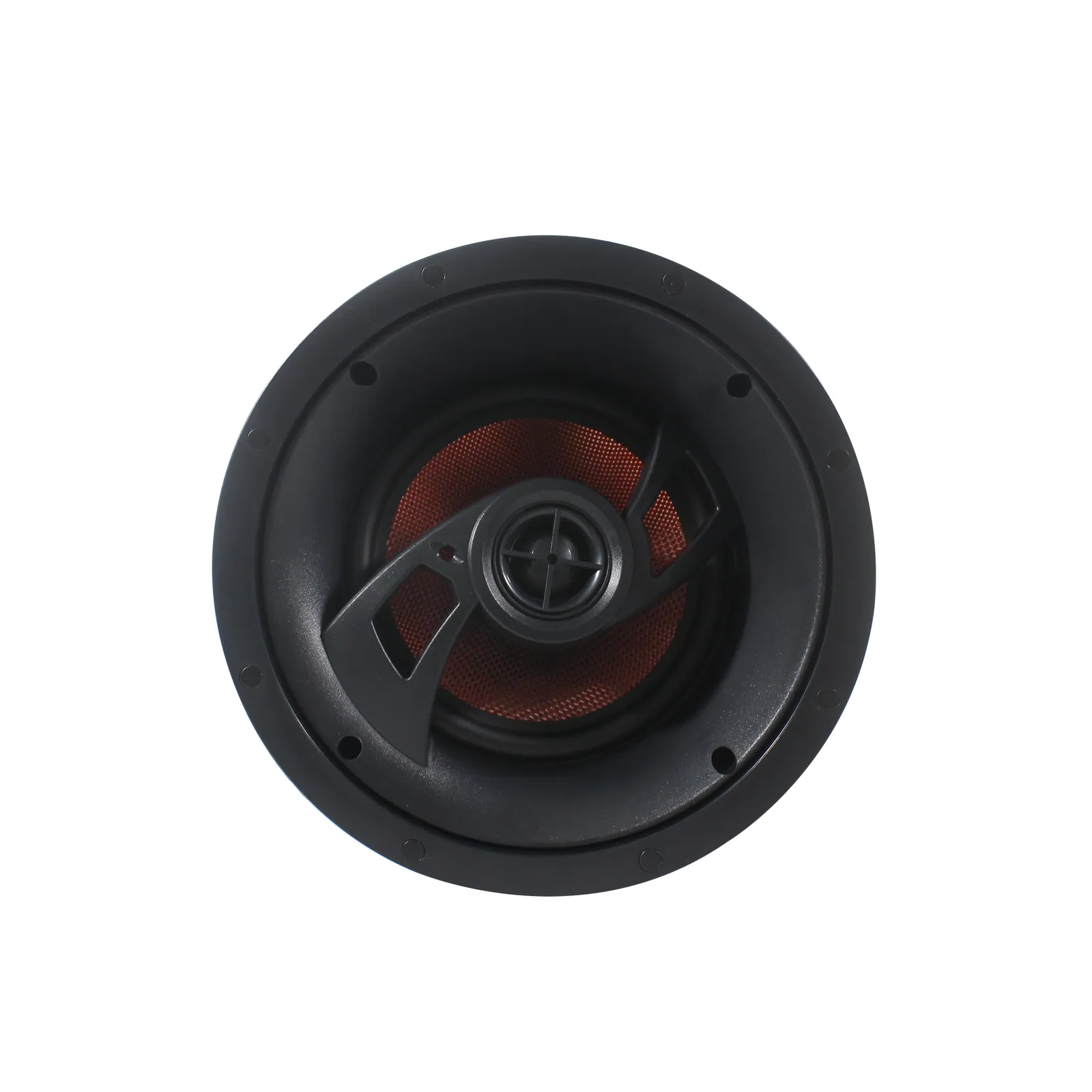

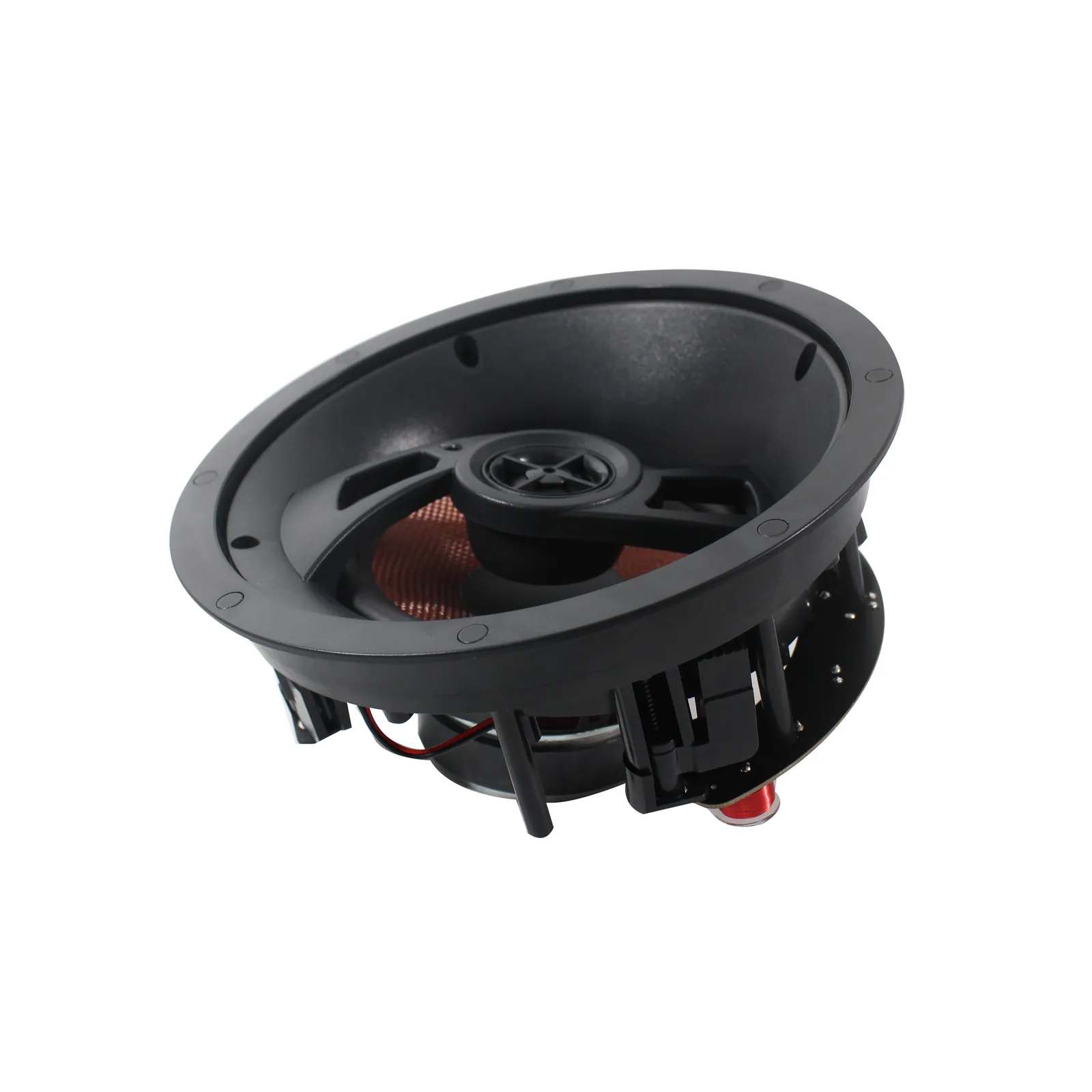

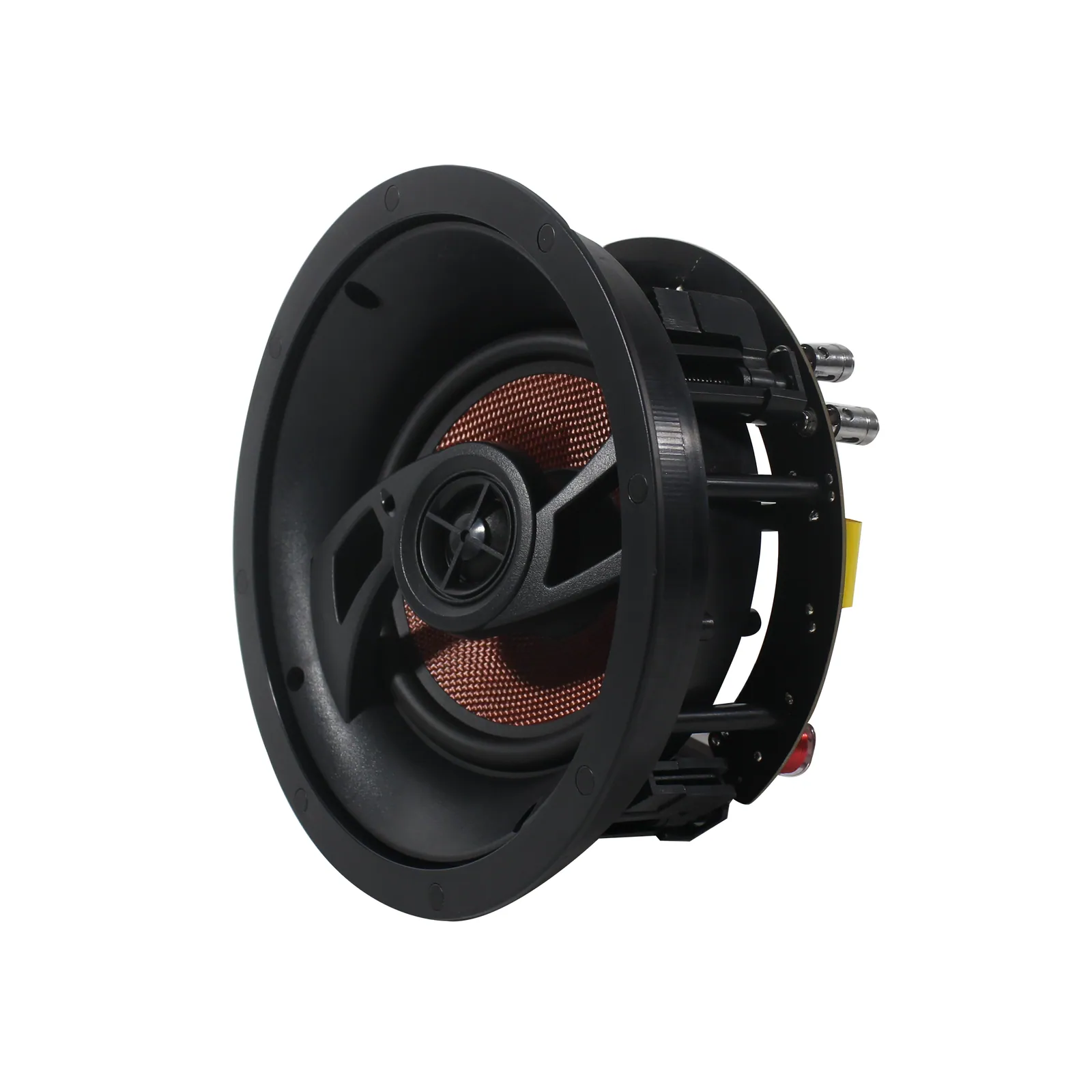

- Features an angle-changeable Titanium tweeter for precise sound directionality and dispersion.
- Equipped with a crossover system to deliver clear, powerful audio tailored for high-demand environments.
03Documents1 file · 16 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
