Sheet 05.248
Lucky Tone · Power amplifiers
CK. Power amplifier
ModelCK-200 / CK-300 / CK-500
Large energy power supply , high-efficiency and super ring transformer
- Frequency response
- 20Hz-20kHz ±1dB
- Power supply
- 220V/240V AC50~60Hz
- Weight
- CK-200: 10.5kg; CK-300: 13.02kg; CK-500: 14.8kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
CK. Power amplifierPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | CK-200 | CK-300 | CK-500 |
|---|---|---|---|
| 4Ω load | 300Wx2 | 450Wx2 | 800Wx2 |
| 8Ω load | 200Wx2 | 300Wx2 | 500Wx2 |
| 8Ω bridge load | 600W | 900W | 1000W |
| Frequency response | 20Hz-20kHz ±1dB | 20Hz-20kHz ±1dB | 20Hz-20kHz ±1dB |
| SNR | >100dB | >100dB | >100dB |
| Total Harmonic distortion | <0.01% | <0.01% | <0.01% |
| Input impedance | 20kΩ | 20kΩ | 20KΩ |
| Input voltage | 0.775V,1,1.4V | 0.775V,1,1.4V | 0.775V,1,1.4V |
| Input connect | XLR | XLR | XLR |
| Output connect | Neutrik Speakon | Neutrik Speakon | Neutrik Speakon |
| Switch mode | Stereo/Bridge/Parallel | Stereo/Bridge/Parallel | Stereo/Bridge/Parallel |
| Power supply | 220V/240V AC50~60Hz | 220V/240V AC50~60Hz | 220V/240V AC50~60Hz |
| Size(L×D×W)mm | 480x350x88 | 480x350x88.9 | 480x350x88 |
| Weight | 10.5kg | 13.02kg | 14.8kg |
02DescriptionManufacturer's description
What it is.
2U standard
- Input signal set 0.775V ,1V and 14V selection switch
- With protection, signal, clip, bridge and power LED
- Lift and right channel with dual polar cooling fan, high- efficiency air cooling channel
- With a power star soft , DC protection , short protection , thermal protection, overload protection
03Documents1 file · 1.1 MB
Documents and files.

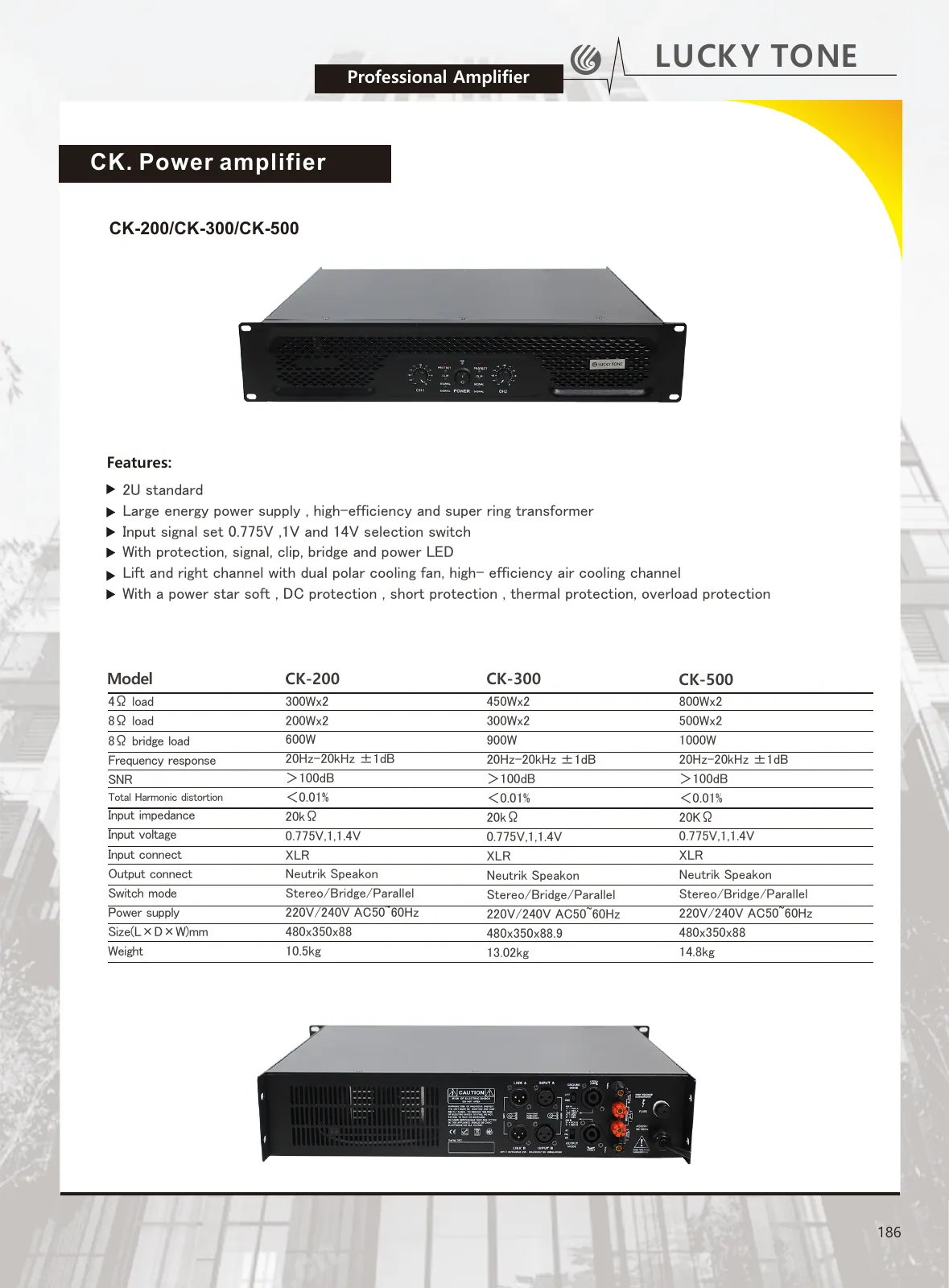

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
