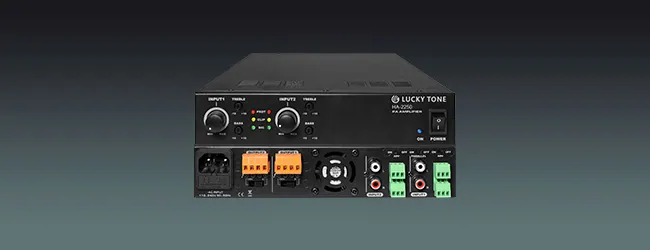

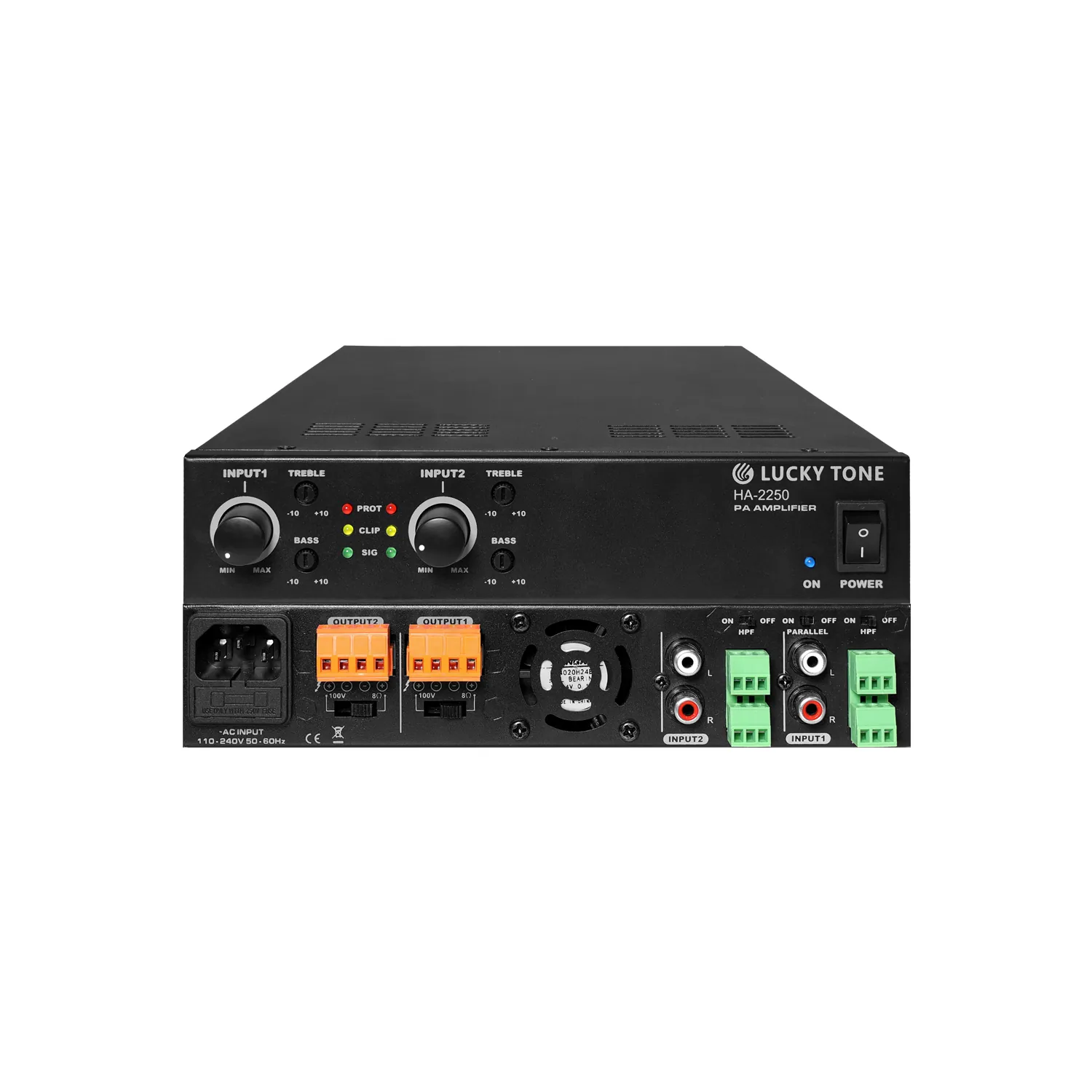

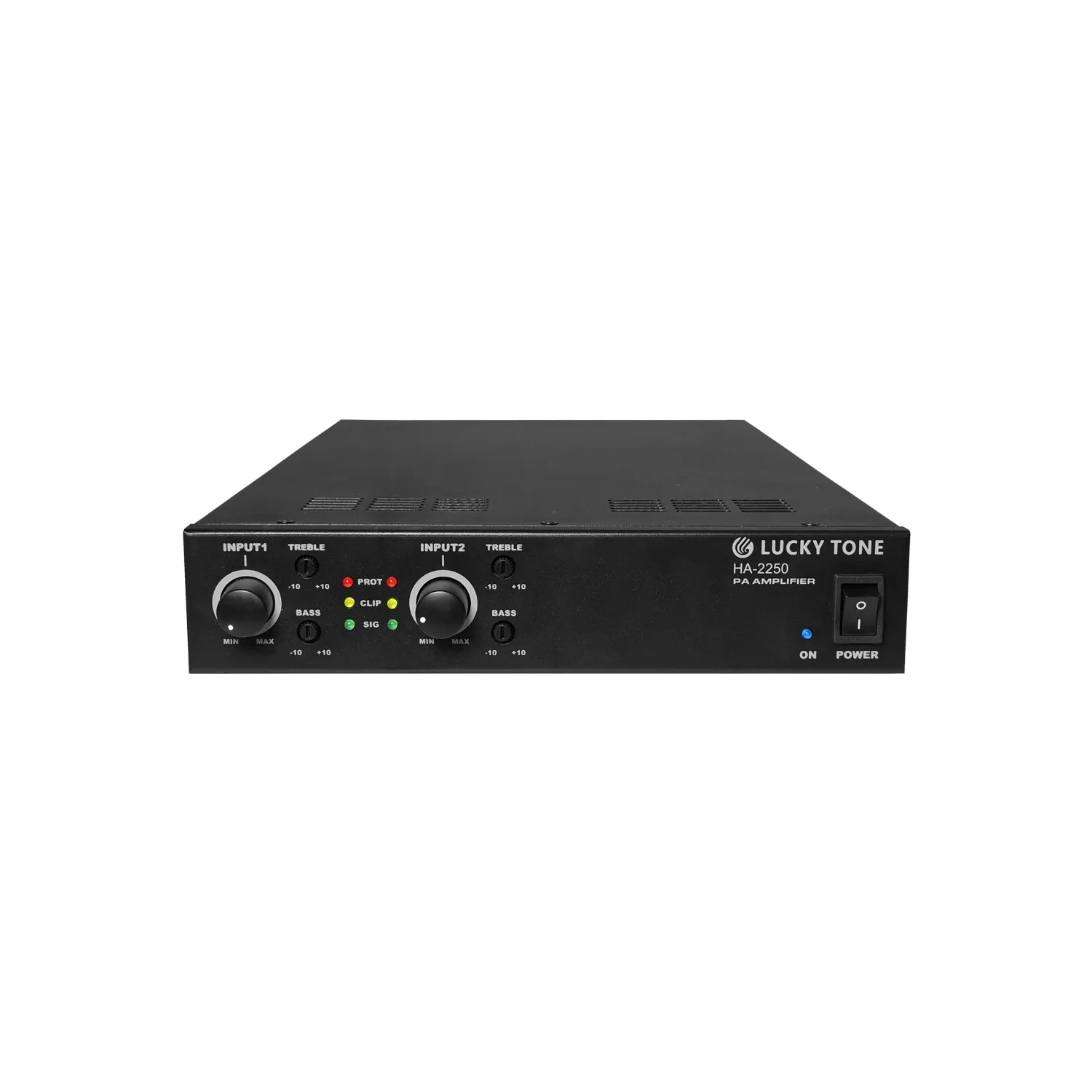

HA Series 2-Channel Power Amplifier
ModelHA-260 / HA-2120 / HA-2250 / HA-2500
The HA series amplifiers are comprehensive, all-in-one desktop type mixer-amplifier solutions for commercial and industrial applications. These low-cost units provide all necessary features in a simple building.
- Frequency response
- 80Hz~17KHz ( +1dB /-3dB )
- Weight
- HA-260: 3.5kg; HA-2120: 3.3kg; HA-2250: 3.3kg; HA-2500: 3.3kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
HA Series 2-Channel Power AmplifierPrice on requestRequest a quotation
01Models4 models in the family
Models compared.
| Model | HA-260 | HA-2120 | HA-2250 | HA-2500 |
|---|---|---|---|---|
| Rated Power at 8ohm | 4x30W | 4x60W | 4x120W | 4x240W |
| Bridged Power at 100V | 2x60W | 2x120W | 2x240W | 2x480W |
| Input sensitivity / Impedance | -0dBu/10kohm Unbalanced / Balanced | -0dBu/10kohm Unbalanced / Balanced | -0dBu/10kohm Unbalanced / Balanced | -0dBu/10kohm Unbalanced / Balanced |
| Power Supply Voltage | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz |
| Power Consumption | 195W | 360W | 635W | 1120W |
| Speaker Output | 100V / 8Ω | 100V / 8Ω | 100V / 8Ω | 100V / 8Ω |
| Frequency Response | 80Hz~17KHz ( +1dB /-3dB ) | 80Hz~17KHz ( +1dB /-3dB ) | 80Hz~17KHz ( +1dB /-3dB ) | 80Hz~17KHz ( +1dB /-3dB ) |
| S/N Ratio | >80dB (with A-Weight) | >80dB (with A-Weight) | >80dB (with A-Weight) | >80dB (with A-Weight) |
| T.H.D | <1% (at rated power, 1kHz) | <1% (at rated power, 1kHz) | <1% (at rated power, 1kHz) | <1% (at rated power, 1kHz) |
| Working Humidity | 0.9 | 0.9 | 0.9 | 0.9 |
| Output Channel | 2 channel | 2 channel | 2 channel | 2 channel |
| Tone Controls | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | Bass:100Hz(±10dB), Treble:10KHz(±10dB) |
| Working Temperature | 0 °C ~+40 °C | 0 °C ~+40 °C | 0 °C ~+40 °C | 0 °C ~+40 °C |
| Product Dimension (WxHxD) | 215*44*330 mm (Half-U) | 215*44*330 mm (Half-U) | 215*44*330 mm (Half-U) | 215*44*330 mm (Half-U) |
| Net Weight | 3.5kg | 3.3kg | 3.3kg | 3.3kg |
02DescriptionManufacturer's description
What it is.
- Two line inputs with Euro block and RCA jack.
- Acceptable wide range input level.
- 60Watts ~ 480Watts output.
- Advanced protection system includeds current limiting, over current and thermal protections.

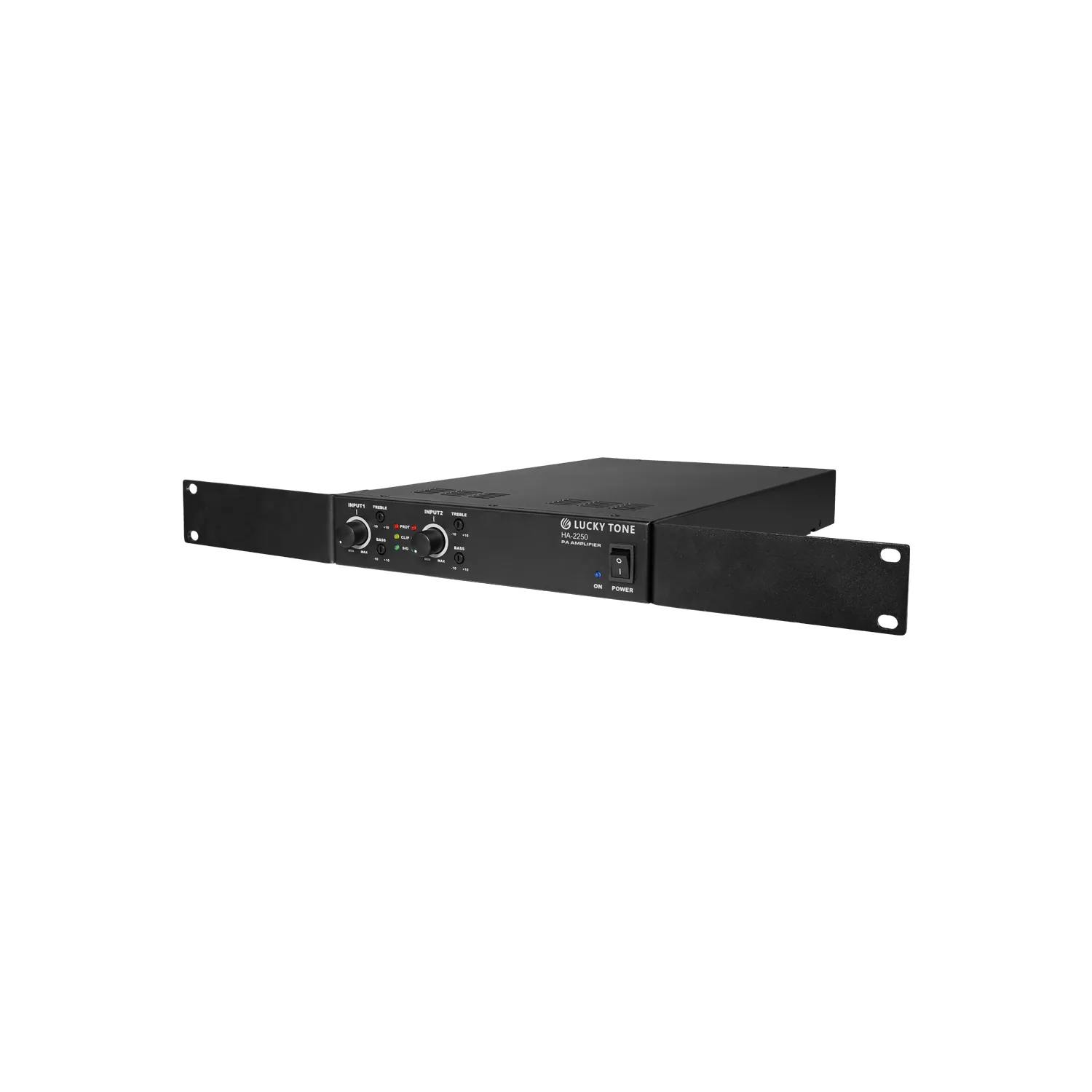

- Desktop type with rack mount bracket
- Two bands tone controls
- Low distortion and low noise level
- Compact size and light weight
- Ideal commercial and industrial use
Controls

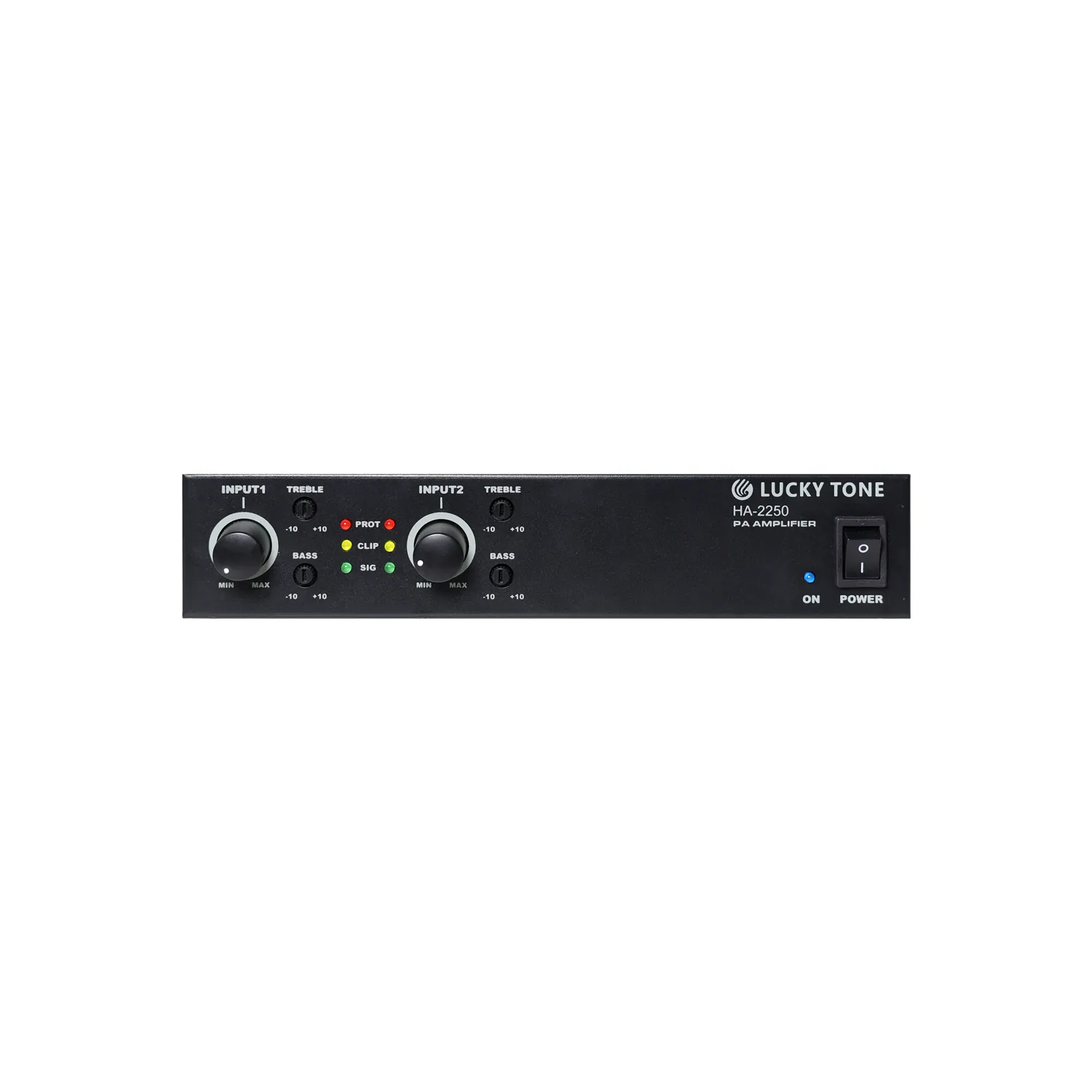

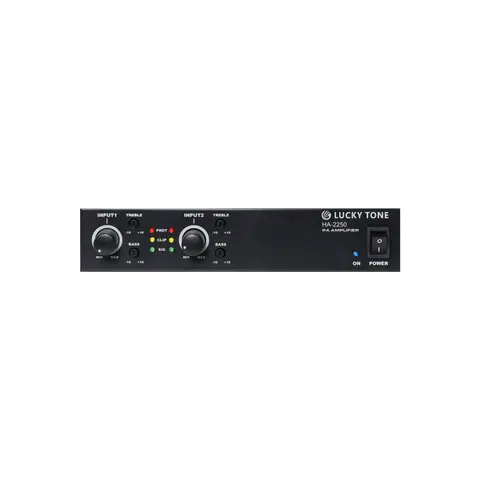

Front: 2 Channel Volume Control & Tone Control .

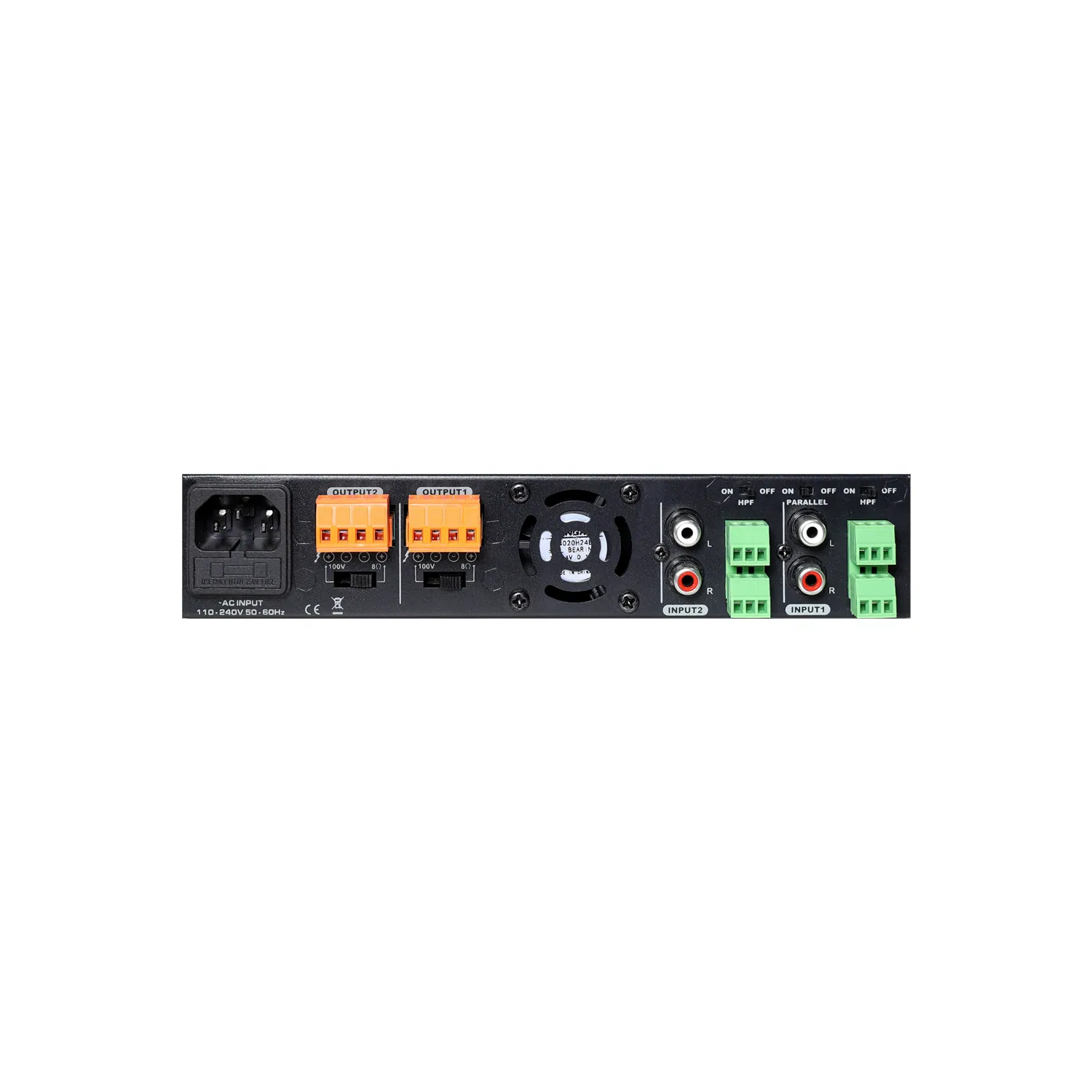

Rear: Parallel selector, 100V/8ohm selector, HPF Switch.
Connectors
- Euro Block for Channel 1-2 Input and link output.
- RCA for Channel 1-2 Input.
- Euro Block for Speaker Output.
- Indicators : Power, Signal, Signal, Clip and Protect.
- Protection : Current Limiting, Thermal & DC Offset Protection.
- Cooling : FAN Cooling.
