Sheet 05.247
Lucky Tone · Power amplifiers

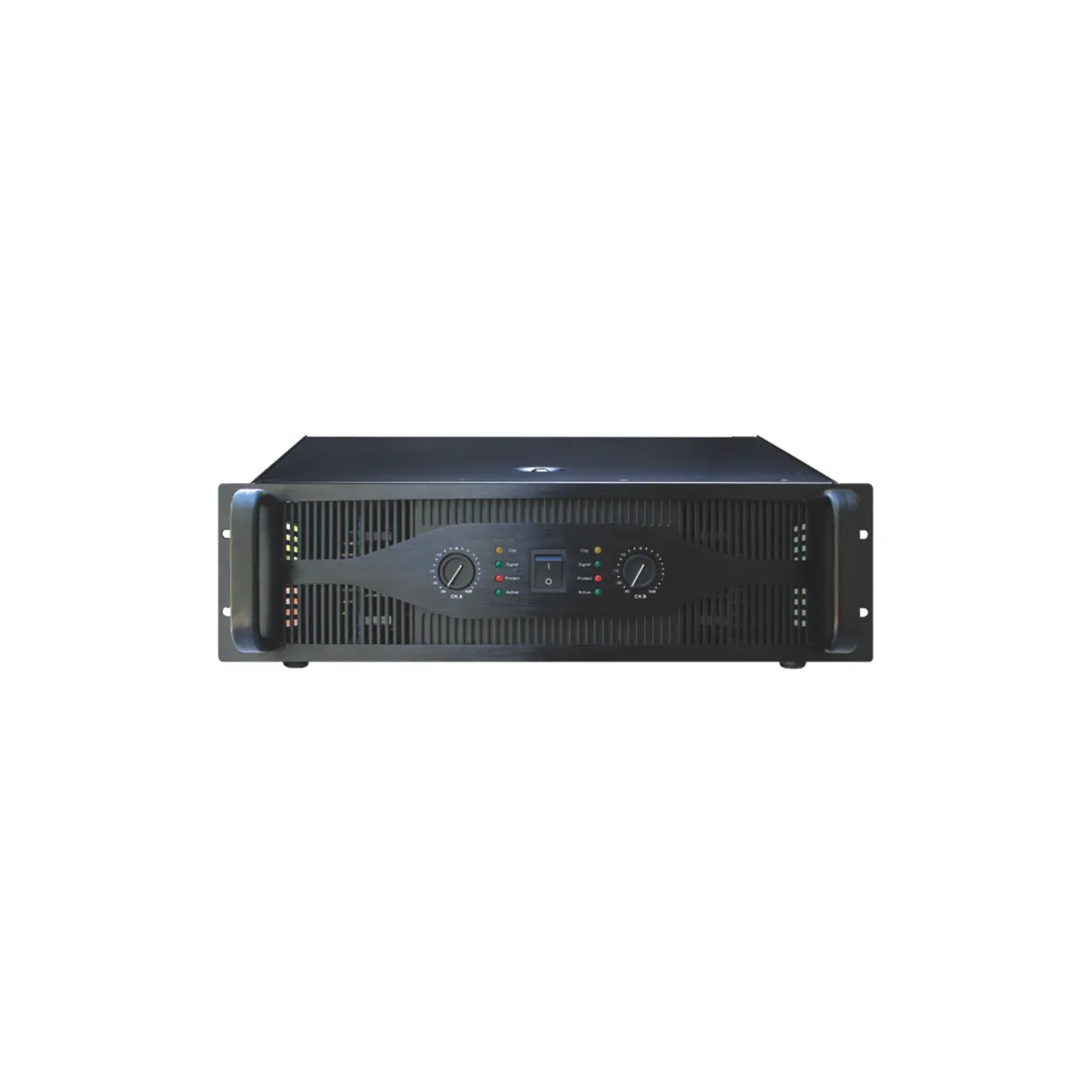

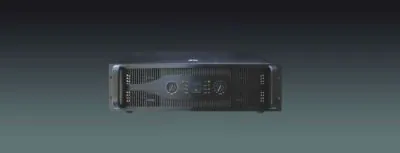

CH. Power amplifier
ModelCH-1000 / CH-1200 / CH-1600
Large energy power supply , high-efficiency and super ring transformer
- Frequency response
- CH-1000: 20Hz-20kHz ±1dB; CH-1200: 20Hz-20kHz ±1dB; CH-1600: 10Hz-20kHz ±1dB
- Power supply
- 220V/240V AC50~60Hz
- Weight
- CH-1000: 29kg; CH-1200: 31kg; CH-1600: 36kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
CH. Power amplifierPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | CH-1000 | CH-1200 | CH-1600 |
|---|---|---|---|
| 4Ω load | 1500Wx2 | 1800Wx2 | 2400Wx2 |
| 8Ω load | 1000Wx2 | 1200Wx2 | 1600Wx2 |
| 8Ω bridge load | 3000W | 3600W | 4800W |
| Frequency response | 20Hz-20kHz ±1dB | 20Hz-20kHz ±1dB | 10Hz-20kHz ±1dB |
| SNR | >100dB | >100dB | >110dB |
| Total Harmonic distortion | <0.01% | <0.01% | <0.005% |
| Input impedance | 20KΩ | 20KΩ | 20KΩ |
| Input voltage | 0.775V,1v,1.4v | 0.775V,1v,1.4v | 0.775V,1v,1.4v |
| Input connect | XLR | XLR | XLR |
| Output connect | Neutrik Speakon | Neutrik Speakon | Neutrik Speakon |
| Switch mode | Stereo/Bridge/Parallel | Stereo/Bridge/Parallel | Stereo/Bridge/Parallel |
| Power supply | 220V/240V AC50~60Hz | 220V/240V AC50~60Hz | 220V/240V AC50~60Hz |
| Size(L×D×W)mm | 482x470x133 | 482x470x133 | 482x470x133 |
| weight | 29kg | 31kg | 36kg |
02DescriptionManufacturer's description
What it is.
3U standard
- Input signal set 0.775V ,1V and 14V selection switch
- With protection, signal, clip, bridge and power LED
- Left and right channel with dual polar cooling fan, high-efficiency air cooling channel
- With a power star soft , DC protection, short protection, thermal protection, overload protection
