Sheet 05.246
Lucky Tone · Power amplifiers

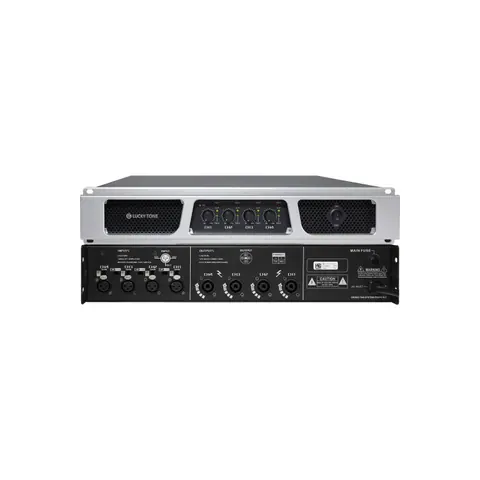

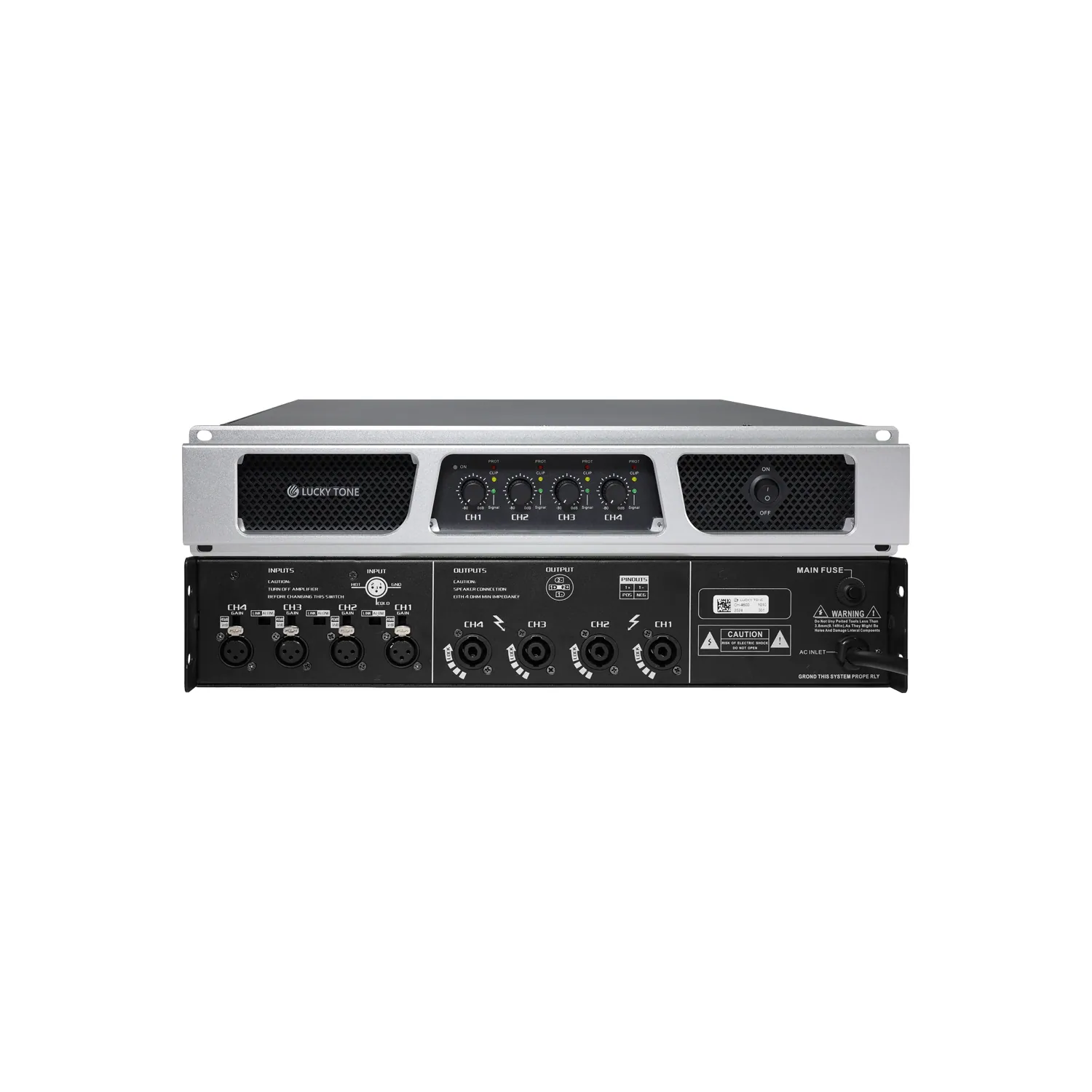

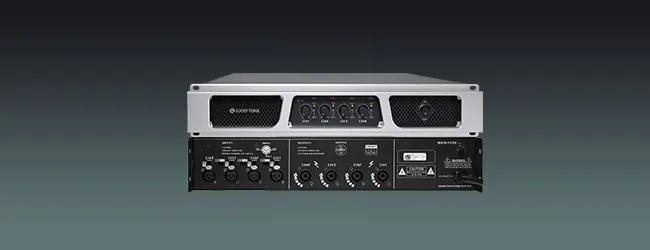

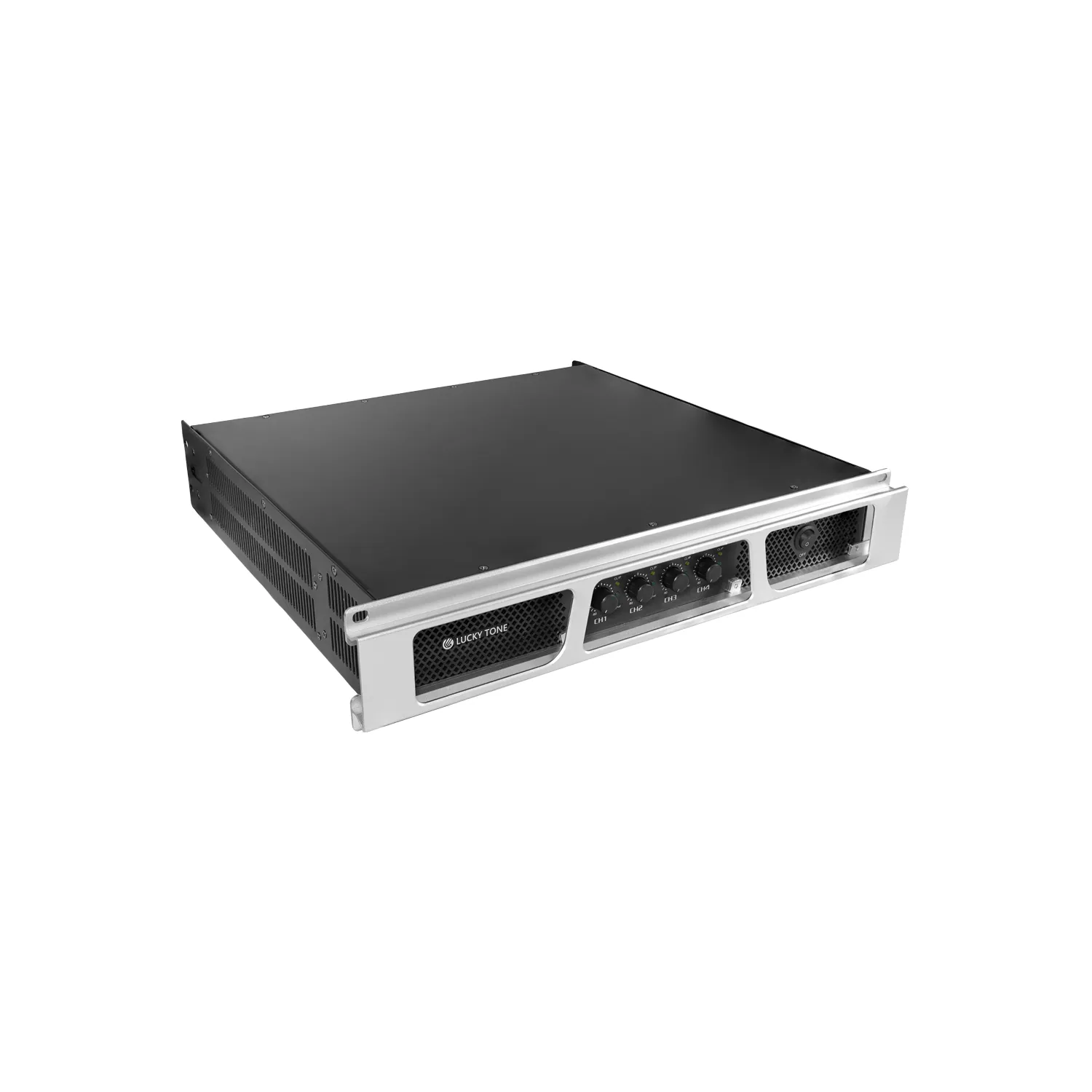

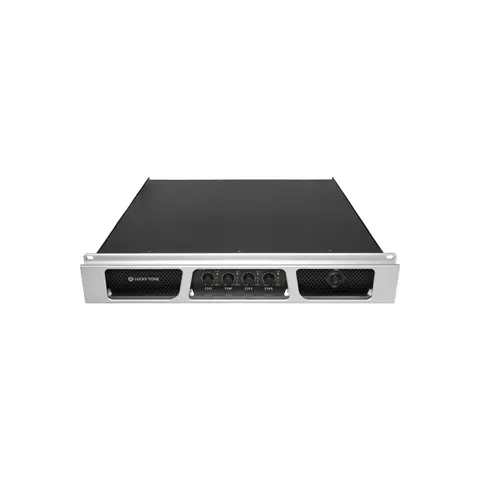

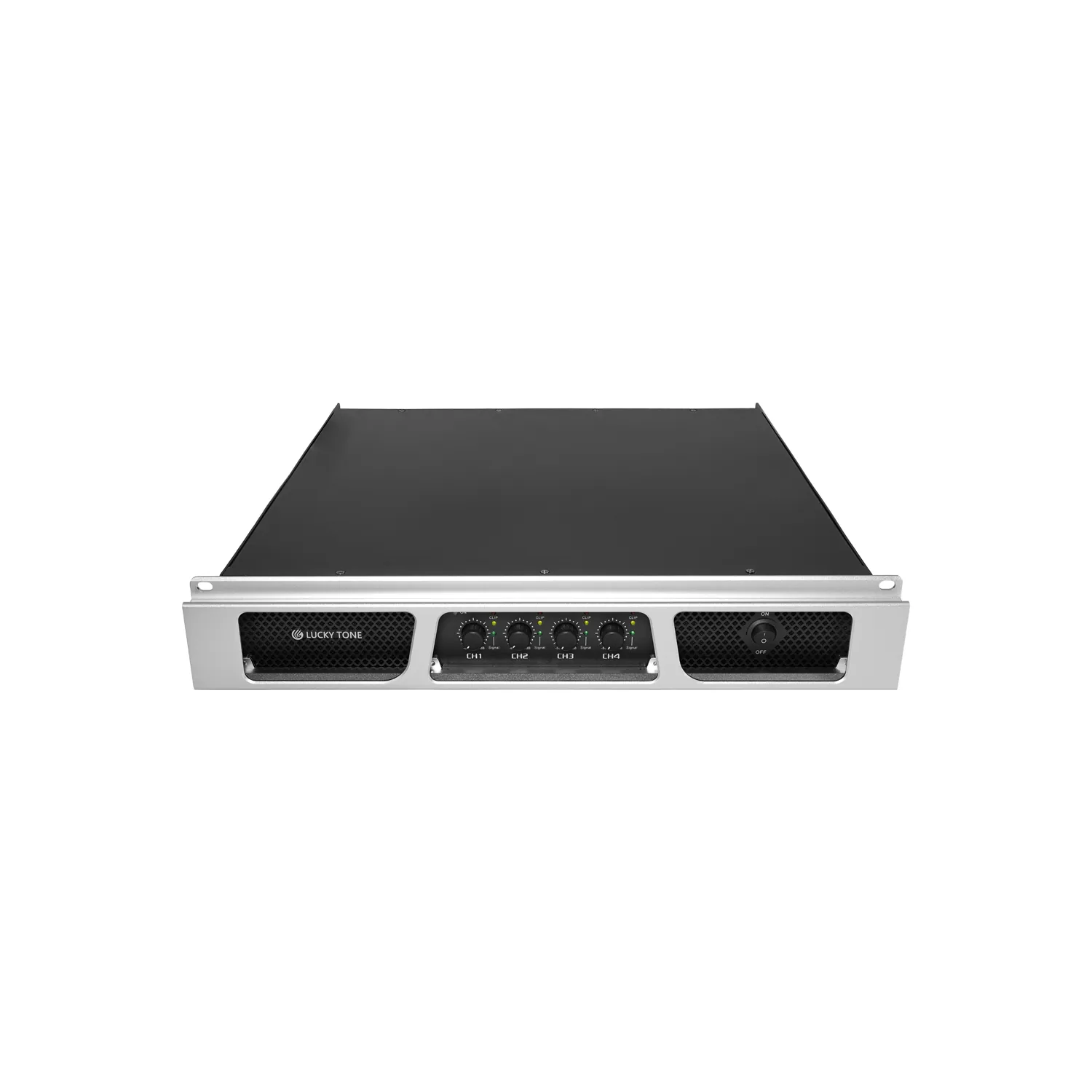

CH Series 4-Channel Power Amplifier
ModelCH- 4600 / CH- 4800
: Standard 2U form factor for easy integration into professional audio setups.
- Output power
- CH- 4600: 4x600W@8ohm, 4x870W@4ohm; CH- 4800: 4x800W@8ohm, 4x1160W@4ohm
- Frequency response
- CH- 4600: 20Hz-20kHz(+/-1dB); CH- 4800: 20Hz-20kHz: +/-1dB
- Power supply
- AC190V-250V 50/60HZ
- Weight
- CH- 4600: 22.76Kg; CH- 4800: 24.1Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
CH Series 4-Channel Power AmplifierPrice on requestRequest a quotation
01Models2 models in the family

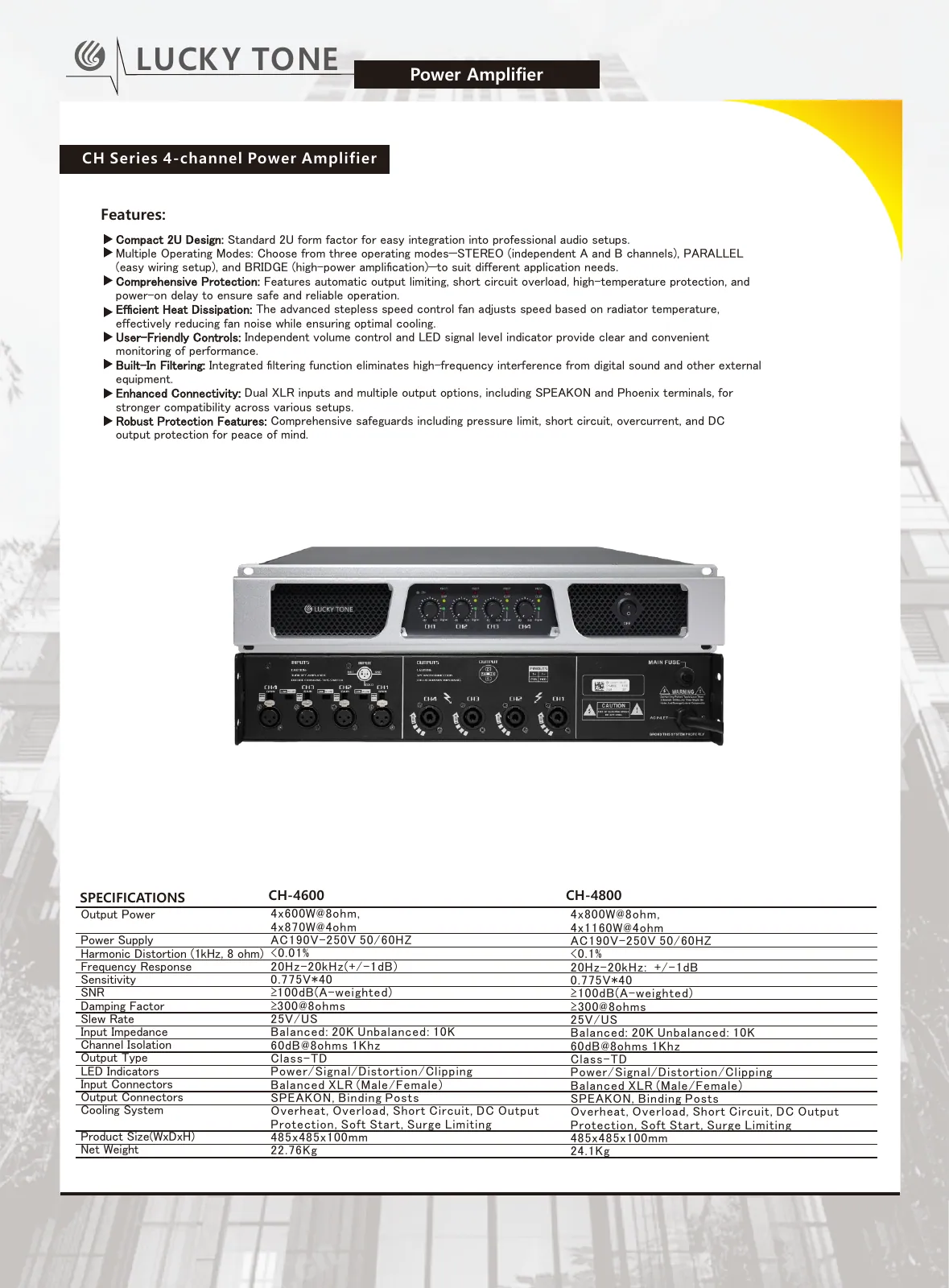

Models compared.
| Model | CH- 4600 | CH- 4800 |
|---|---|---|
| Output Power | 4x600W@8ohm, 4x870W@4ohm | 4x800W@8ohm, 4x1160W@4ohm |
| Power Supply | AC190V-250V 50/60HZ | AC190V-250V 50/60HZ |
| Harmonic Distortion (1kHz, 8 ohm) | <0.01% | <0.1% |
| Frequency Response | 20Hz-20kHz(+/-1dB) | 20Hz-20kHz: +/-1dB |
| Sensitivity | 0.775V*40 | 0.775V*40 |
| SNR | ≥100dB(A-weighted) | ≥100dB(A-weighted) |
| Damping Factor | ≥300@8ohms | ≥300@8ohms |
| Slew Rate | 25V/US | 25V/US |
| Input Impedance | Balanced: 20K Unbalanced: 10K | Balanced: 20K Unbalanced: 10K |
| Channel Isolation | 60dB@8ohms 1Khz | 60dB@8ohms 1Khz |
| Output Type | Class-TD | Class-TD |
| LED Indicators | Power/Signal/Distortion/Clipping | Power/Signal/Distortion/Clipping |

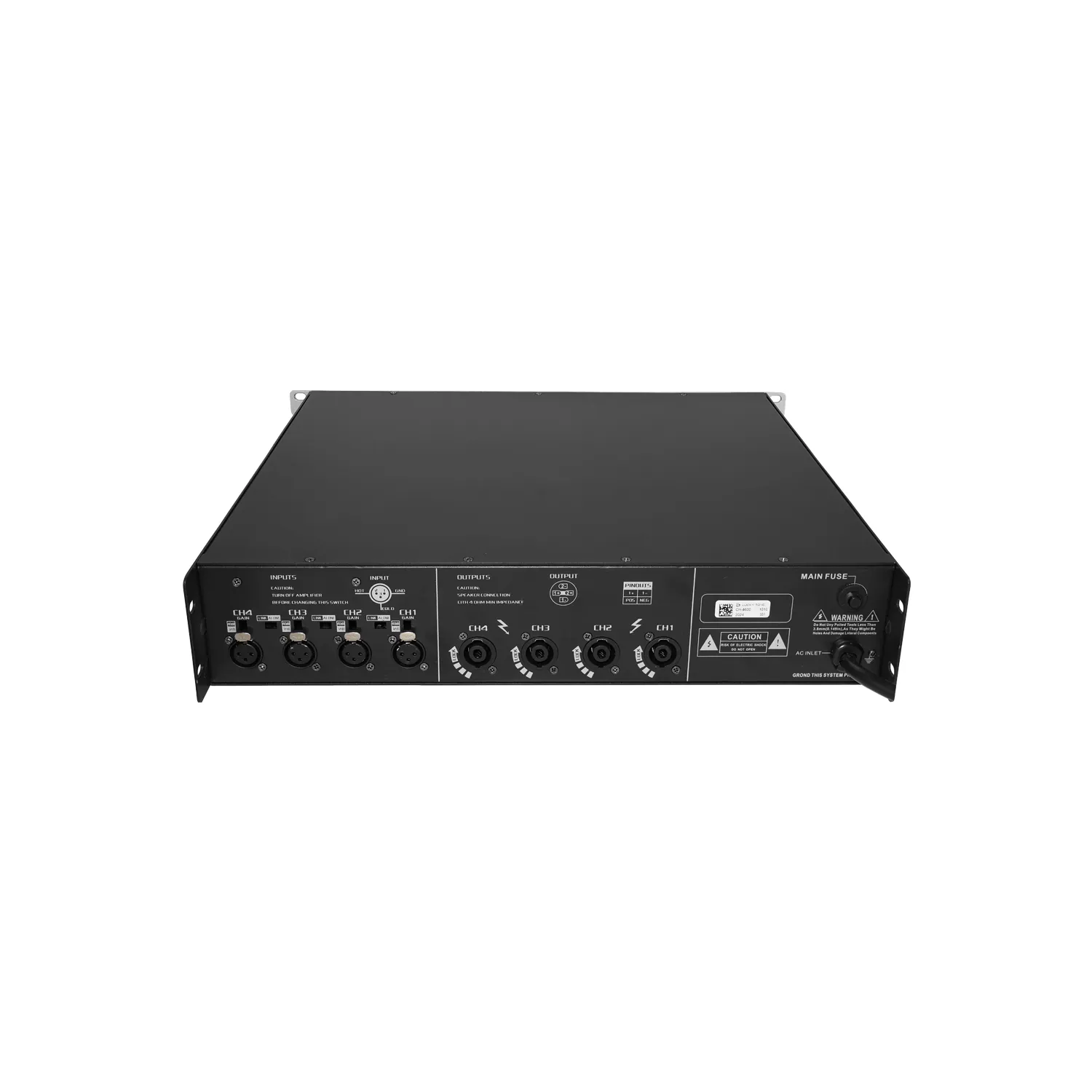

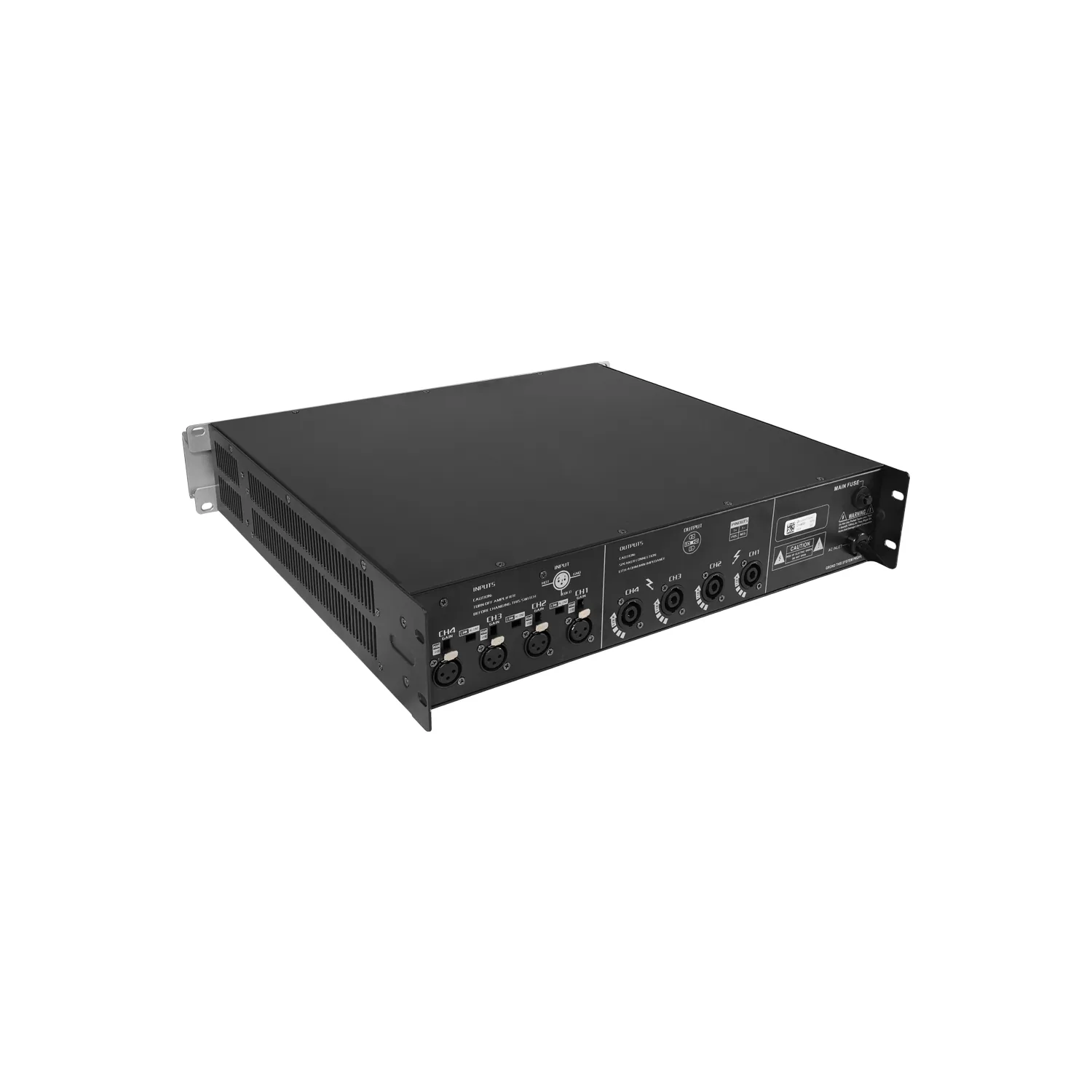

| Input Connectors | Balanced XLR (Male/Female) | Balanced XLR (Male/Female) |
| Output Connectors | SPEAKON, Binding Posts | SPEAKON, Binding Posts |
| Cooling System | Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting | Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting |
| Product Size(WxDxH) | 485x485x100mm | 485x485x100mm |
| Net Weight | 22.76Kg | 24.1Kg |
02DescriptionManufacturer's description
What it is.
Compact 2U Design
Multiple Operating Modes
: Choose from three operating modes—STEREO (independent A and B channels), PARALLEL (easy wiring setup), and BRIDGE (high-power amplification)—to suit different application needs.
Comprehensive Protection
: Features automatic output limiting, short circuit overload, high-temperature protection, and power-on delay to ensure safe and reliable operation.

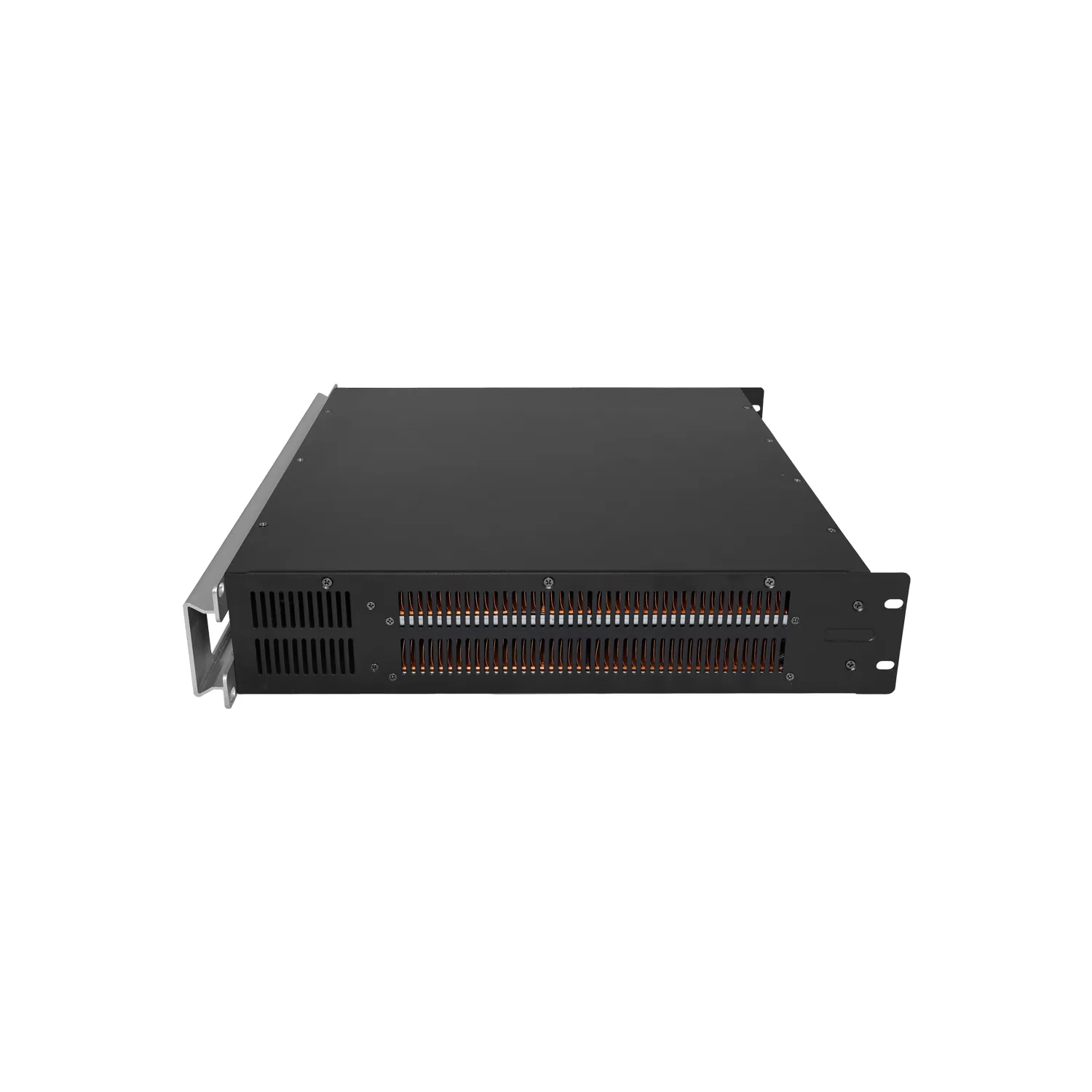

Efficient Heat Dissipation
: The advanced stepless speed control fan adjusts speed based on radiator temperature, effectively reducing fan noise while ensuring optimal cooling.
User-Friendly Controls
: Independent volume control and LED signal level indicator provide clear and convenient monitoring of performance.
Built-In Filtering
: Integrated filtering function eliminates high-frequency interference from digital sound and other external equipment.
Enhanced Connectivity
: Dual XLR inputs and multiple output options, including SPEAKON and Phoenix terminals, for stronger compatibility across various setups.
Robust Protection Features
: Comprehensive safeguards including pressure limit, short circuit, overcurrent, and DC output protection for peace of mind.
