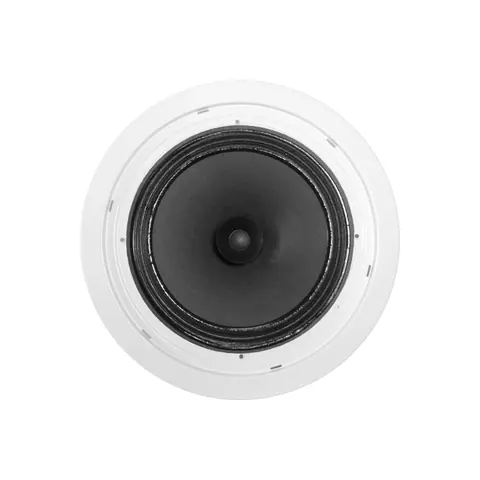

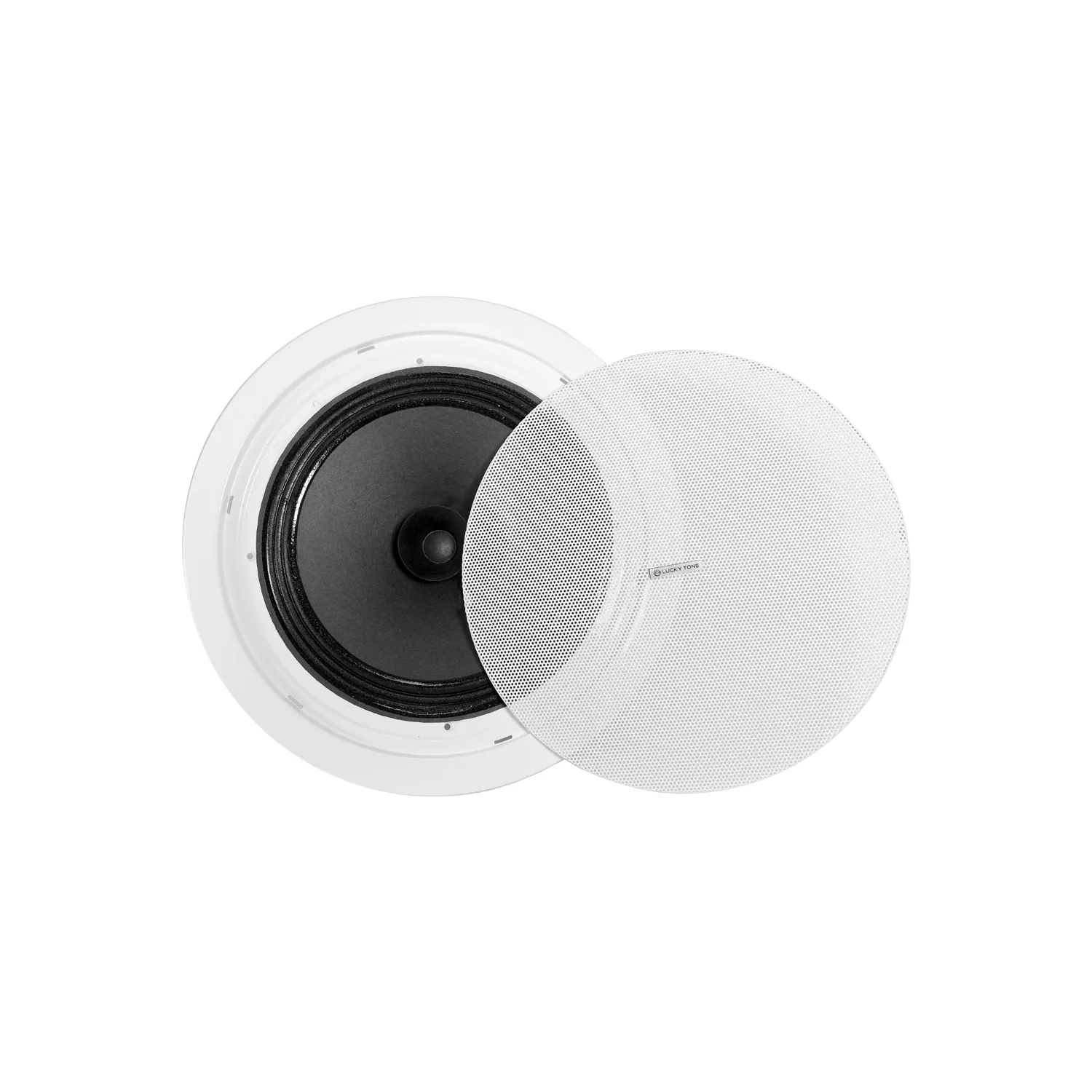

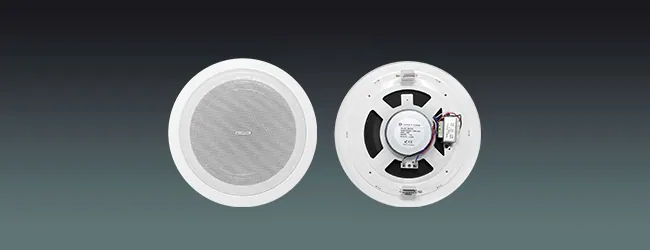

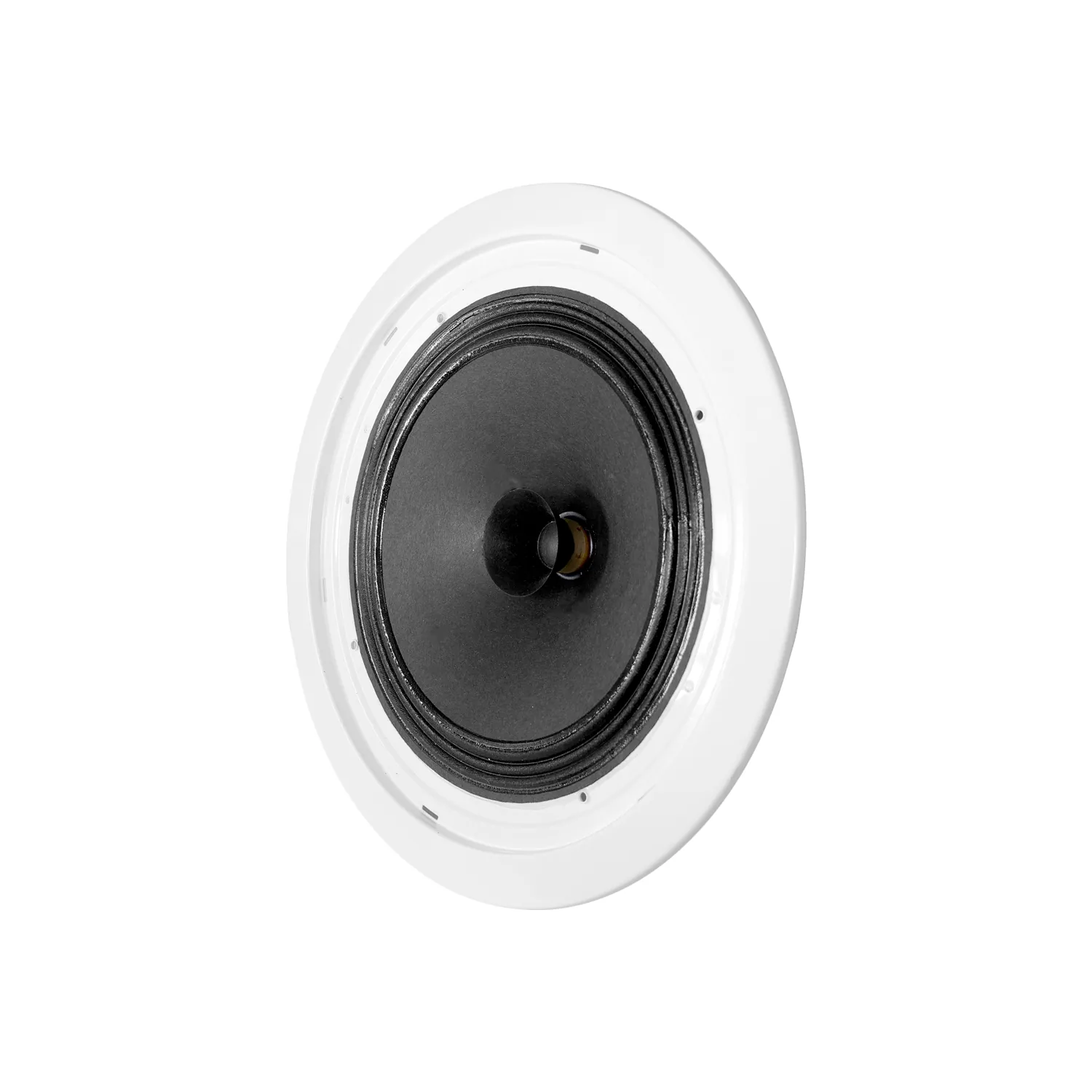

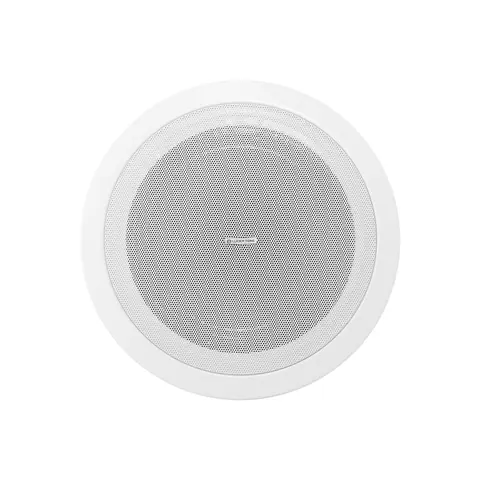

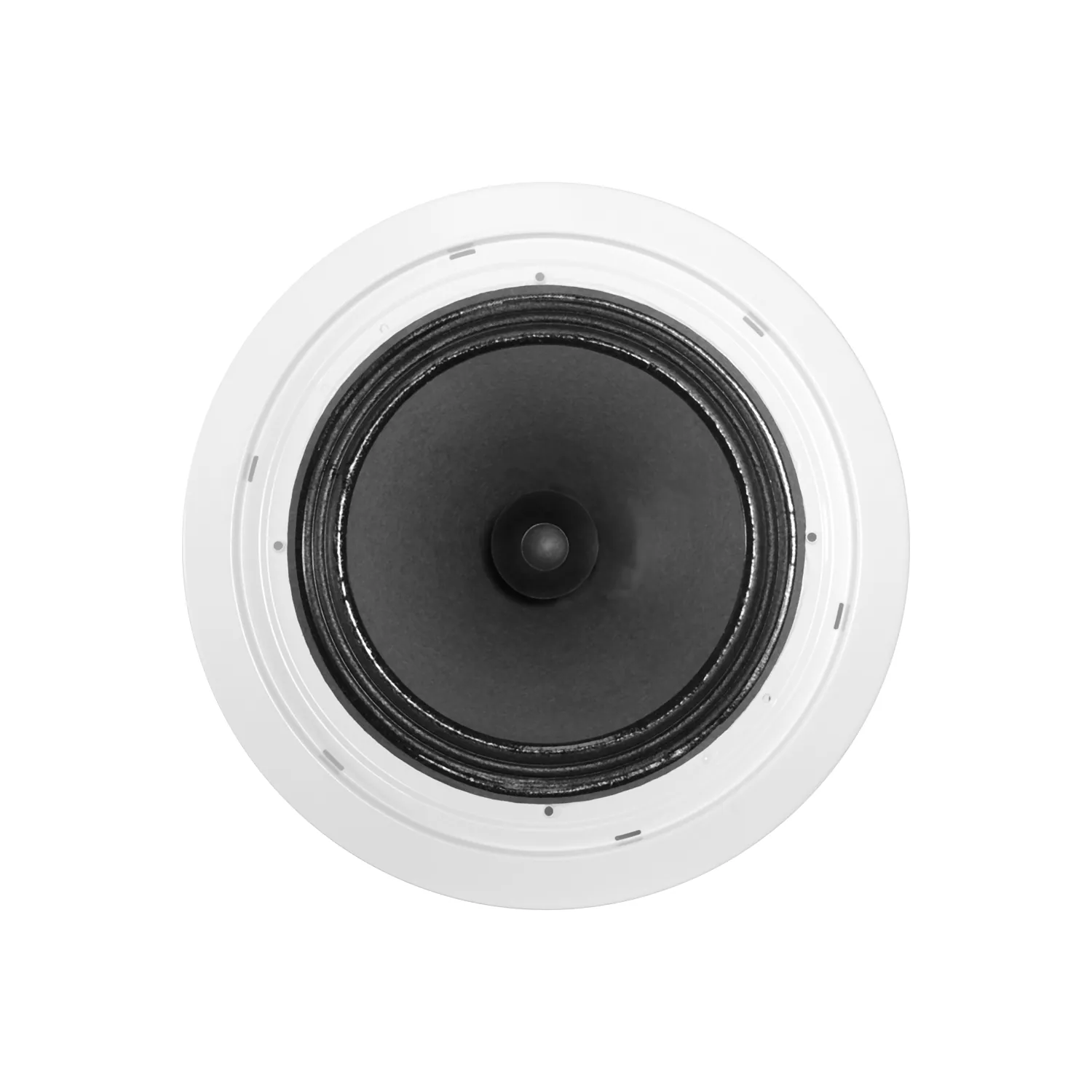

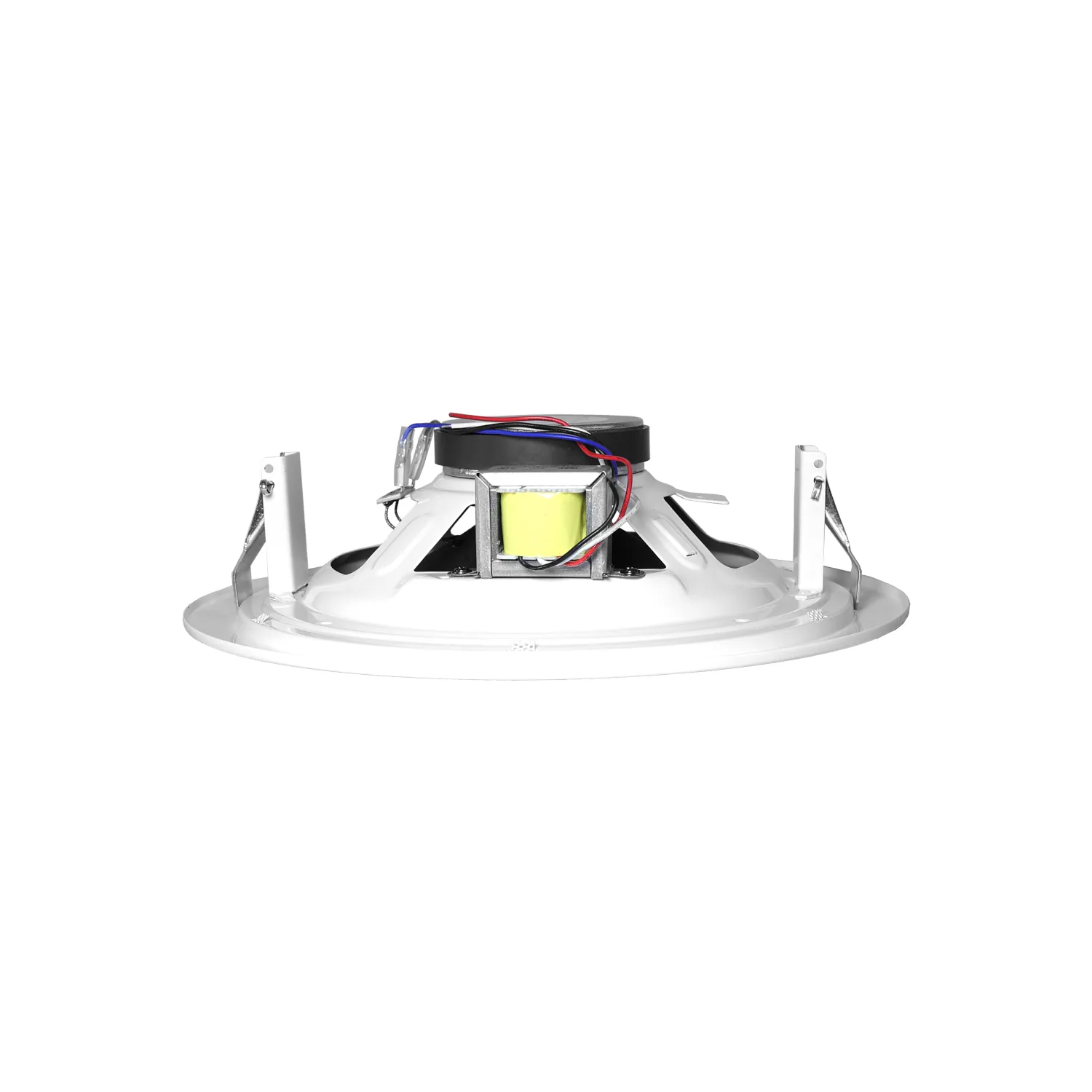

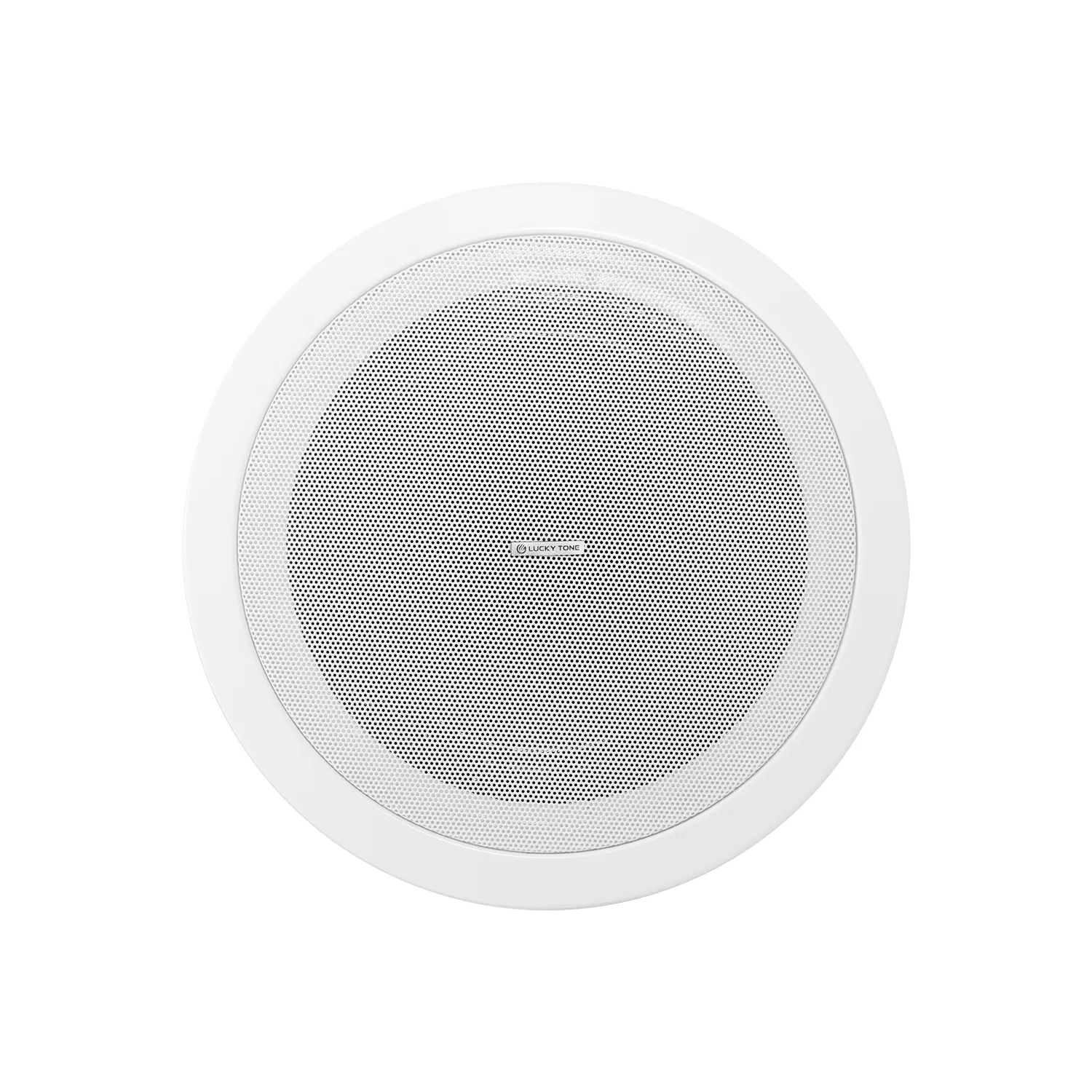

8″ Metal Ceiling Speaker
ModelCM-810
Durablemetal materials ensures long-lasting performance
- Weight
- 1.2Kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

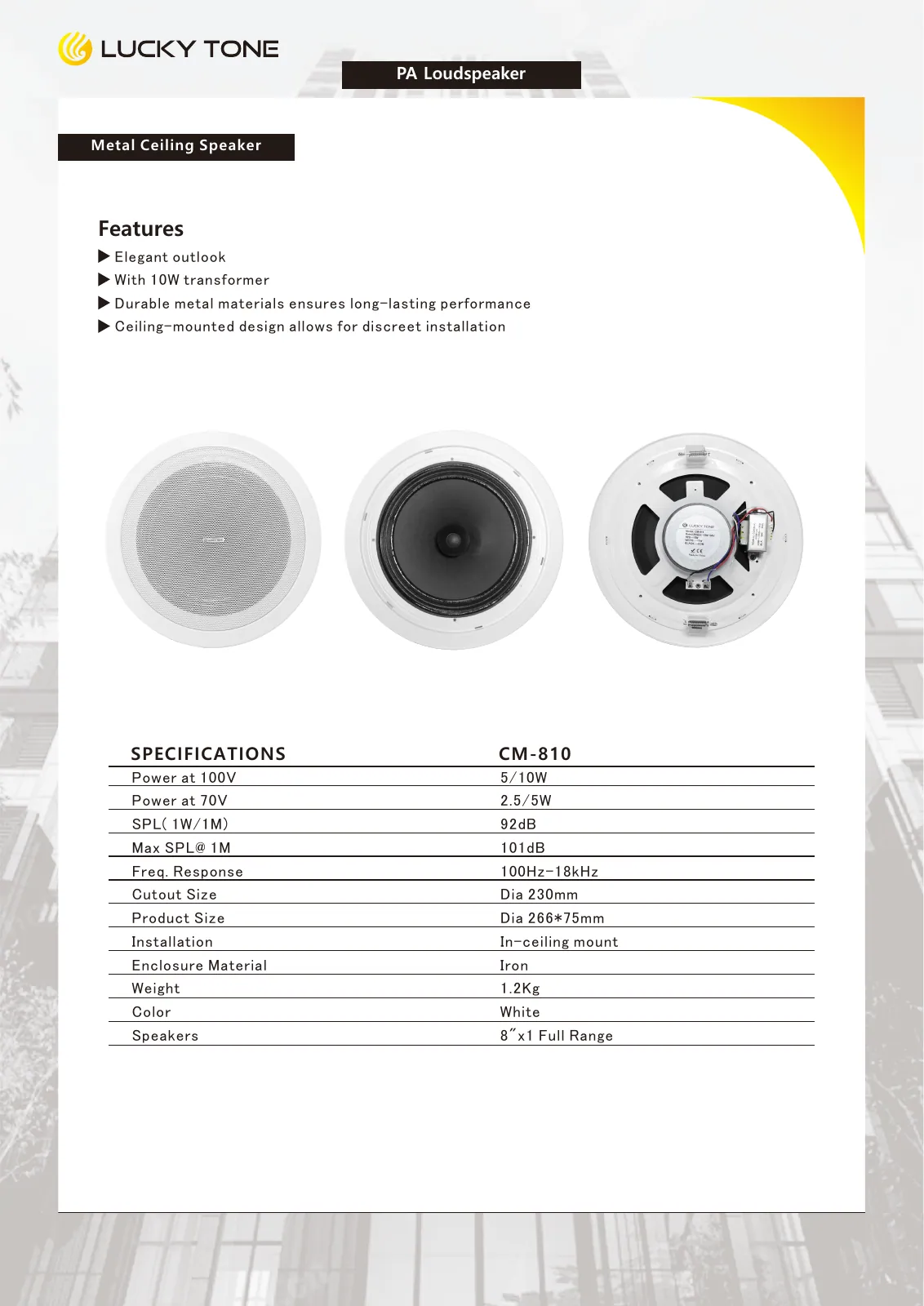

01Specifications13
- Model
- CM-810
- Power at 100V
- 5/10W
- Power at 70V
- 2.5/5W
- SPL(1W/1M)
- 92dB
- Max. SPL@1M
- 101dB
- Freq. Response
- 100Hz-18Khz
- Cutout Size
- Dia 230mm
- Product Size
- Dia 266*75mm
- Installation
- Inceiling
- Enclosure Material
- Iron
- Weight
- 1.2Kg
- Color
- White
- Speaker
- 8″x1 Full Range
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
Features
Elegant outlook

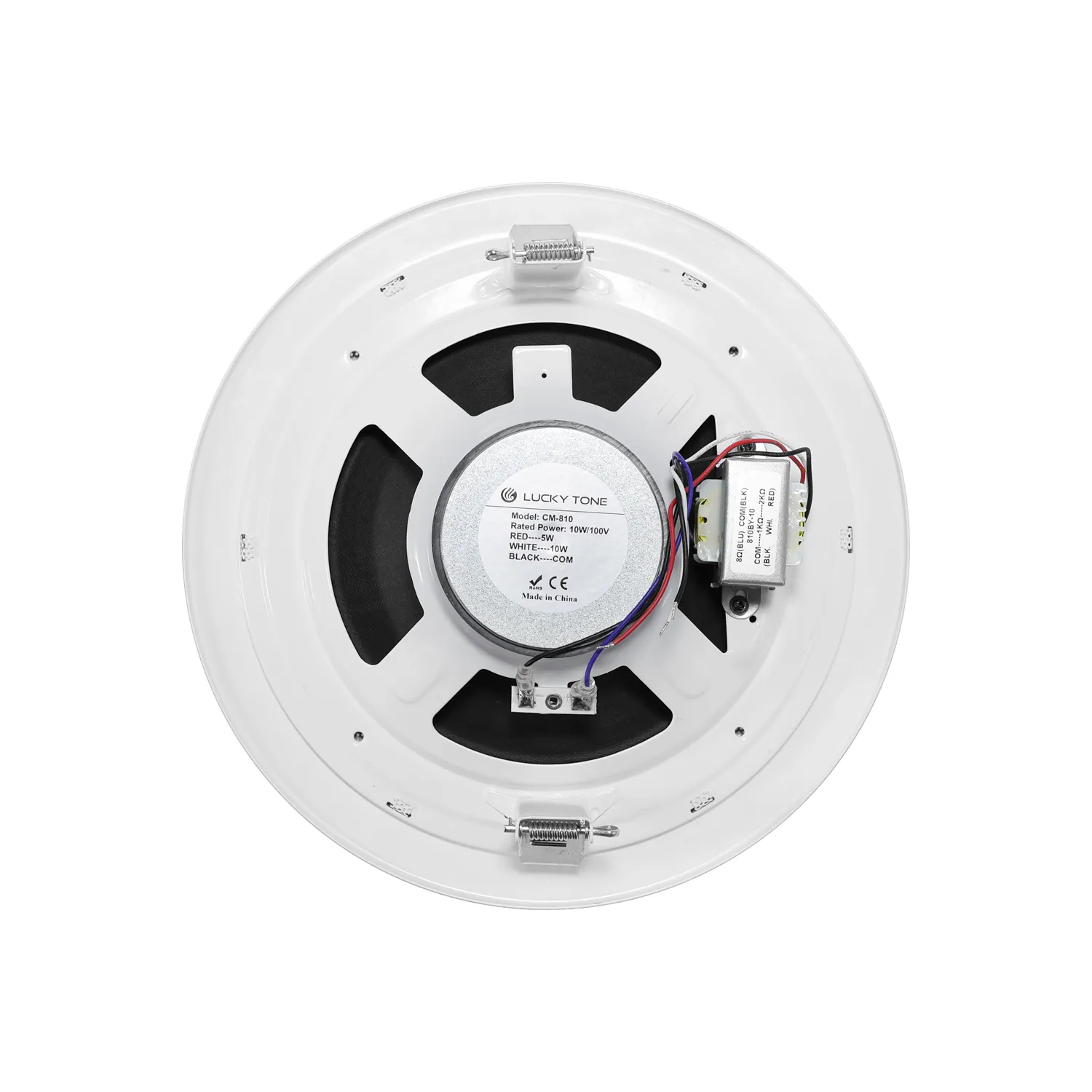

With 10W transformer
Ceiling-mounted design allows for discreet installation
