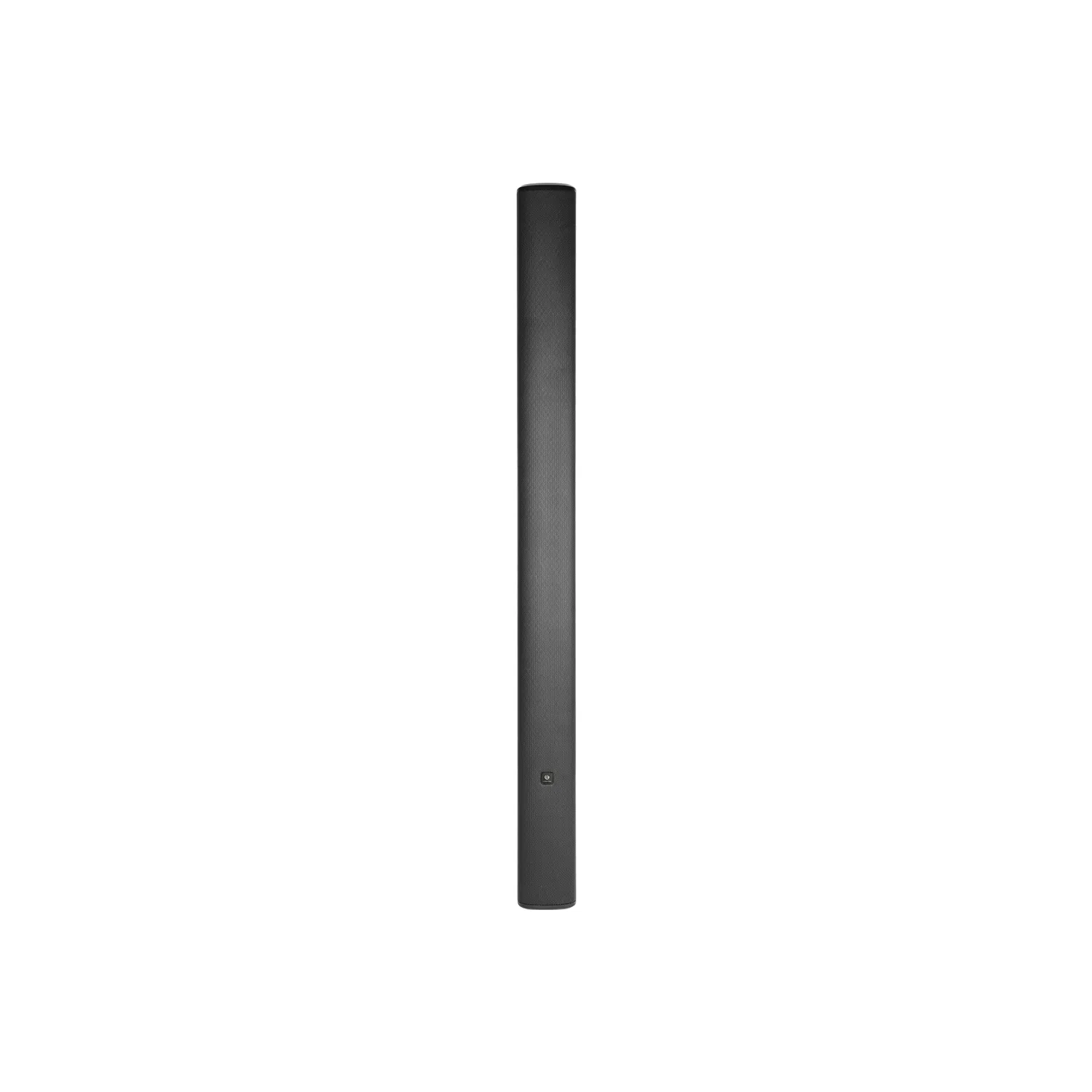

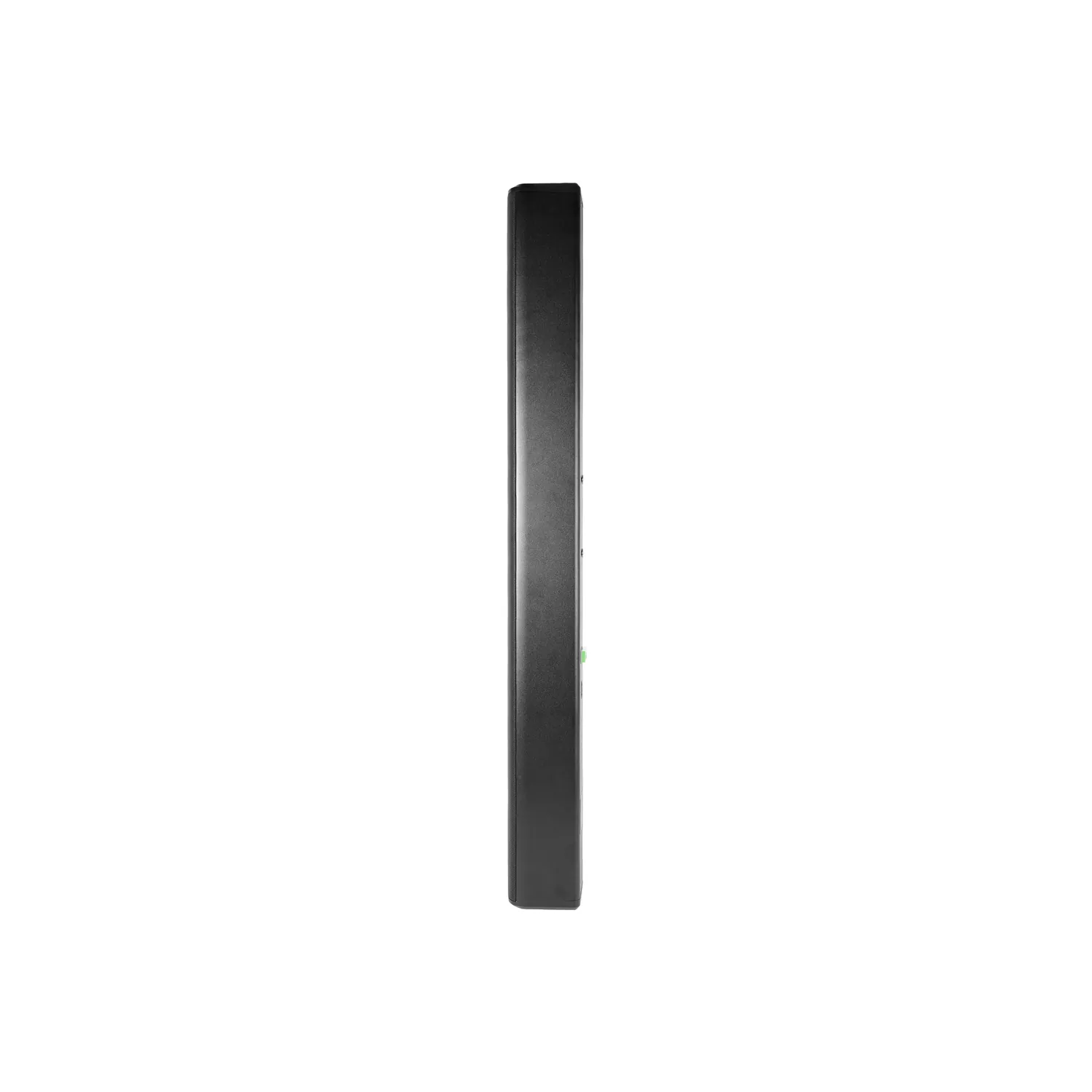

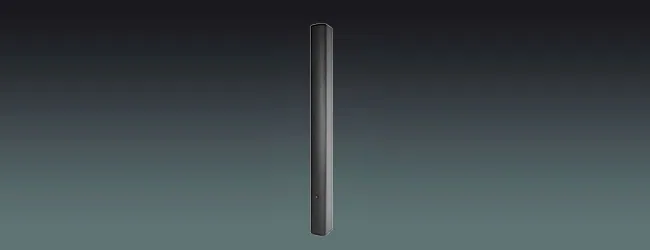

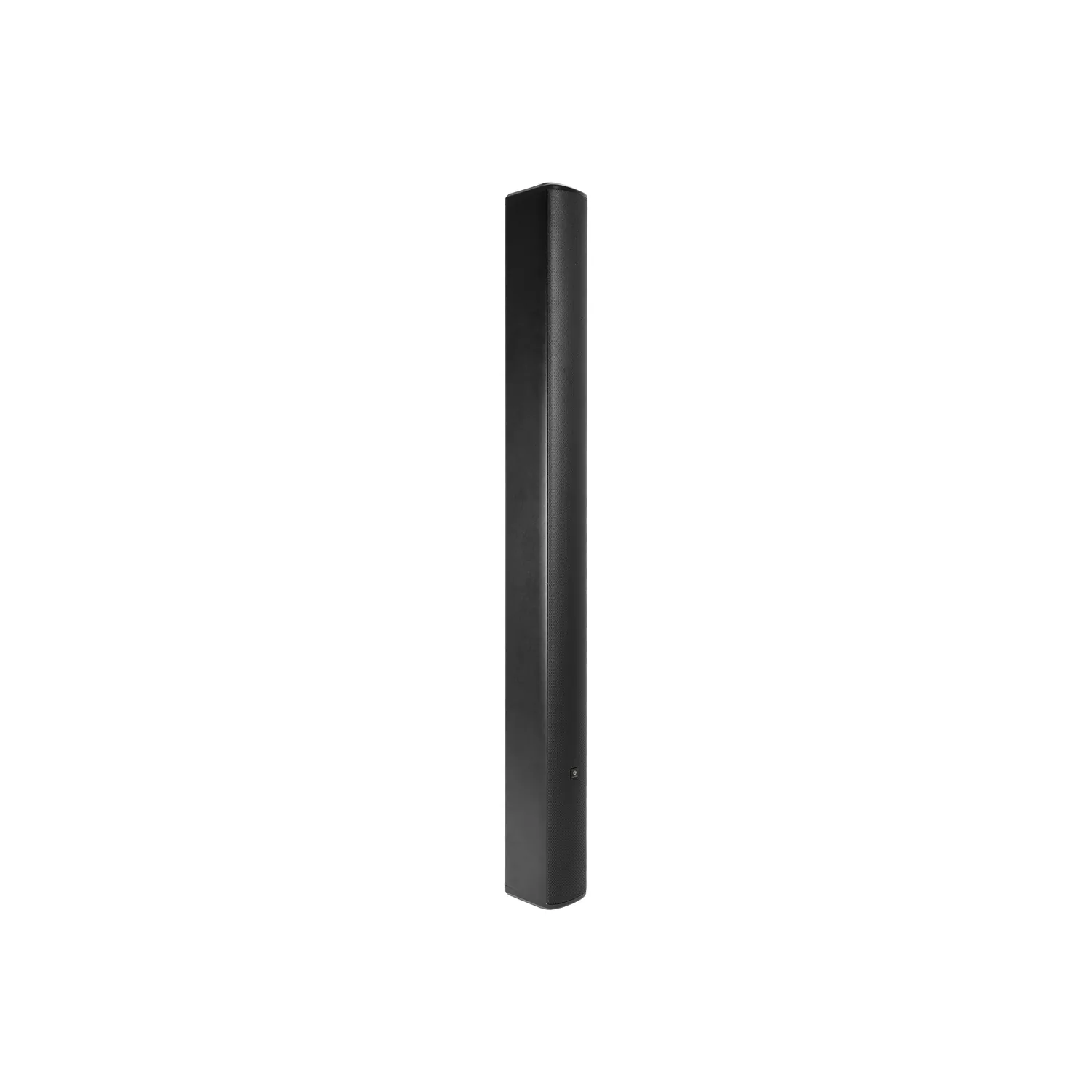

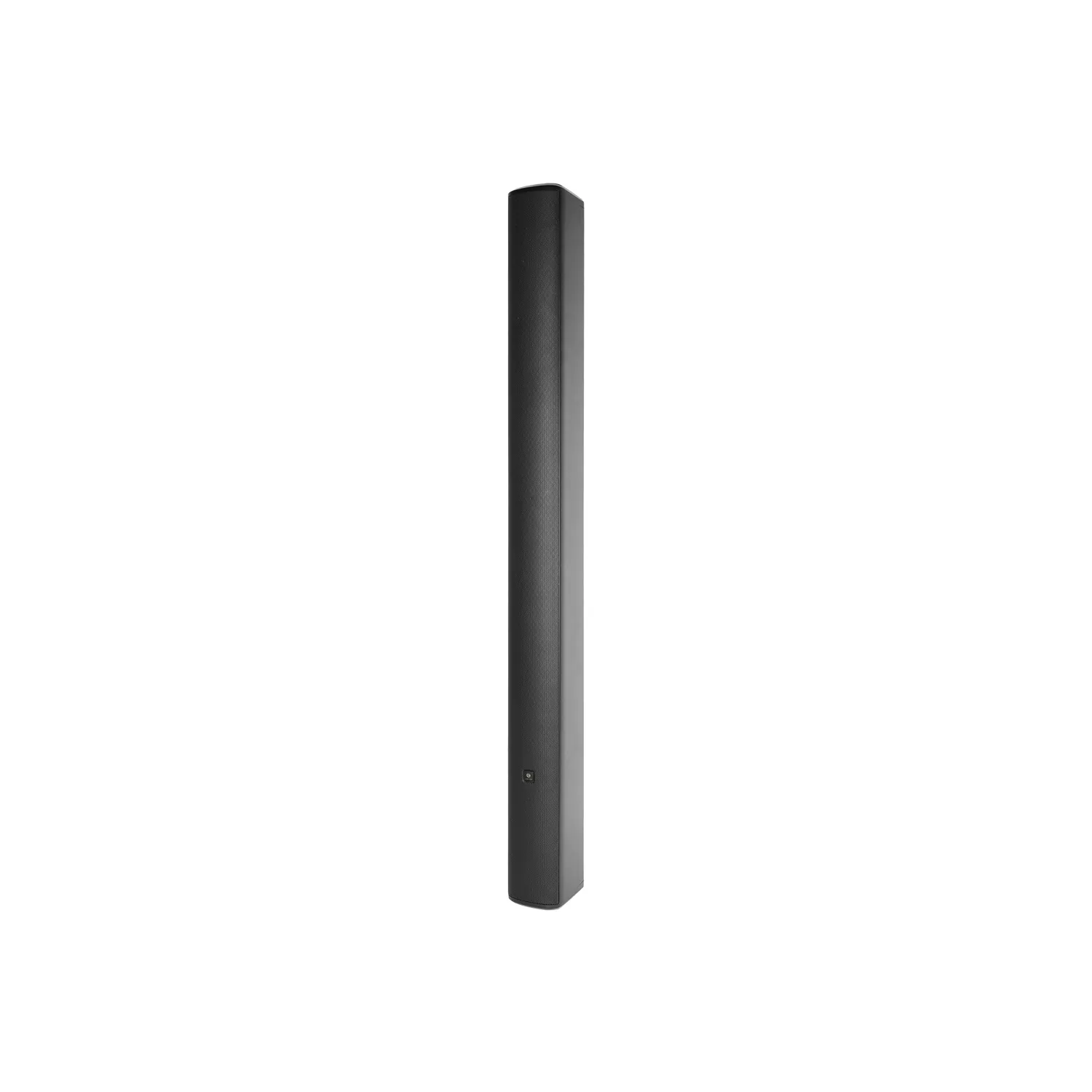

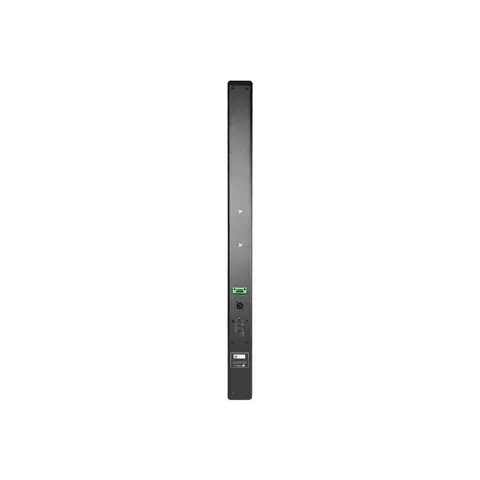

9×2.5″ Neodymium Magnet Array Acoustic Column Speaker

ModelLA-925LB V2 / LA-925L W V2 / LA-925B V2 / LA-925 W V2

Designed for small to medium-sized video conference rooms, digital courtrooms, conference centers, auditoriums, lecture halls, and other speech amplification systems, as well as background music systems in various architectural spaces such as churches, museums, transportation hubs, and public areas like squares. It addresses the issue of traditional conference room speakers being too large and unsightly when wall-mounted.

Output power: LA-925LB V2 / LA-925L W V2: 220W@4ohm (800W Peak); LA-925B V2 / LA-925 W V2: 220W@4ohm (800W Peak) 140W/70W/35W/17.5W@100V 70W/35W/17.5W/8.7W@70V; LA-925B V2 / LA-925 W V2: 220W@4ohm (800W Peak) 140W/70W/35W/17.5W@100V 70W/35W/17.5W/8.7W@70V
Frequency response: 95Hz~20kHz
Dimensions: 960x80x100mm
Weight: LA-925LB V2 / LA-925L W V2: 4.15kg; LA-925B V2 / LA-925 W V2: 4.15kg; LA-925B V2 / LA-925 W V2: 4.65kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models3 models in the family

Models compared.

Model	LA-925LB V2 / LA-925L W V2	LA-925B V2 / LA-925 W V2	LA-925B V2 / LA-925 W V2
Operating Modes	/	Switchable between music/speech mode	Switchable between music/speech mode
Input	4ohm	100V/70V/4ohm	100V/70V/4ohm
Rated Power	220W@4ohm (800W Peak)	220W@4ohm (800W Peak) 140W/70W/35W/17.5W@100V 70W/35W/17.5W/8.7W@70V	220W@4ohm (800W Peak) 140W/70W/35W/17.5W@100V 70W/35W/17.5W/8.7W@70V
Sensitivity (1m/1W)	94dB	93dB	93dB
Max. SPL	114dB	112dB	112dB
Frequency Range	95Hz~20kHz	95Hz~20kHz	95Hz~20kHz
Enclosure Material	ABS composite fiberglass reinforced cabinet	ABS composite fiberglass reinforced cabinet	ABS composite fiberglass reinforced cabinet
Grille Material	Metal mesh	Metal mesh	Metal mesh
Dispersion Angle	Vertical 20°, Horizontal 120°	Vertical 20°, Horizontal 120°	Vertical 20°, Horizontal 120°
Mounting Holes	2 x M6	2 x M6	2 x M6
Mounting System	Adjustable angle mounting bracket or narrow wall distance mounting bracket	Adjustable angle mounting bracket or narrow wall distance mounting bracket	Adjustable angle mounting bracket or narrow wall distance mounting bracket
Speaker Driver	9×2.5″ neodymium magnetic	9×2.5″ neodymium magnetic	9×2.5″ neodymium magnetic
Color	Black/White	Black/White	Black/White

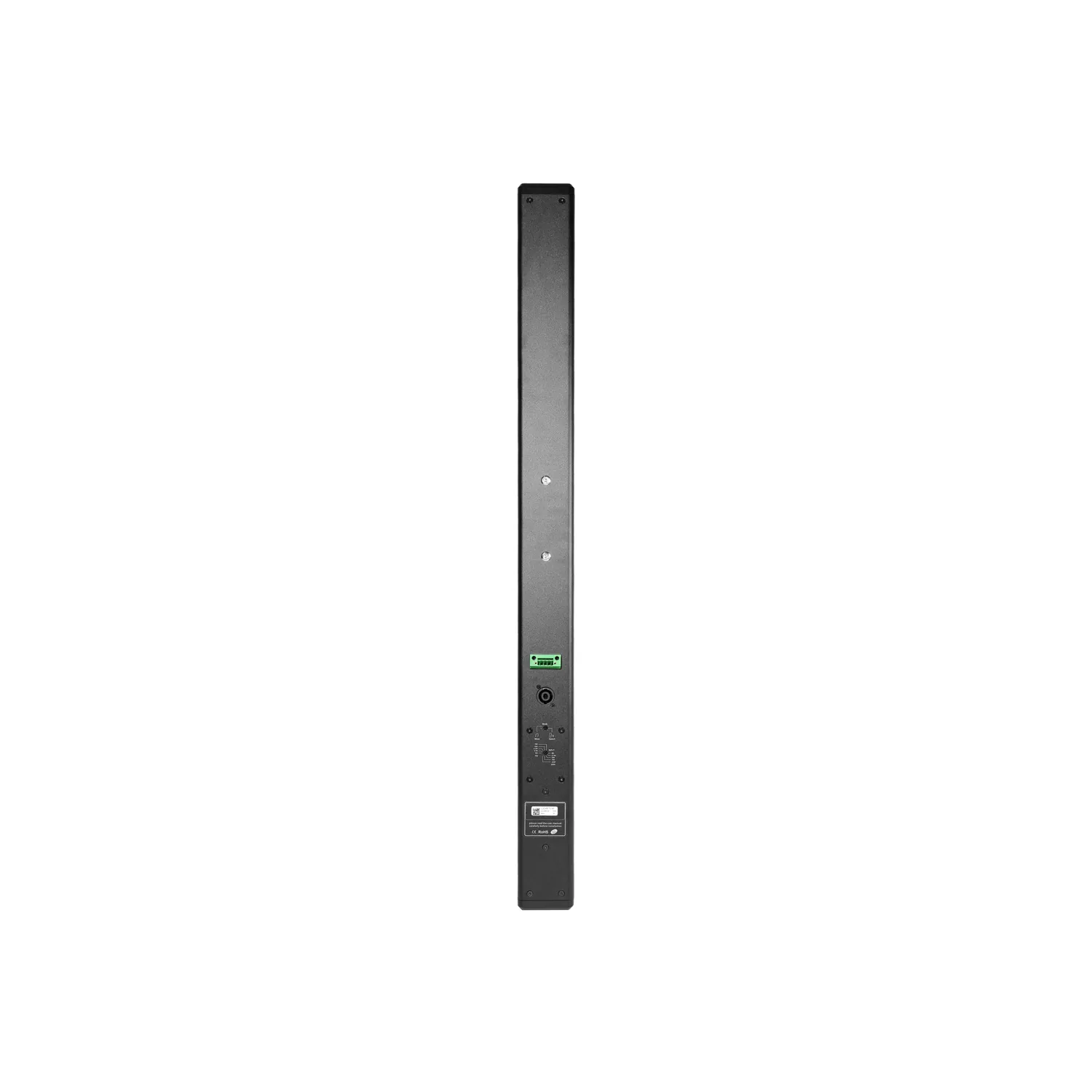

Connection Method	1 x NL4 socket (+1/-1) + 1 x Phoenix terminal	1 x NL4 socket (+1/-1) + 1 x Phoenix terminal	1 x NL4 socket (+1/-1) + 1 x Phoenix terminal
Dimensions (HxWxD)	960x80x100mm	960x80x100mm	960x80x100mm
Net Weight	4.15kg	4.15kg	4.65kg
Gross Weight	10.2kg(2PCS/CTN)	10.2kg(2PCS/CTN)	11.5kg(2PCS/CTN)

02DescriptionManufacturer's description

What it is.

Description

Features

9×2.5″ high-performance neodymium magnetic drive units.

The column array speaker adopts a streamlined design with a newly designed black/whitecolor, giving it a low-key, steady, and aesthetically pleasing appearance, suitable for various architectural spaces for sound reinforcement, with beautiful and pleasant sound quality.

The column speaker uses an ABS composite aluminum alloy reinforced cabinet, making it sturdy and durable.

The newly designed circular waveguide holes create a unique cardioid low-frequency dispersion, delivering crisp and pleasant high frequencies, naturally robust mid-tones, and full-bodied bass.

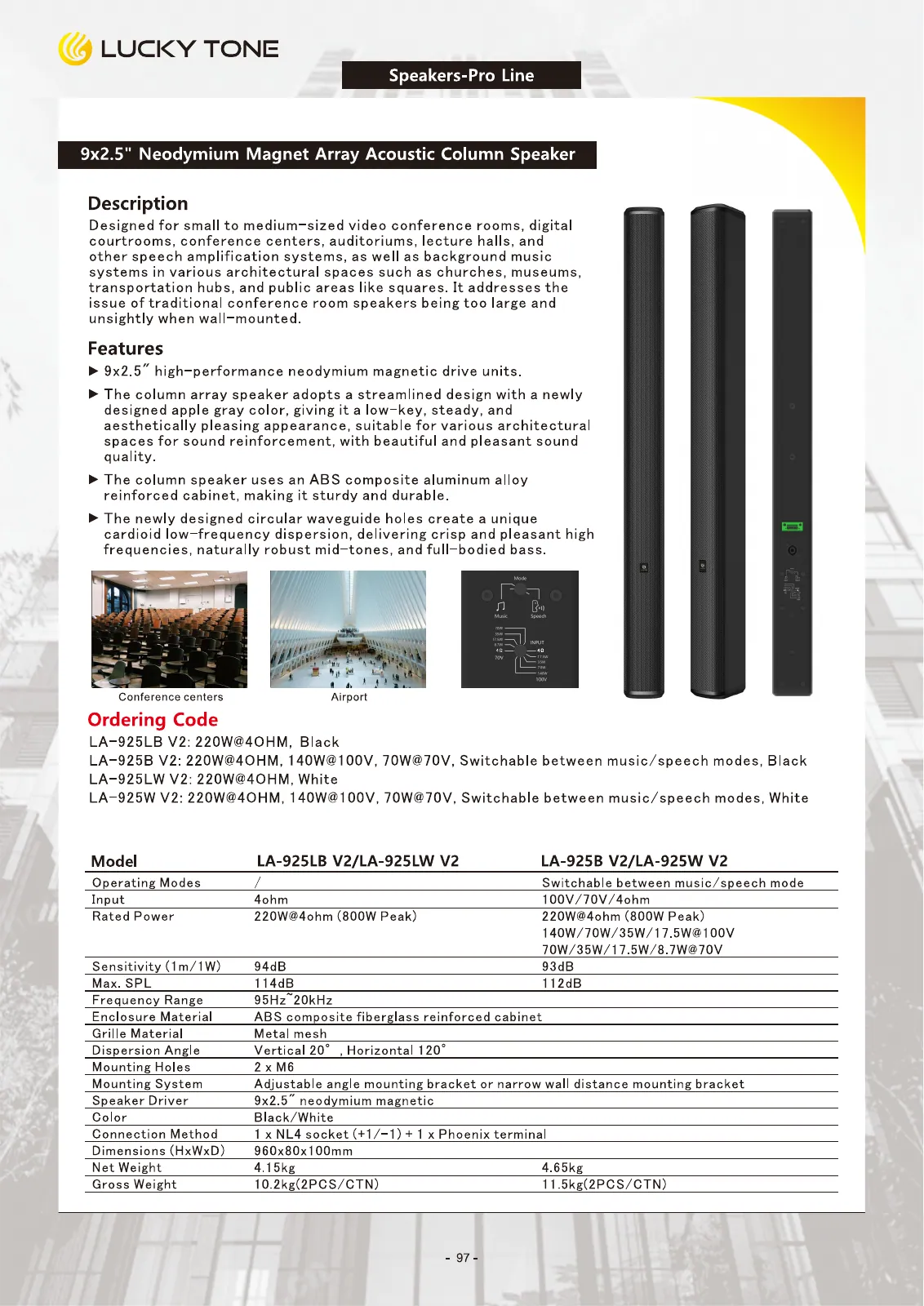

03Documents1 file · 761 KB
