Sheet 05.114
Lucky Tone · Loudspeakers

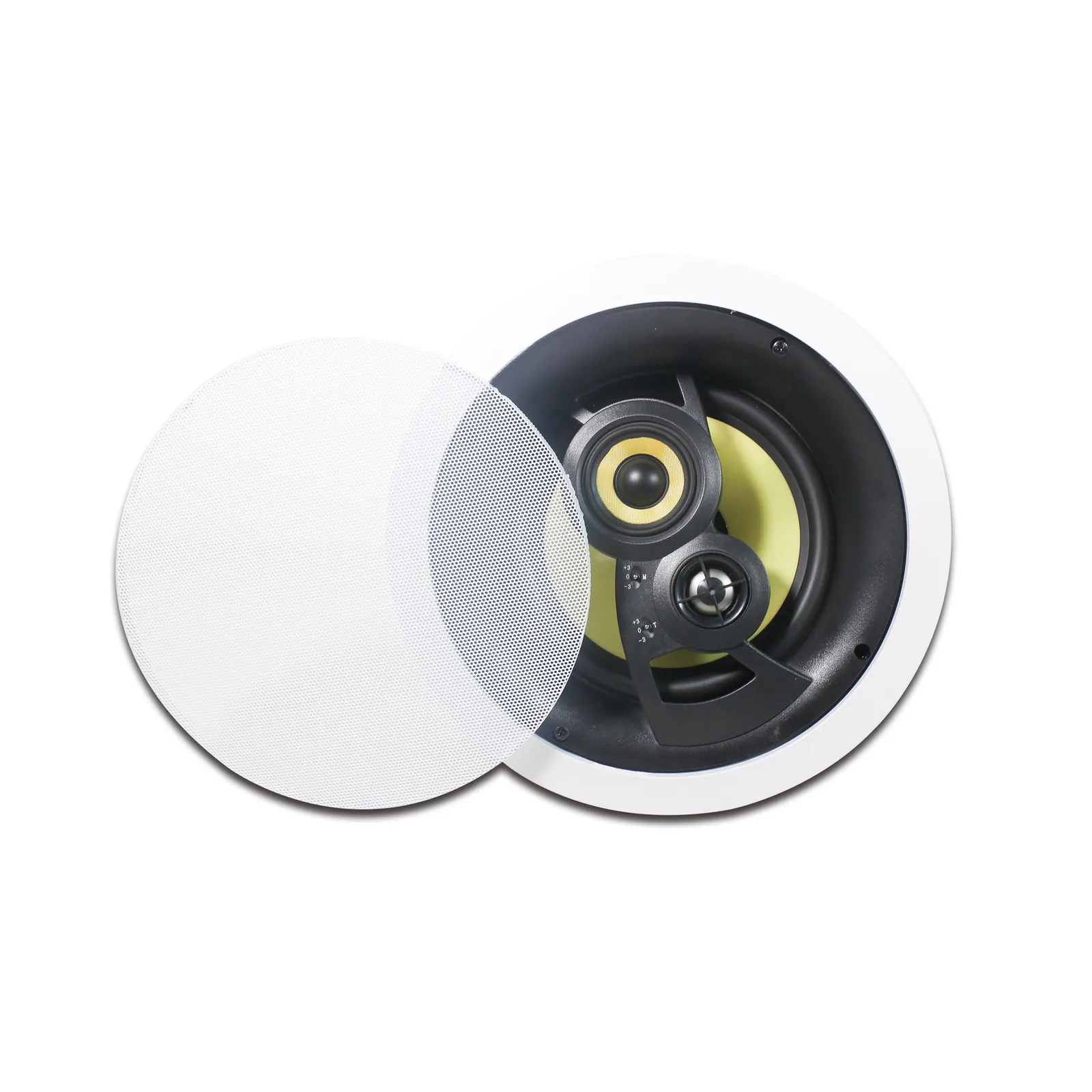

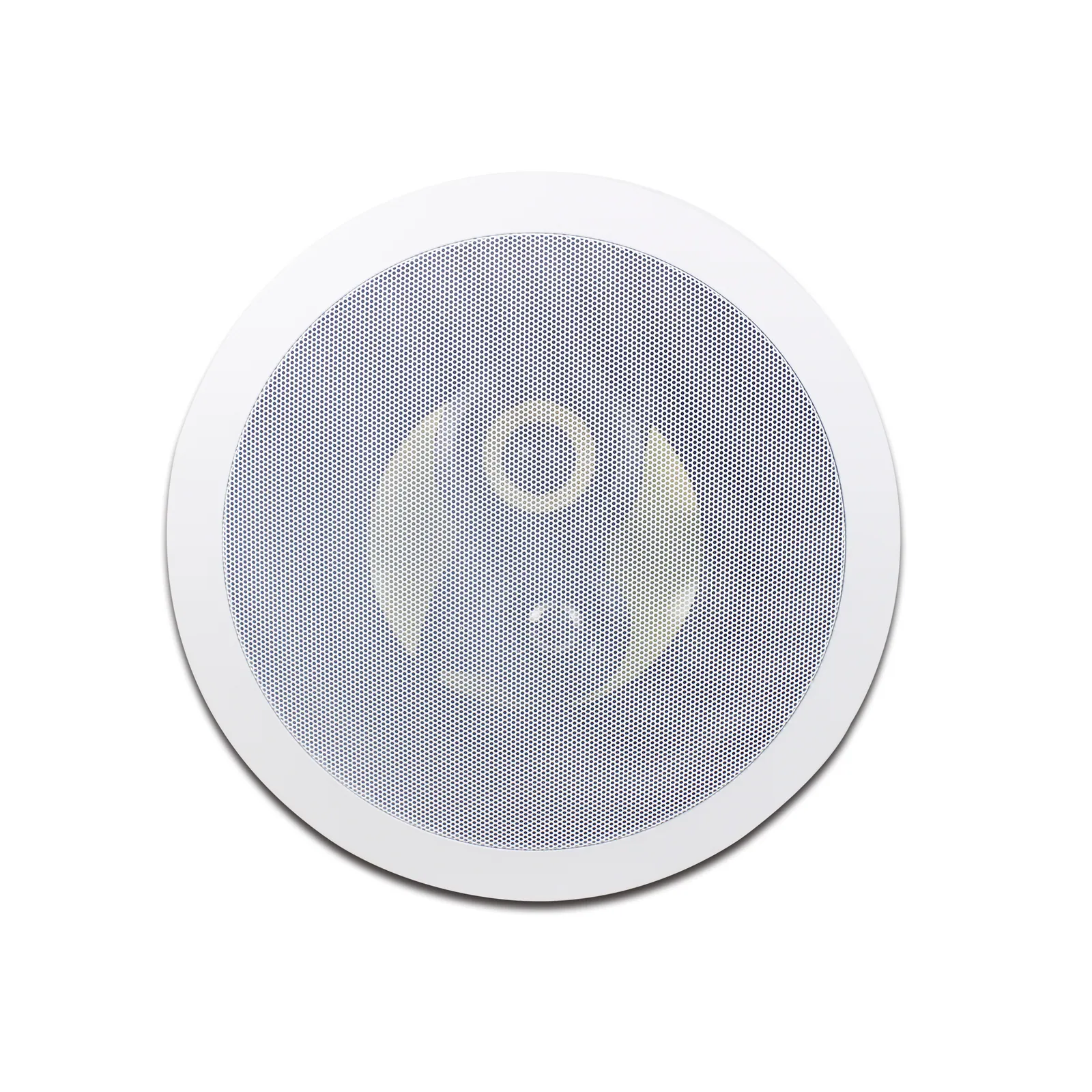

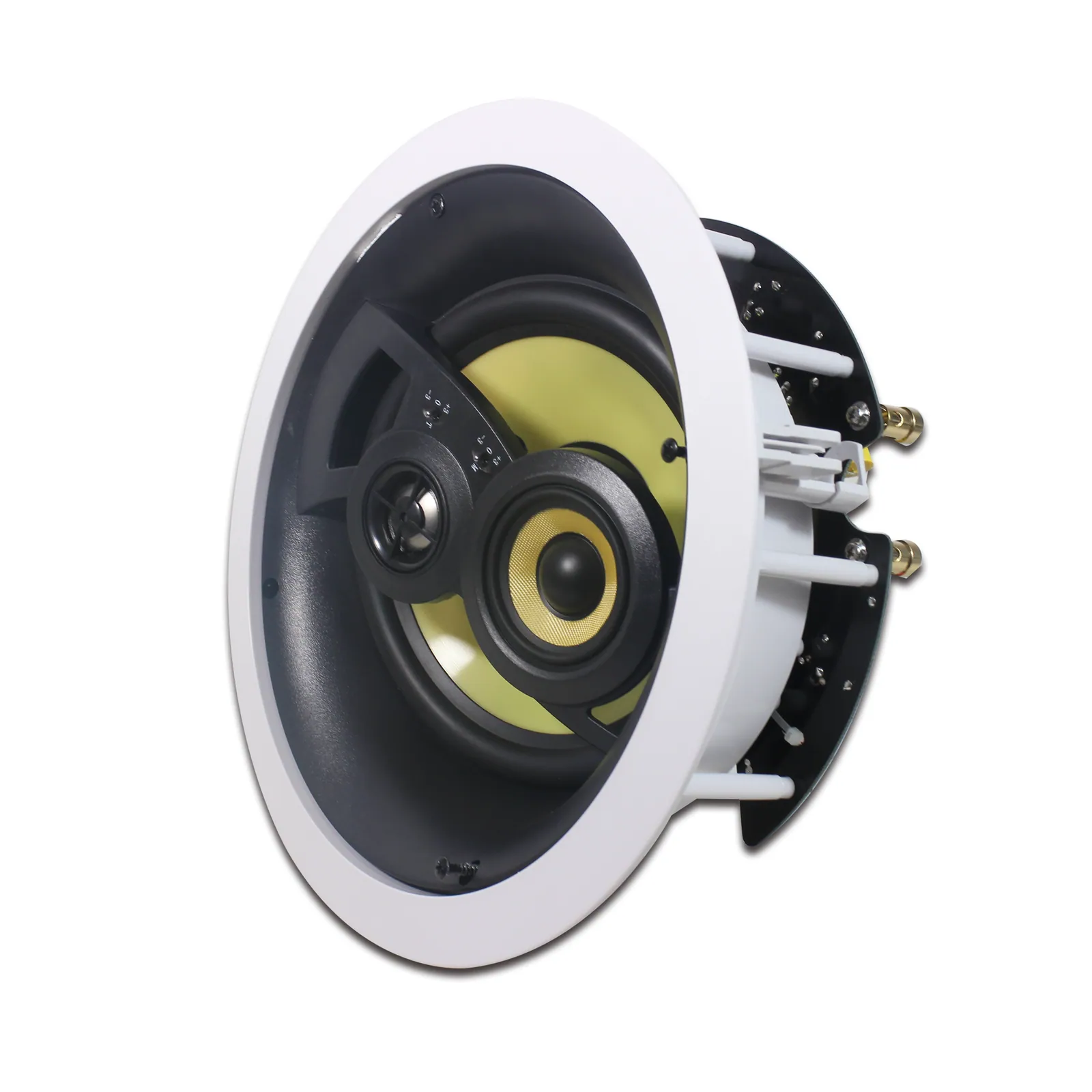

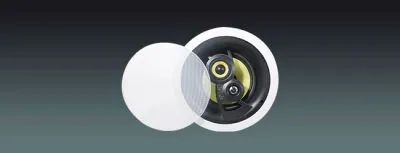

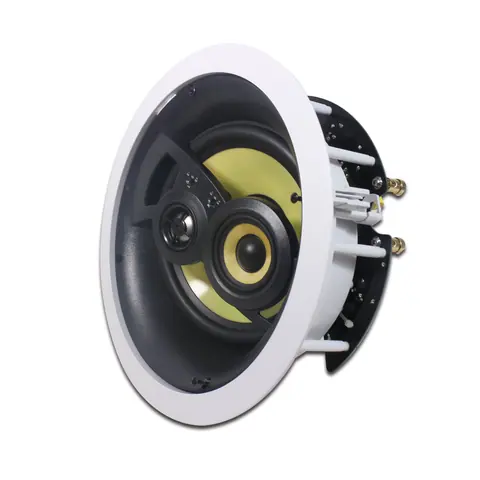

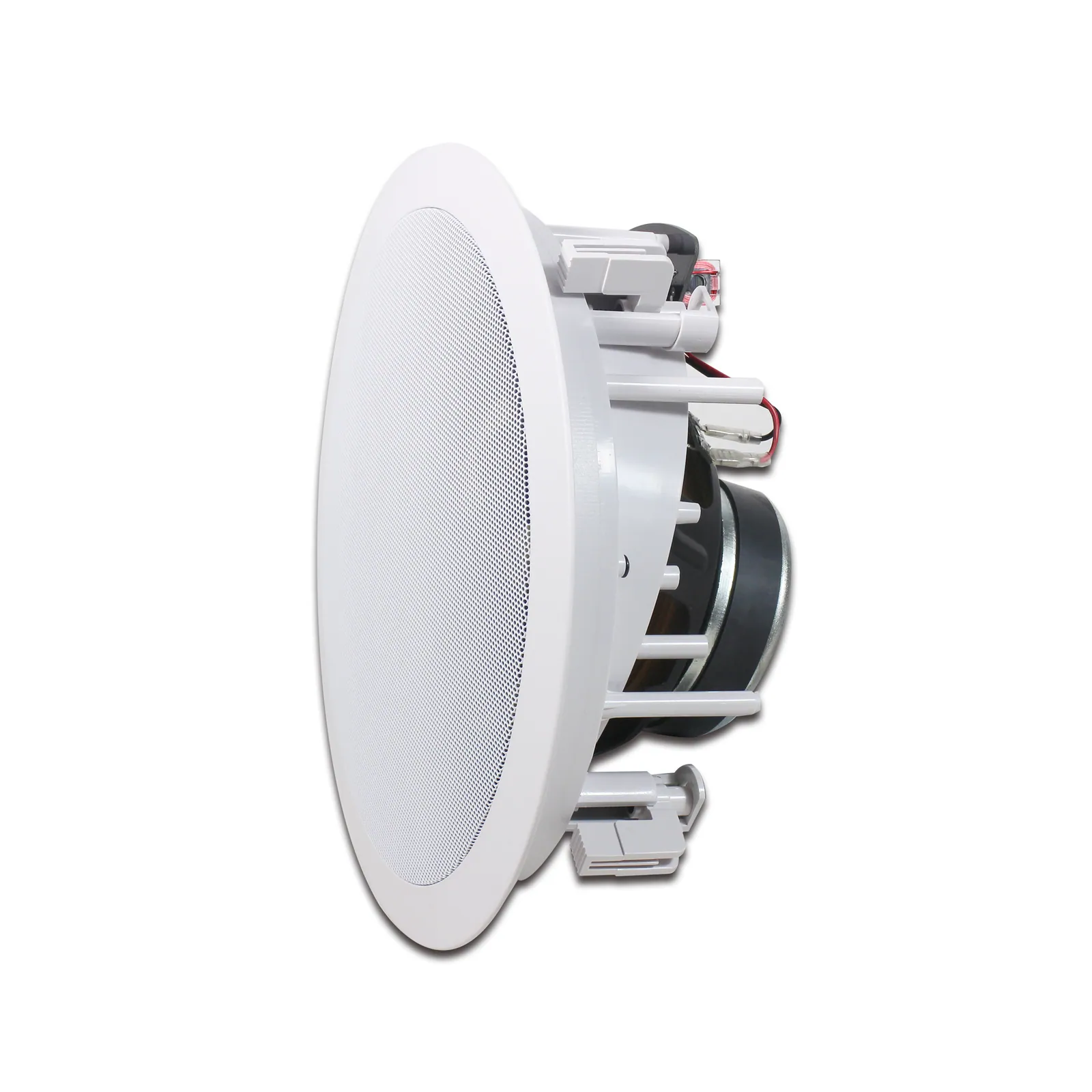

8″ 3 Way Ceiling Speaker With Crossover
ModelCP-8100L
3-way ABS in ceiling speaker at high performance
- Output power
- 100W
- Frequency response
- 40hz to 20khz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
8″ 3 Way Ceiling Speaker With CrossoverPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
PDFSpecifications5.0 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- CP-8100L
- Output Power
- 100W
- SPL (1W/1M)
- 90dB
- Frequency Range
- 40hz to 20khz
- LF
- 8 inch Graphite Cone, rubber edge
- MF
- 3 inch glass fiber cone, PU edge
- HF
- 1 inch Titanium dome
- Enclosure Material
- ABS
- Impedance
- 8 ohm
- Size
- dia 294mm*162mm
- hole cut size
- 255mm
- Finish
- White
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
With kevlar driver

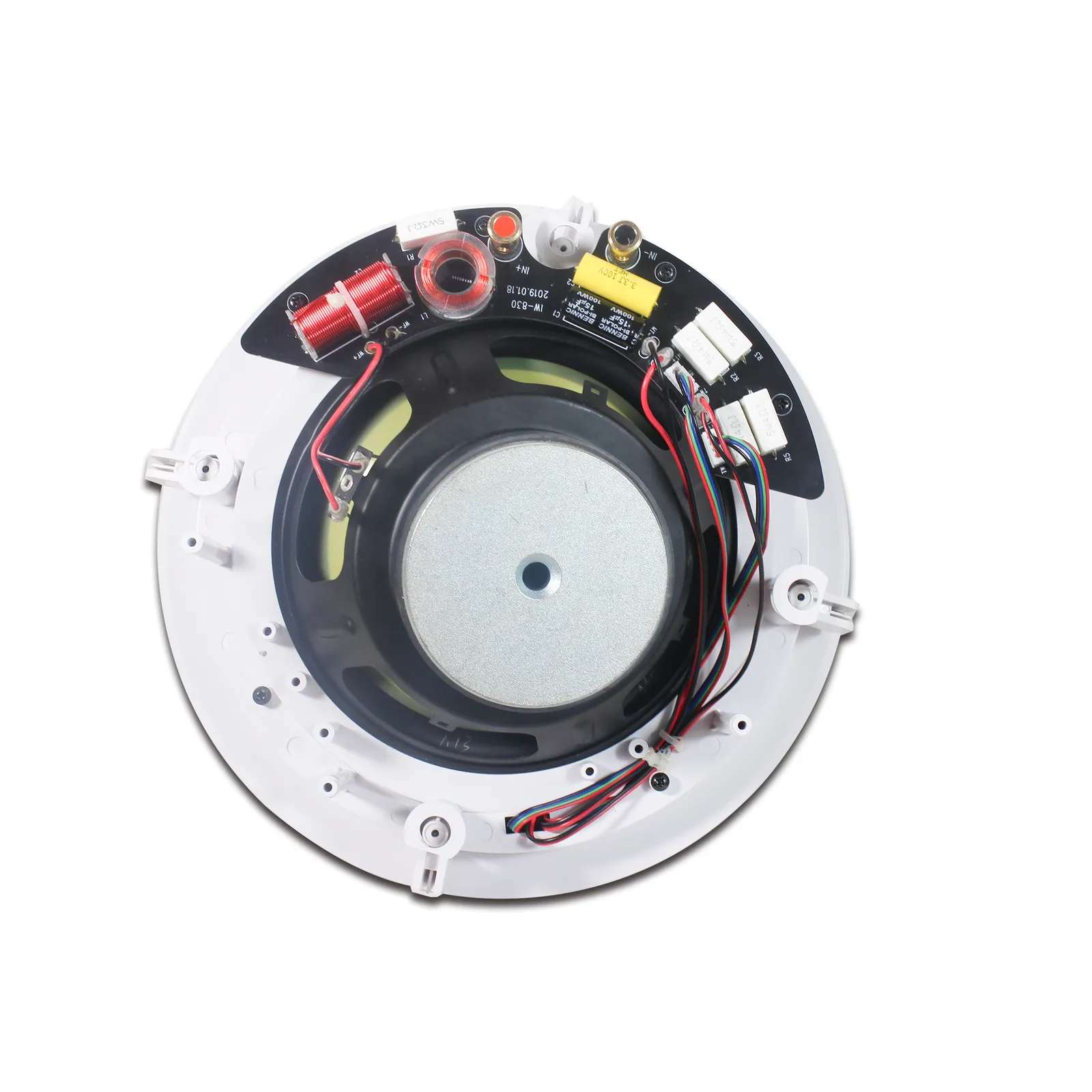

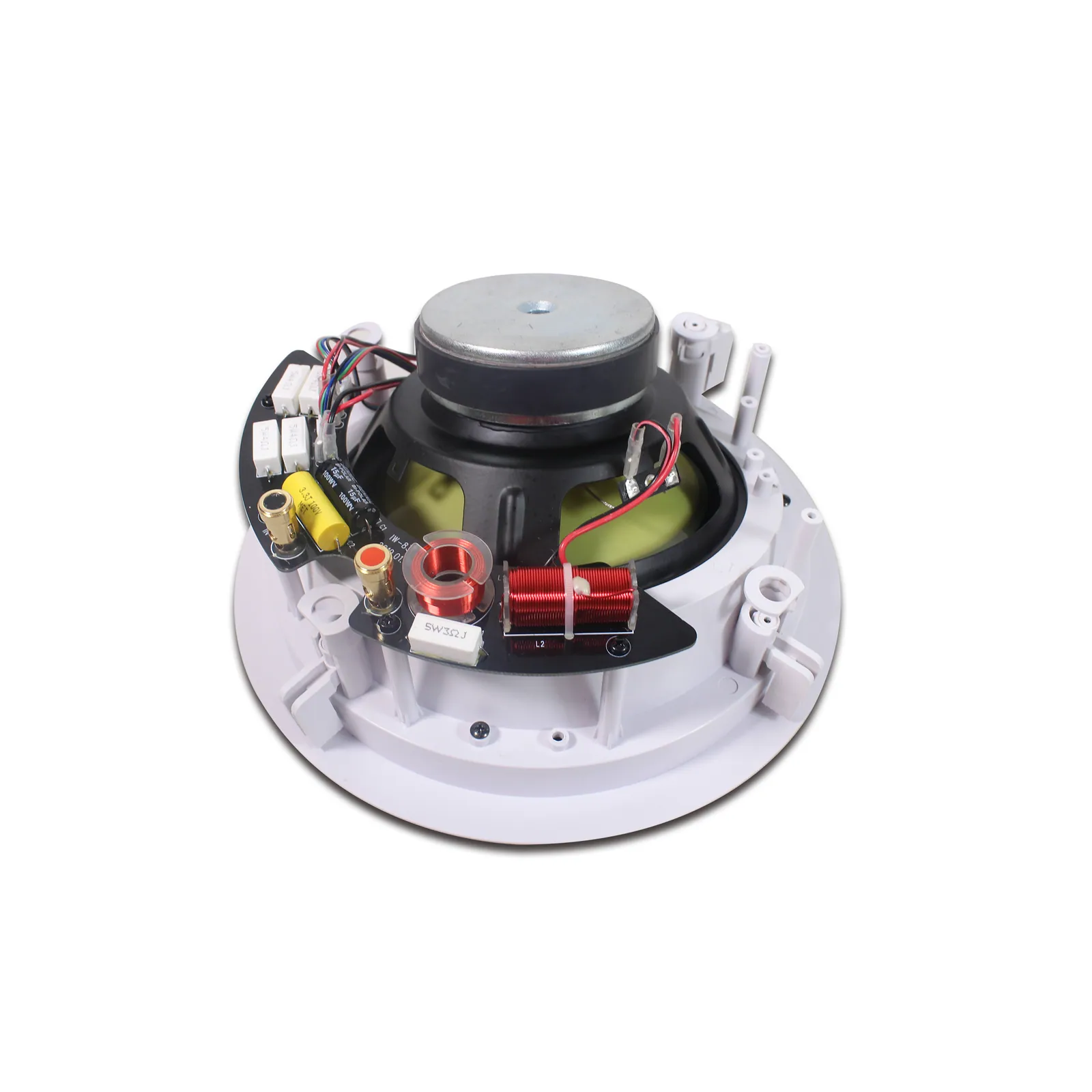

With crossover to produce clear yet powerful sound
Good for high music demand applications
03Documents1 file · 5.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
