Sheet 05.212
Lucky Tone · Loudspeakers

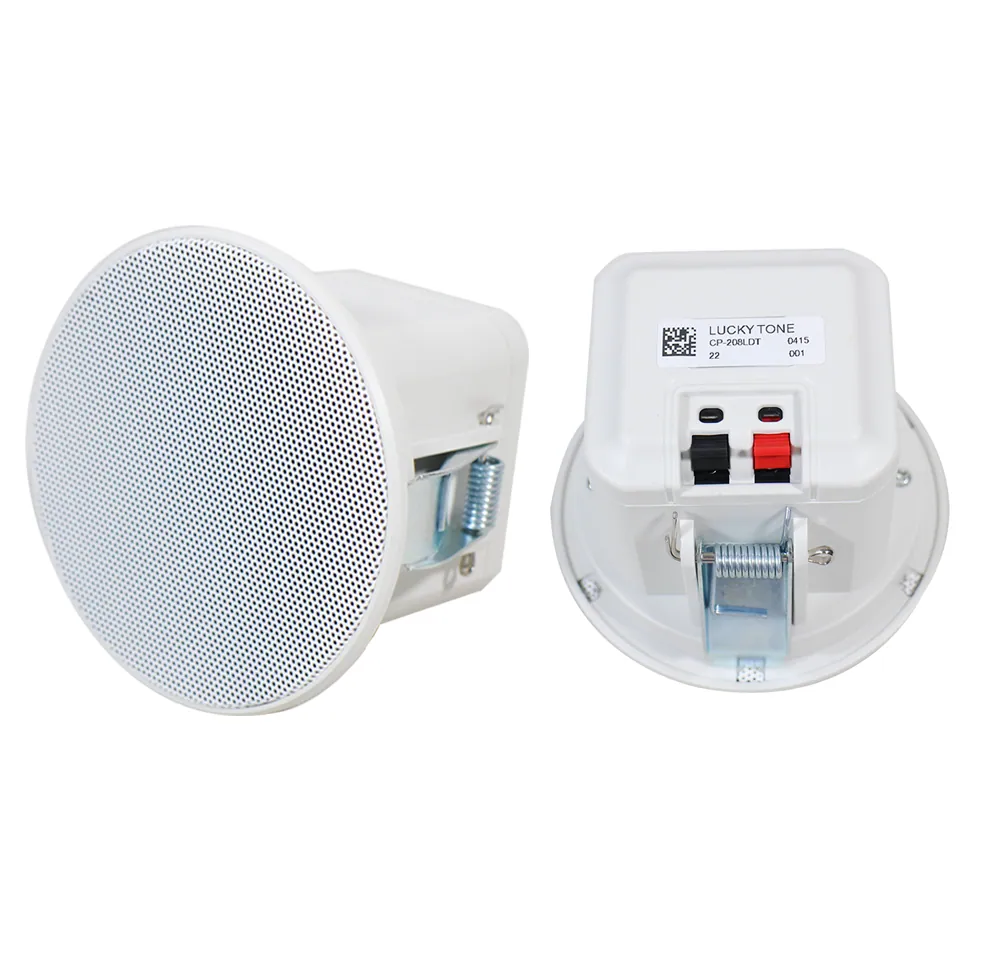

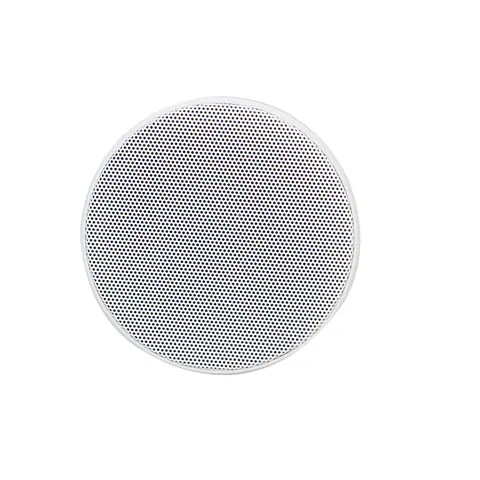

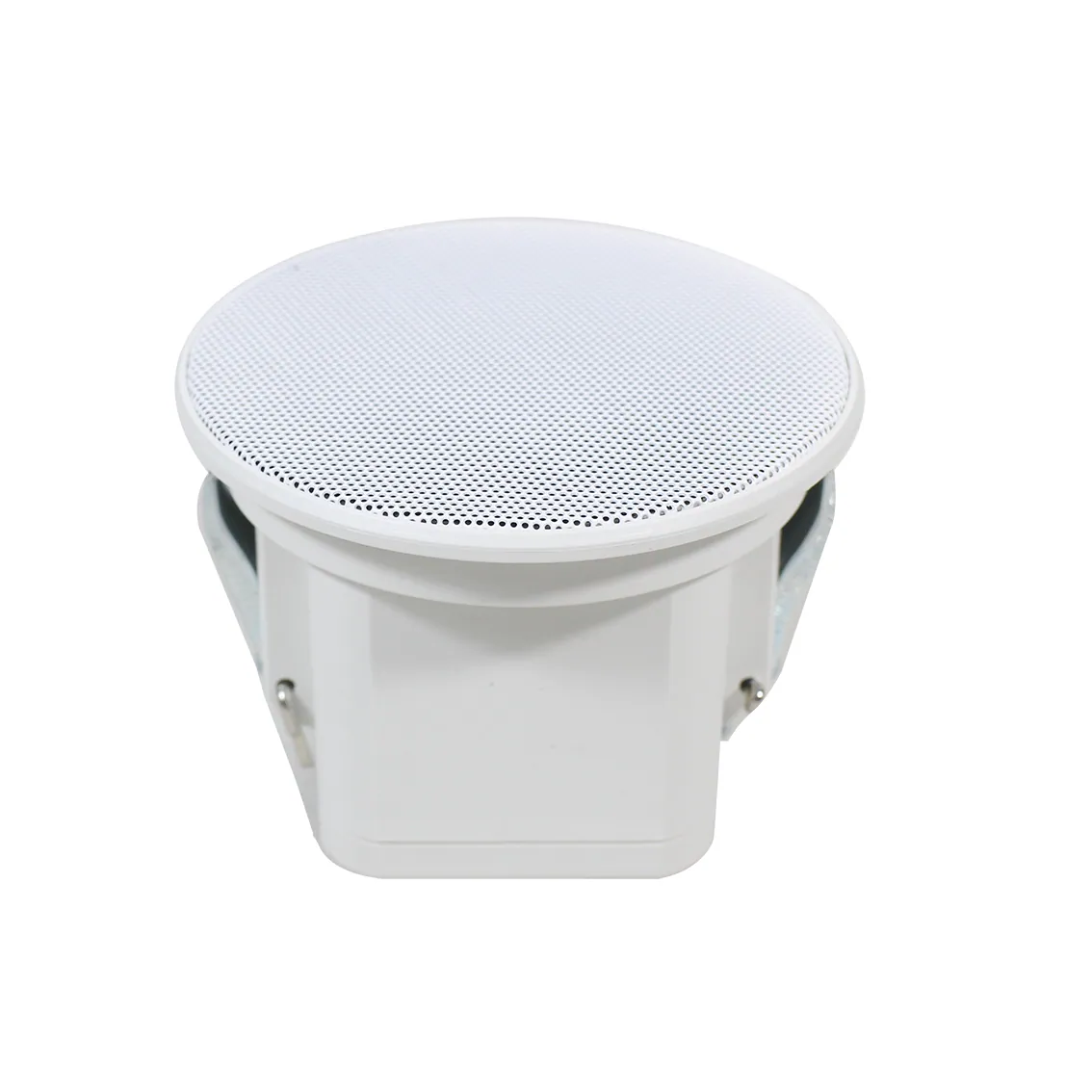

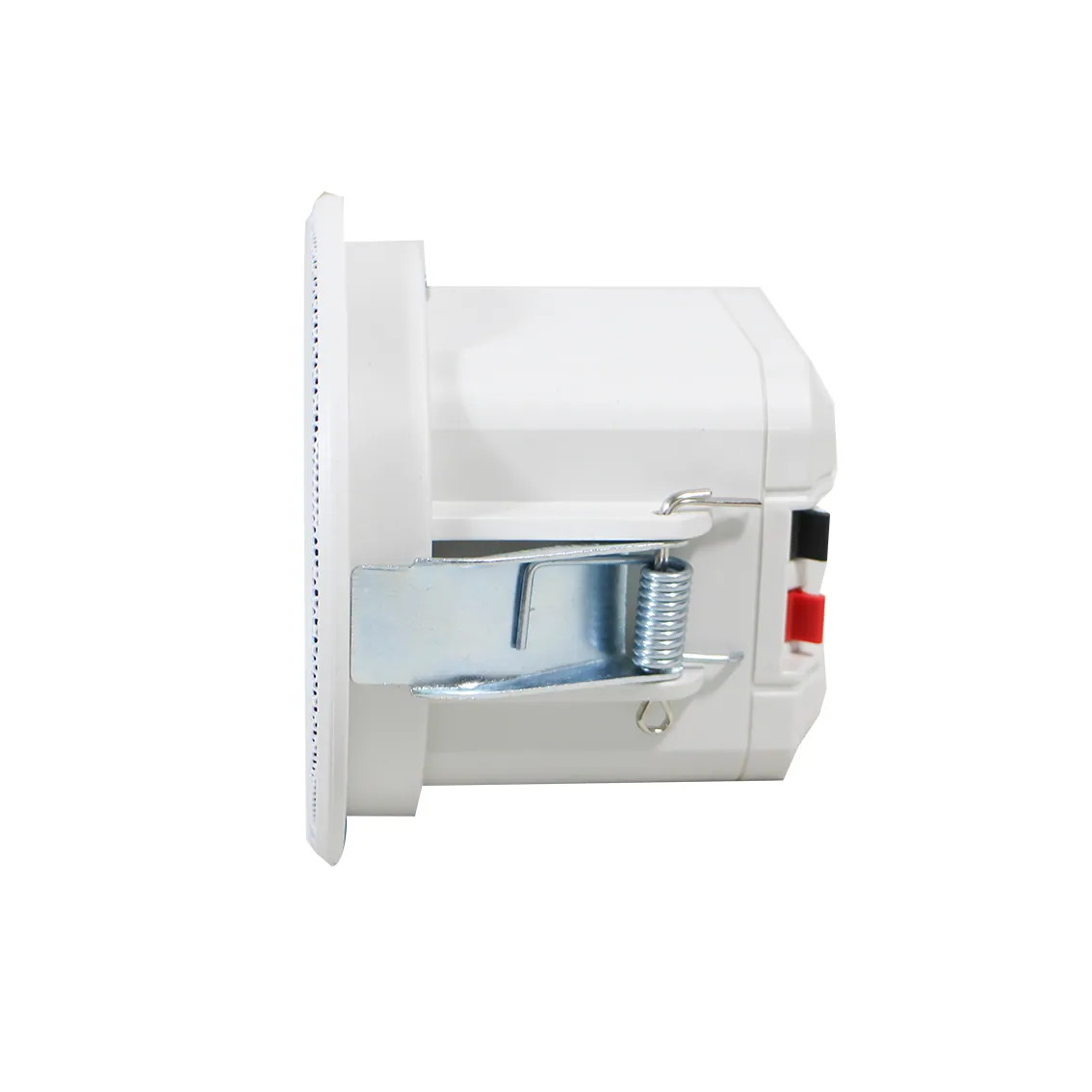

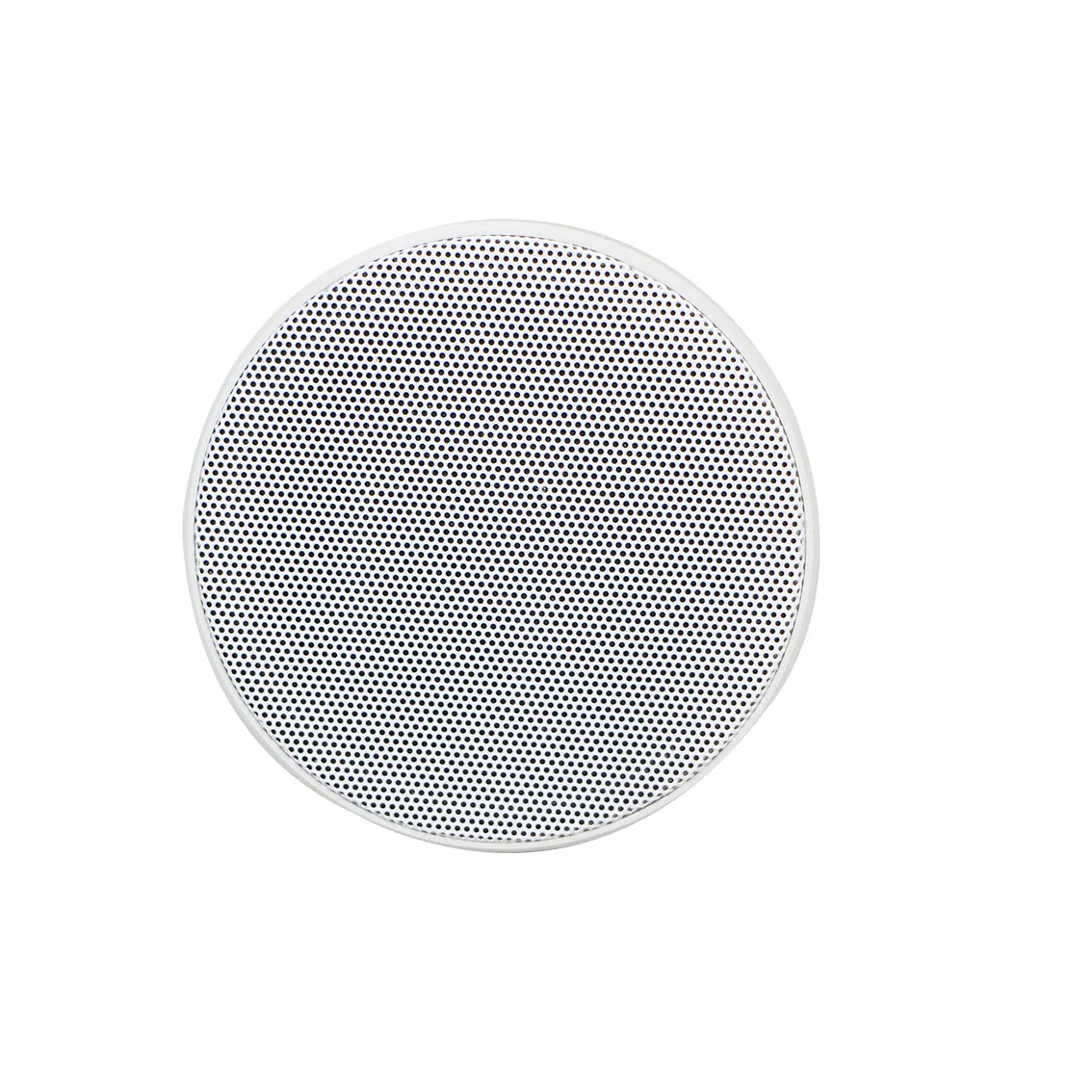

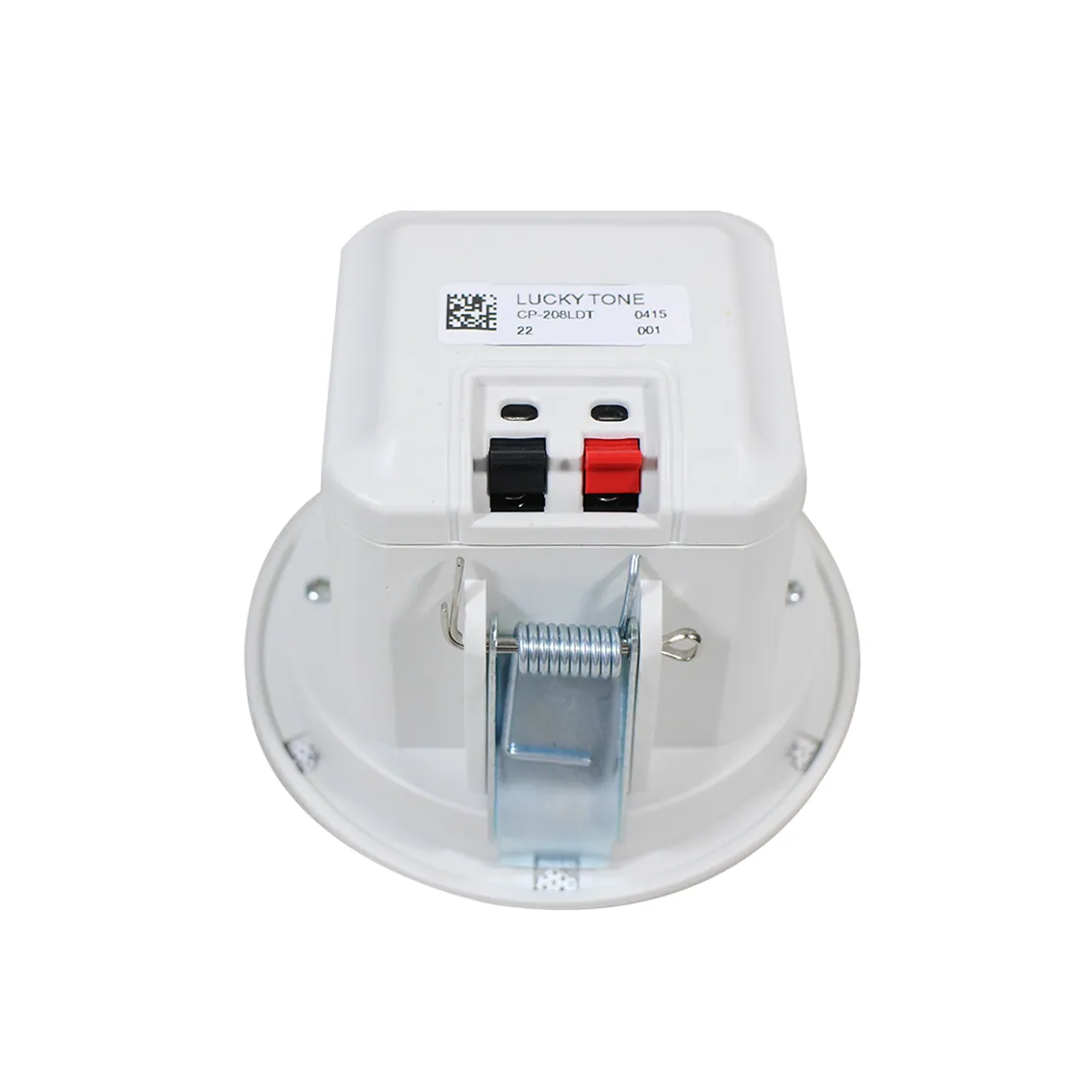

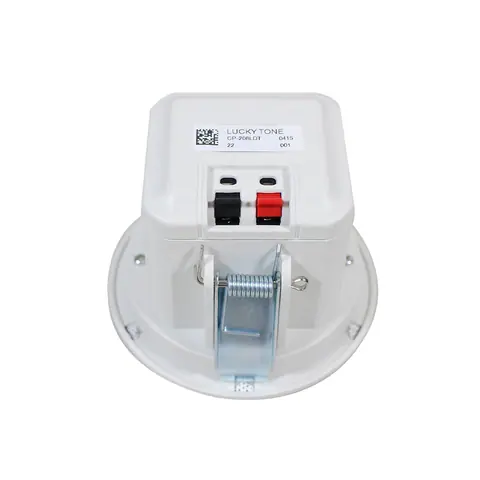

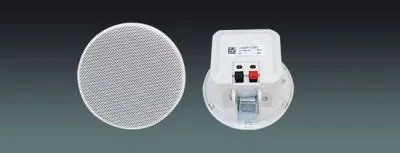

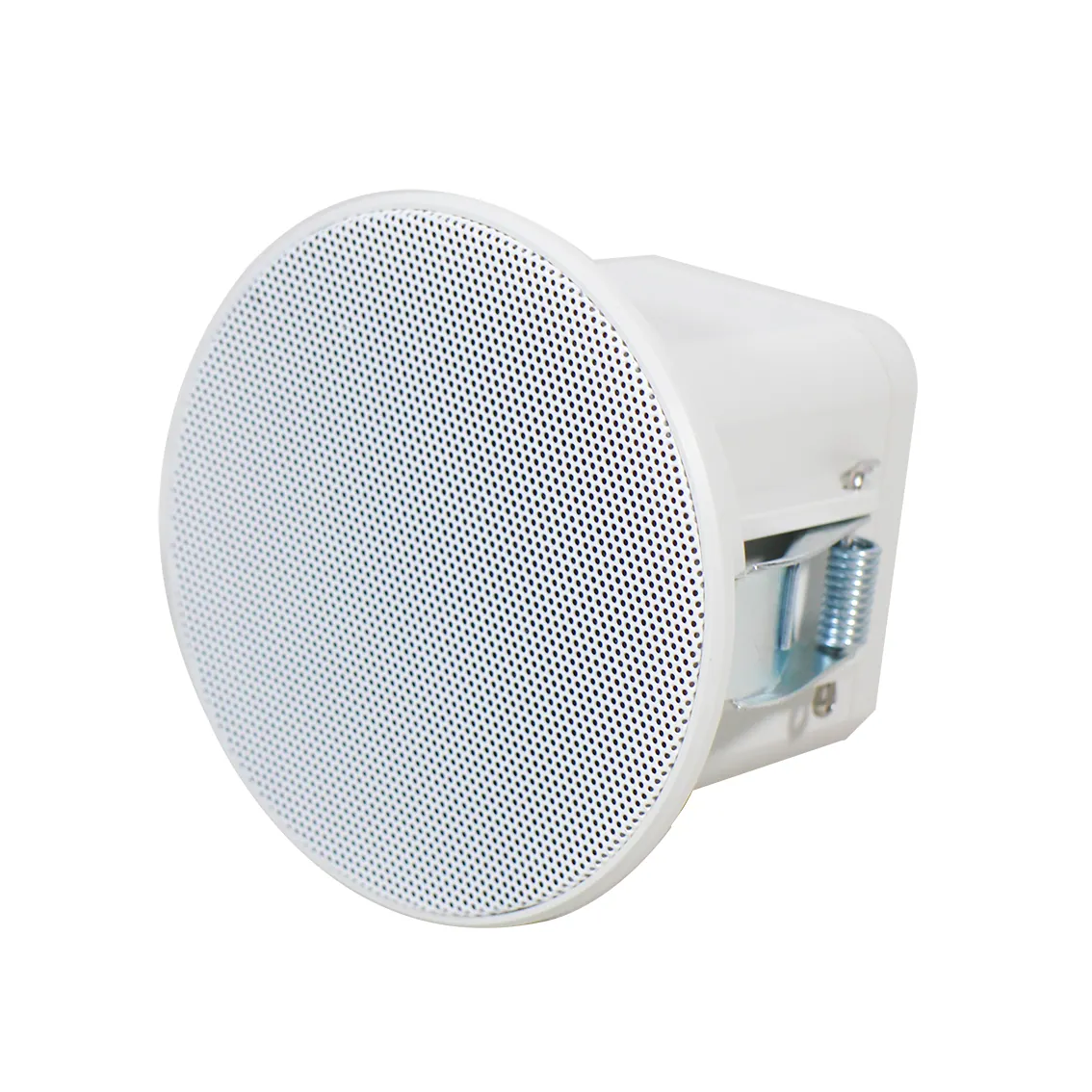

Super Mini 8W Ceiling Speaker
ModelCP-208LD / CP-208LDT
ABS Ceiling speaker
- Weight
- 0.4Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Super Mini 8W Ceiling SpeakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| MODEL | CP-208LD | CP-208LDT |
|---|---|---|
| Power at 100V | 8W@8ohm | 8W |
| Power at 70V | / | 4W |
| SPL( 1W/1M) | 91dB | 91dB |
| Max SPL@ 1M | 98dB | 98dB |
| Freq. Response | 130Hz-16KHz | 130Hz-16KHz |
| Cutout Size | Dia 90mm | Dia 90mm |
| Product Size | Dia 100mm | Dia 100mm |
| Installation | In celing | In celing |
| Enclosure Material | ABS | ABS |
| Weight | 0.4Kg | 0.4Kg |
| Finish | White | White |
| Speakers | 2.5 ” x1 full range | 2.5 ” x1 full range |
02DescriptionManufacturer's description
What it is.
Mini size yet powerful sound
With 8W transformer
Good for PA and BGM
T means with transformer
03Documents1 file · 1.9 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
