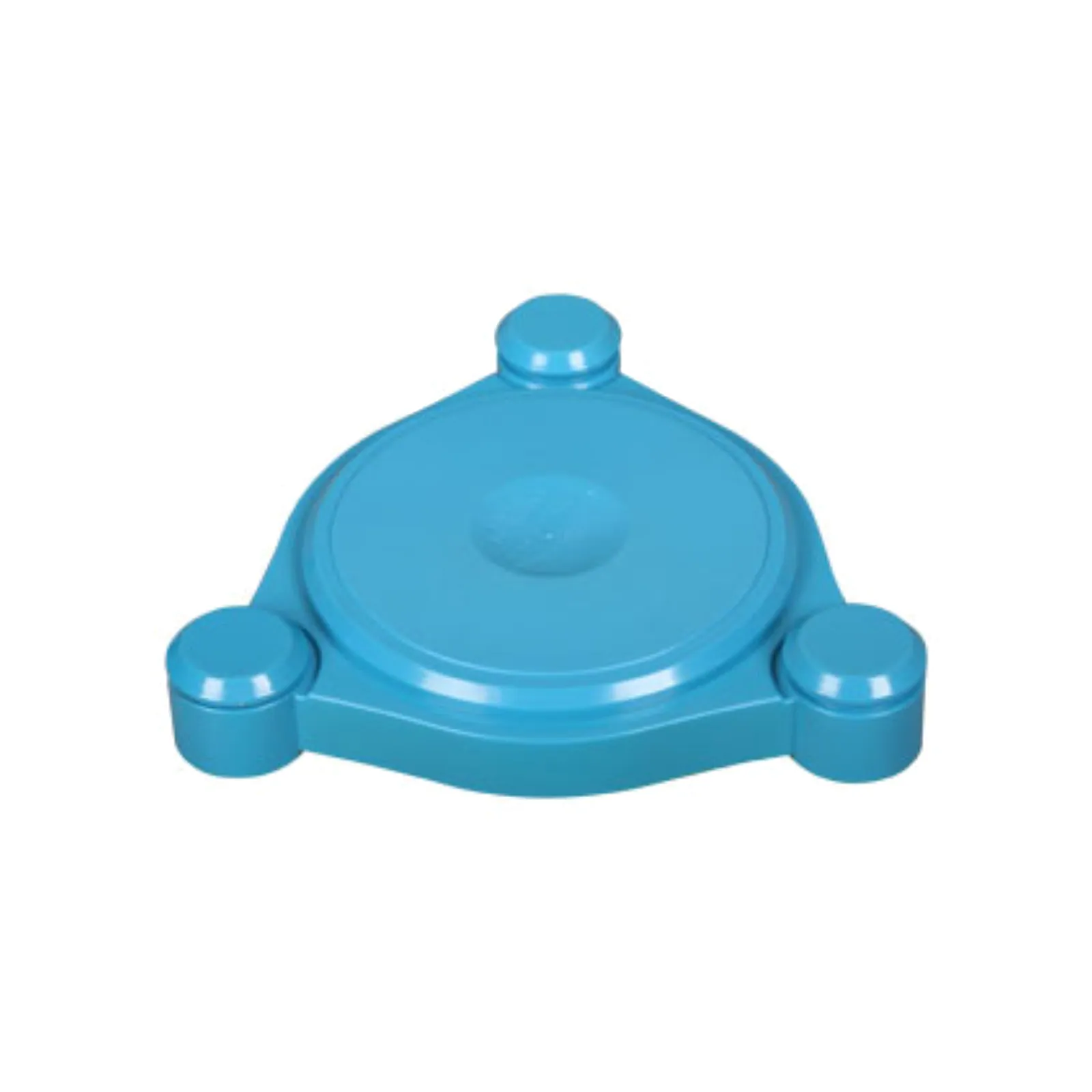

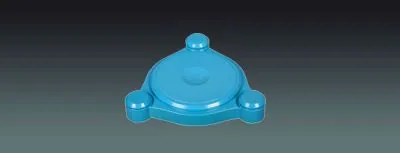

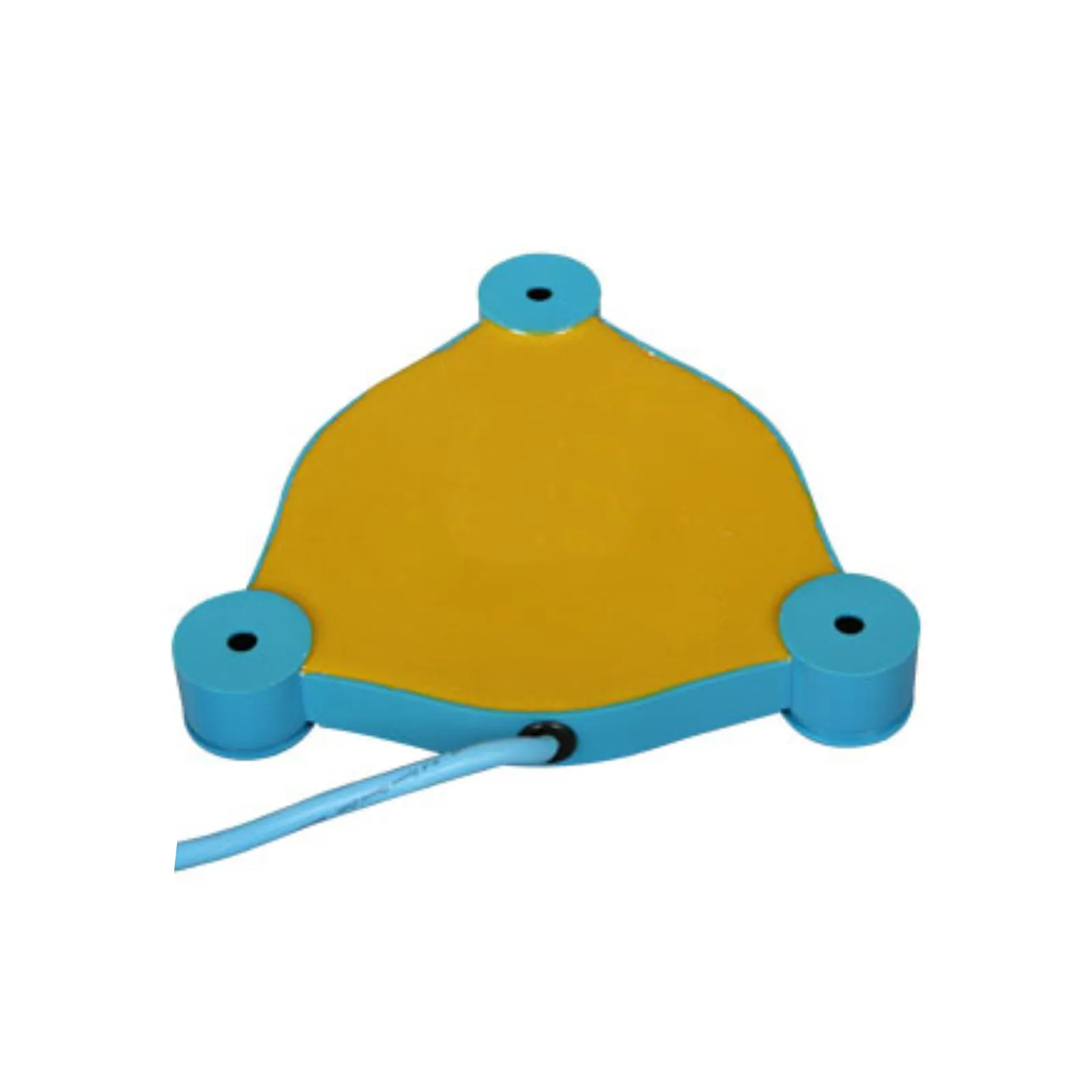

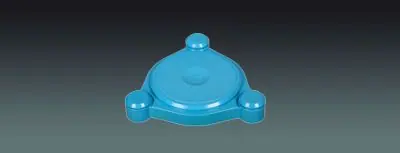

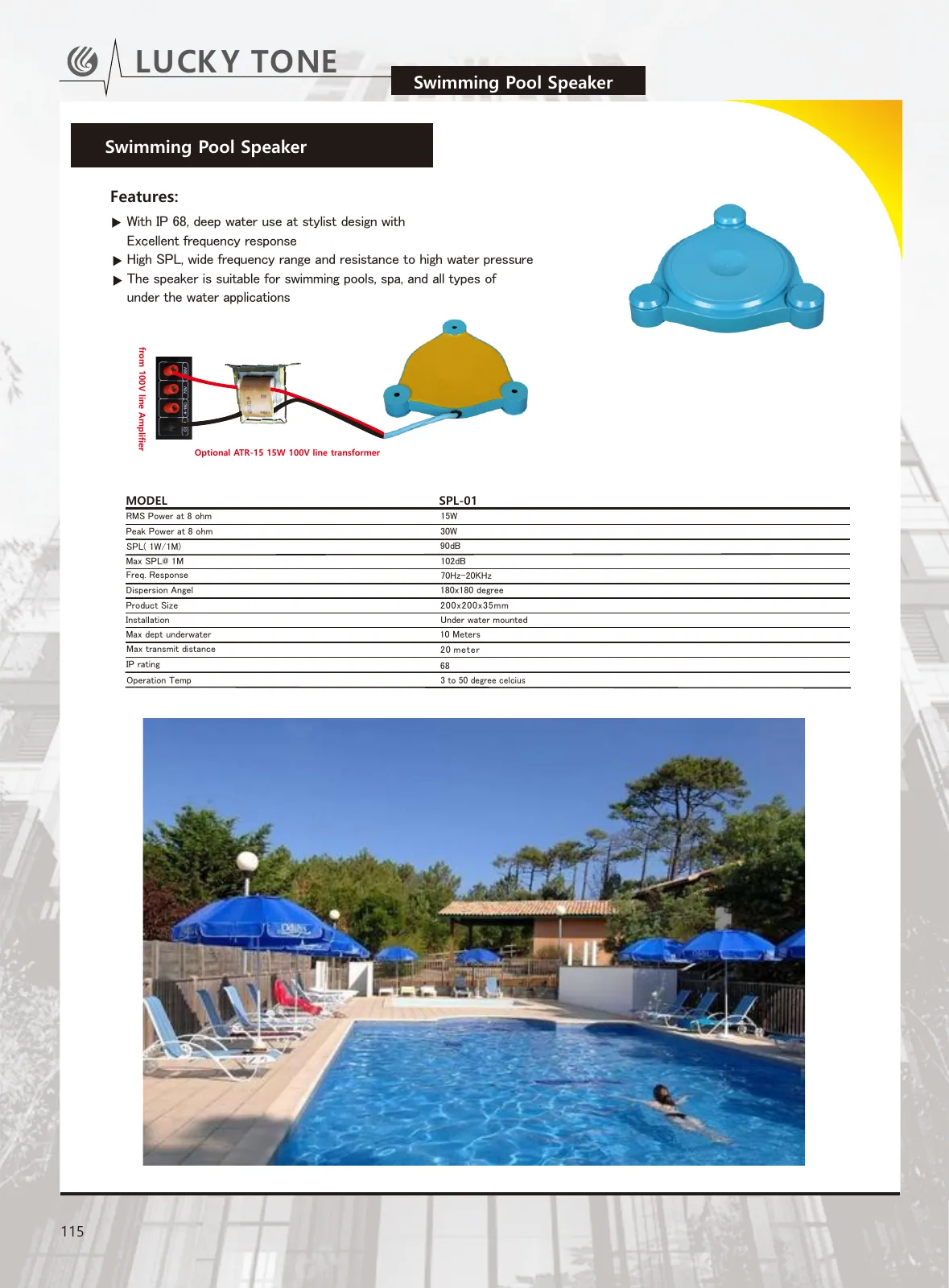

Swimming Pool Speaker
ModelSPL-01
With IP 68, deep water use at stylist design with
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- SPL-01
- System Power Handling (Continuous/Program/Peak)
- 30W
- Impedance
- 8ohm
- SPL( 1W/1M)
- 90dB
- Max SPL@ 1M
- 102dB
- Freq. Response
- 70Hz-20KHz
- Dispersion Angel
- 180×180 degree
- Product Size
- 200x200x35mm
- Installation
- Under water mounted
- Max dept underwater
- 10 Meters
- Max transmit distance
- 20 meter
- IP rating
- 68
- Operation Temp
- 3 to 50 degree celcius
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
- Excellent frequency response
- High SPL, wide frequency range and resistance to high water pressure
- The speaker is suitable for swimming pools, spa, and all types of under the water applications
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

In the same range.

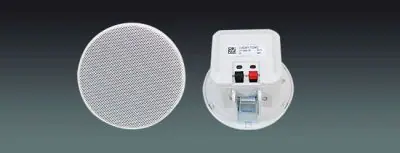

EQ-1713Lucky ToneSuper Mini 8W Ceiling SpeakerCP-208LD / CP-208LDT · LoudspeakersWeight0.4Kg

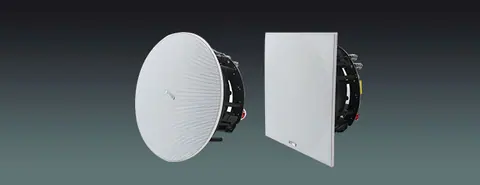

EQ-1715Lucky ToneTilted Rimless Ceiling SpeakerSM-6100T / SM-6100TS / SM-8120T / SM-8120TS · LoudspeakersOutput powerSM-6100T: 100W; SM-6100TS: 100W; SM-8120T: 120W; SM-8120TS: 120WWeightSM-6100T: 1.66kg; SM-6100TS: 1.7kg; SM-8120T: 2.66kg; SM-8120TS: 2.7kg

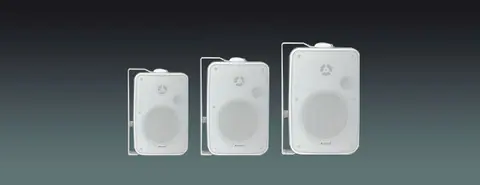

EQ-1712Lucky ToneStylish Wall Mounted SpeakerWP-430C WP-540C WP-660C · Loudspeakers
