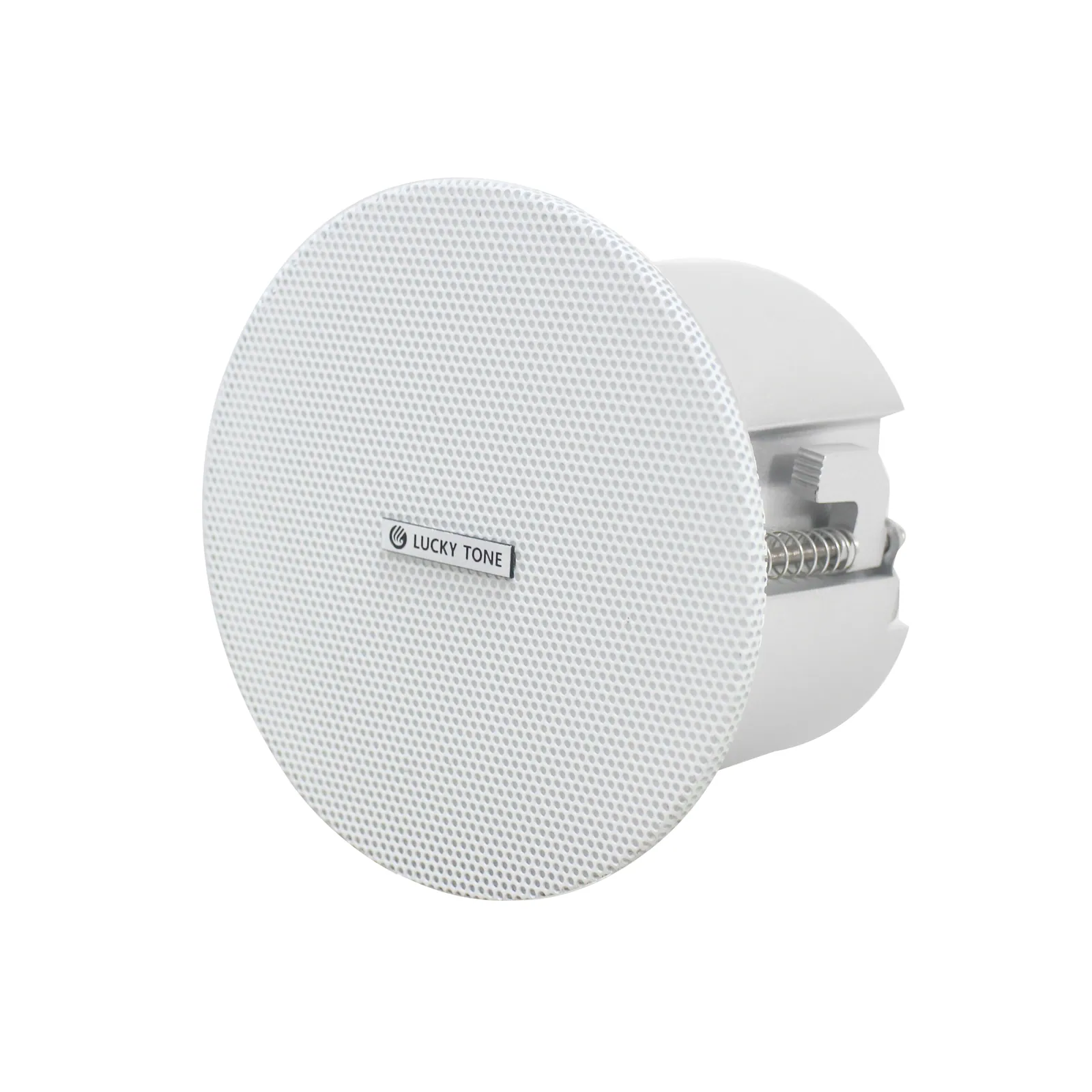

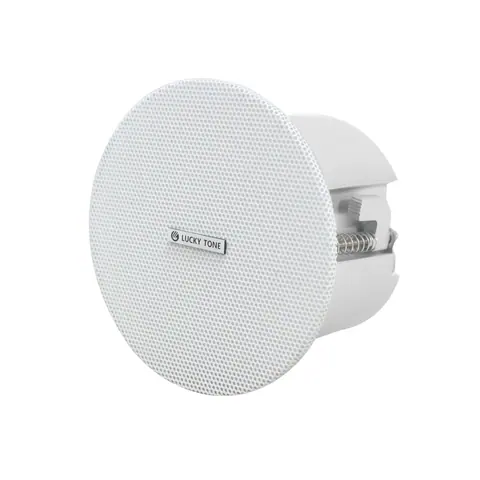

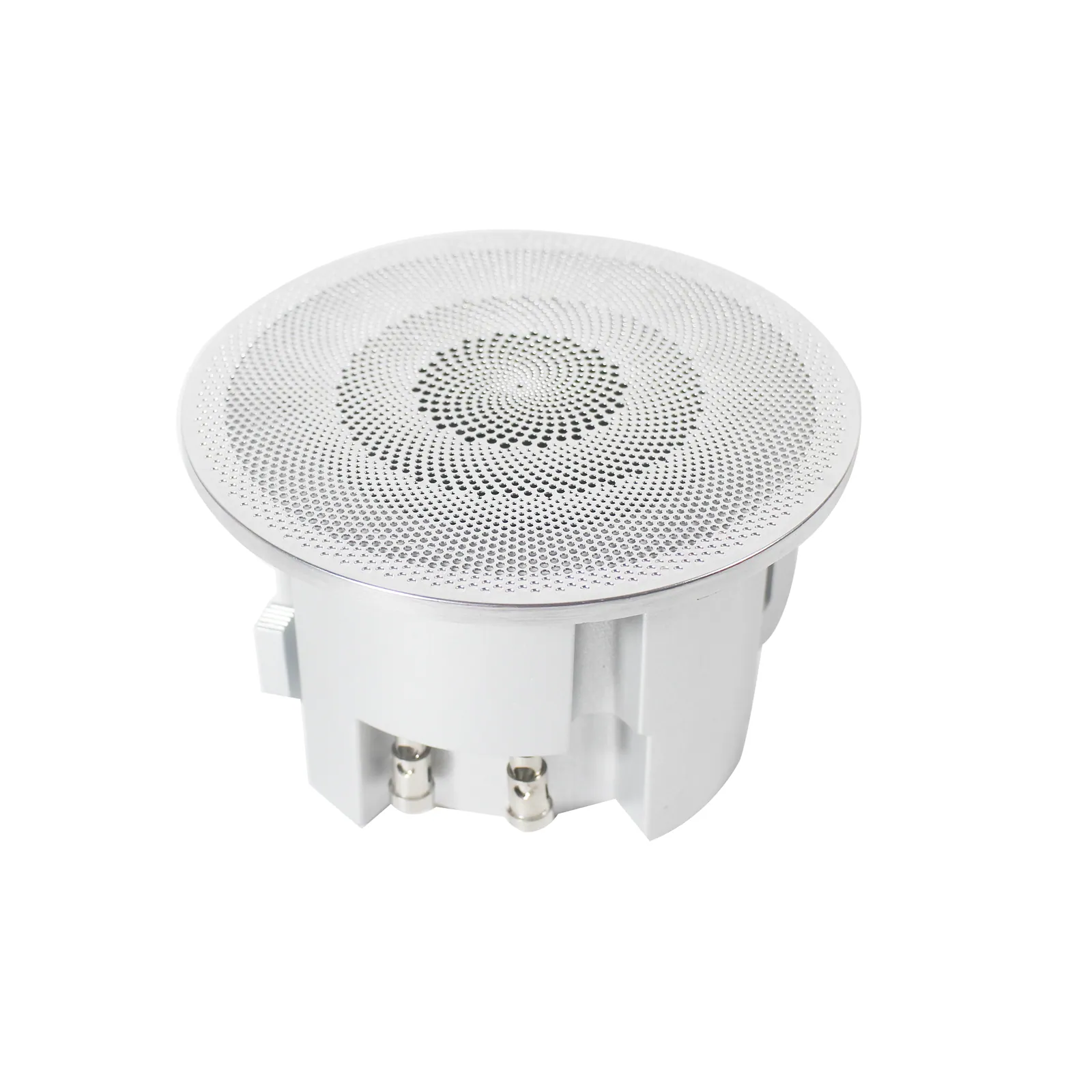

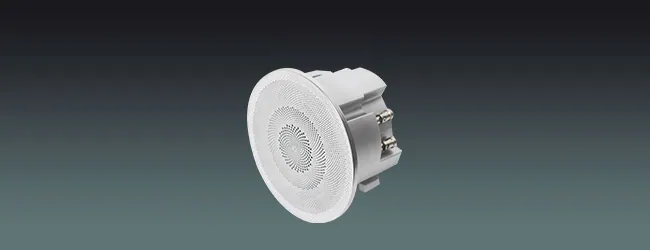

IP66 Neodymium Aluminum Ceiling Speaker

ModelCH-215R

Elegant outlook and extraordinary performance

Output power: 15W

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 10 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications10

Model: CH-215R
Rated Power: 15W
Max. Power: 40W
SPL( 1W/1M): 86dB
Freq. Response: 70Hz-20Khz
Cutout Size: Dia 86mm
Product Size: Dia 110*81.4mm (H)
Installation: In-ceiling
Finish: Silver
Speakers: 2.5” Full range with bass radiator

02DescriptionManufacturer's description

What it is.

Neodymium double magnetic driver to produce good sound with small power
Strong aluminum die-casting housing
Bottom passive radiator to produce better bass for the music
IP 66 for very wet and humid applications, SPA, bath room, sauna place, and etc.

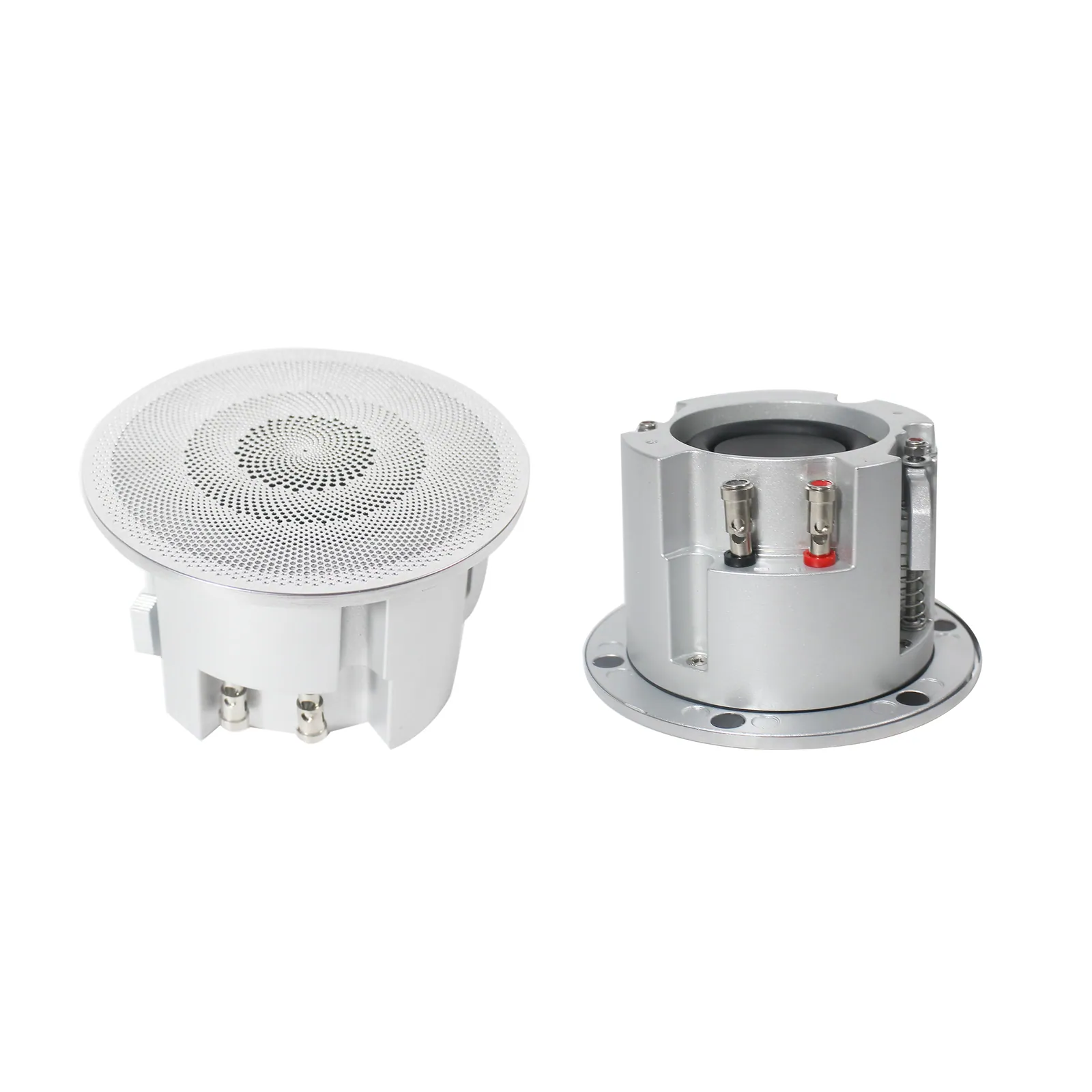

Packed with 2 grills: standard white grill and waterproof silver grill.

03Documents1 file · 1.5 MB
