Sheet 05.173
Lucky Tone · Loudspeakers

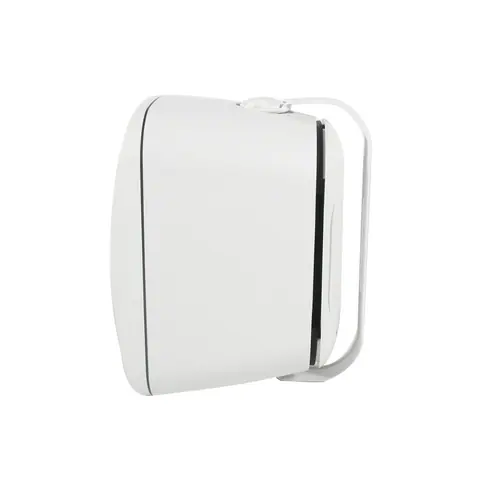

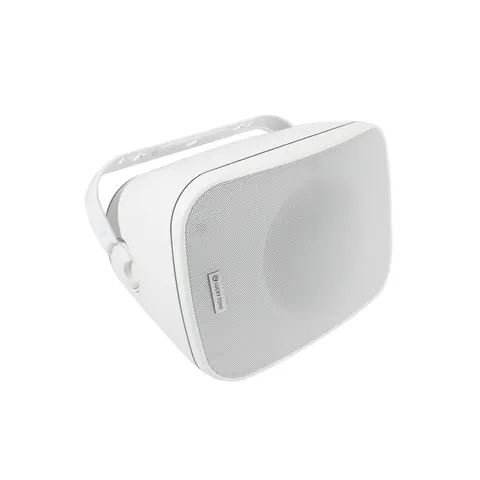

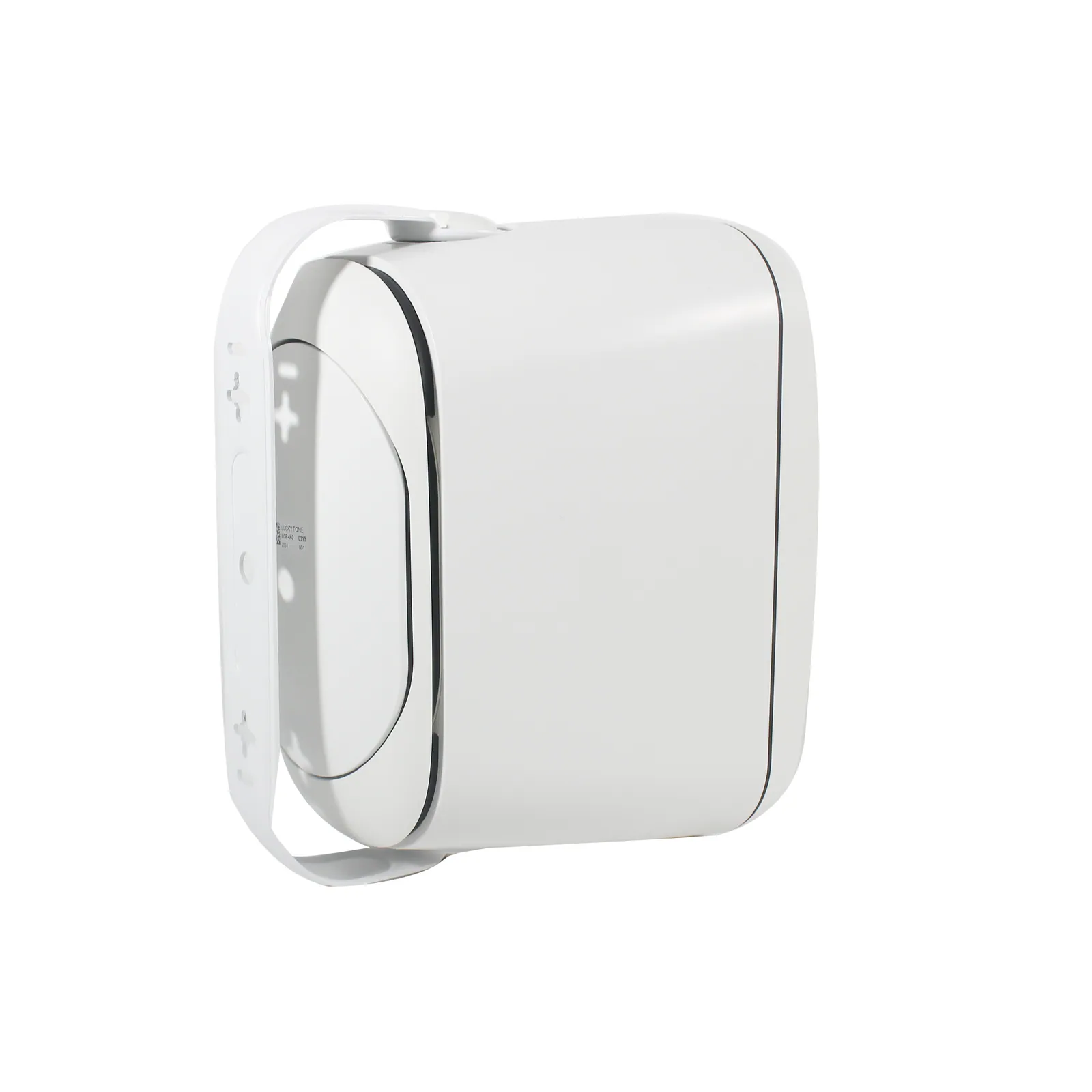

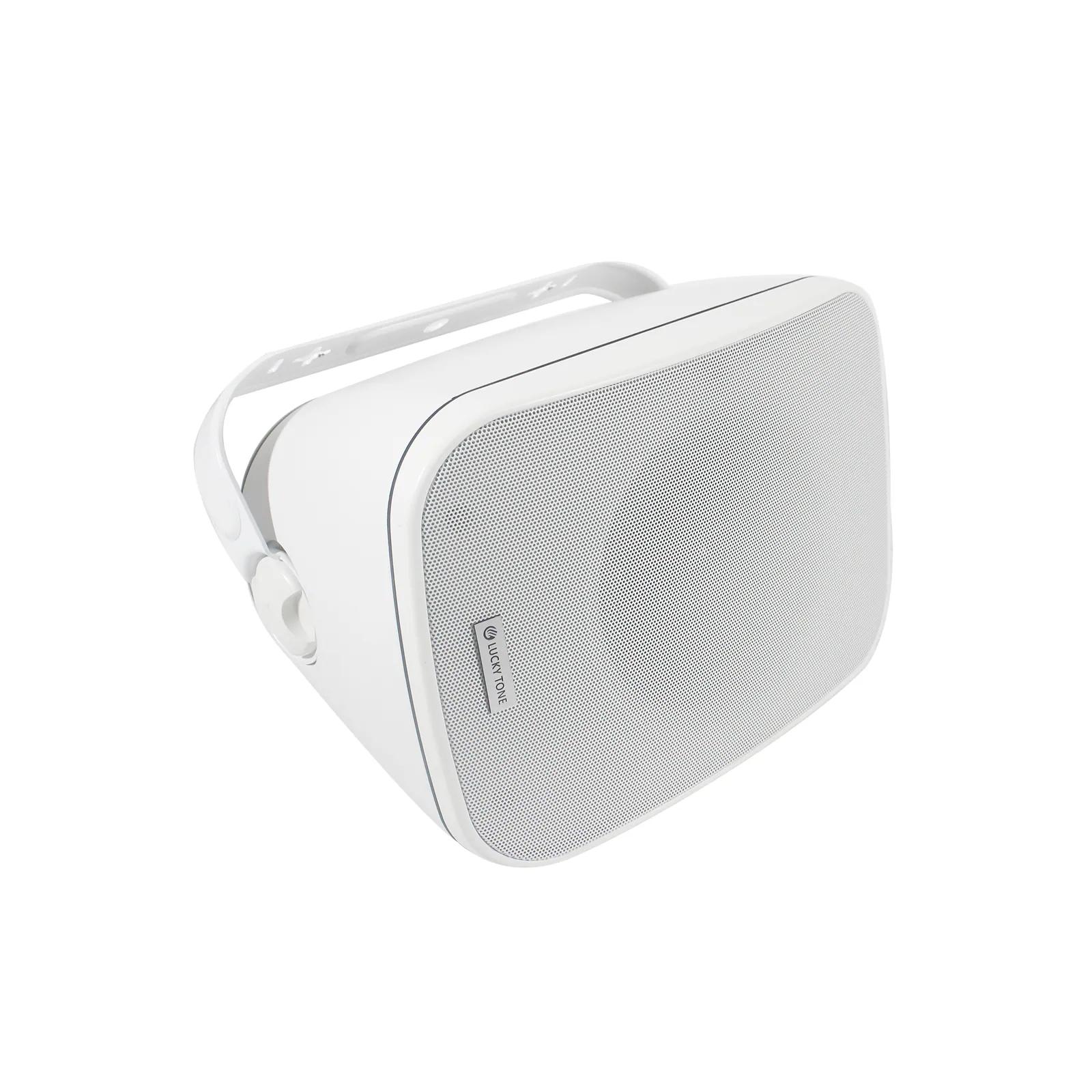

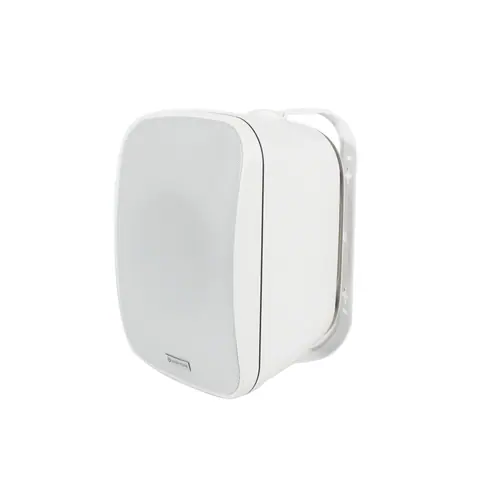

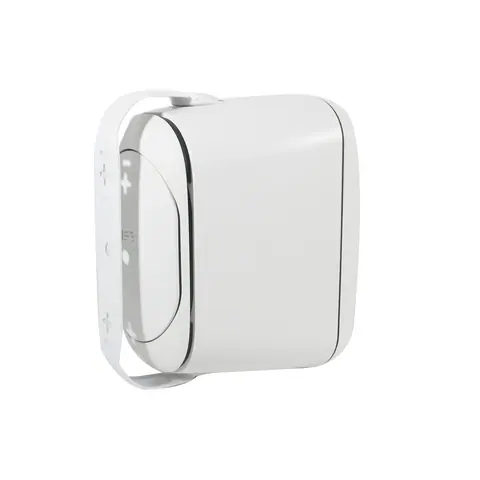

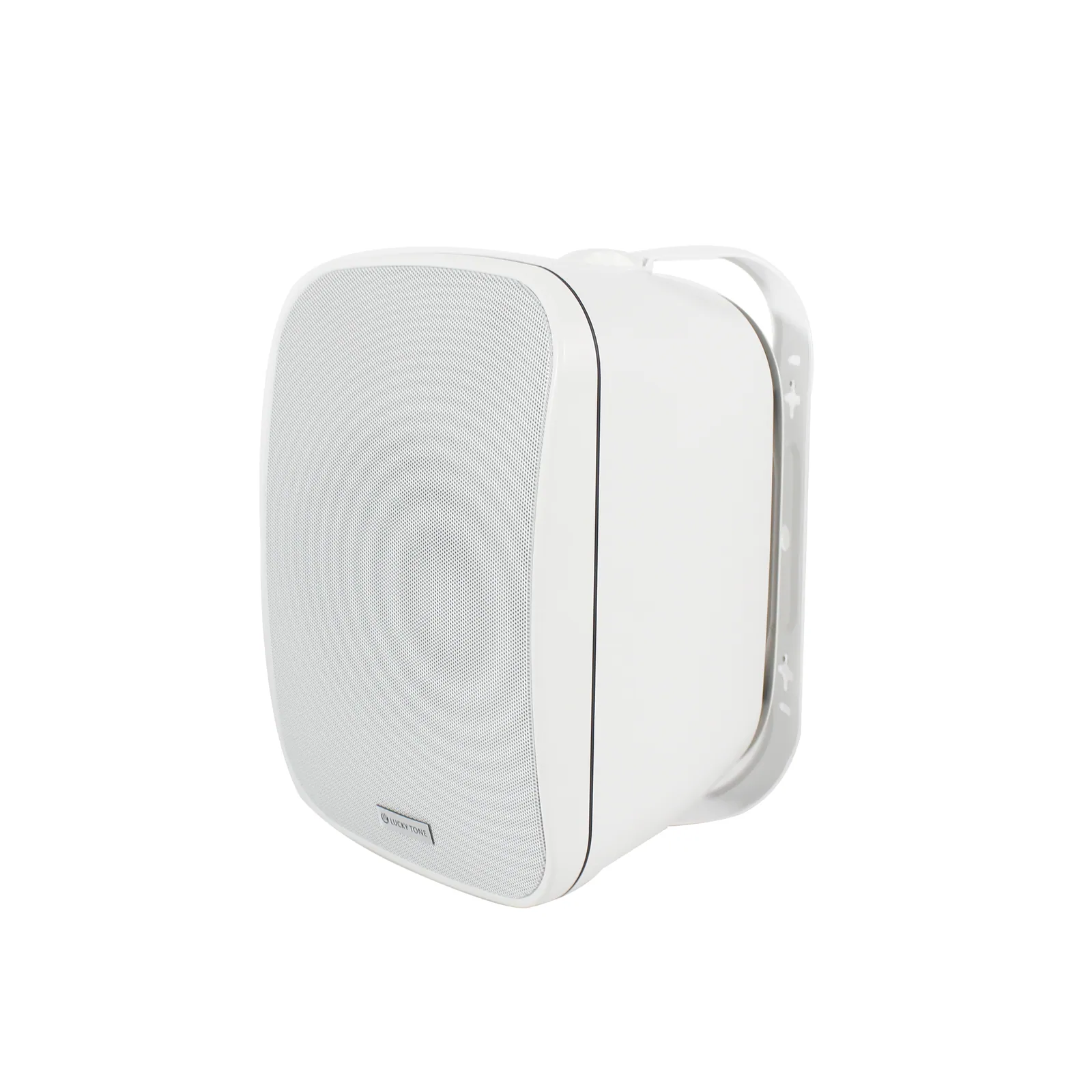

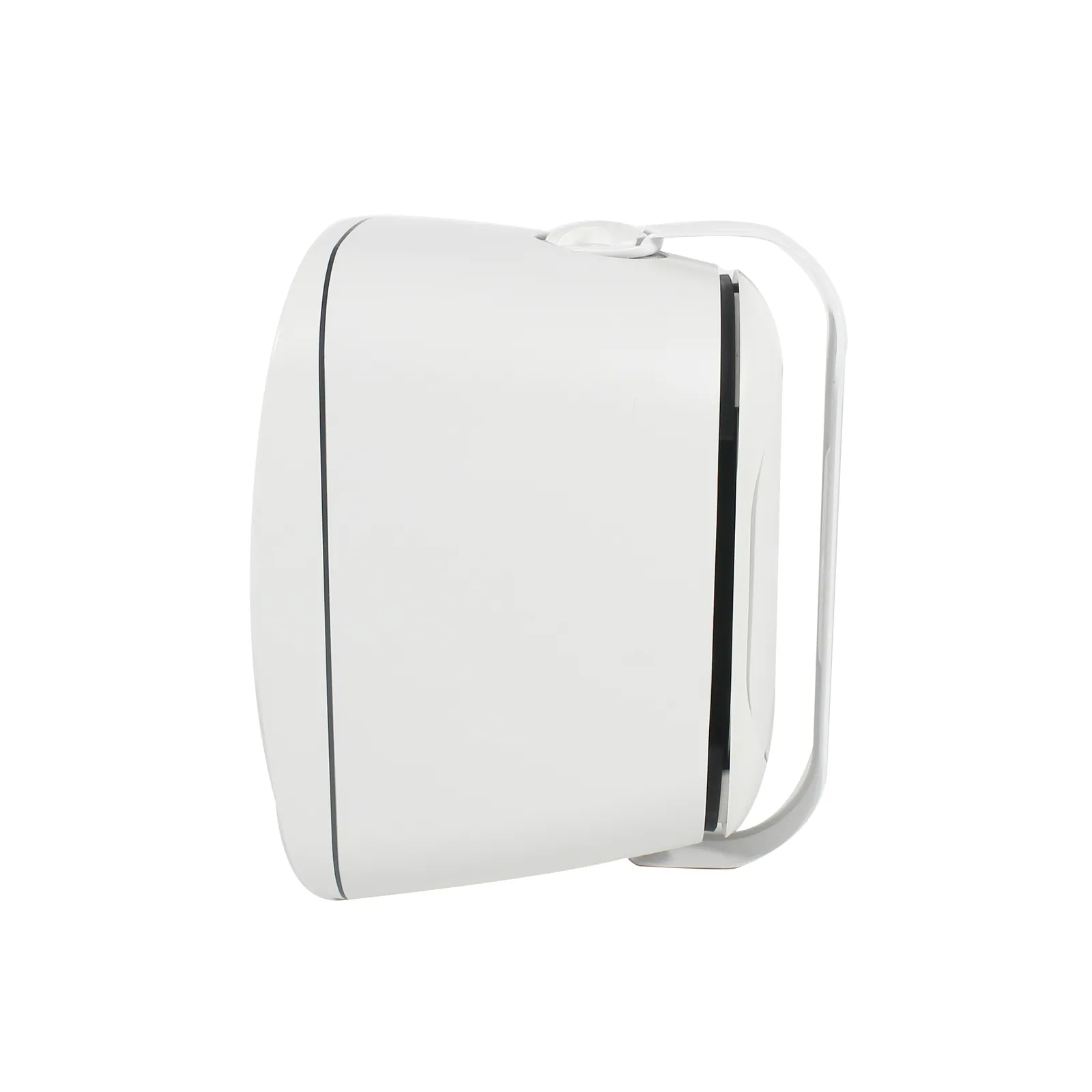

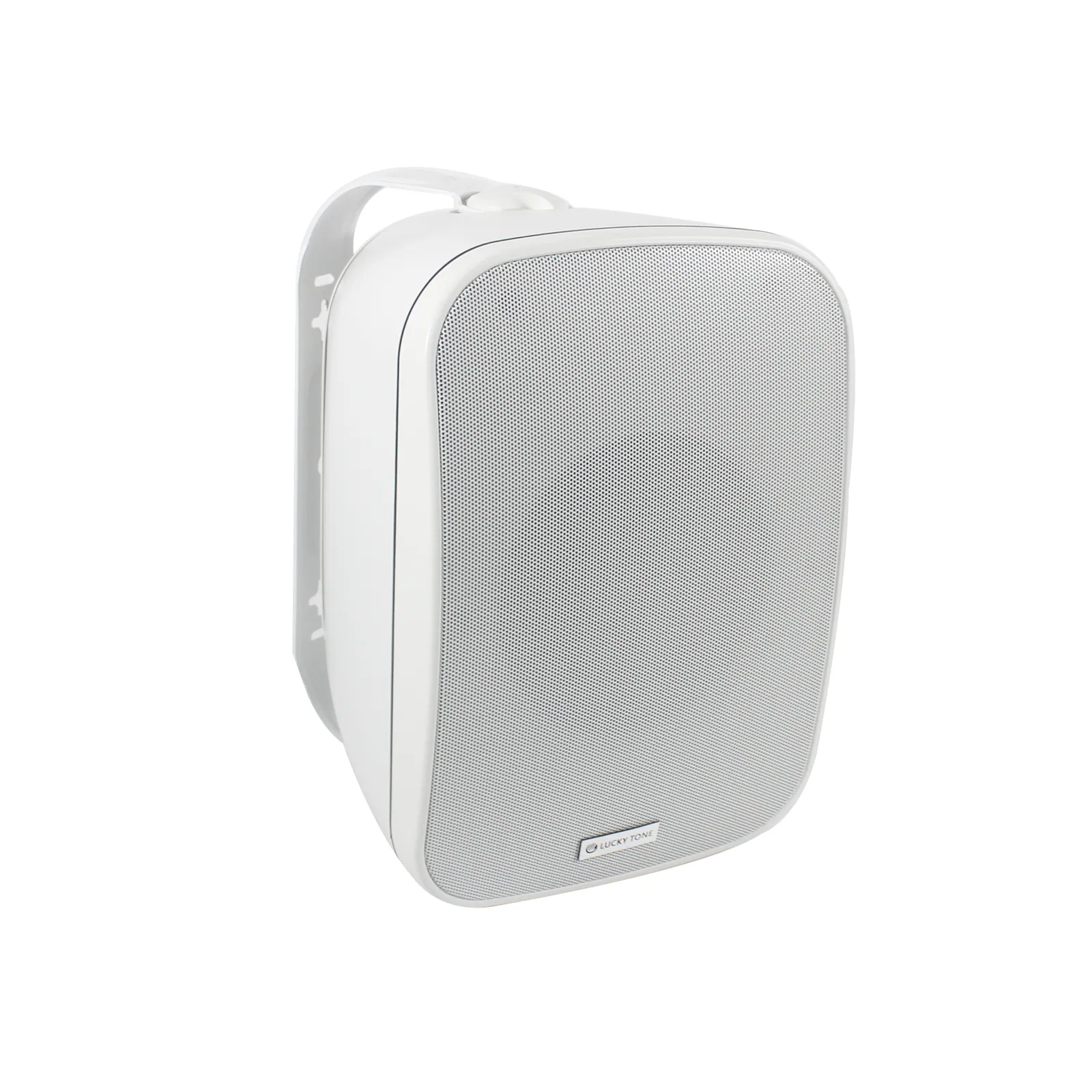

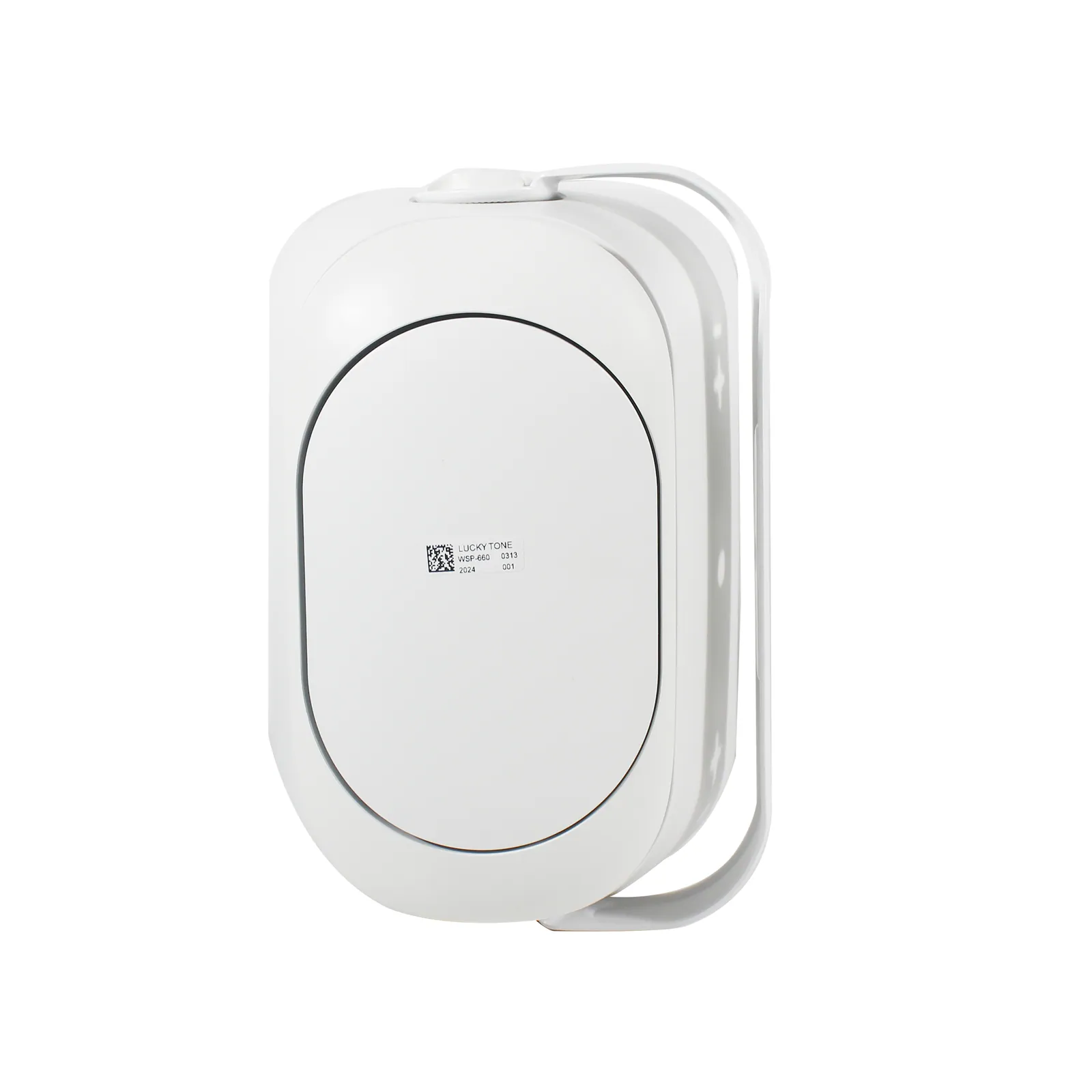

IP66 Waterproof Wall Mount Speaker for Outdoor
ModelWSP-540W/WSP-540B / WSP-660W/WSP-660B / WSP-880W/WSP-880B
IP66 rating ensures reliable performance in both indoor and outdoor environments, protecting against dust, water, and extreme weather conditions.
- Weight
- WSP-540W/WSP-540B: 3.5kg; WSP-660W/WSP-660B: 4.6kg; WSP-880W/WSP-880B: 6.8kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
IP66 Waterproof Wall Mount Speaker for OutdoorPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | WSP-540W/WSP-540B | WSP-660W/WSP-660B | WSP-880W/WSP-880B |
|---|---|---|---|
| Power at 100V | 2.5W/5W/10W/20W, 40W@8ohm | 5W/10W/20W/40W, 60W@8ohm | 6.25W/12.5W/25W/50W, 80W@8ohm |
| Power at 70V | 1.25W/2.5W/5W/10W, 40W@8ohm | 2.5W/5W/10W/20W, 60W@8ohm | 3.125W/6.25W/12.5W/25W, 80W@8ohm |
| Max. SPL@1m | 98dB | 102dB | 105dB |
| Freq. Response | 95Hz-20kHz±3 | 95Hz-20kHz±3 | 45Hz-20kHz±3 |
| Product Size | 275x170x168mm | 285x200x195mm | 380x249x280mm |
| Installation | Wall Mount | Wall Mount | Wall Mount |
| Enclosure Material | PP | PP | PP |
| Termination | Standard Pressed connector | Standard Pressed connector | Standard Pressed connector |
| Woofer | 5’’ (125mm) Paper+wool Cone, Rubber Surround | 6.5’’ (165mm) Paper+wool Cone, Rubber Surround | 8’’ (203mm) Paper+wool Cone, Rubber Surround |
| Tweeter | 0.75’’ (20 mm) Aluminum dome | 0.75’’ (20 mm) Aluminum dome | 1’’ (25 mm) Aluminum dome |
| Net Weight | 3.5kg | 4.6kg | 6.8kg |
| Color | White/Black | White/Black | White/Black |
02DescriptionManufacturer's description
What it is.
All-weather durability
Flexible power options
Equipped with a power tap for 70V/100V and 8Ω, providing versatility in installation and compatibility with various sound systems.

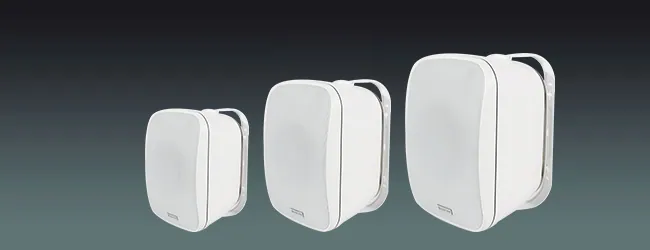

Size options
Available in 5, 6 and 8-inch variants, allowing for customization based on the space and desired audio coverage.
Easy installation
Quick installation facilitated by waterproof brackets.
Stylish design, superior sound
Combines a fashionable appearance with high-quality sound reproduction, enhancing the ambiance of any indoor or outdoor setting while delivering clear and immersive audio experiences.
03Documents1 file · 15 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
04Related products
In the same range.

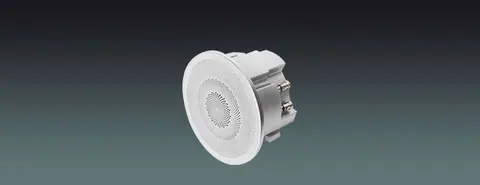

EQ-172Lucky ToneIP66 Neodymium Aluminum Ceiling SpeakerCH-215R · LoudspeakersOutput power15W
