Sheet 05.132
Lucky Tone · Loudspeakers

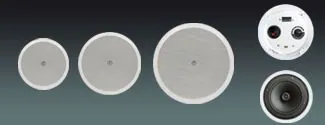

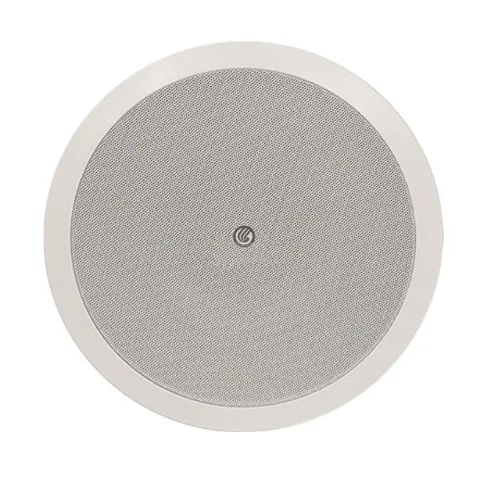

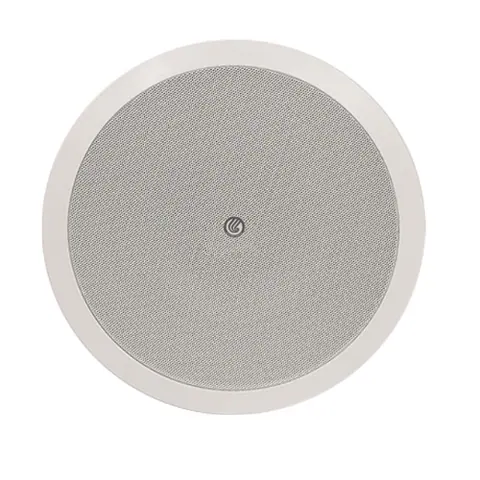

Coaxial Ceiling Speaker with Optional Dome
ModelCP-521T; CH-521TH / CP-621T; CP-621TH / CP-821T; CP-821TH

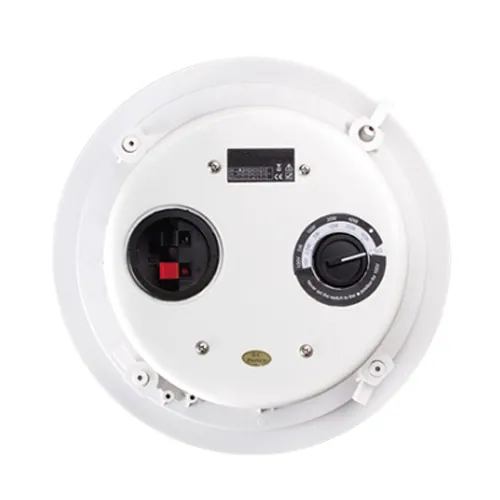

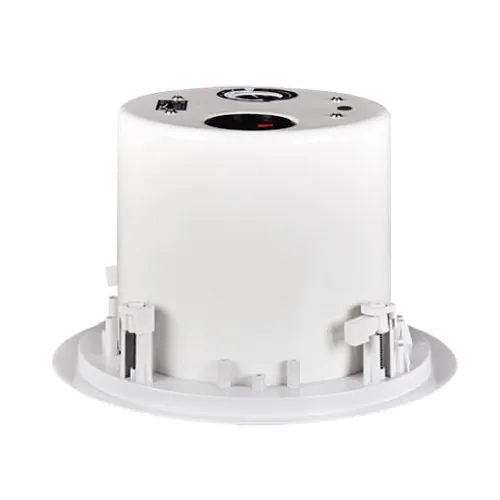

● With heavy duty fire dome and power selection switch
- Weight
- CP-521T; CH-521TH: 1.25Kg; 1.70Kg; CP-621T; CP-621TH: 1.60Kg; 2.20Kg; CP-821T; CP-821TH: 2.10Kg; 3.1Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Coaxial Ceiling Speaker with Optional DomePrice on requestRequest a quotation

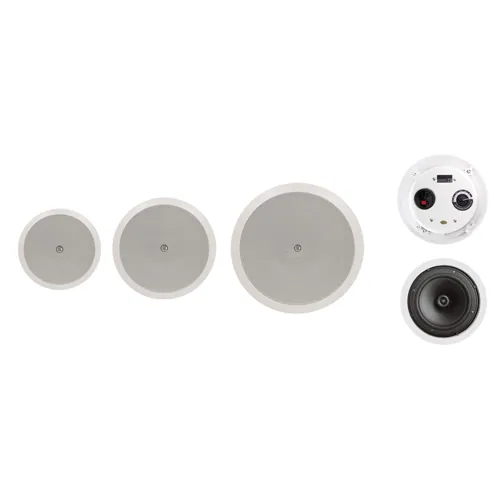

01Models3 models in the family
Models compared.
| MODEL | CP-521T; CH-521TH | CP-621T; CP-621TH | CP-821T; CP-821TH |
|---|---|---|---|
| Power at 100V | 20 / 10 / 5 / 2.5W, 8 Ohm | 30 / 15 / 7.5 / 3.8W, 8 Ohm | 40 / 20 / 10 / 5W, 8 Ohm |
| Power at 70V | 10 / 5 / 2.5 / 1.25W, 8 Ohm | 15 / 7.5 / 3.8 / 1.9W, 8 Ohm | 20 / 10 / 5 / 2.5W, 8 Ohm |
| SPL (1W/1M) | 88dB | 88dB | 88dB |
| Max SPL@1M | 101dB | 102dB | 103dB |
| Freq.Response | 100Hz-20KHz | 90Hz-20KHz | 50Hz-20KHz |
| Cutout Size | Dia 170mm | Dia 200mm | Dia 240mm |
| Product Size | Dia 203x80mm(H); x145mm(H) | Dia 230x90mm(H); x150mm(H) | Dia 270x105mm(H); x185mm(H) |
| Installation | Inceiling | Inceiling | Inceiling |
| Enclosure Material | ABS | ABS | ABS |
| Weight | 1.25Kg; 1.70Kg | 1.60Kg; 2.20Kg | 2.10Kg; 3.1Kg |
| Finish | White | White | White |

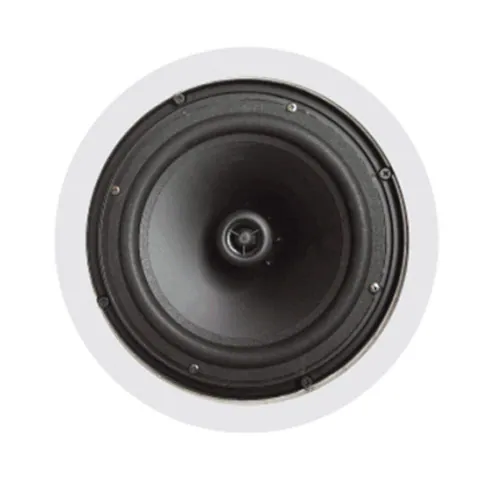

| Speakers | 1″ x 1 (TREBLE); 5.25″ x 1 (BASS) | 1″ x 1 (TREBLE); 6″ x 1 (BASS) | 1″ x 1 (TREBLE); 8″ x 1 (BASS) |
02DescriptionManufacturer's description
What it is.
● High Performance 2 way speaker
● Good for high music demand applications
03Documents1 file · 5.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
