Sheet 05.130
Lucky Tone · Loudspeakers

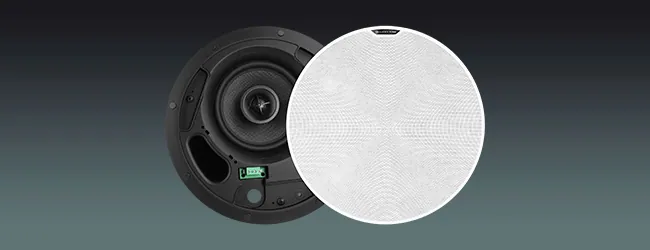

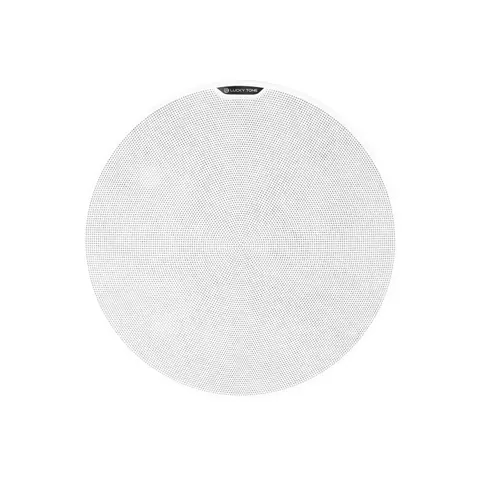

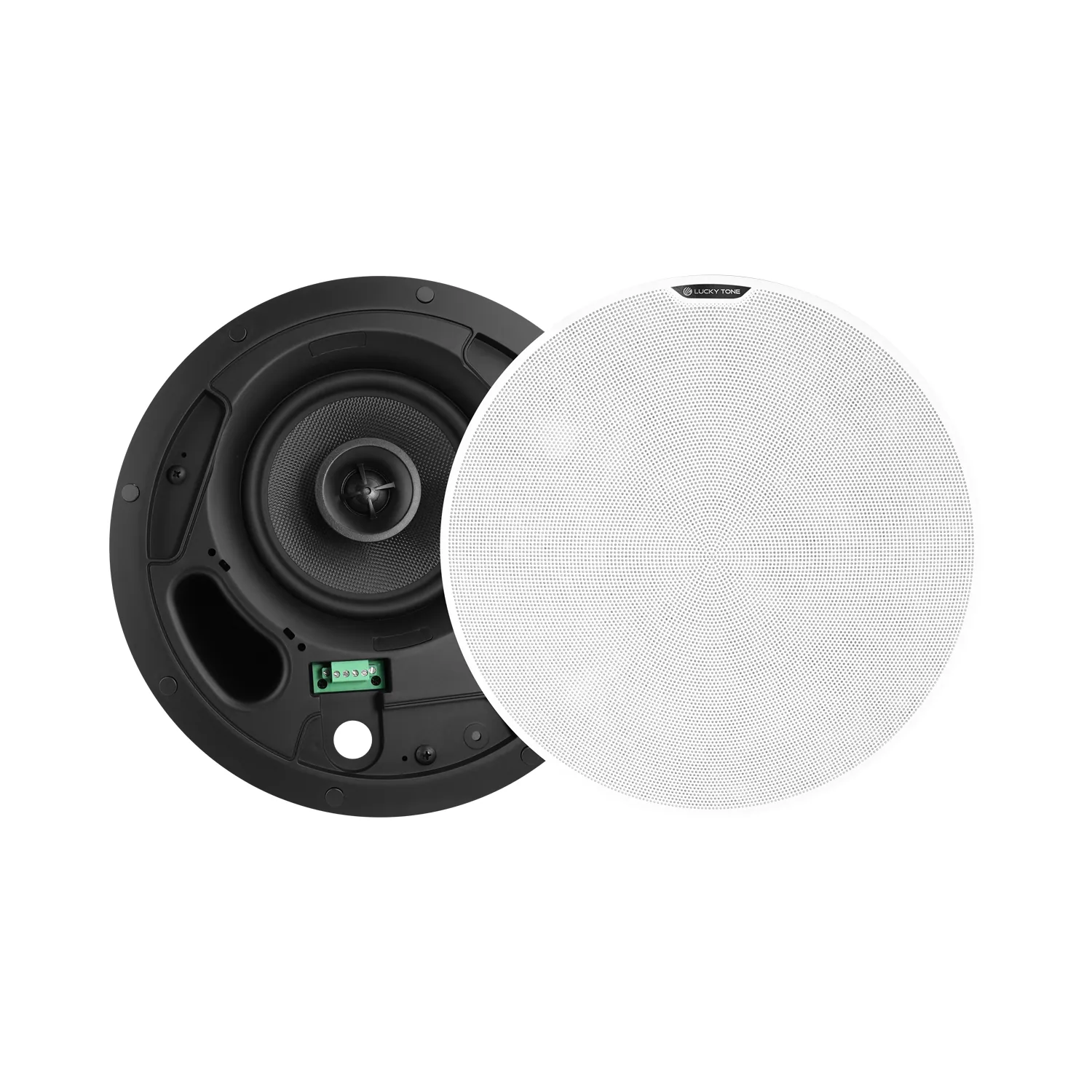

Coaxial Ceiling Speaker Rimless Front with Safety Wire
ModelDP660V2 / DP8100V2
Available in 6.5″ and 8″ coaxial ceiling speaker models.
- Frequency response
- DP660V2: 85Hz – 20kHz; DP8100V2: 65Hz – 20KHz
- Weight
- DP660V2: 3.9 kg; DP8100V2: 5.8kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Coaxial Ceiling Speaker Rimless Front with Safety WirePrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | DP660V2 | DP8100V2 |
|---|---|---|
| Power at 100V | 5W/10W/20W/40W@100V, 80W@8Ω | 10W/20W/40W/80W@100V, 100W@8Ω |
| Power at 70V | 2.5W/5W/10W20W@70V, 80W@8Ω | 5W/10W/20W/4W@70V, 100W@8Ω |
| Power Peak | 120W@8Ω | 160W@8Ω |
| Speaker | 1×6.5″ + 1×1″ Dome Tweeter (Coaxial) | 1×8″ + 1×1″ Neodymium Tweeter (Coaxial) |
| Sensitivity (1m/1W) | 90dB | 92dB |
| Max. SPL@ 1M | 110dB | 115dB |
| Frequency Response | 85Hz – 20kHz | 65Hz – 20KHz |
| Coverage Angle | 120° Conical | 120° Conical |
| Grille Material | Metal | Metal |
| Back Cover Material | Iron | Iron |
| Mounting Clamp | Zinc Alloy | Zinc Alloy |
| Cutout Size | Dia 270mm | Dia 320mm |
| Product Size | Dia 316×197mm | Dia 375×258mm |
| Net Weight | 3.9 kg | 5.8kg |
02DescriptionManufacturer's description
What it is.
Features
- Selectable 100V / 70V / 8Ω operation for flexible system integration.
- High sensitivity drivering high SPL output.
- Wide dynamic response for speech and music reproduction.

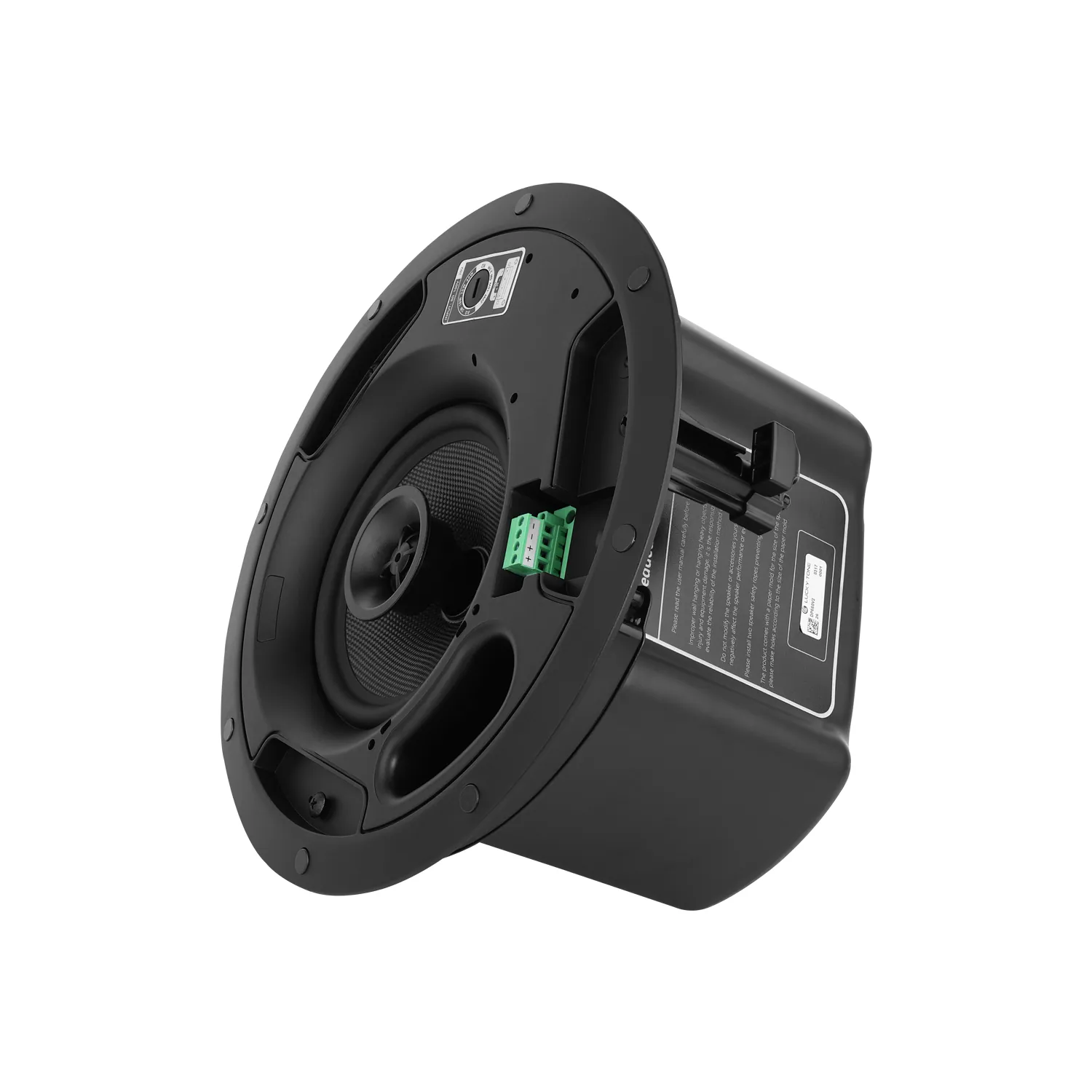

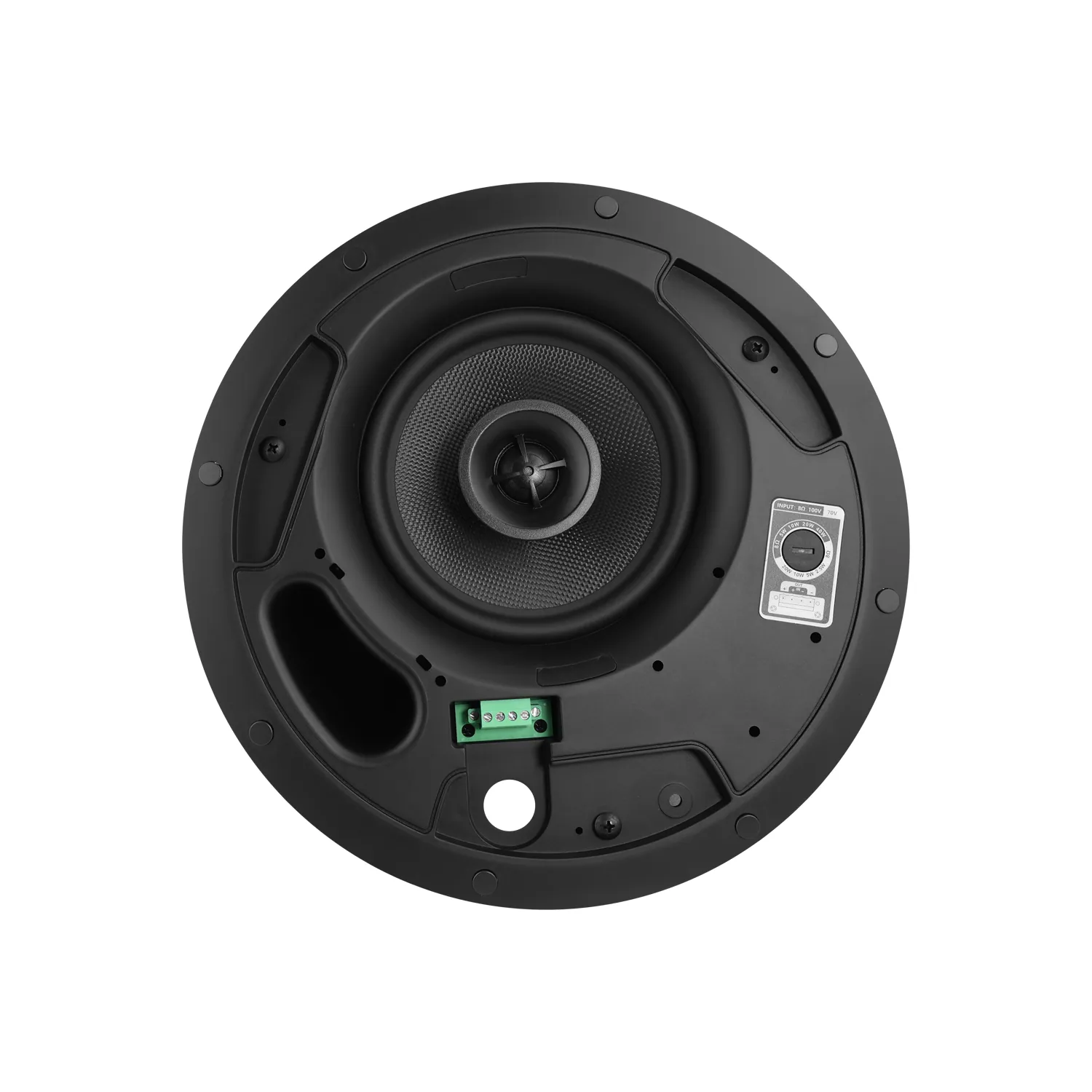

- Front-access Phoenix terminal for easy wiring.

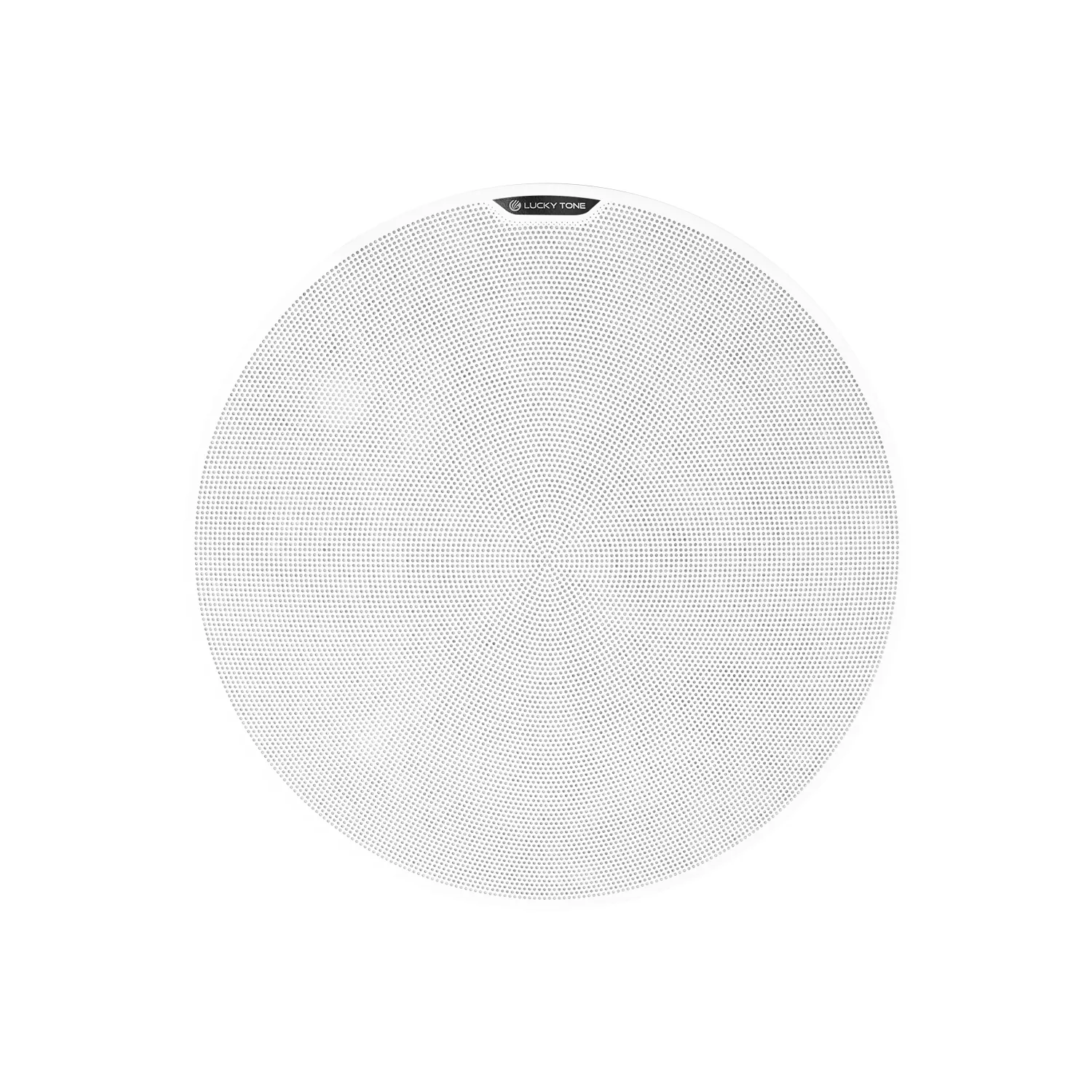

- Magnetic grille with high-strength N42 magnets.
- Etched metal grille with durable construction.
- Reinforced mounting structure with dual safety cables.
- Metal clamps for fast and secure ceiling installation.

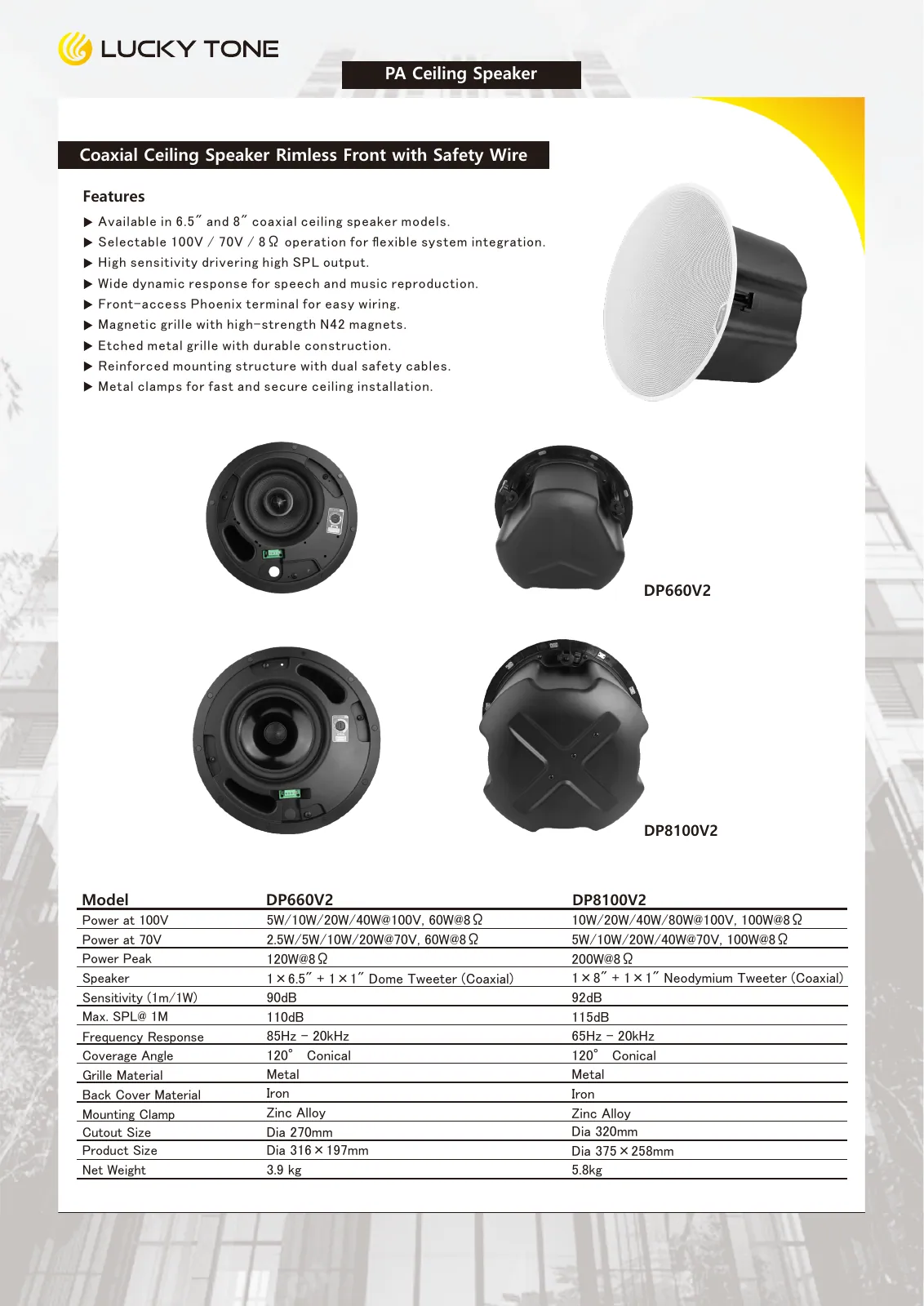

03Documents1 file · 1.6 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
