Sheet 05.131
Lucky Tone · Loudspeakers

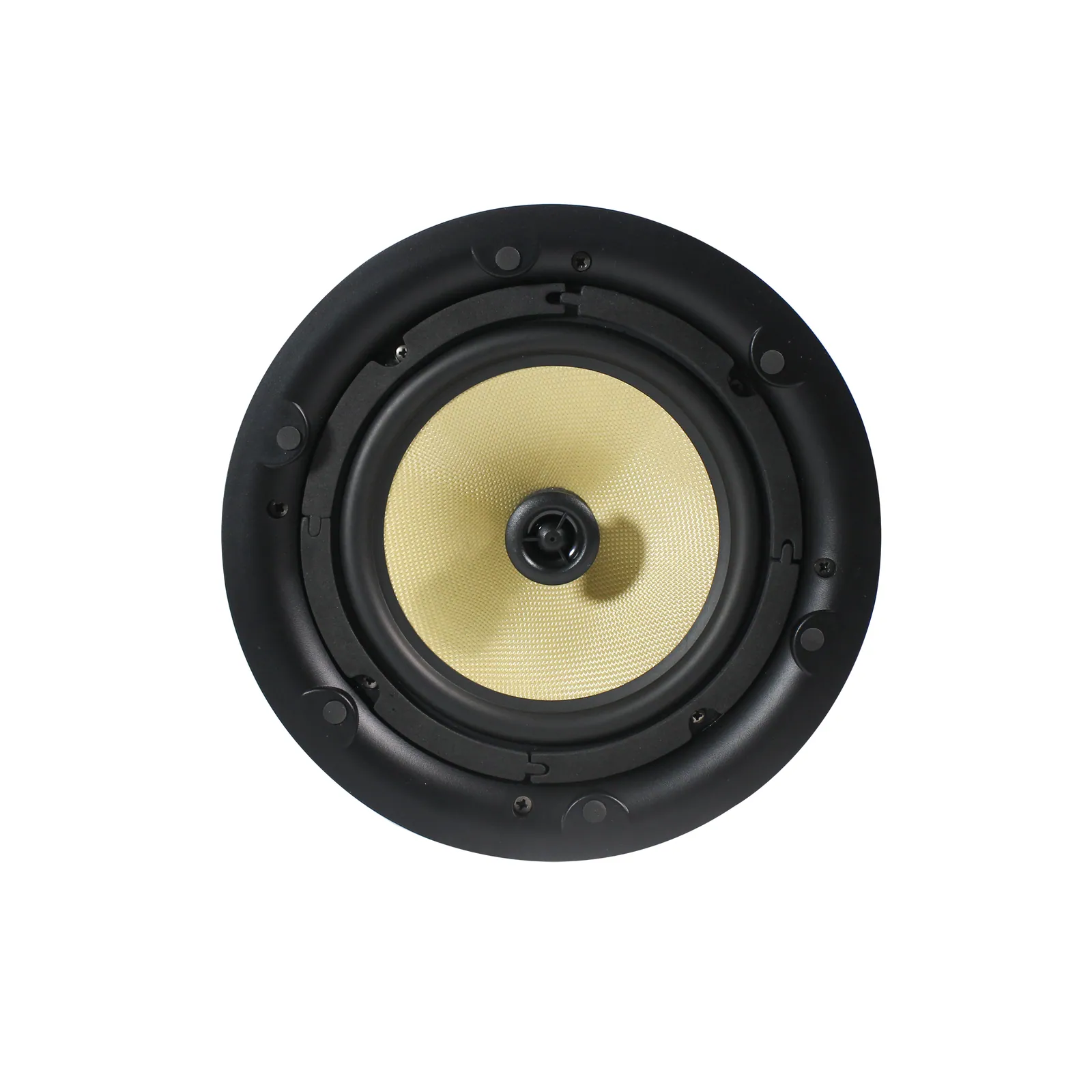

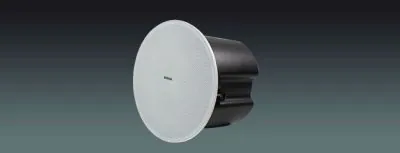

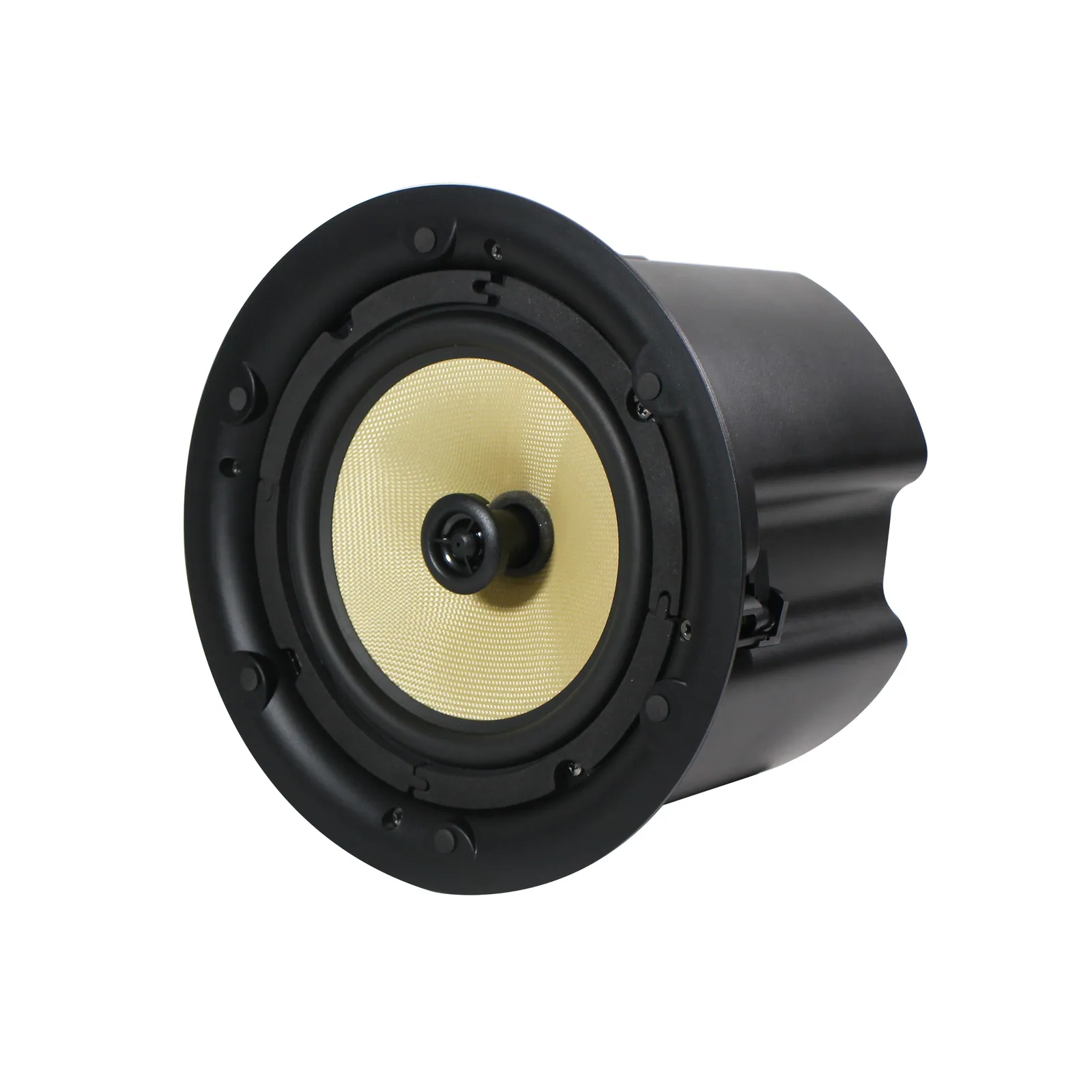

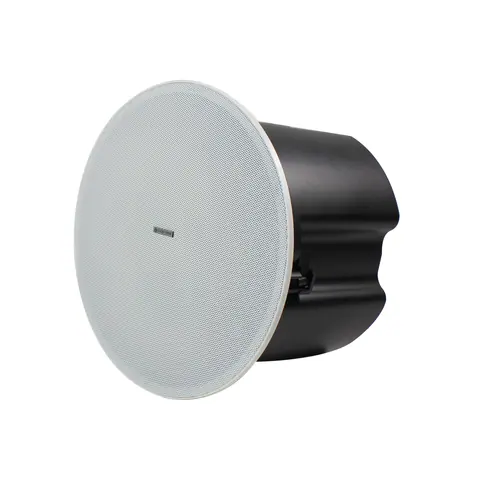

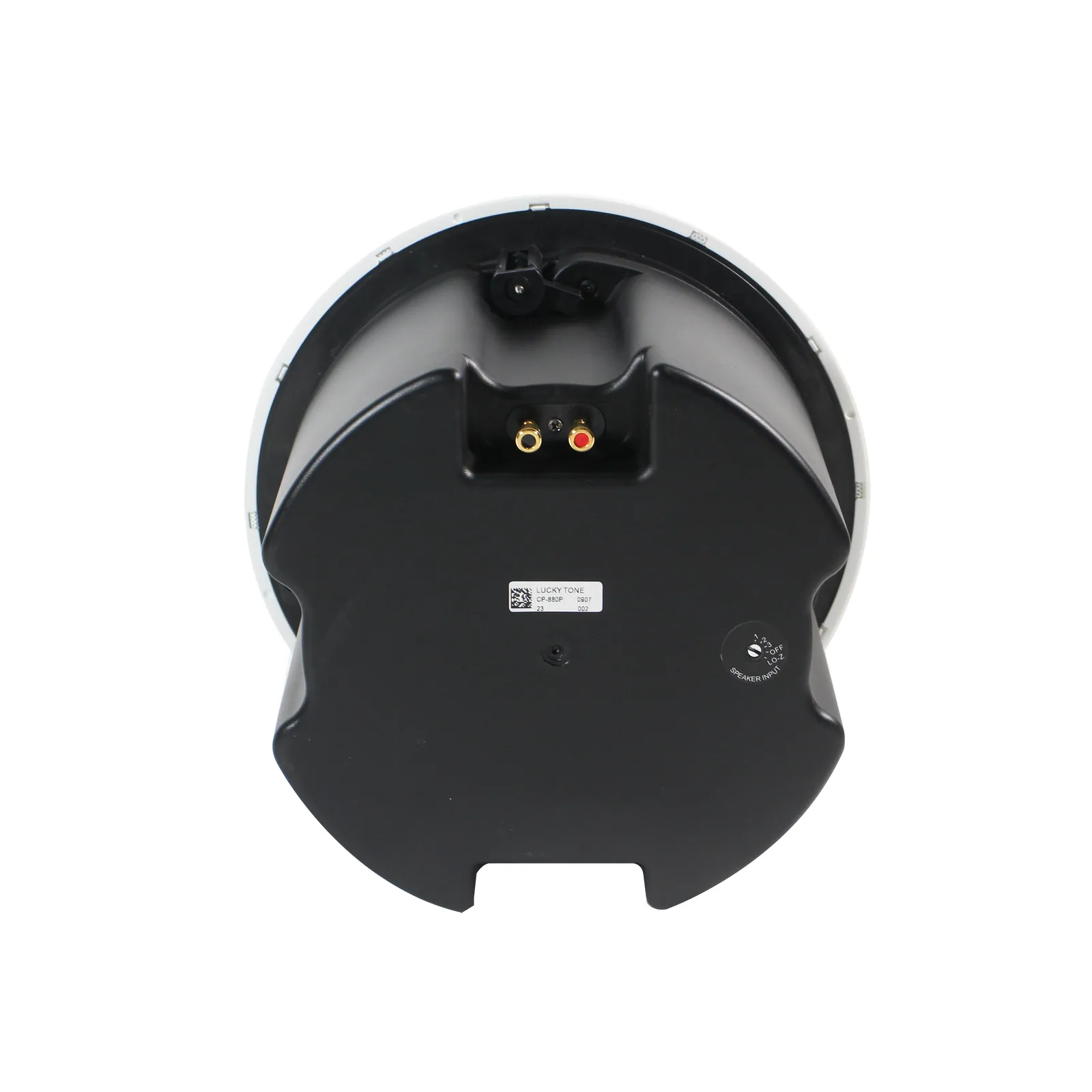

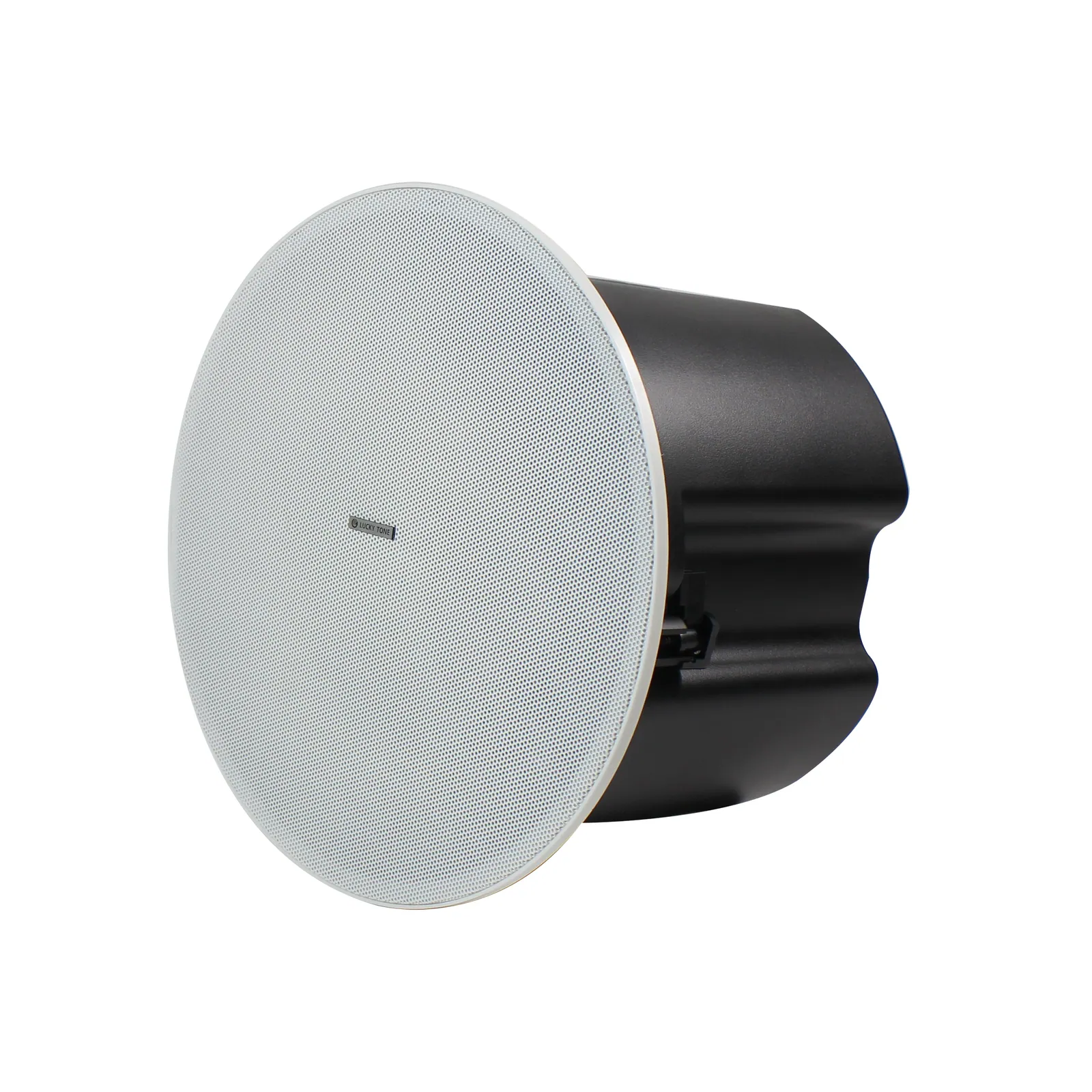

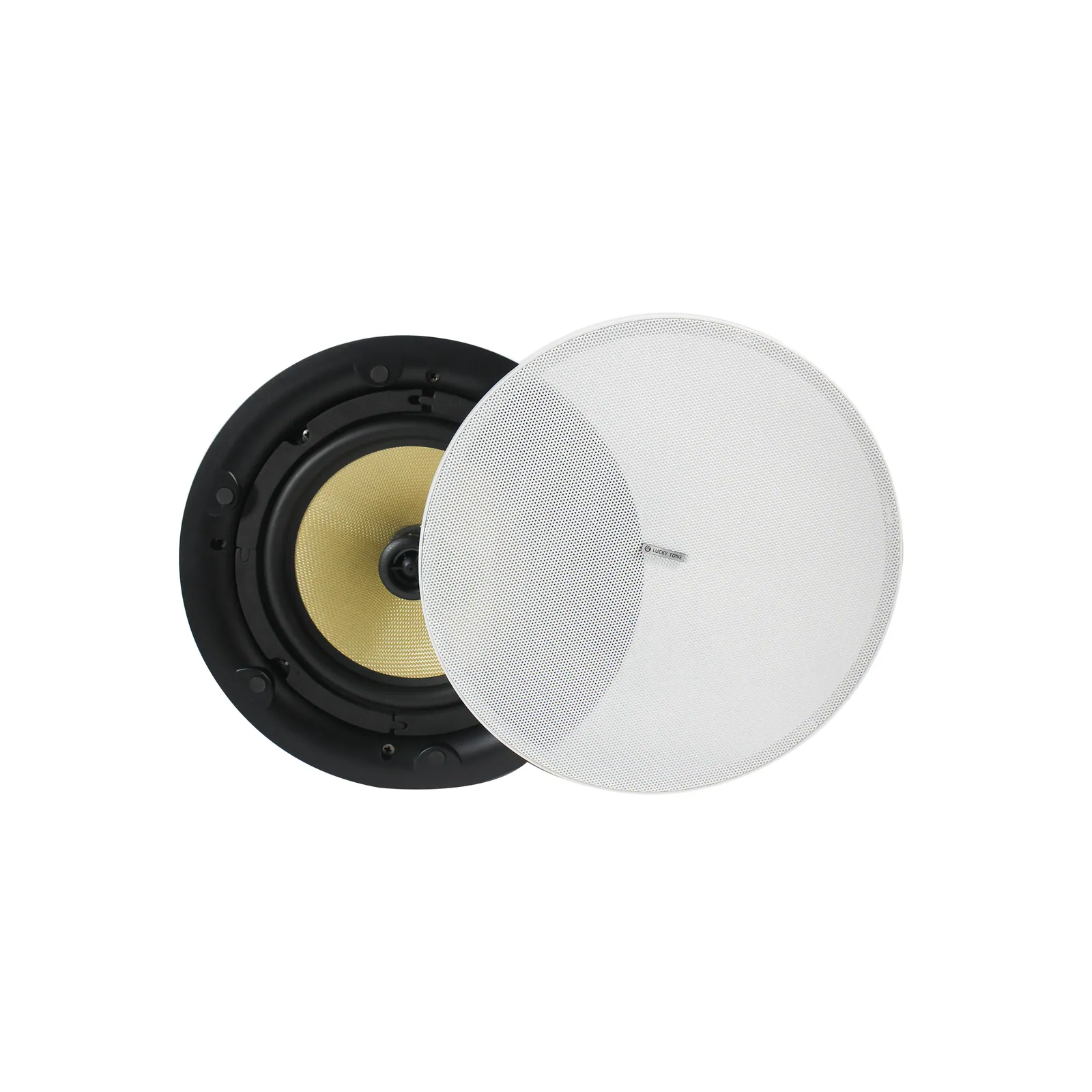

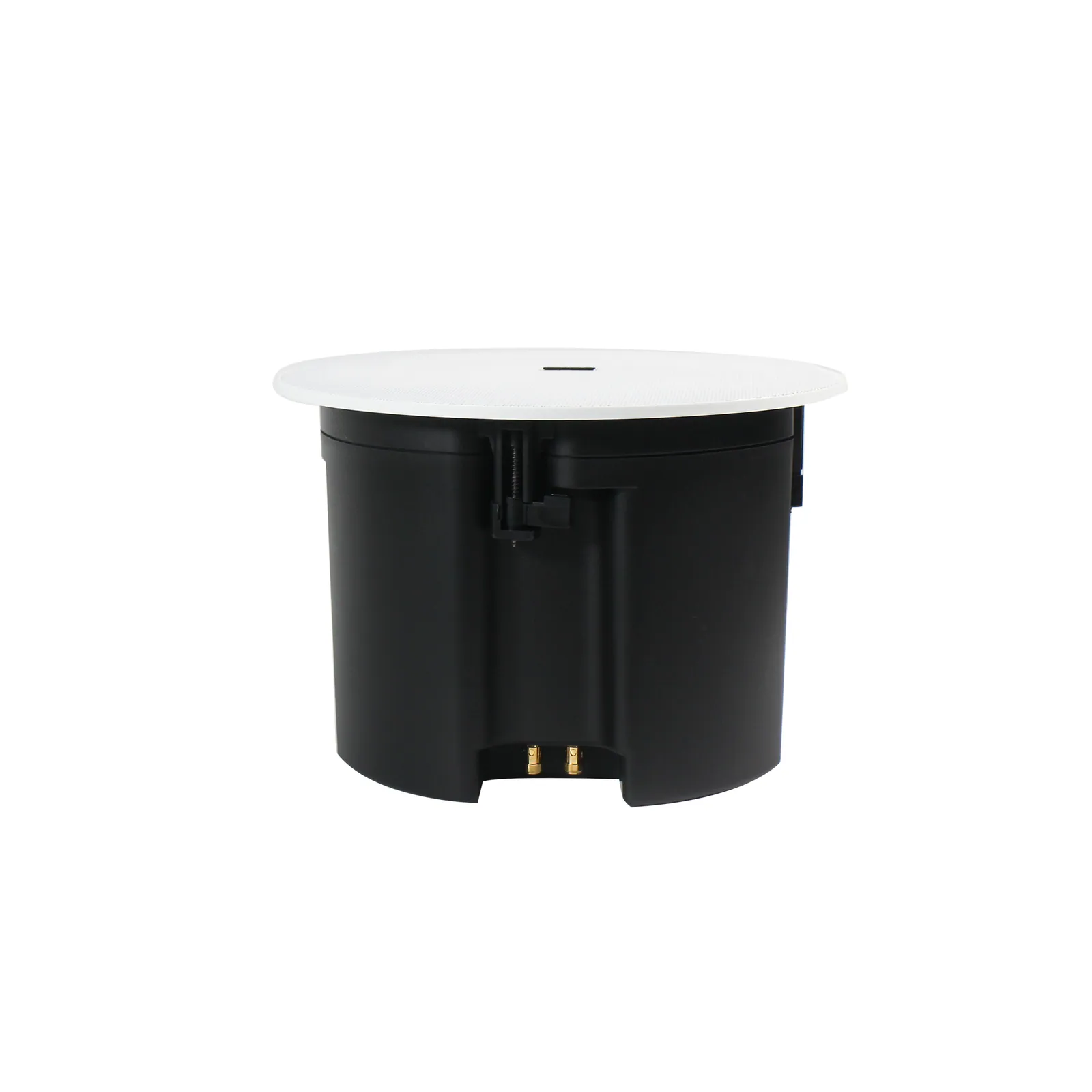

Coaxial Ceiling Speaker with Kevlar Driver
ModelCP-880P
8-inch coaxial ceiling speaker featuring a Kevlar driver for exceptional sound reproduction and clarity.
- Weight
- 4.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Coaxial Ceiling Speaker with Kevlar DriverPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 15 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- Model
- CP-880P
- Power Tap
- 80/40/20W/OFF-8ohm
- Power at 8ohm
- 80W
- Max. Power
- 160W
- SPL( 1W/1M)
- 98dB
- Max SPL@ 1M
- 120dB
- Freq. Response
- 105-20KHz
- Dispersion Angle
- 180°(1000Hz)
- Cutout Size
- Dia 245mm
- Product Size
- φ285x195mm
- Installation
- In ceiling
- Enclosure Material
- ABS
- Net Weight
- 4.5kg
- Finish
- Black
- Speakers
- 8” woofer x1, 0.5” tweeter x1
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Seamless Integration: Designed for easy installation in ceilings, ensuring a sleek and unobtrusive look that blends seamlessly with any room decor.
Wide Dispersion: Offers a wide sound dispersion pattern, ensuring consistent audio coverage throughout the room and minimizing sound dead zones.
Versatile Application: Ideal for both residential and commercial settings, such as home theaters, offices, restaurants, and retail spaces, providing superior audio performance in any environment.
