Sheet 05.106

Lucky Tone · Loudspeakers

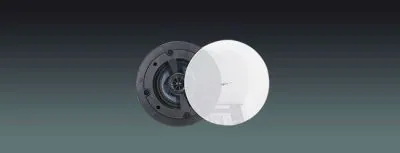

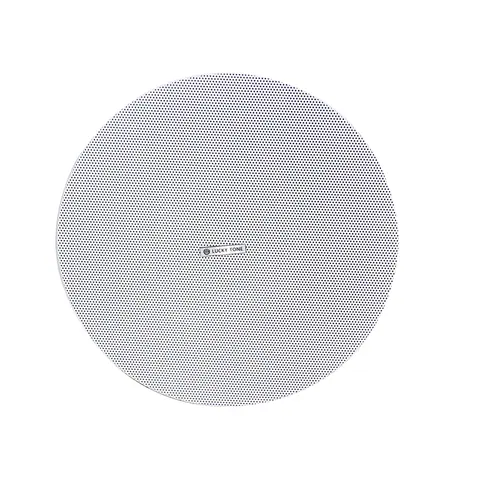

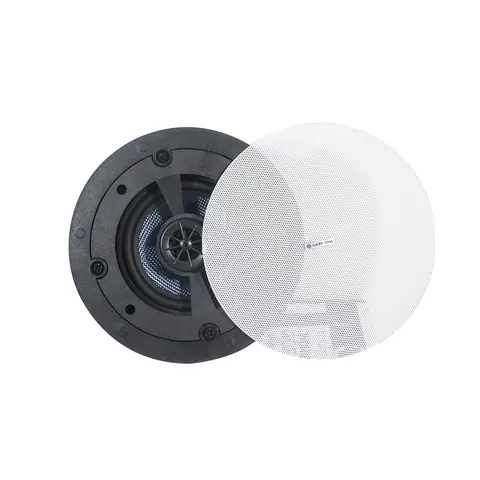

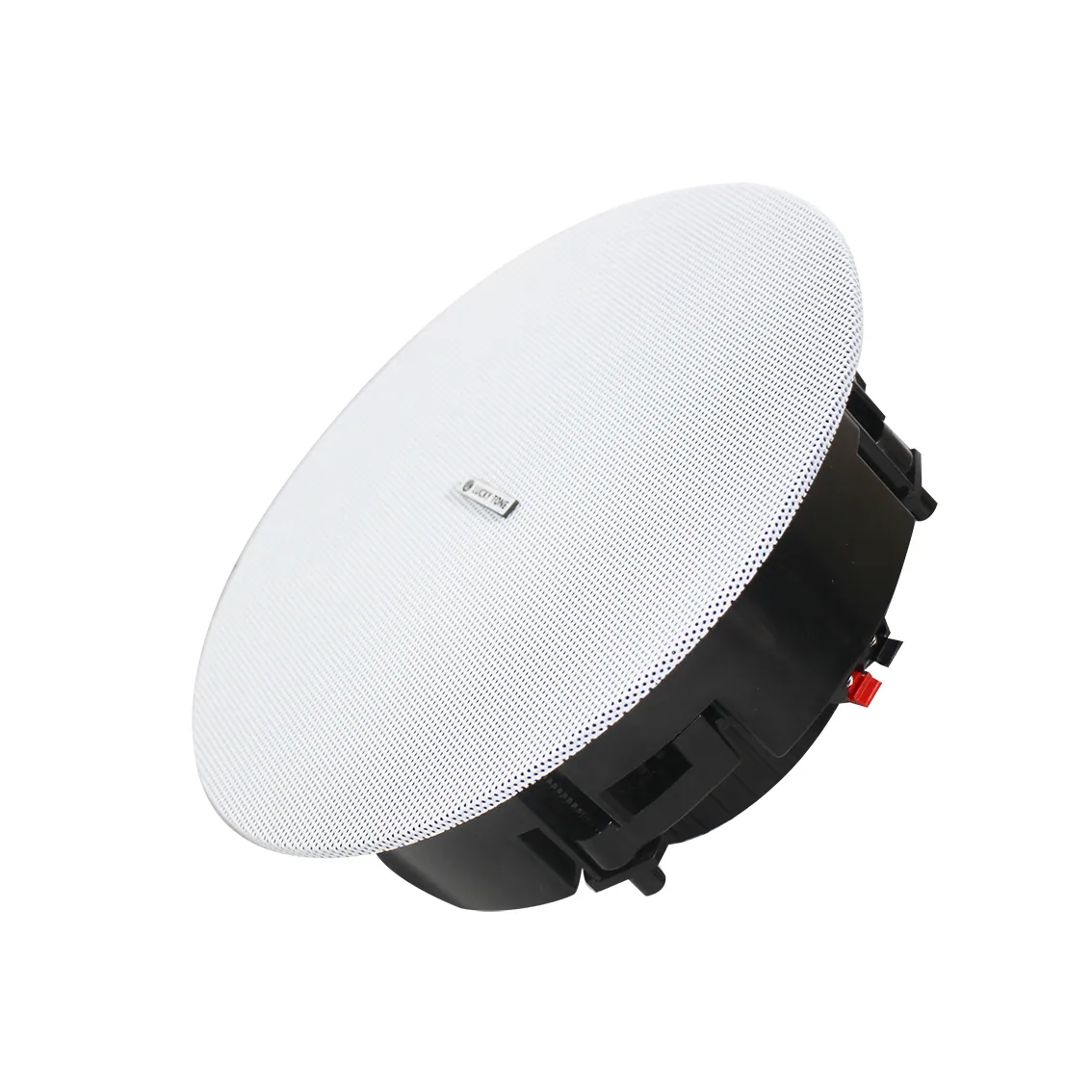

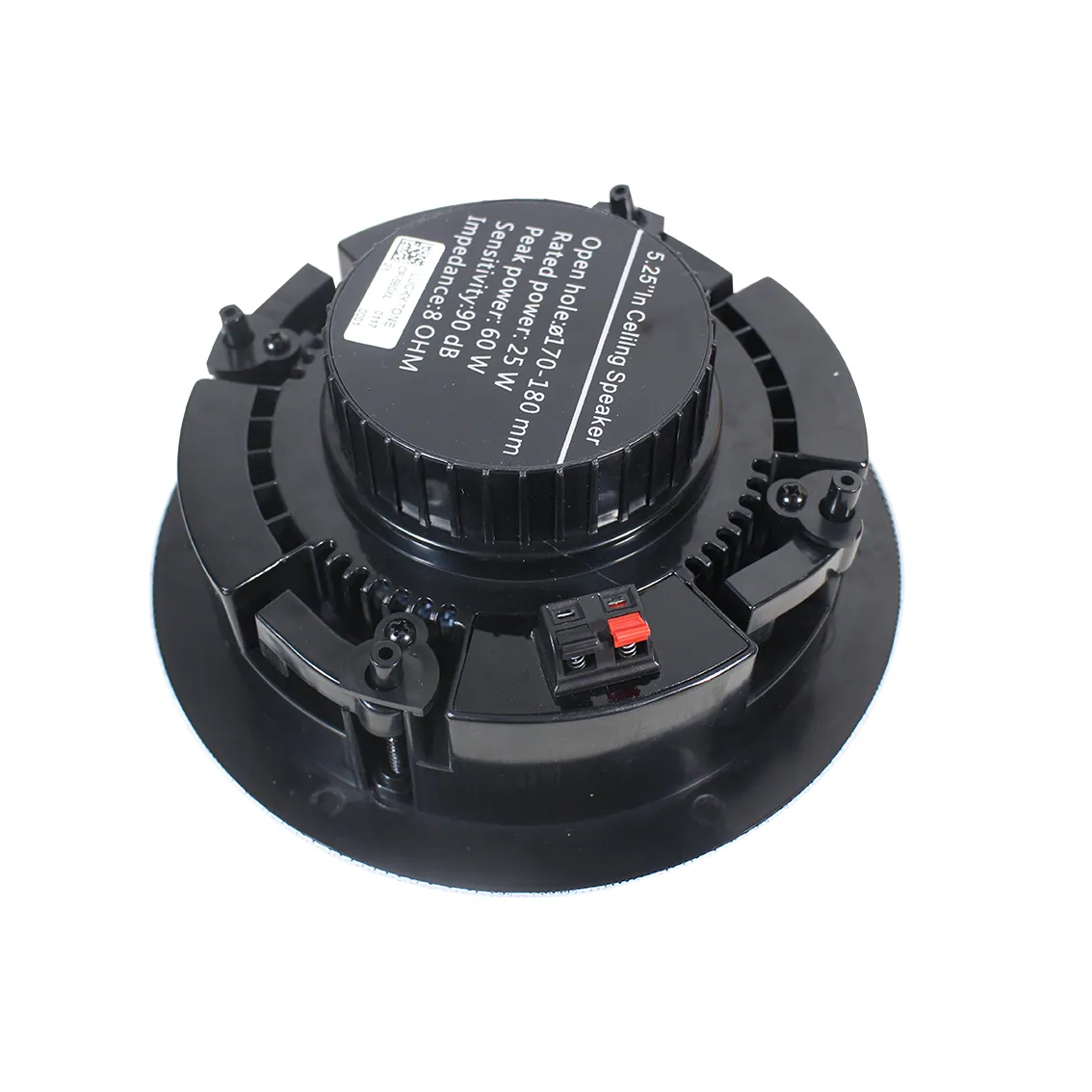

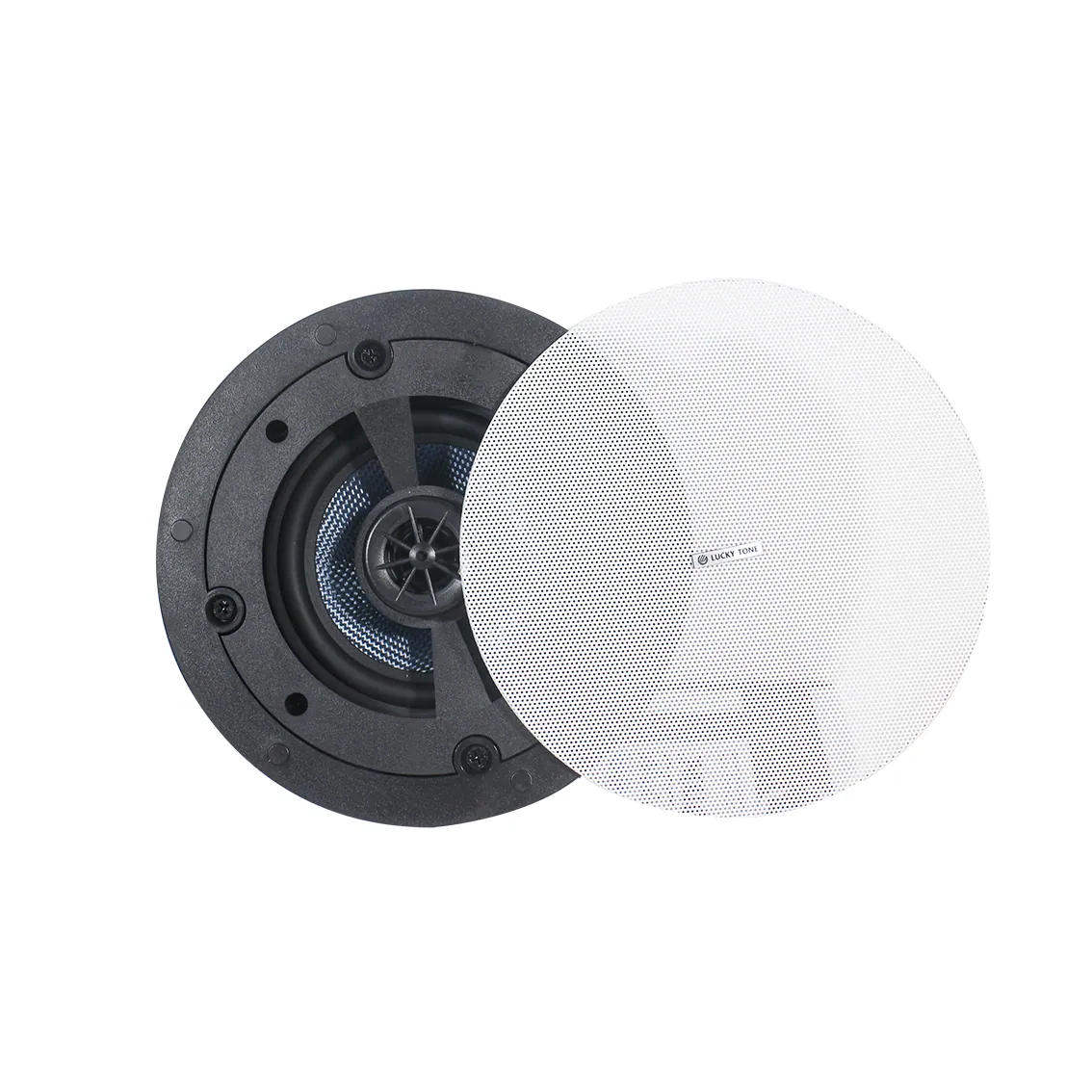

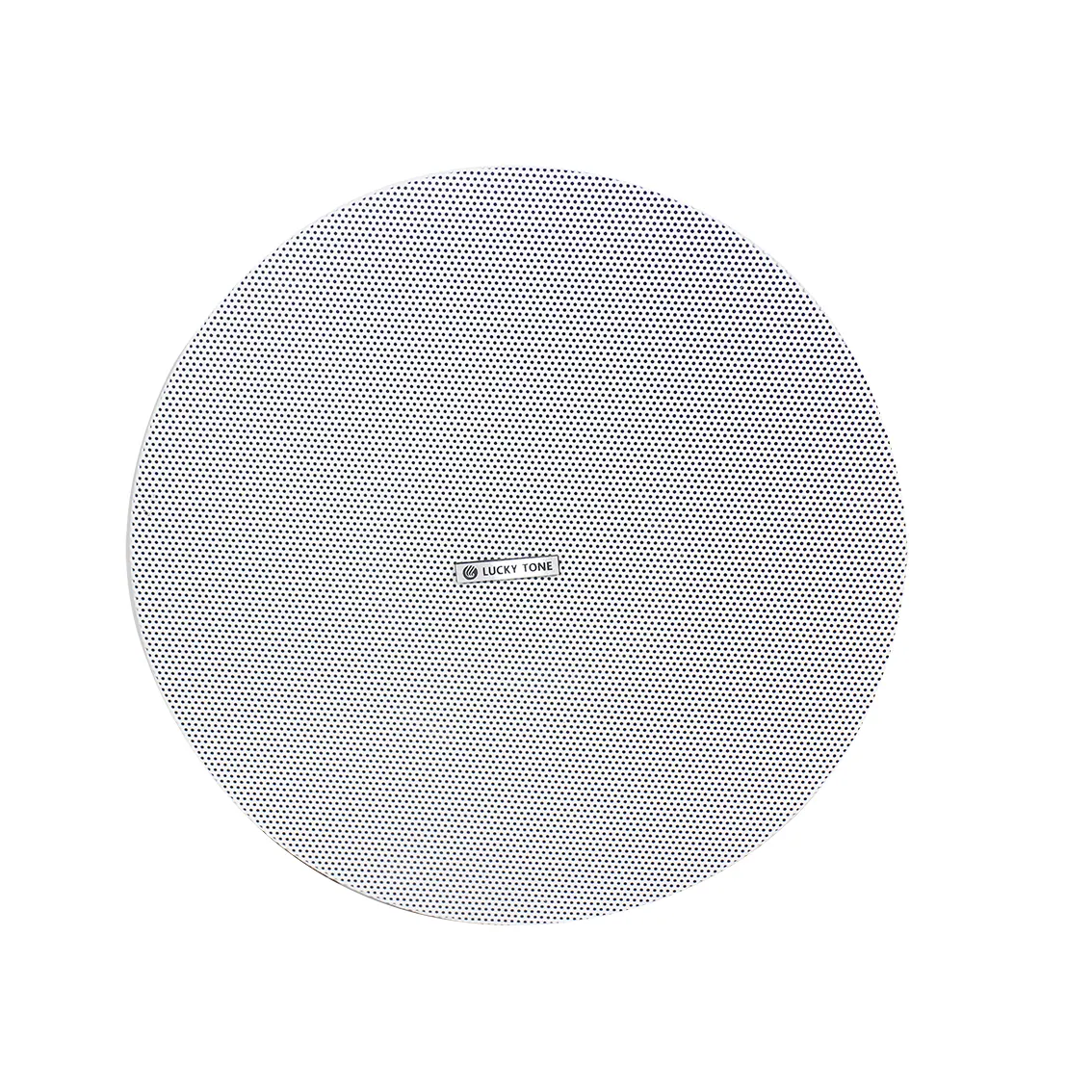

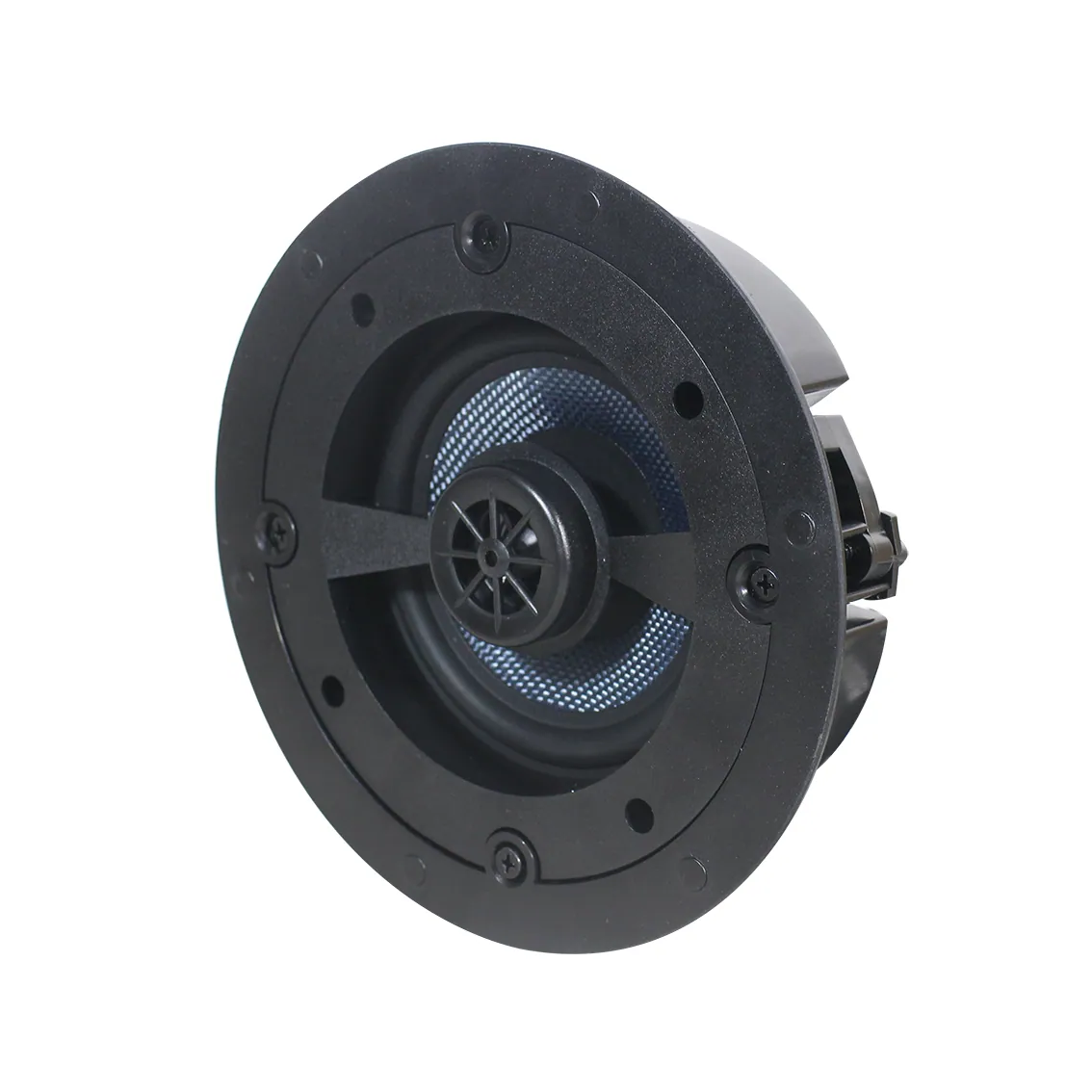

5″ Rimless Ceiling Speaker

ModelCP-560XL

2-way ABS in ceiling speaker at high performance

Frequency response: 80Hz-20KHz
Weight: 932g

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 12 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications12

MODEL: CP-560XL
Peak Power: 60W
Impedance: 8ohm
SPL( 1W/1M): 90dB
Cutout Size: 170-180mm
Product Size: Dia195*85(H)mm
Frequency range: 80Hz-20KHz
Installation: Inceiling
Enclosure Material: ABS
Finish: White
Weight: 932g

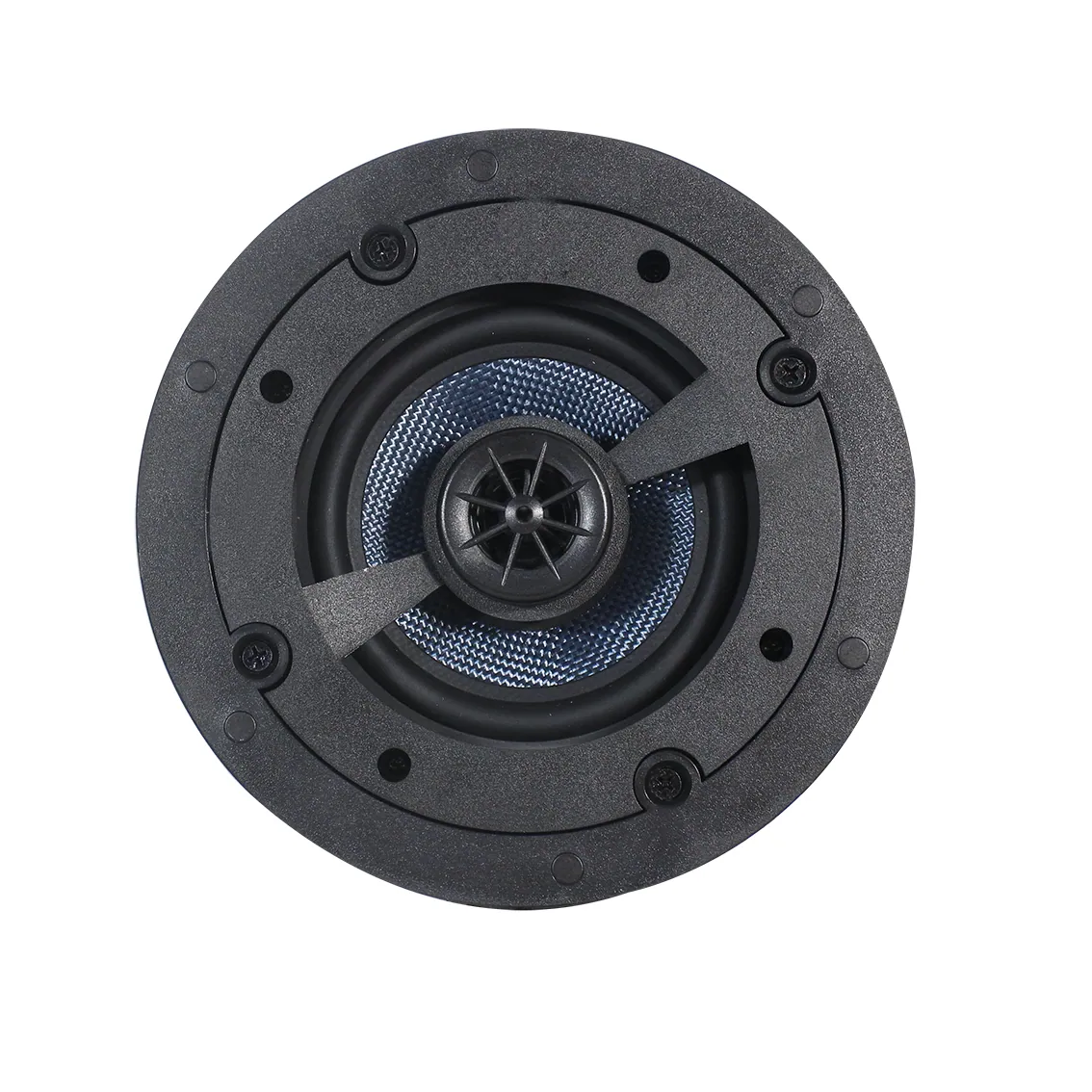

Speaker: 1″ x1 (TREBLE),5″x1(BASS)

02DescriptionManufacturer's description

What it is.

Elegant Rimless design

Easy and fast installation
Good for high music demand applications
Kevlar driver produces smooth and natural HiFi sound

03Documents1 file · 1.9 MB

Documents and files.

Datasheets and manuals01

PDFCP-560XL-新品1.pdf1.9 MB
