Sheet 05.103

Lucky Tone · Loudspeakers

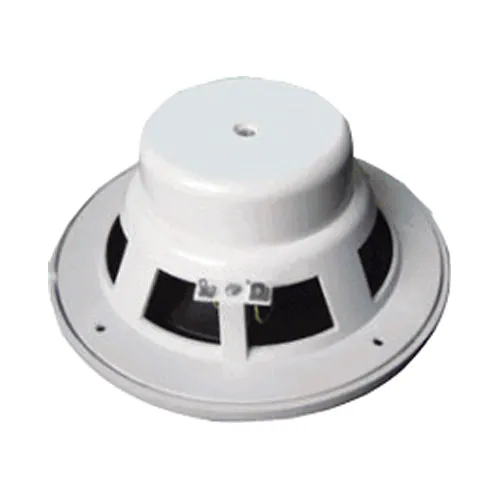

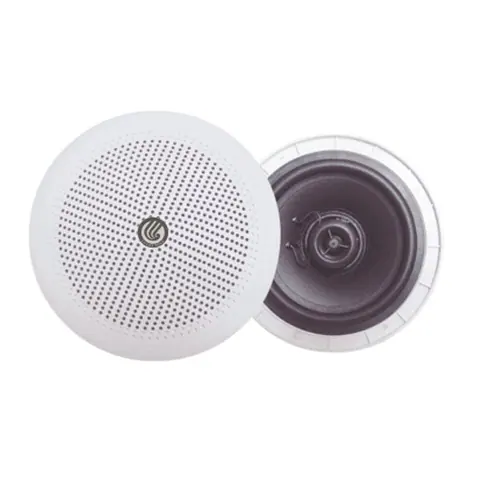

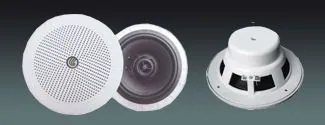

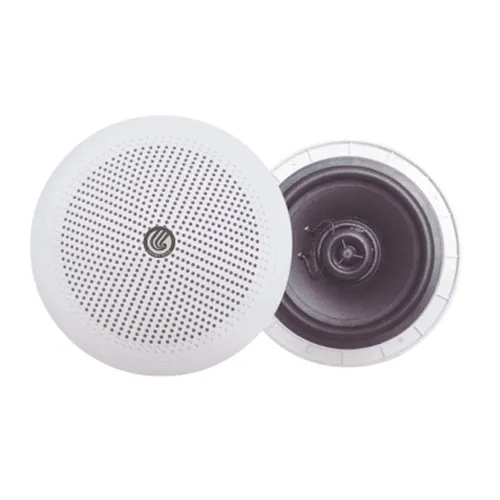

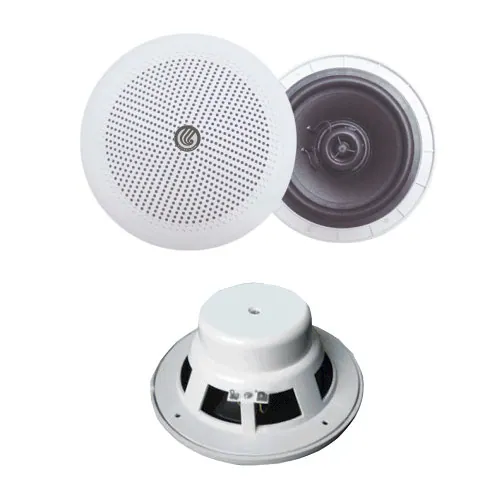

5″ Marine Ceiling Speaker

ModelCP-525

● Water and corrosion proof for outdoor and marine

Weight: 0.7Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 13 values

What this product is, in numbers.

PDFSpecifications1.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications13

MODEL: CP-525
Power at 100V: 25W
Power at 70V: N/A
SPL (1W/1M): 90dB
Max SPL@1M: 103dB
Freq.Response: 100Hz-20KHz
Cutout Size: Dia 122mm
Product Size: Dia 165mm
Installation: Inceiling
Enclosure Material: ABS
Weight: 0.7Kg
Finish: White
Speakers: 1″ x 1 (TREBLE) 5″ x 1 (BASS)

02DescriptionManufacturer's description

What it is.

● ABS ceiling speaker

● IP44 rating

Lucky Tone 2016

03Documents1 file · 1.0 MB

Documents and files.

Main document

Specifications

PDF · 1.0 MB

Download specifications
