Sheet 05.105
Lucky Tone · Loudspeakers
5″ Pendant speaker
ModelLT-430

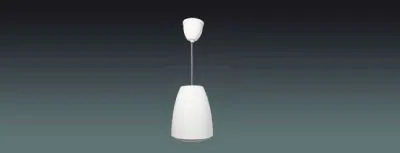

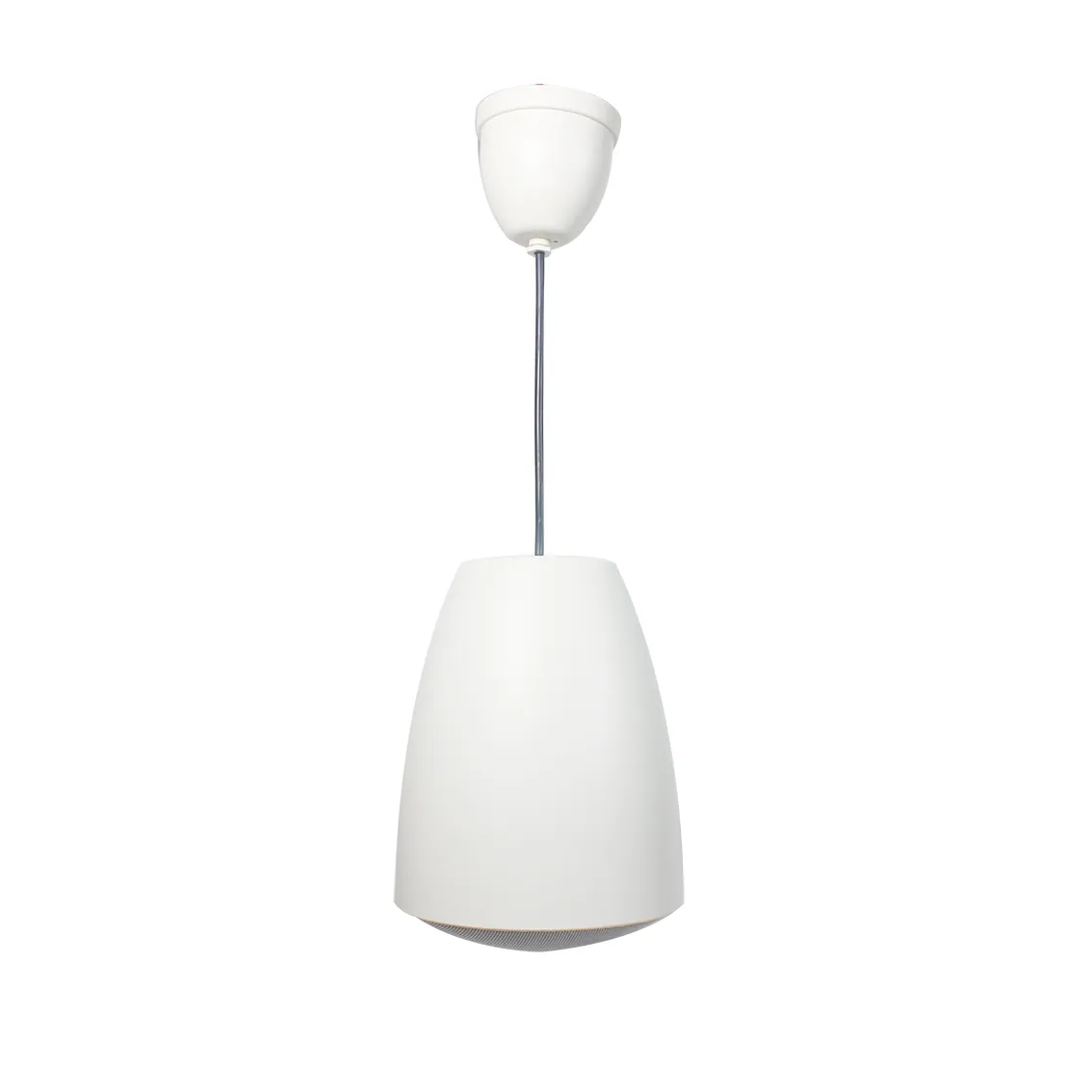

The LT-430 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it
- Output power
- 30W (100V, 70V line, 8Ω)
- Frequency response
- 70 Hz – 20 kHz
- Dimensions
- 185 x 250 mm (Ø x H)
- Weight
- 2.1 kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
5″ Pendant speakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 10 values
What this product is, in numbers.

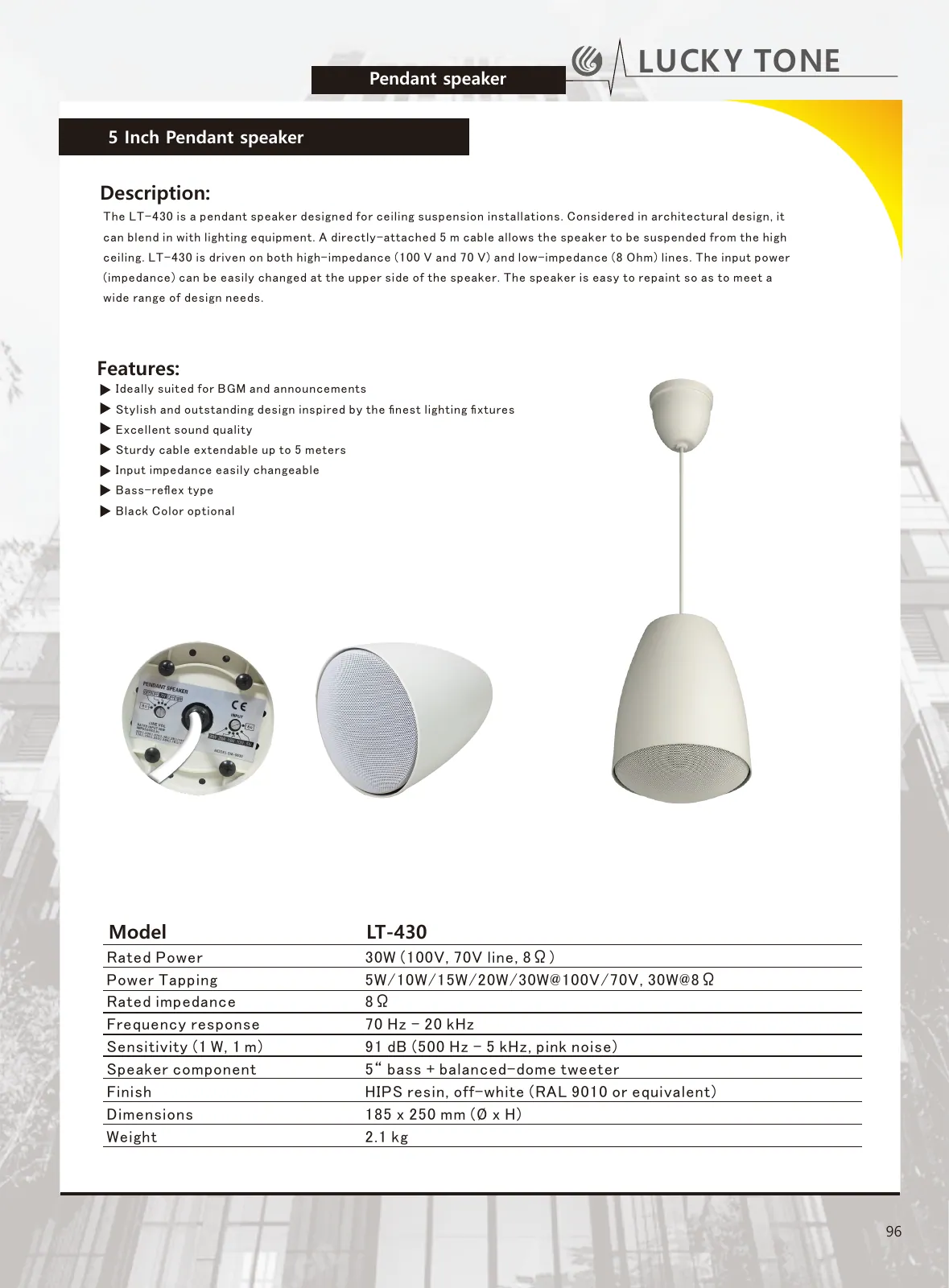

PDFSpecifications1.6 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- MODEL
- LT-430
- Rated Power
- 30W (100V, 70V line, 8Ω)
- Power Tapping
- 5W/10W/15W/20W/30W@100V/70V, 30W@8Ω
- Rated impedance
- 8Ω
- Frequency response
- 70 Hz – 20 kHz
- Sensitivity (1 W, 1 m)
- 91 dB (500 Hz – 5 kHz, pink noise)
- Speaker component
- 5“ bass + balanced-dome tweeter
- Finish
- HIPS resin, off-white (RAL 9010 or equivalent)
- Dimensions
- 185 x 250 mm (Ø x H)
- Weight
- 2.1 kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
can blend in with lighting equipment. A directly-attached 5 m cable allows the speaker to be suspended from the high

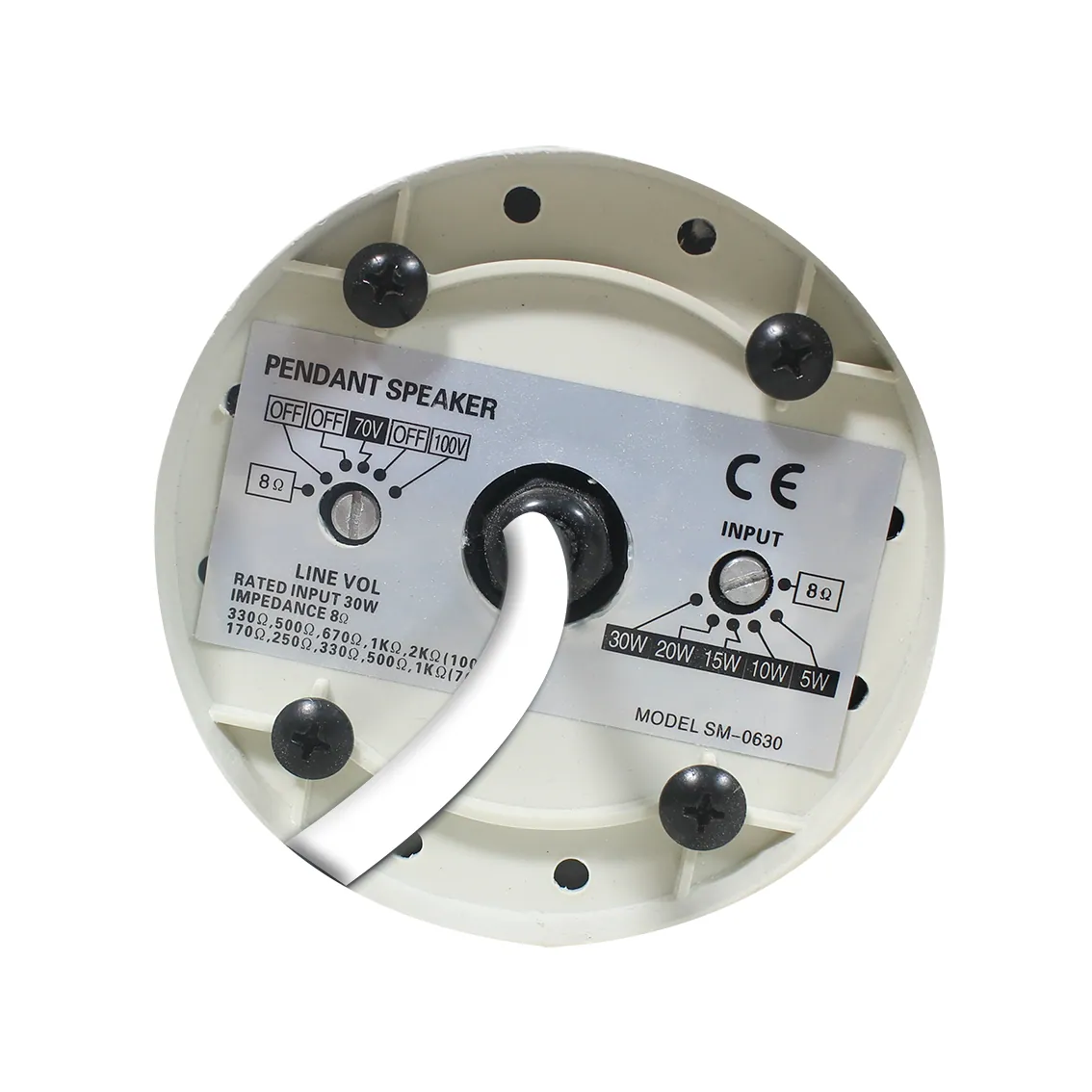

ceiling. LT-430 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ohm) lines. The input power
(impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a
wide range of design needs.
Features
Ideally suited for BGM and announcements
Stylish and outstanding design inspired by the finest lighting fixtures
Excellent sound quality
Sturdy cable extendable up to 5 meters
Input impedance easily changeable
Bass-reflex type
Black Color optional
