Sheet 05.104
Lucky Tone · Loudspeakers

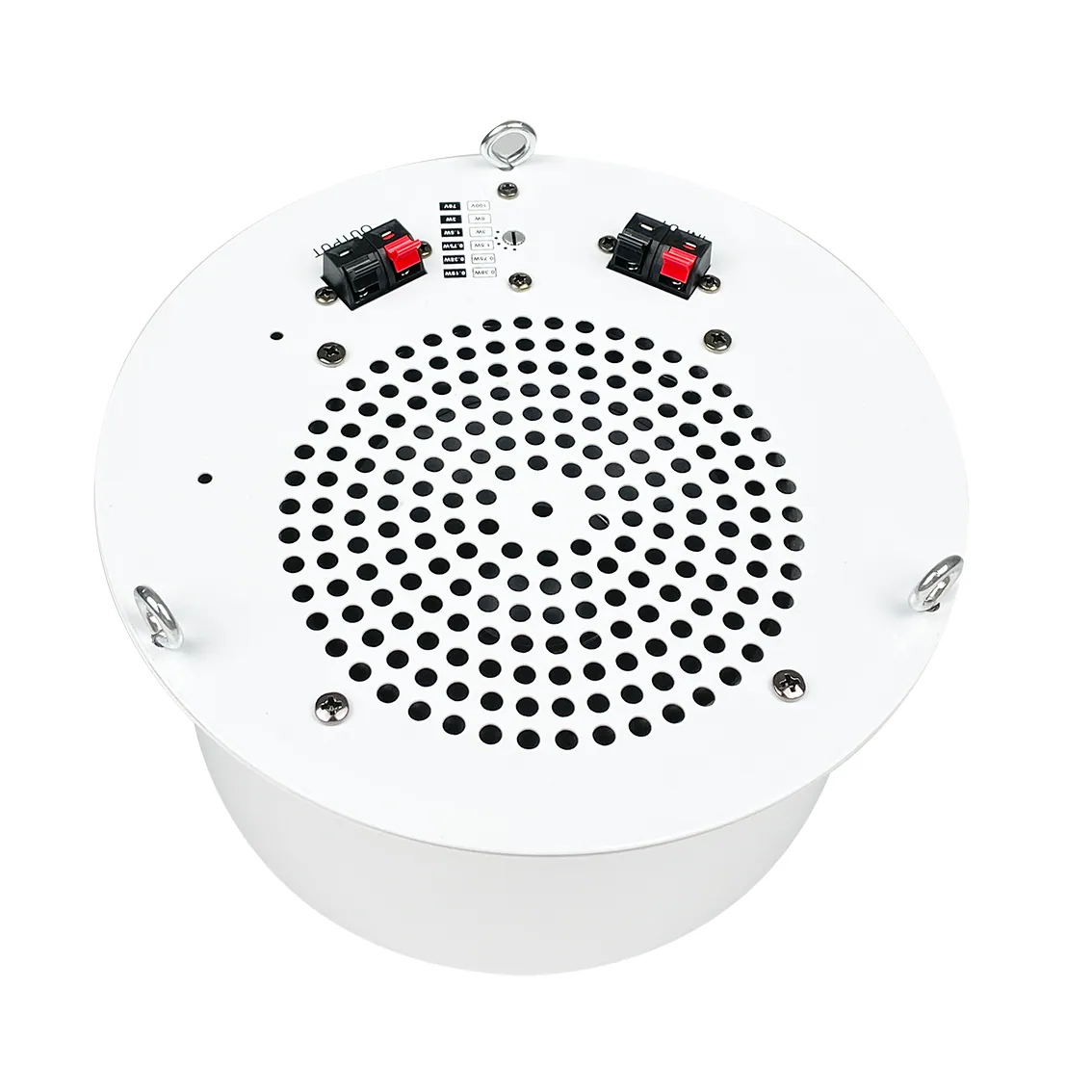

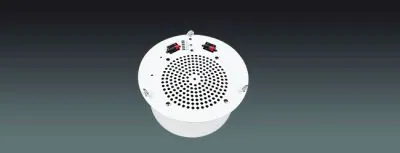

5″ Office Sound Masking Speaker
ModelSM-506
The SM-506 office sound masking speaker contains a 5.25-inch diameter speaker mounted on axis. The compact enclosure includes a convoluted, flame retardant, acoustical insert to eliminate standing waves and metallic resonance.
- Frequency response
- 100Hz-12KHz
- Weight
- 1.6kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
5″ Office Sound Masking SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 10 values
What this product is, in numbers.
PDFSpecifications1.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- MODEL
- SM-506
- Power at 100V
- 6W/3W/1.5W/0.75W/0.38W
- Frequency Response
- 100Hz-12KHz
- Sensitivity
- 83±3dB
- Nominal Impedance
- 100 V / Secondary Equals 8 Ohms
- Nominal Dispersion
- 160° H x 165° V

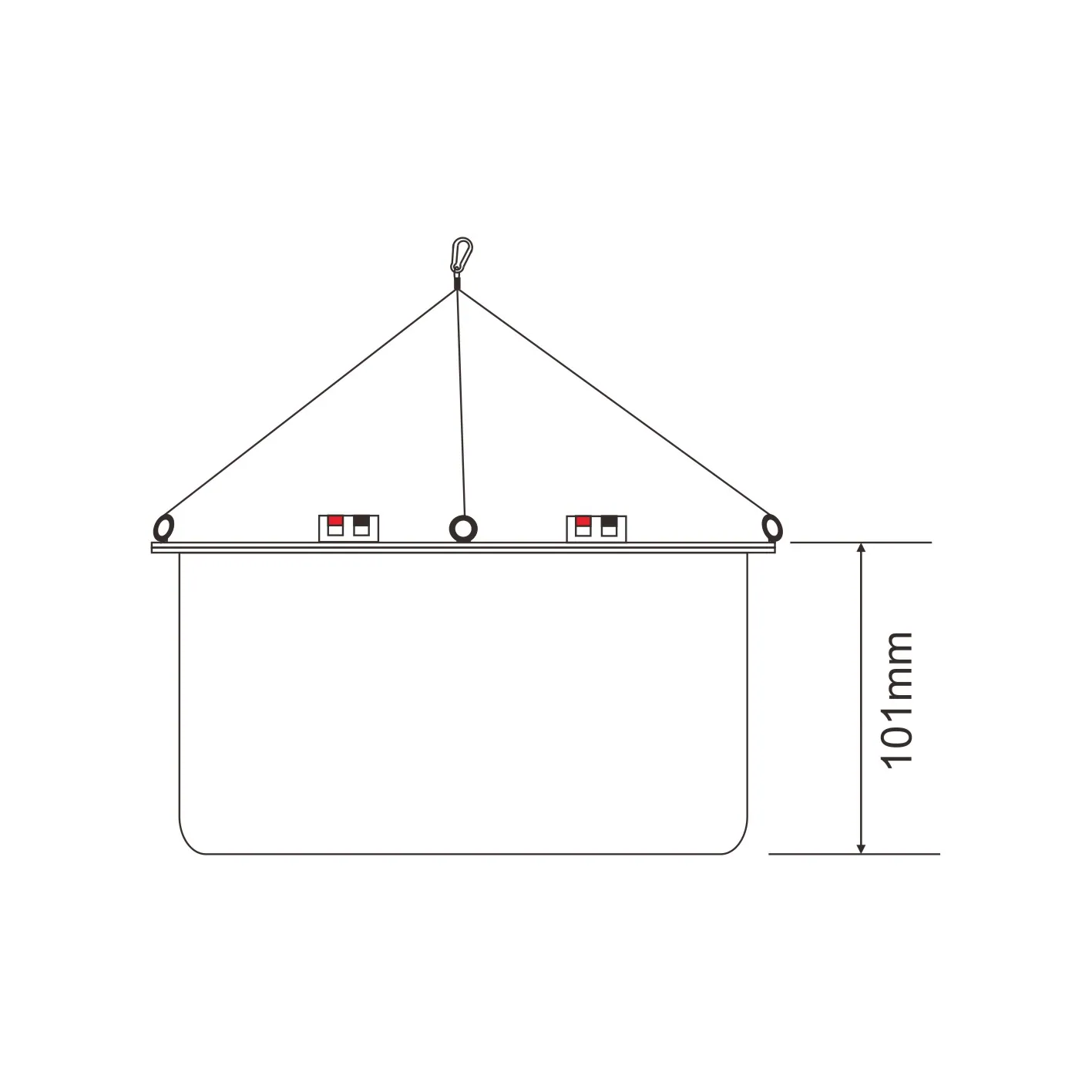

- Height
- 10.1cm
- Weight
- 1.6kg
- Speaker
- 5.25″ full range paper cone driver
- Color
- White
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
The SM-506 office sound masking speaker contains a 5.25-inch diameter speaker mounted on axis. The compact enclosure includes a convoluted, flame retardant, acoustical insert to eliminate standing waves and metallic resonance. It provides uniform dispersion and is well suited for sound masking, paging, and music signals.
03Documents1 file · 1.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
