Sheet 05.368
Lucky Tone · Public address

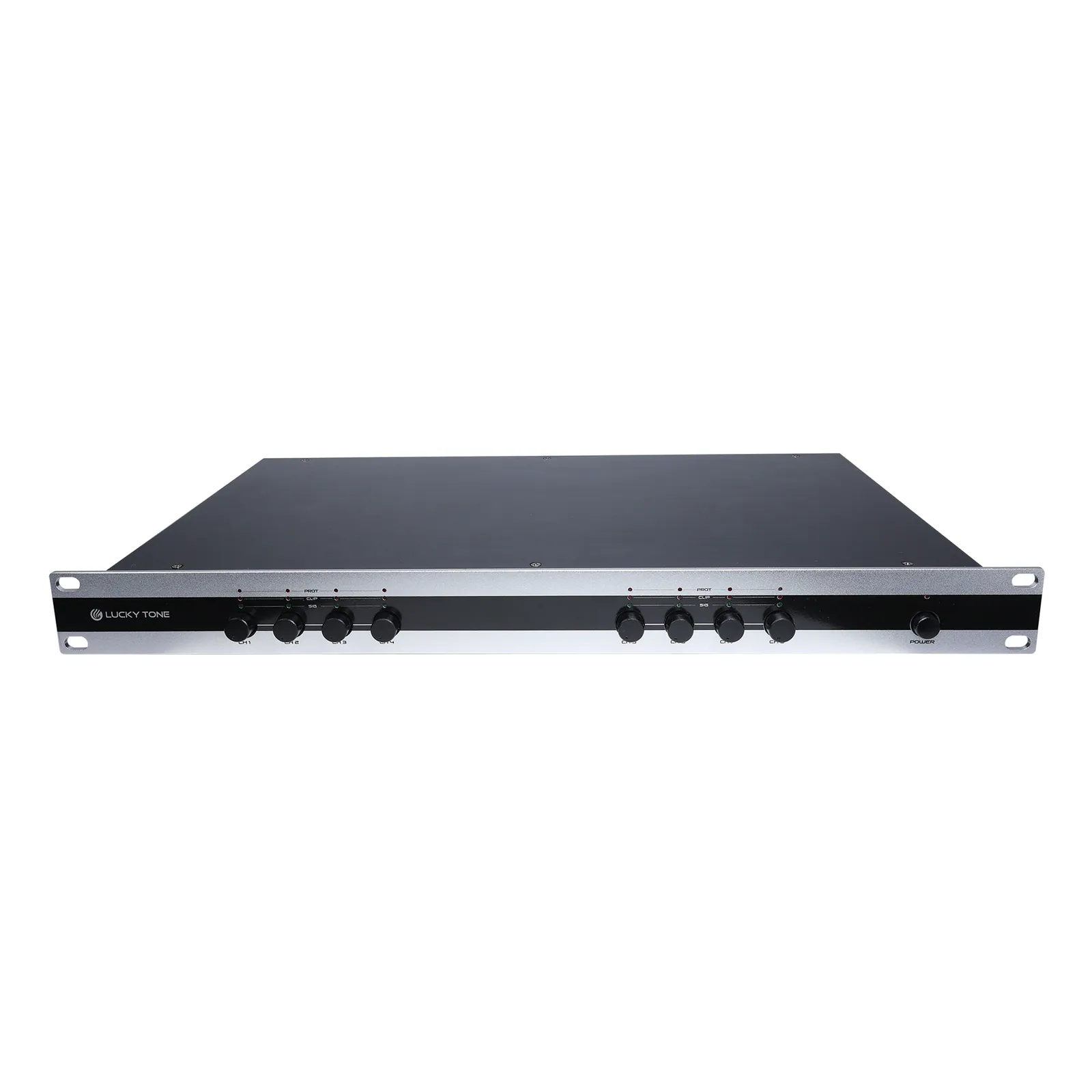

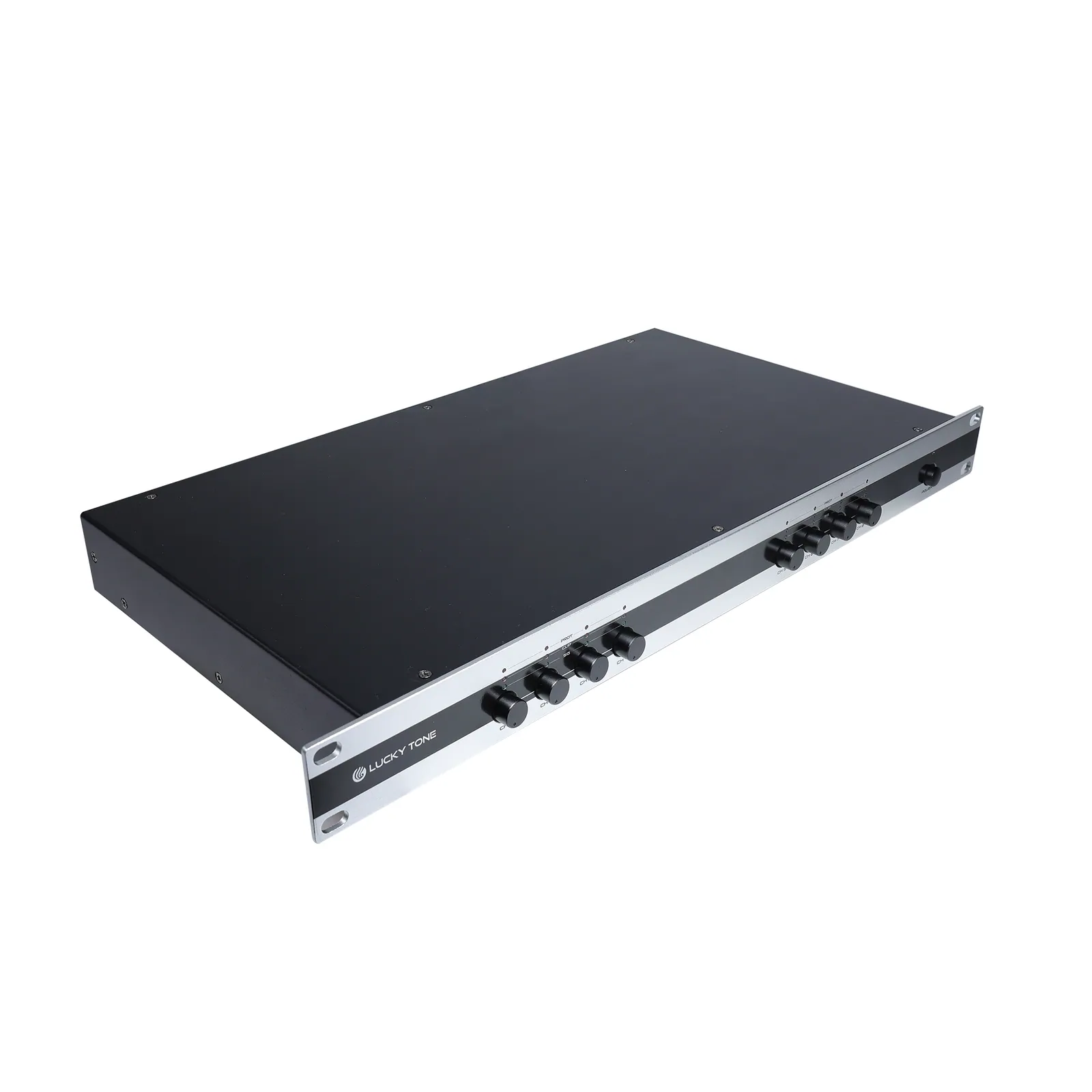

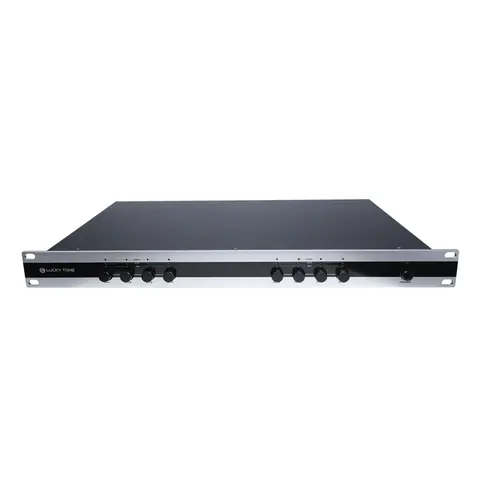

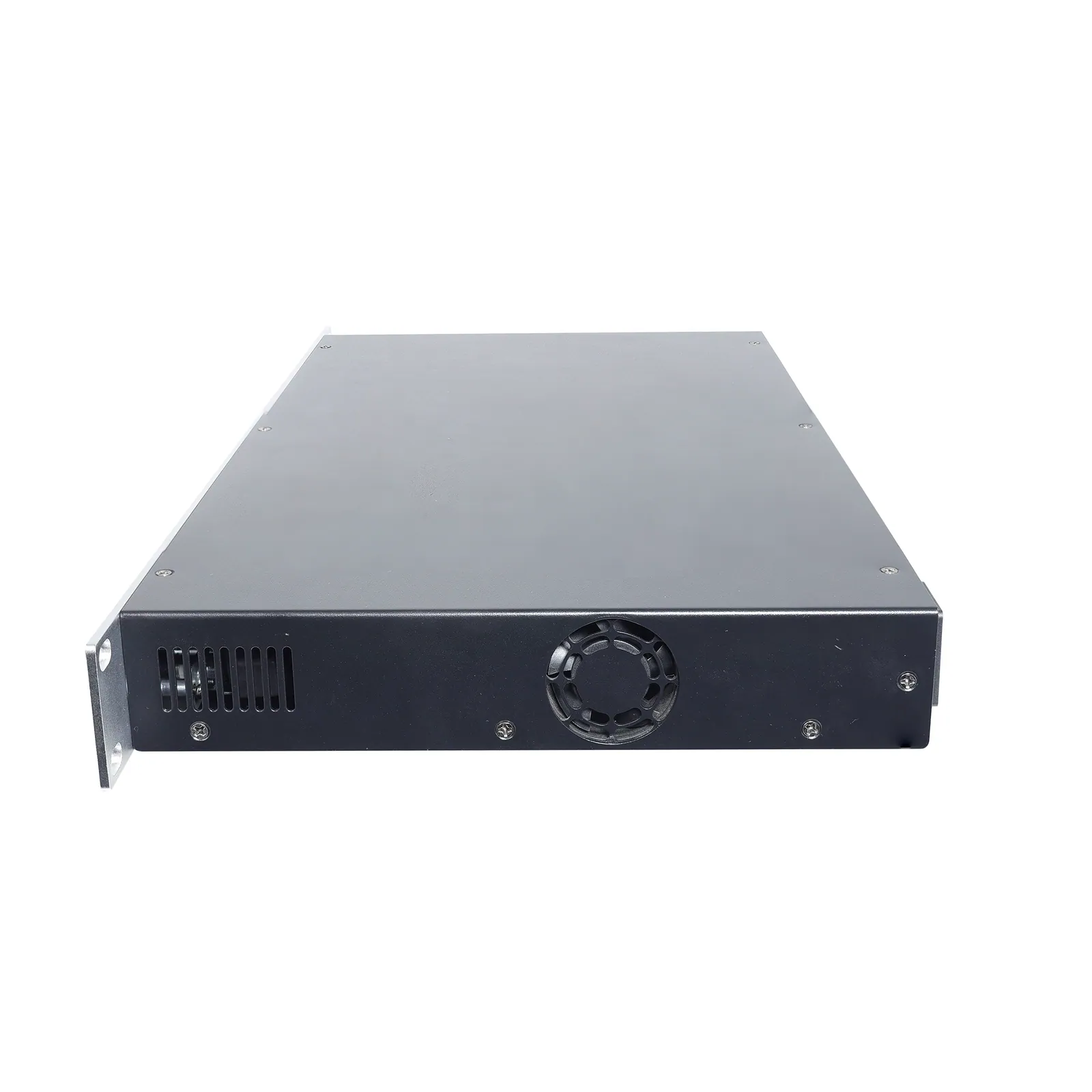

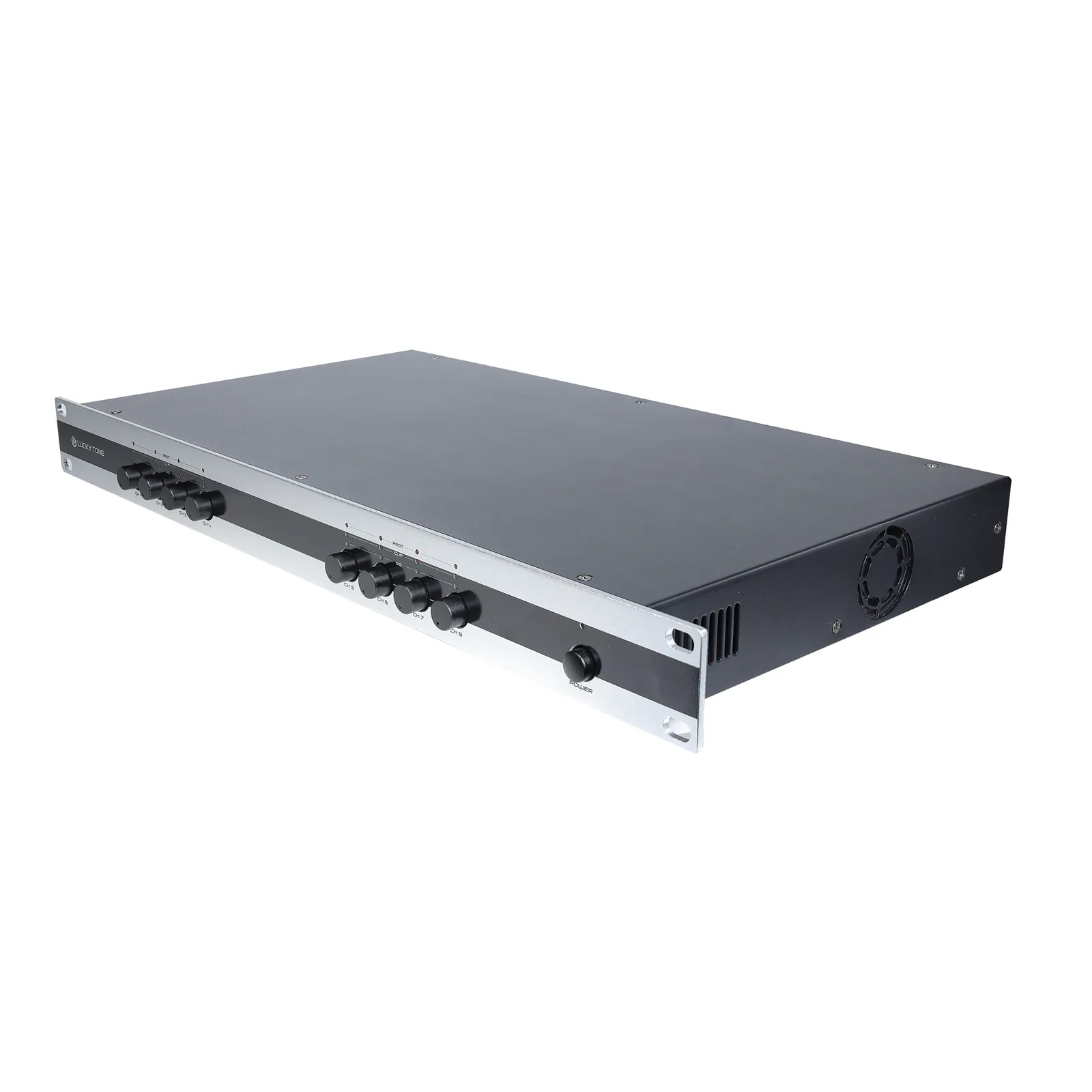

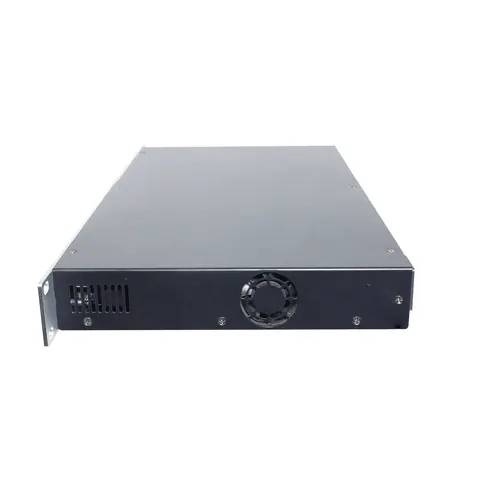

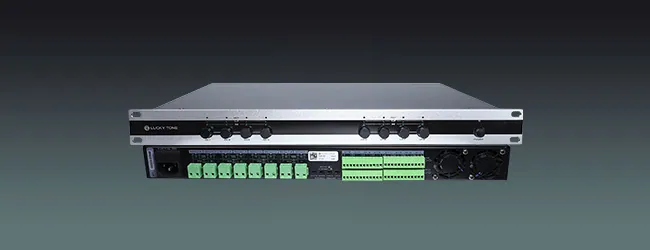

8-Channel Power Amplifier
ModelD-8100
: Supports 4×300W at 4&8Ω bridged, offering high-power performance for various applications.
- Output power
- 8*100W at 8ohm stereo, 8*200W at 4ohm stereo, or 4*300W at 4&8ohm bridged
- Frequency response
- 20Hz-20KHz +1/-1dB
- Weight
- 4.28Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
8-Channel Power AmplifierPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.

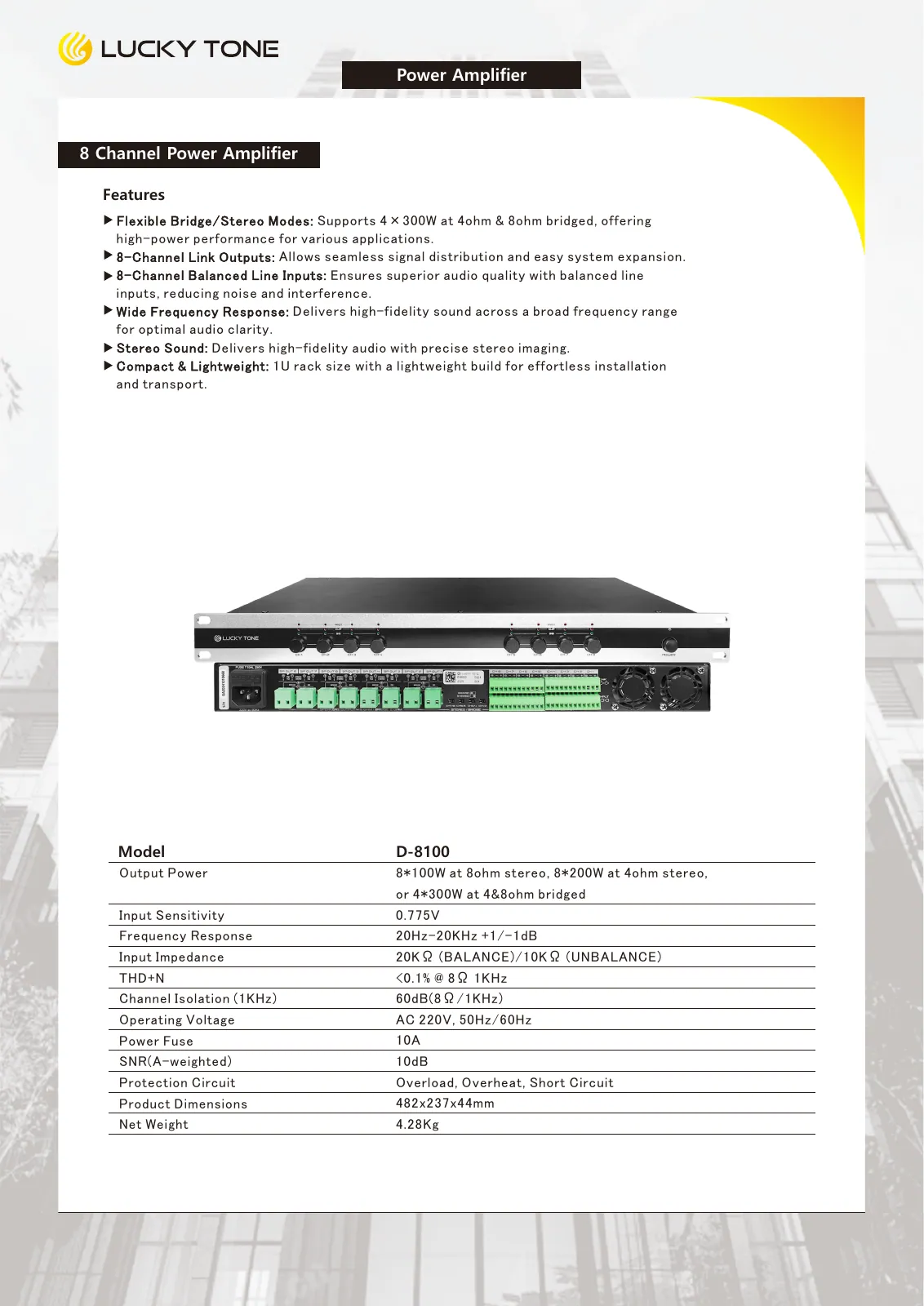

PDFSpecifications1.5 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- Model
- D-8100
- Output Power
- 8*100W at 8ohm stereo, 8*200W at 4ohm stereo, or 4*300W at 4&8ohm bridged
- Input Sensitivity
- 0.775V
- Frequency Response
- 20Hz-20KHz +1/-1dB
- Input Impedance
- 20KΩ (BALANCE)/10KΩ (UNBALANCE)
- THD+N
- <0.1% @ 8Ω 1KHz
- Channel Isolation (1KHz)
- 60dB(8Ω/1KHz)
- Operating Voltage
- AC 220V, 50Hz/60Hz
- Power Fuse
- 10A
- SNR(A-weighted)
- 10dB
- Protection Circuit
- Overload, Overheat, Short Circuit
- Product Dimensions
- 482x237x44mm
- Net Weight
- 4.28Kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Flexible Bridge/Stereo Modes

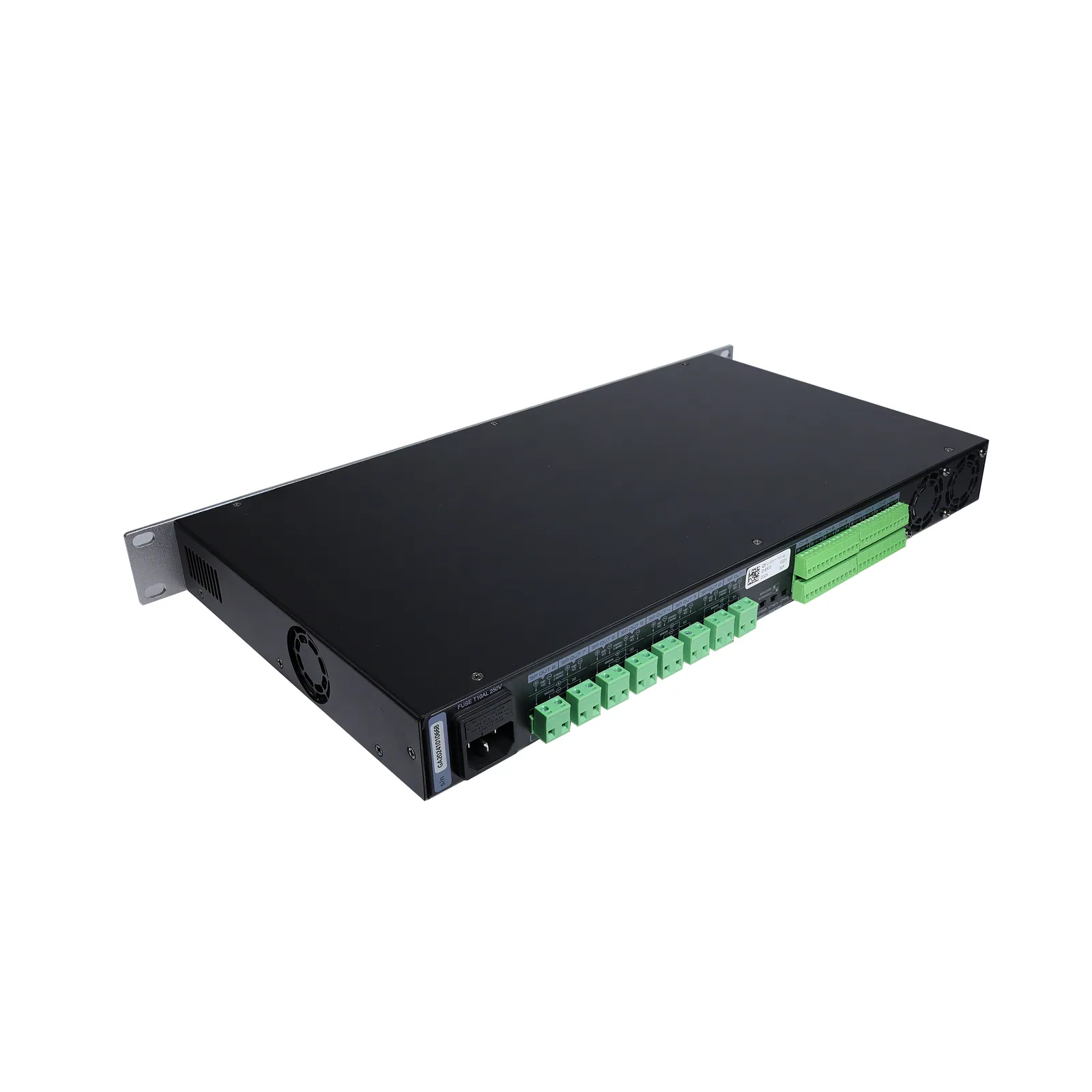

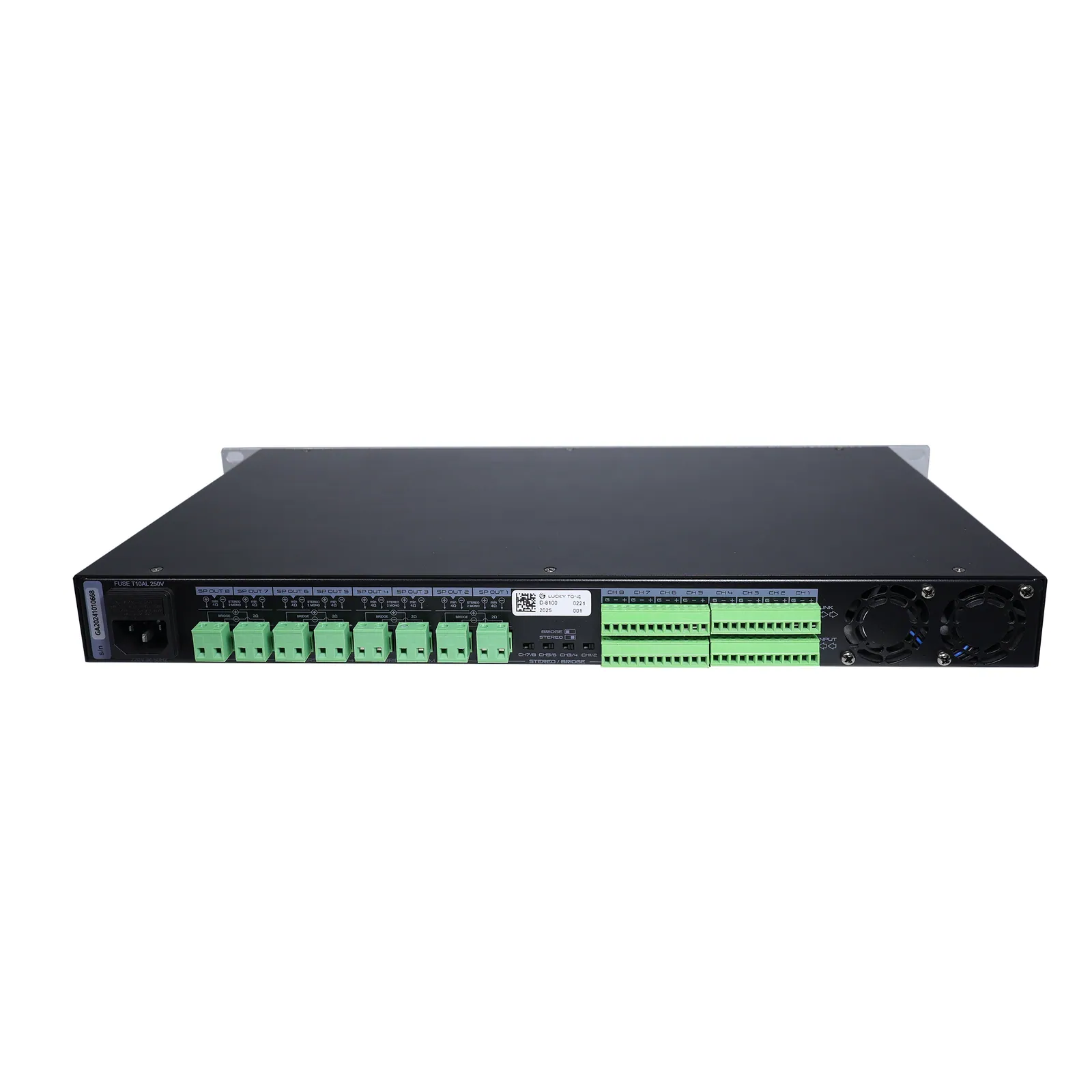

8-Channel Link Outputs
- Allows seamless signal distribution and easy system expansion.
- 8-Channel Balanced Line Inputs
- : Ensures superior audio quality with balanced line inputs, reducing noise and interference.
Wide Frequency Response
: Delivers high-fidelity sound across a broad frequency range for optimal audio clarity.
Stereo Sound
: Delivers high-fidelity audio with precise stereo imaging.
Compact & Lightweight
1U rack
size
with a lightweight build for effortless installation and transport.
03Documents1 file · 1.5 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
