Sheet 05.367
Lucky Tone · Public address
8 Channel Preamplifier with 2 Stereo Outputs
ModelP82S
– Front : 2 Channel Mic/Line and 6 Channel line input
- Dimensions
- : ; P82S: 482 x 44 x 320mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
8 Channel Preamplifier with 2 Stereo OutputsPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | P82S | |
|---|---|---|
| Rated Output Level / Impedance | 0dB / 600 Ω Balanced | |
| Input sensitivity / Impedance | Mic Input(CH1-2) – 60dB~ – 16dB / 20KΩ Balanced | |
| Line Input(CH1-6) – 20dB~ + 4dB / 20KΩ Balanced | ||
| Frequency Response (-1dB) | 20Hz – 20kHz | |
| T.H.D | < 0.1% | |
| Closstalk | > 70 dB | |
| Equalization | Mic Input | High : 12 kHz ± 15 dB / Mid : 2.5 kHz ± 15 dB / Low : 80 Hz ± 15 dB |
| Output | High : 10 kHz ± 15 dB / Low : 100 Hz ± 15 dB | |
| Hum & Noise | > 90 dB | |
| Power Source | AC 100~240 Volt, 50~60Hz | |
| Weight (Net) | 9 kg | |
| Dimensions (W x H x D) | 482 x 44 x 320mm |
02DescriptionManufacturer's description
What it is.
Controls
- 2 Stereo Output with 2 band tone control
- – Rear : 2 Channel Gain control with 3 band EQ,talkover and Phantom power switch
- 6 Channel Gain control with Stereo / Mono switch

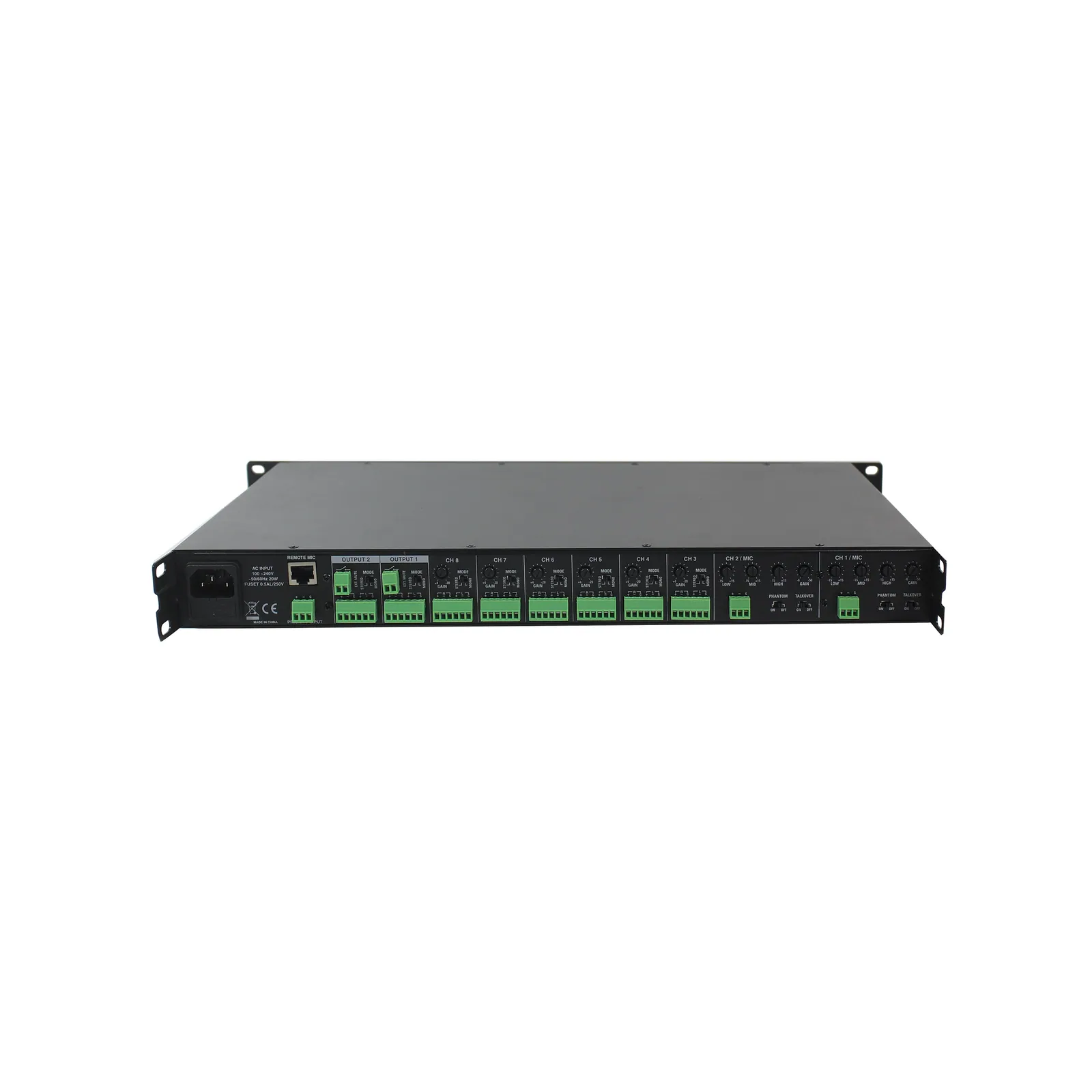

Connectors
- – Euro block for 8 input
- – Euro block for 2 output
- – Euro block for priority input and EXT mute
- Indicators: Power. SIG and CLIP for each input channels and SIG -10dB, CLIP for output channel
03Documents1 file · 2.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
