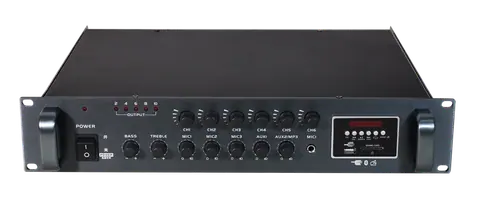

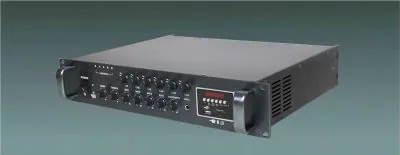

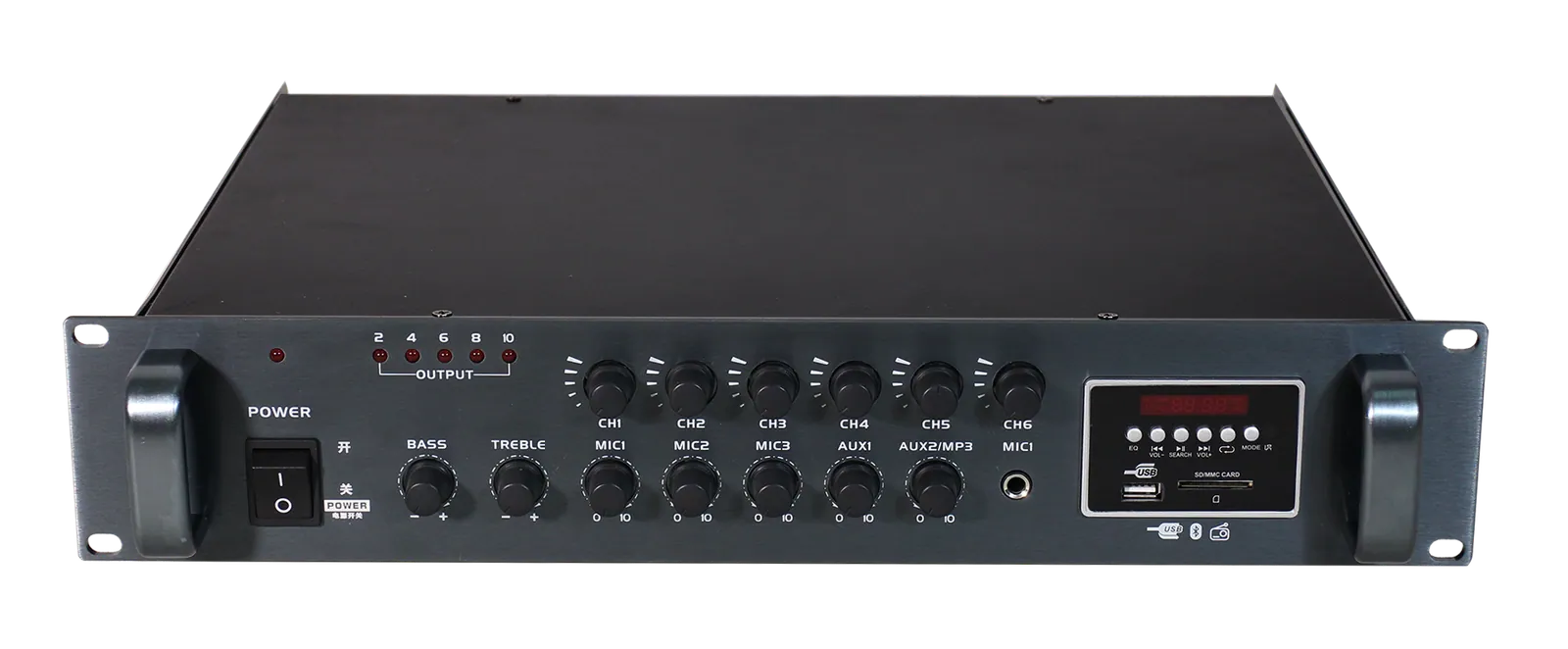

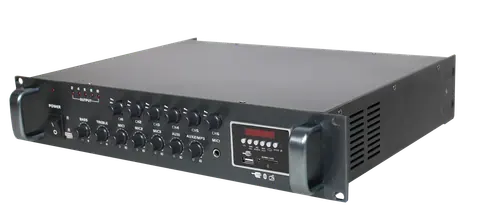

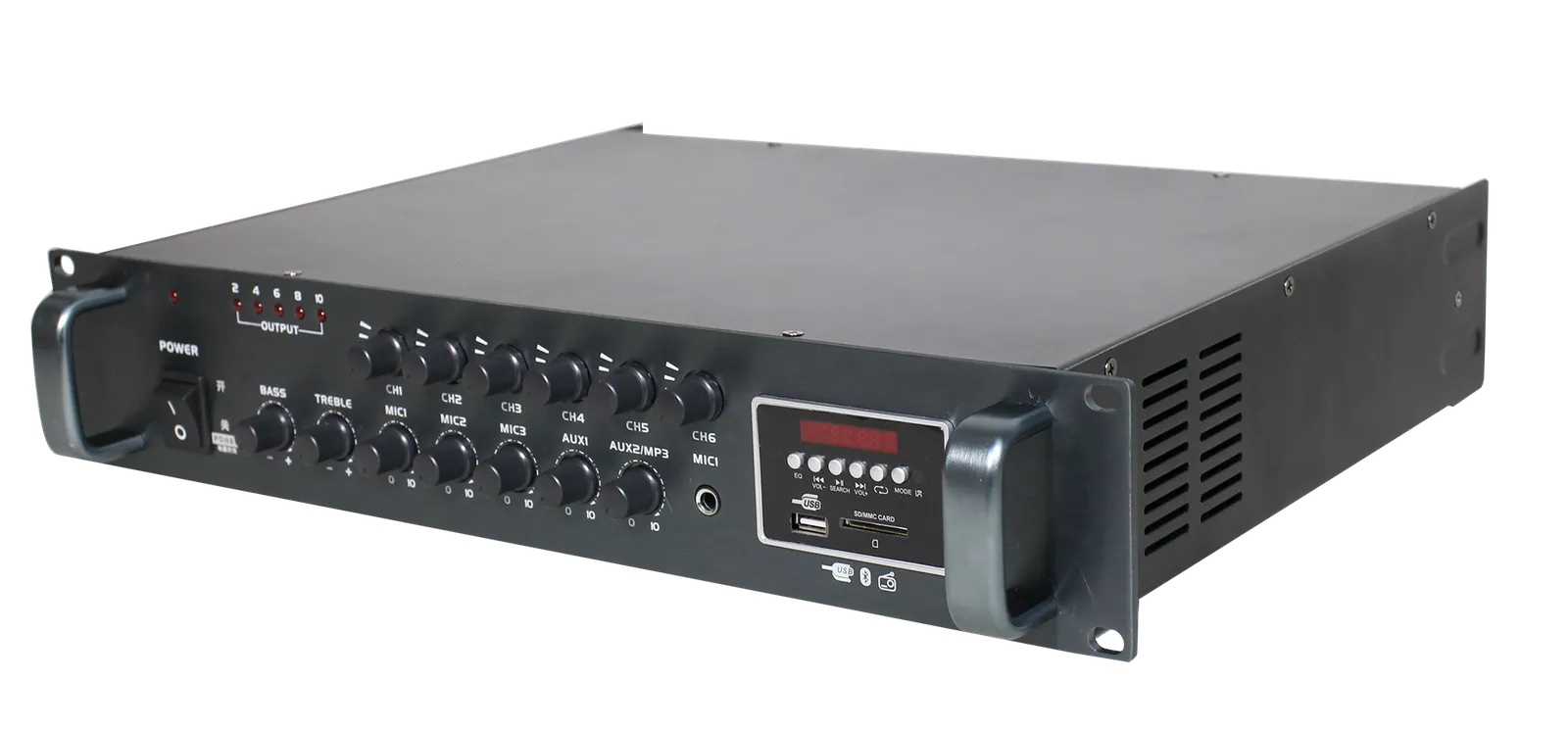

6-zone Mixer Amplifier with Volume Control

Model1000BT / 2000BT / 3000BT / 300BT / 600BT / MZ-200BT

This series of commercial grade mixer power amplififier deliver clean and powerful sound with

Output power: 70W | 130W | 260W | 360W | 500W | 650W
Frequency response: 60 – 15KHz, +/- 3dB
Dimensions: 89(H) x 483(W) x 366(D) mm

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models6 models in the family

Models compared.

Model Numbers	MZ-200BT	MZ-300BT	MZ-600BT	MZ-1000BT	MZ-2000BT	MZ-3000BT
Rated Power Output	70W	130W	260W	360W	500W	650W
Amplifification	Analog 100V Transformer Type	Analog 100V Transformer Type	Analog 100V Transformer Type	Analog 100V Transformer Type	Analog 100V Transformer Type	Analog 100V Transformer Type
Output	100V, 70V and 4-16 Ohms	100V, 70V and 4-16 Ohms	100V, 70V and 4-16 Ohms	100V, 70V and 4-16 Ohms	100V, 70V and 4-16 Ohms	100V, 70V and 4-16 Ohms
Frequency Response	60 – 15KHz, +/- 3dB	60 – 15KHz, +/- 3dB	60 – 15KHz, +/- 3dB	60 – 15KHz, +/- 3dB	60 – 15KHz, +/- 3dB	60 – 15KHz, +/- 3dB
THD	Less than 0.5% at 1KHz (1/3 Rated Power)	Less than 0.5% at 1KHz (1/3 Rated Power)	Less than 0.5% at 1KHz (1/3 Rated Power)	Less than 0.5% at 1KHz (1/3 Rated Power)	Less than 0.5% at 1KHz (1/3 Rated Power)	Less than 0.5% at 1KHz (1/3 Rated Power)
S/N Ratio	Better than 85dB	Better than 85dB	Better than 85dB	Better than 85dB	Better than 85dB	Better than 85dB
VOL Range	BASS: 100Hz (± 10dB), TREBLE: 12kHz (±10 dB)	BASS: 100Hz (± 10dB), TREBLE: 12kHz (±10 dB)	BASS: 100Hz (± 10dB), TREBLE: 12kHz (±10 dB)	BASS: 100Hz (± 10dB), TREBLE: 12kHz (±10 dB)	BASS: 100Hz (± 10dB), TREBLE: 12kHz (±10 dB)	BASS: 100Hz (± 10dB), TREBLE: 12kHz (±10 dB)
Controls	Gain controls and power switch	Gain controls and power switch	Gain controls and power switch	Gain controls and power switch	Gain controls and power switch	Gain controls and power switch
Cooling	Internal 12VDC fan	Internal 12VDC fan	Internal 12VDC fan	Internal 12VDC fan	Internal 12VDC fan	Internal 12VDC fan
Indicators	Power and Level Indicators	Power and Level Indicators	Power and Level Indicators	Power and Level Indicators	Power and Level Indicators	Power and Level Indicators
Power Consumption	110W	190W	365W	510W	720W	910W
Power Requirments	220-240V AC, 50/60 Hz	220-240V AC, 50/60 Hz	220-240V AC, 50/60 Hz	220-240V AC, 50/60 Hz	220-240V AC, 50/60 Hz	220-240V AC, 50/60 Hz
Dimensions	89(H) x 483(W) x 366(D) mm	89(H) x 483(W) x 366(D) mm	89(H) x 483(W) x 366(D) mm	89(H) x 483(W) x 366(D) mm	89(H) x 483(W) x 366(D) mm	89(H) x 483(W) x 366(D) mm
Built-in Dimensions	2 U rack 19 inch	2 U rack 19 inch	2 U rack 19 inch	2 U rack 19 inch	2 U rack 19 inch	2 U rack 19 inch
Carton Dimensions	185(H) x 520(W) x 435(D) mm	185(H) x 520(W) x 435(D) mm	185(H) x 520(W) x 435(D) mm	185(H) x 520(W) x 435(D) mm	185(H) x 520(W) x 435(D) mm	185(H) x 520(W) x 435(D) mm
Net Weight (KG)	12	13.5	15	16	17	17.5
Gross Weight (KG)	14	15.5	17	18	19	19.5
Finish	Panel: aluminium, black Case: steel plate, black	Panel: aluminium, black Case: steel plate, black	Panel: aluminium, black Case: steel plate, black	Panel: aluminium, black Case: steel plate, black	Panel: aluminium, black Case: steel plate, black	Panel: aluminium, black Case: steel plate, black

02DescriptionManufacturer's description

What it is.

reliable performance. Ranging from 70W to 650W RMS power, with built-in 6-zone speaker
selector and individual volume controller for each zone. These highly flflexible mixer amplififiers
designed for a wide variety of voice and background music applications such as
restaurants, bars, stores and any small-medium size installations.
With built-in USB/Bluetooth/Tuner/SD card
Flexible power rating of 70/130/260/360/500/650W
With 3 MIC inputs, 2 AUX inputs and 1 Line output

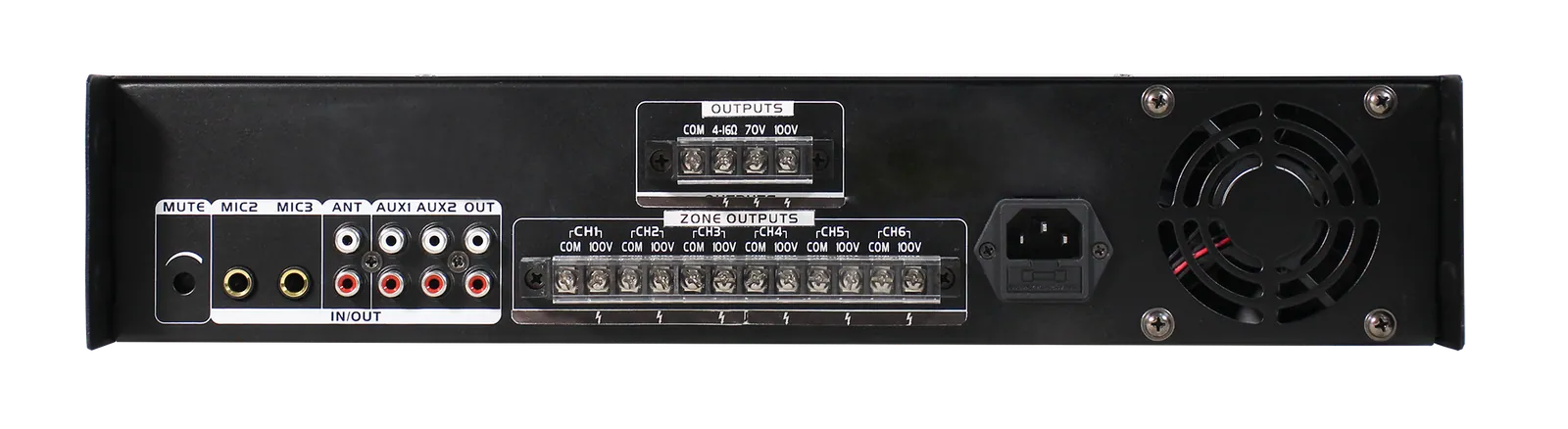

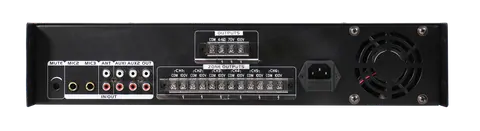

100V, 70V and 4-16Ohms transformerisolated speaker outputs
Independent gain control for each zone
Separate BASS and TREBLE control

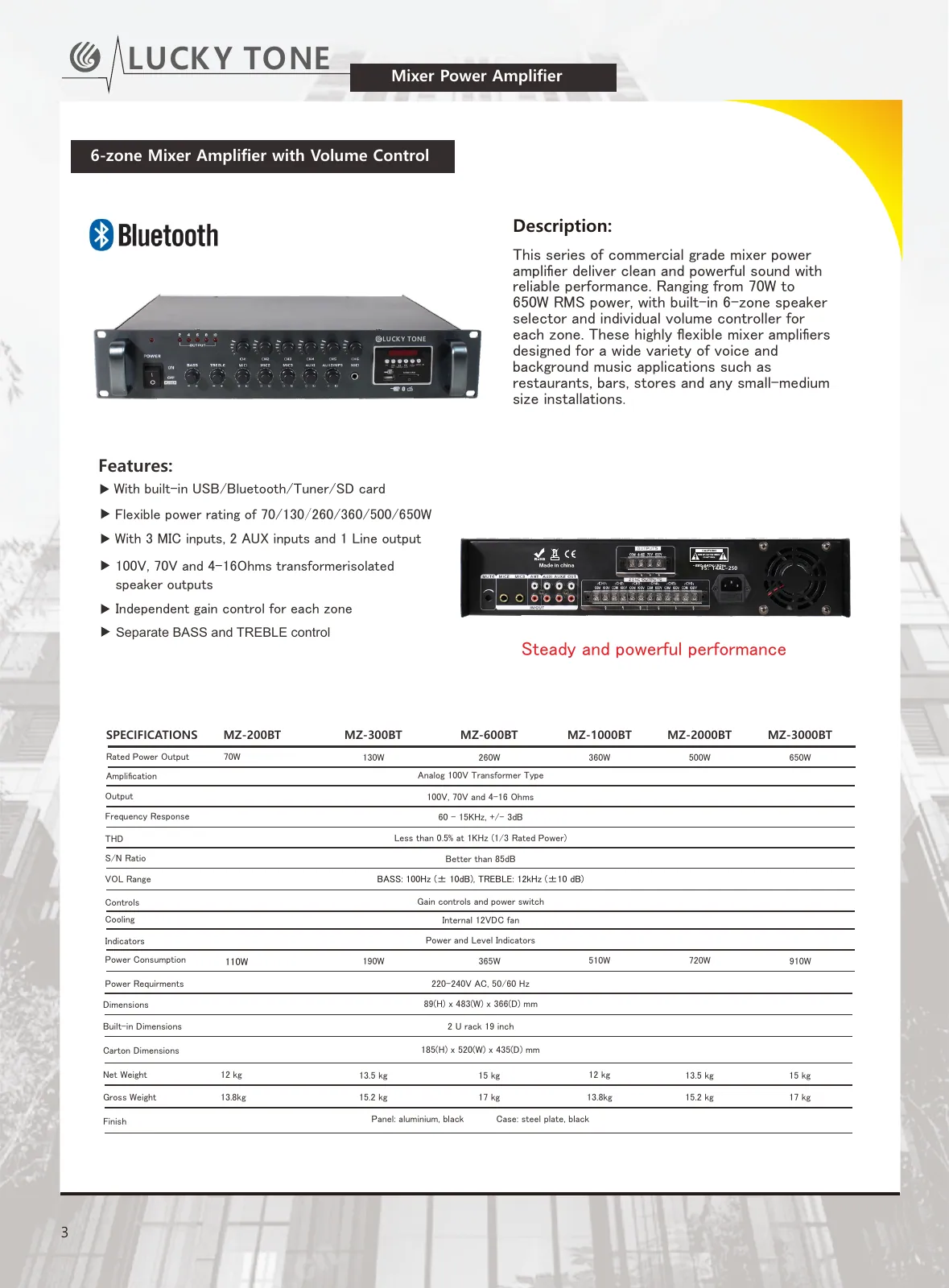

03Documents1 file · 1.1 MB
