Sheet 05.402
Lucky Tone · Public address
Pre-amplifier with Multi Versatile Input
ModelAL-11P

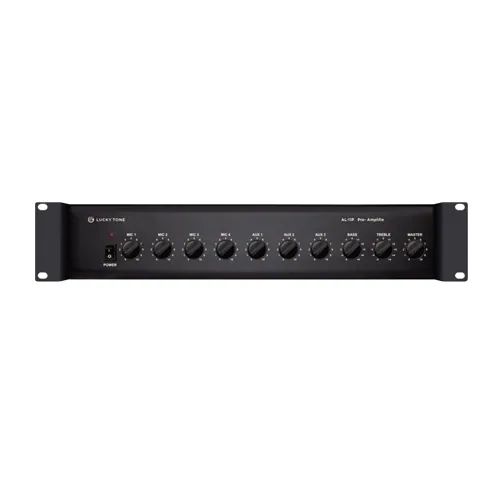

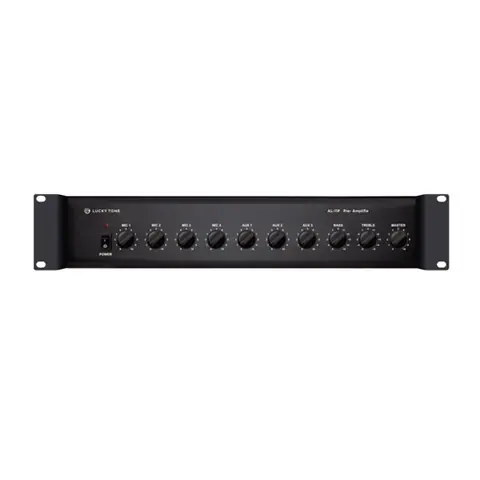

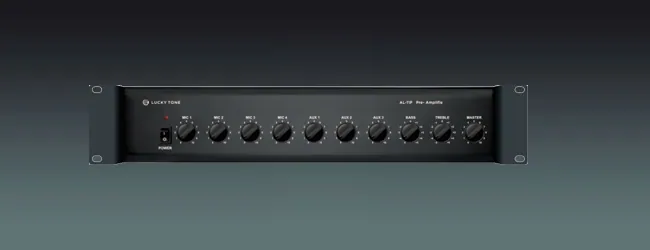

● The AL-11P is a versatile mixer pre-amplifier with 4 microphone inputs, 3 auxiliary inputs, 2 emergency inputs (high priority) and mute function.
- Frequency response
- 60Hz – 15kHz (+/- 3dB)
- Dimensions
- 89(H) x 483(W) x 366(D) mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Pre-amplifier with Multi Versatile InputPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- AL-11P

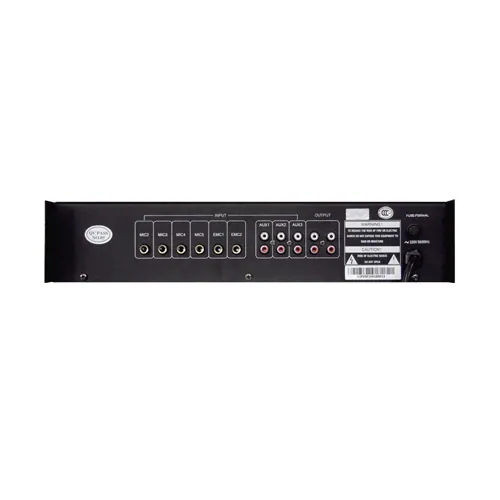

- Input
- MIC 1, 2, 3, 4: 600 ohms, 5mV, unbalanced, phone jack
- Input
- AUX 1, 2, 3: 10k ohms, 200mV, unbalanced, RCA jack
- Input
- EMC 1, 2: 10k ohms, 200mV, unbalanced, phone jack
- Output
- 600 ohms, 775mV, 0 dB, RCA jack
- Frequency Response
- 60Hz – 15kHz (+/- 3dB)
- S/N Ratio
- Better than 70dB
- THD
- Less than 0.1% at 1KHz
- Tone Controls
- BASS: 100 Hz (+/- 10dB), TREBLE: 12k Hz (+/- 10dB)
- Muting Function
- MIC1 overrides other input signals with 0~30 dB attenuation
- Muting Function
- EMC1 overrides other input signals except MIC 1
- Power Requirement
- 220~240V AC, 50/60Hz
- Dimensions
- 89(H) x 483(W) x 366(D) mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
● MIC1, EMC1, EMC2 are priority inputs, automatically muting all other signal inputs. MIC1 has the highest priority, able to suppress all other inputs.
● With bass and treble control, automatic mute function for paging and individual gain control for all the inputs.
