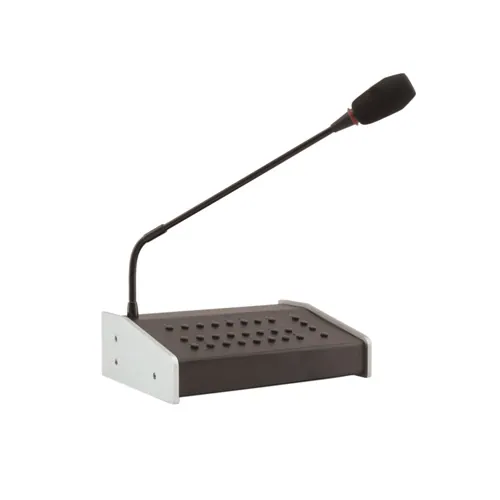

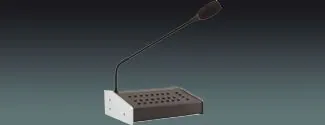

Remote Paging Station

ModelD-MCS16

● Manage up to 8 pcs of D-MCS16 for total 128 loudspeaker lines

Frequency response: MIC,Line: 100Hz -16KHz (+/- 3dB)
Dimensions: 70(H) x 238(W) x 170(D) mm
Weight: 2.30kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 13 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications13

MODEL: D-MCS16
Mic Input: 600 Ohms, 5mv unbalanced
Output: 10K Ohms, 10v balanced
Frequency Response: MIC,Line: 100Hz -16KHz (+/- 3dB)
S/N Ratio: Better than 70dB
THD: Less than 0.1% at 1KHz
Indicators: Indicators for 16 zones and 8 speaker selectors, MIC on/off
Protection: AC Fuse: 0.5A
Power Consumption: 5~10W
Power Requirement: DC 24V
Dimensions: 70(H) x 238(W) x 170(D) mm
Net Weight: 2.30kg
Gross Weight: 3.20kg

02DescriptionManufacturer's description

What it is.

Features

● Communication via maximum 600 meters distance
● With CHIME tone settings
● All ON/OFF button
