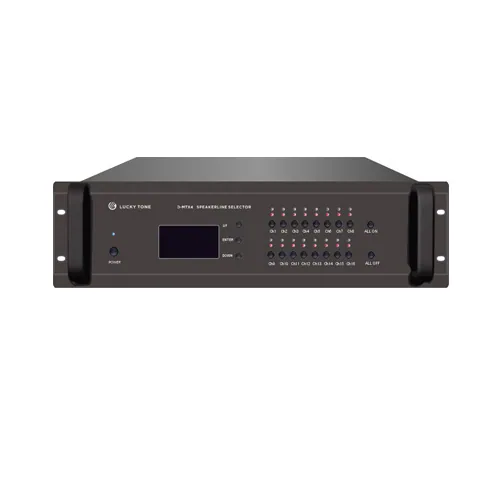

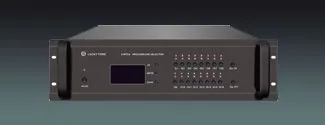

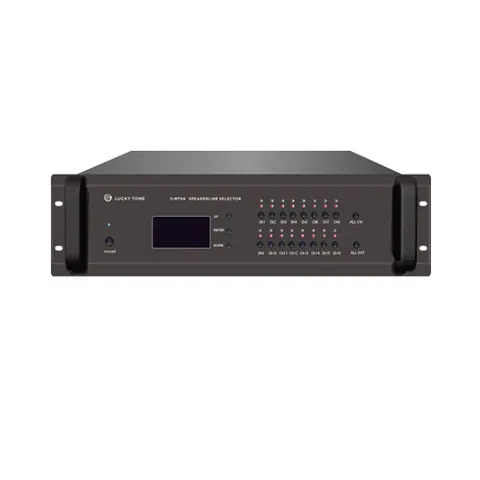

Lucky Tone Speaker Line Selector D-MTX4

ModelD-MTX4

● A 4 X 4 Matrix managing 16 loudspeaker line outputs with priority override settings

Power supply: AC 220V ± 10% 50-60Hz;24VDC
Dimensions: 133(H) x 483(W) x 390(D) mm

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 10 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications10

MODEL: D-MTX4

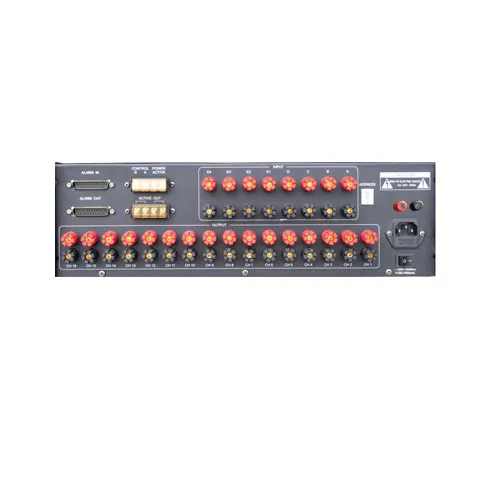

Input: 4 program and 4 priority channels, 70/100V audio signal
Speaker Output: 4 groups of 4 zones, 70/100V audio signal
Power Handling: 3KW total capacity, max 1.5 KW per channel
Alarm Output: 0V signal
Controls: power switch,16 pushbotton zone selectors,
Controls: 3 menu buttons (UP, DOWN, ENTER)
Controls: all on and all off, address setting (1 digit)
Power Supply: AC 220V ± 10% 50-60Hz;24VDC
Dimensions: 133(H) x 483(W) x 390(D) mm

02DescriptionManufacturer's description

What it is.

Features

● Can be simulated into D-COM control UI
● With 1.5KW per loudspeaker line power handling
● Support 4 audio source and 4 alarm inputs
