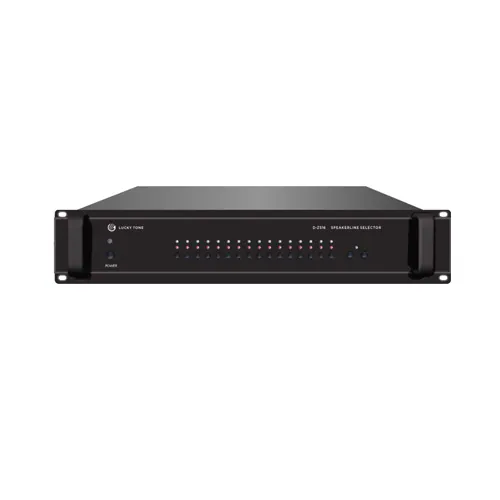

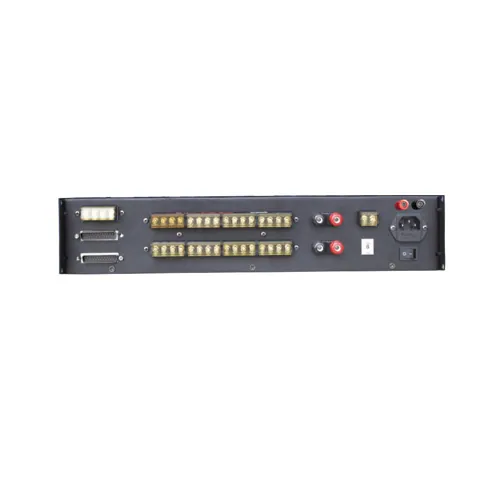

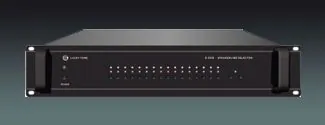

Lucky Tone Speaker Line Selector D-ZS16

ModelD-ZS16

● Power handling of each zone achieve 1.5KW

Power supply: AC 220V ± 10% 50-60Hz;24VDC
Dimensions: 89(H) x 483(W) x 350(D) mm

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 9 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications9

MODEL: D-ZS16
Input: 70/100V audio signal
Output: Output maximum for each zone:150W
Priority Bus: 16 channels activated by 0V signal
Power Handling: 1.5KW total capacity
Alarm Output: 0V signal
Controls: 16 pushbutton zone selectors, 1 power switch
Power Supply: AC 220V ± 10% 50-60Hz;24VDC
Dimensions: 89(H) x 483(W) x 350(D) mm

02DescriptionManufacturer's description

What it is.

Features

● 16 loudspeaker line selector
● One audio input and one alarm input
● With ALL ON/OFF selector
