Sheet 05.404
Lucky Tone · Public address
Project Mixer Amplifiers
ModelPM-120 / PM-240

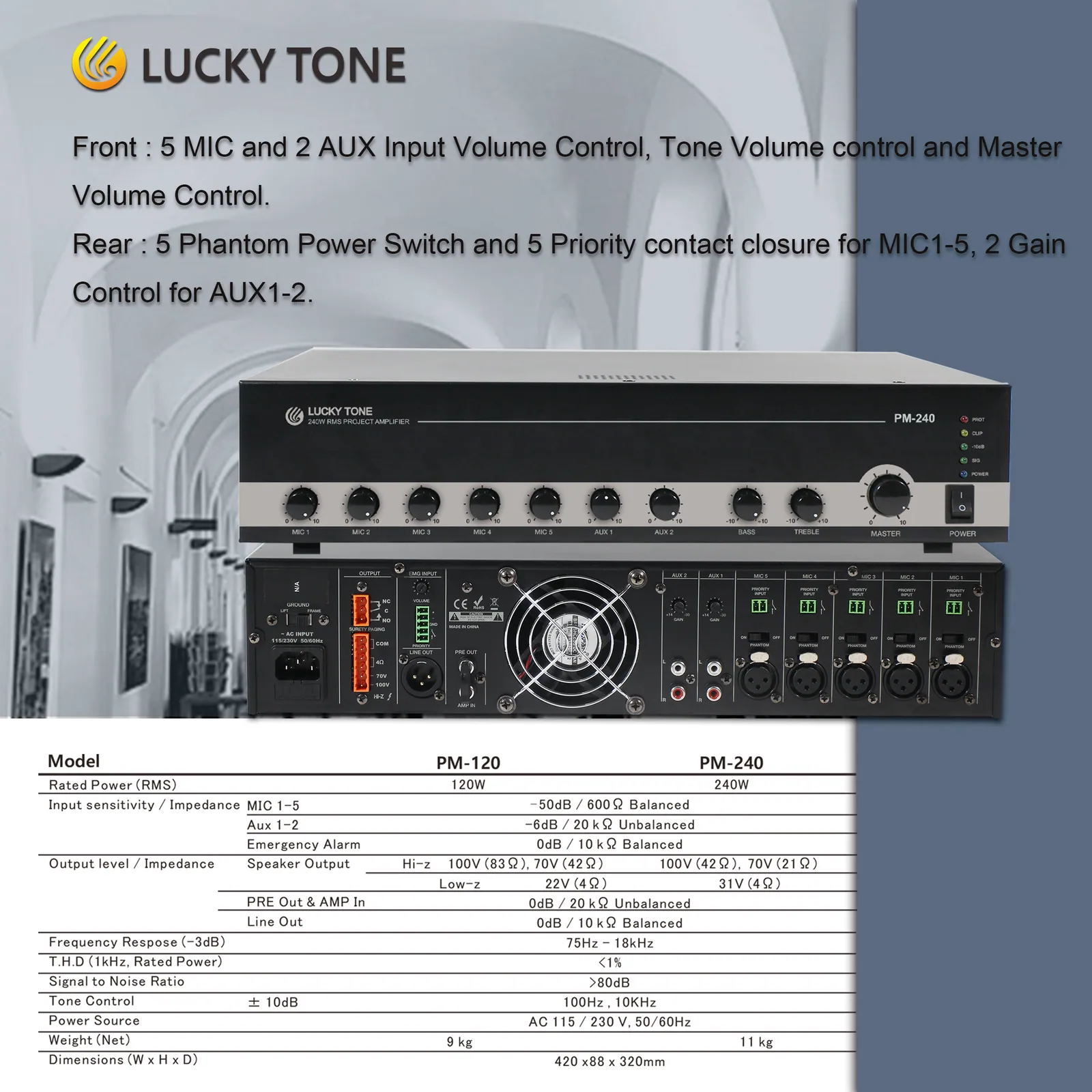

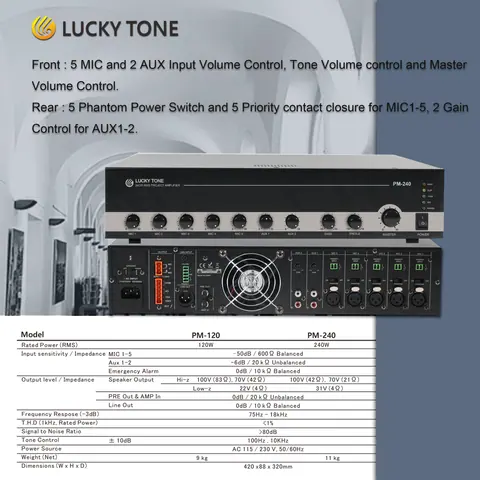

5 MIC and 2 AUX Input Volume Control, Tone Volume control and Master Volume Control.
- Dimensions
- : ; PM-120: 420 x88 x 320mm; PM-240: 420 x88 x 320mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Project Mixer AmplifiersPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | PM-120 | PM-240 | |
|---|---|---|---|
| Rated Power (RMS) | 120W | 240W | |
| Input sensitivity / Impedance | MIC 1-5 | -50dB / 600Ω Balanced | -50dB / 600Ω Balanced |
| Aux 1-2 | -6dB / 20 kΩ Unbalanced | -6dB / 20 kΩ Unbalanced | |
| Emergency Alarm | 0dB / 10 kΩ Balanced | 0dB / 10 kΩ Balanced | |
| Output level / Impedance | Speaker Output | Hi-z 100V (83Ω), 70V (42Ω) 100V (42Ω),70V (21Ω) Low-z 22V (4Ω) 31V (4Ω) | Hi-z 100V (83Ω), 70V (42Ω) 100V (42Ω),70V (21Ω) Low-z 22V (4Ω) 31V (4Ω) |
| PRE Out & AMP In | 0dB / 20 kΩ Unbalanced | 0dB / 20 kΩ Unbalanced | |
| Line Out | 0dB / 10 kΩ Balanced | 0dB / 10 kΩ Balanced | |
| Frequency Respose (-3dB) | 75Hz – 18kHz | 75Hz – 18kHz | |
| T.H.D (1kHz, Rated Power) | <1% | <1% | |
| Signal to Noise Ratio | >80dB | >80dB | |
| Tone Control | 100Hz , 10KHz(± 10dB) | 100Hz , 10KHz(± 10dB) | |
| Power Source | AC 115 / 230 V, 50/60Hz | AC 115 / 230 V, 50/60Hz | |
| Weight (Net) | 9 kg | 11 kg | |
| Dimensions (W x H x D) | 420 x88 x 320mm | 420 x88 x 320mm |
02DescriptionManufacturer's description
What it is.

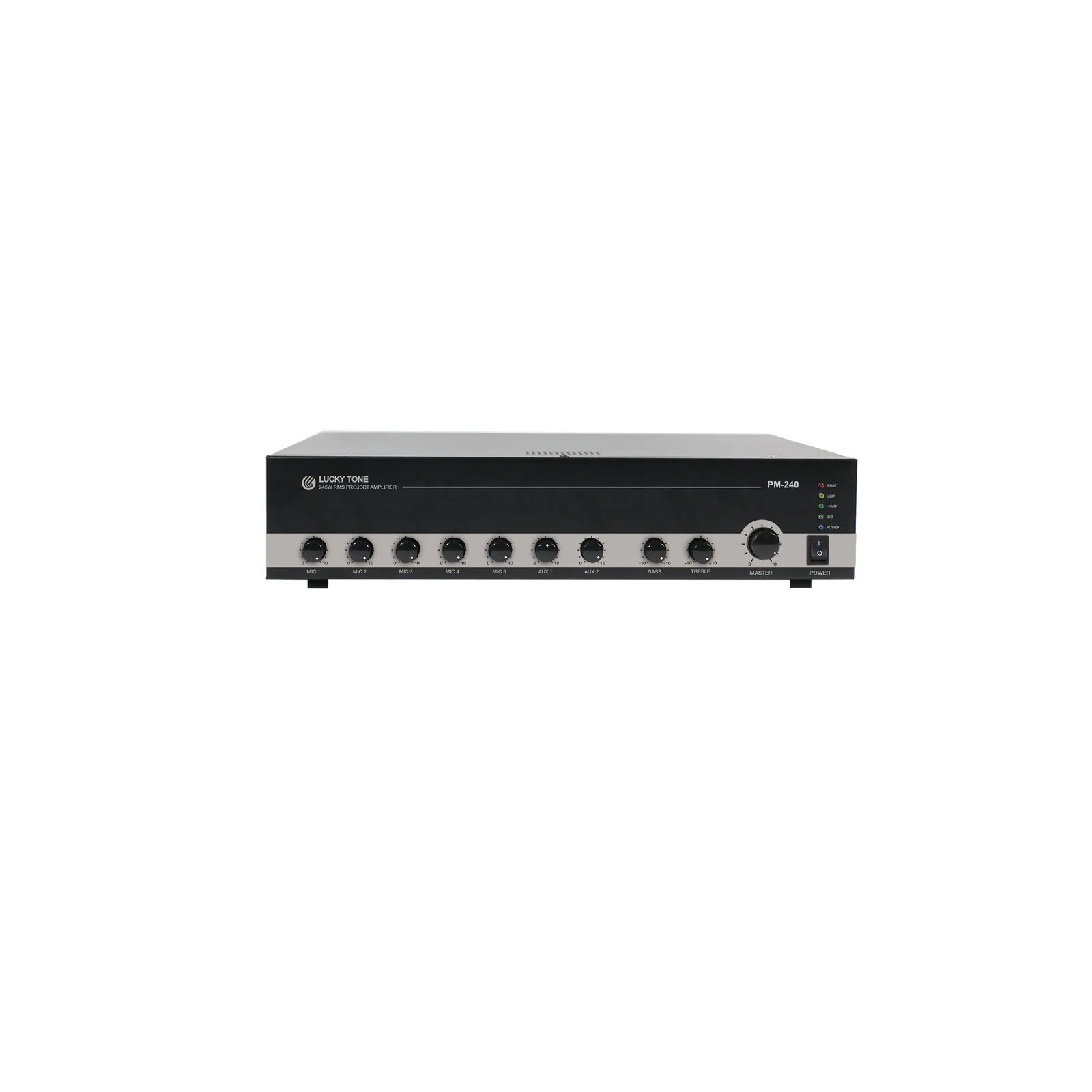

Front

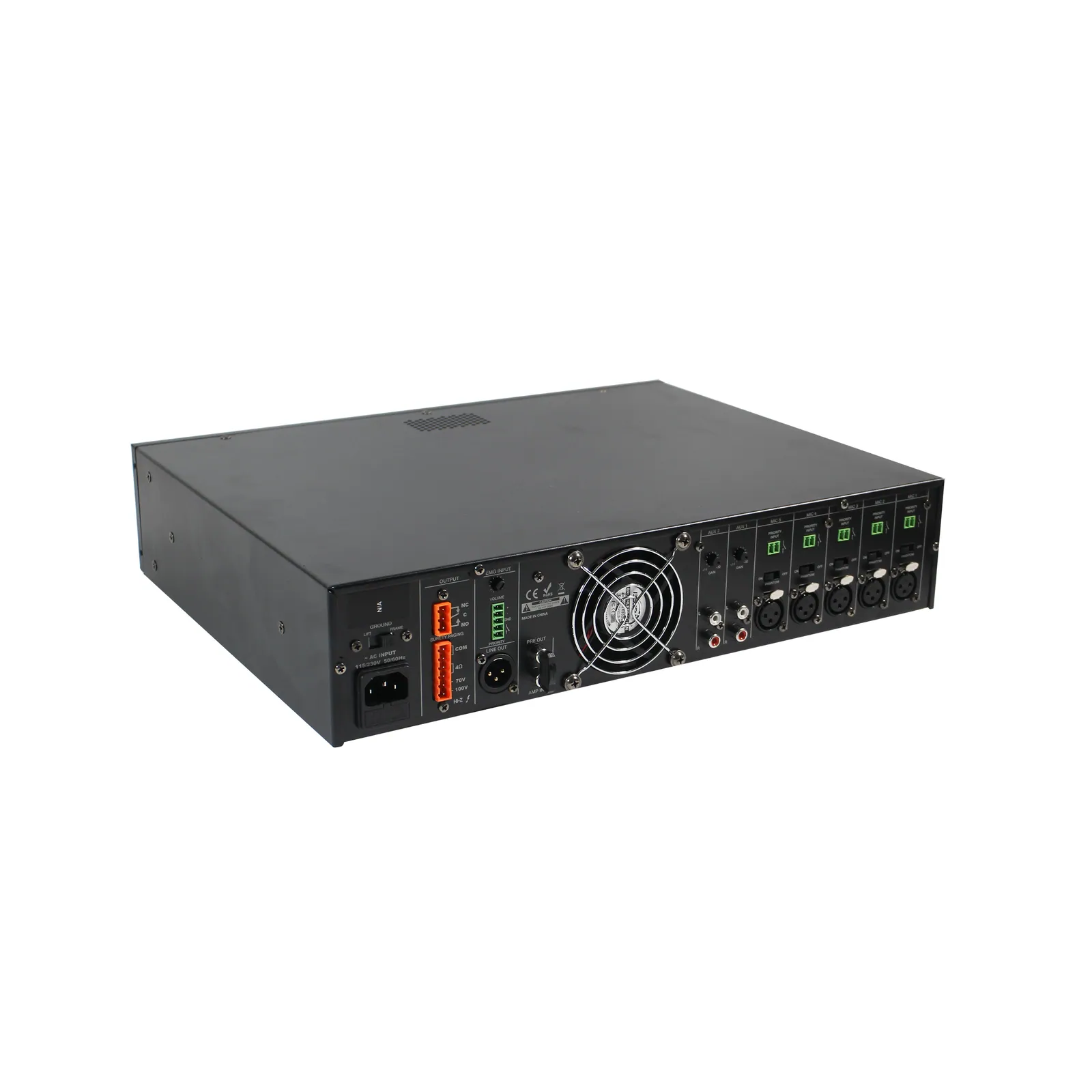

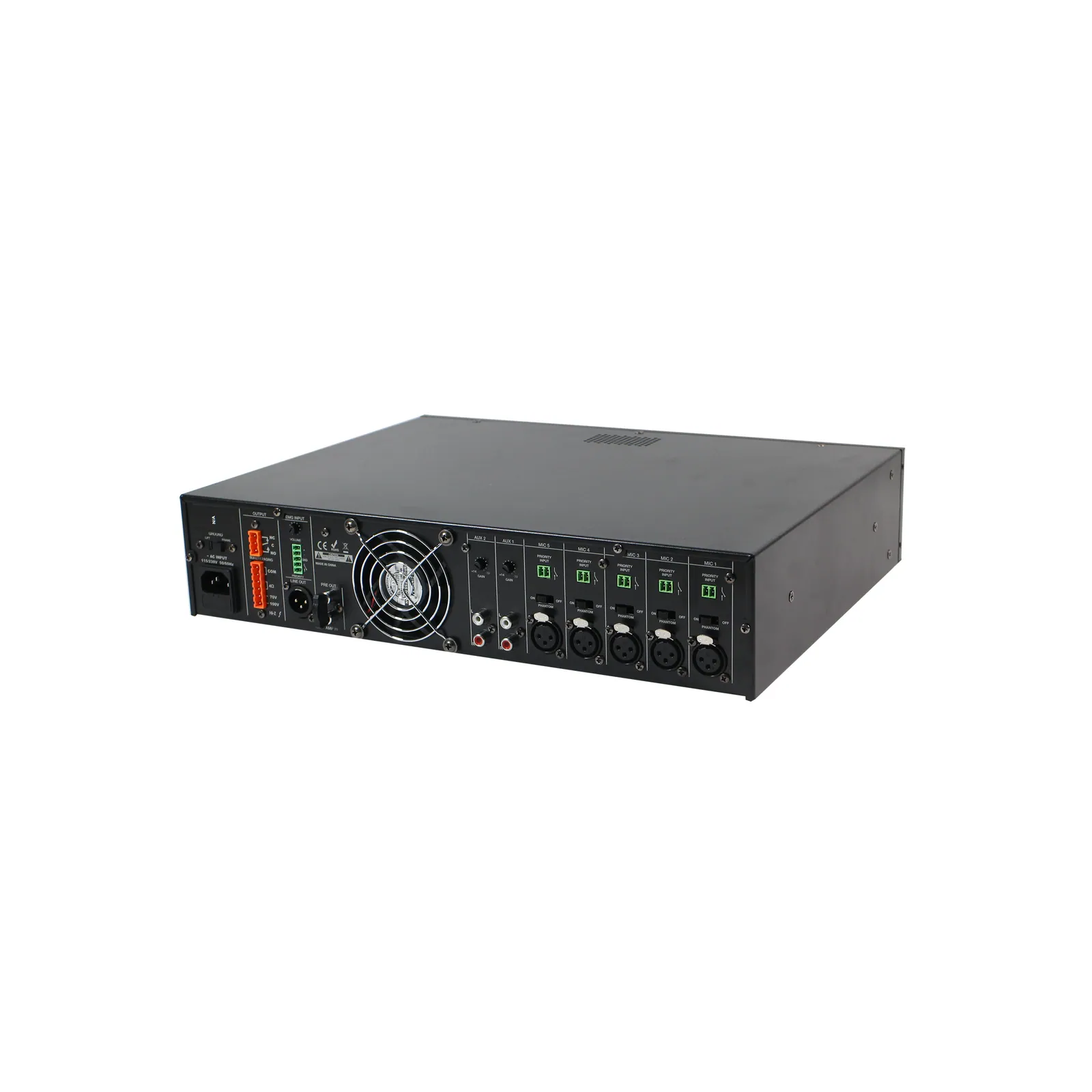

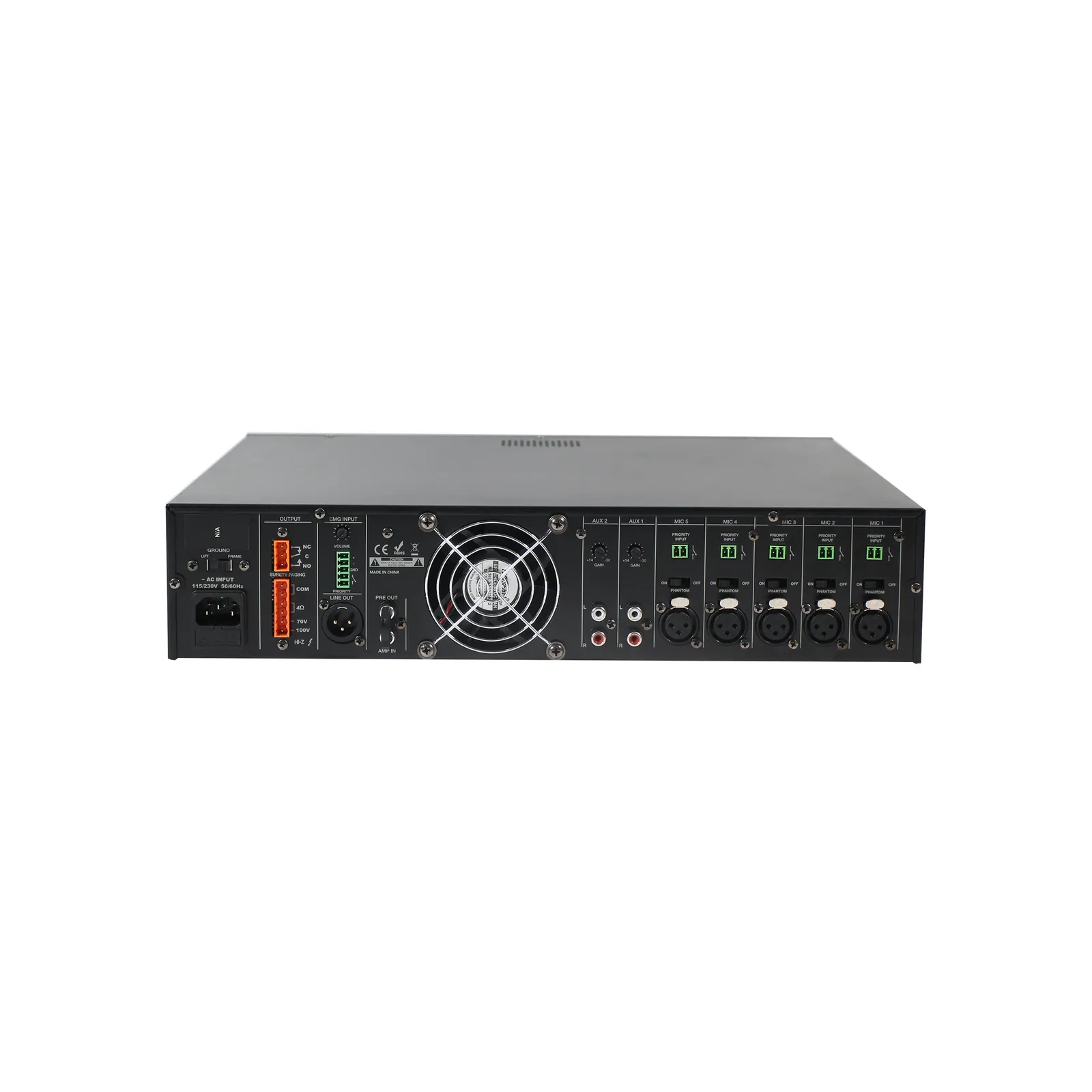

Rear
5 Phantom Power Switch and 5 Priority contact closure for MIC1-5, 2 Gain Control for AUX1-2.
Emergency Input Volume Control and Priority contact closure, Ground Lifting Switch.
Connectors
Input
- 5 XLR Electric Balanced with Phantom power and 5 Euro block for Priority contact closure for MIC.
- 2 RCA Stereo for AUX.
- 1 RCA Unbalanced AMP IN.
- 1 Euro block Balanced Emergency Alarm input with Priority contact closure.
Output
- 1 XLR Balanced Line output.
- 1 Euro block for Amplifier Output 4Ω, 70V, 100V.
- 1 RCA Unbalanced PRE OUT.
- 1 Euro block for Surety Paging Relay.
Indicators
SIG, -10dB, CLIP, Protect and Power.
Protection
Output Current Limiting, Thermal Protection.
Cooling
FAN Cooling.
03Documents1 file · 1.4 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
