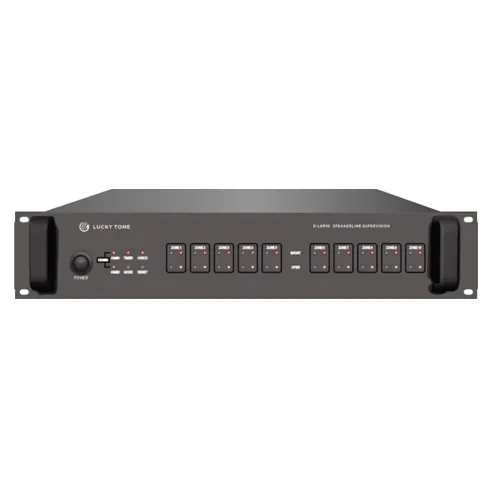

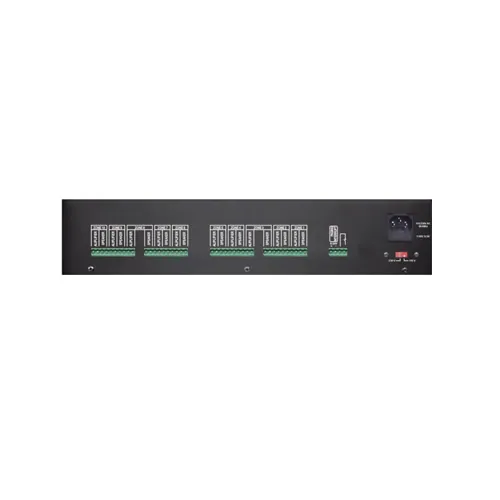

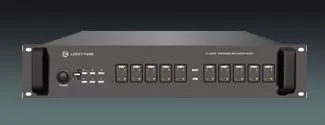

Speaker Line Supervision

ModelD-LSM10

● Has 10 independent circuit supervision for 10 loudspeaker lines

Power supply: 110-120V or 220-240V AC, 50/60 Hz;
Dimensions: 89(H) x 483(W) x 382(D) mm

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 11 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications11

MODEL: D-LSM10
Power Handling: 360W per channel (100V Audio signal)
Check Time: About 5 seconds
Reset Time: About 5 milliseconds
Checking Sensitivity: 2 ohm + / -1 ohm
Protection: AC Fuse: 0.5A
Power Consumption: 30W
Power Supply: 110-120V or 220-240V AC, 50/60 Hz;
Dimensions: 89(H) x 483(W) x 382(D) mm
Built-in Dimensions: 2U rack 19 inch
Net / Gross Weight: 6.02 / 7.20kg

02DescriptionManufacturer's description

What it is.

Features

● Dual color indicators to show the status
● Reliable and compact design
● Easy to use and wire
