Sheet 05.411
Lucky Tone · Public address

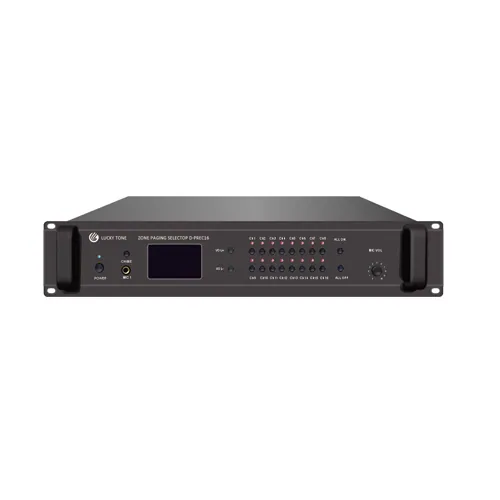

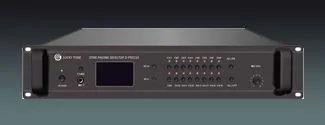

Zone Paging Selector
ModelD-PREC16
● 16 zone selectors for paging with 4 priority levels
- Frequency response
- 60Hz – 16kHz (+/- 3dB)
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Weight
- 5.42kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Zone Paging SelectorPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 23 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications23
- MODEL
- D-PREC16

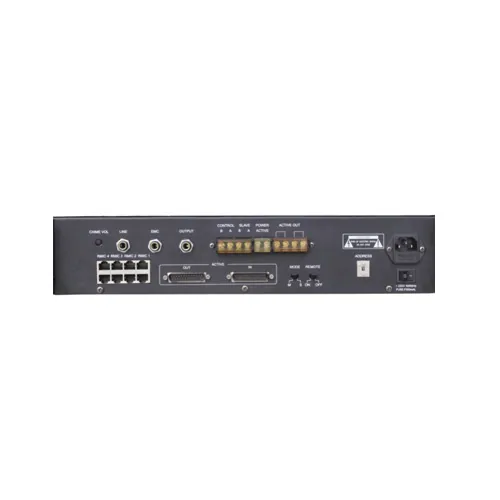

- Input
- MIC: 600 ohms 5mV , unbalanced, phone jack
- Input
- RMIC 1, 2, 3, 4: 10k ohms 10V , balanced, Rj45
- Input
- LINE In,10k ohms 330mV , unbalanced
- Input
- PRIORITY IN: 16 channels, 0V short circuit signal
- Output
- 10k ohms 0.775V (0 dB) , unbalanced
- Output
- PRIORITY OUT: 16 channels, 0V short circuit signal
- Frequency Response
- 60Hz – 16kHz (+/- 3dB)
- S/N Ratio
- Better than 70dB
- THD
- Less than 0.01% at 1KHz
- Zone Control
- 16 zones, Zone 1 to Zone 16, expandable to 160 zones
- Mute Function
- MIC1 overrides other input signals except LINE 1
- Controls
- 2 volume control button vol+,vol-, 16 channel selectors,
- Controls
- 1 power control,all on,all off,address setting,
- Controls
- tone switch, MIC volume control,CHIME volume control,
- Controls
- main power switch
- Indicators
- 16 Zone LEDs, Power LED
- Protection
- AC Fuse: 0.5A
- Power Consumption
- 10~15W
- Power Requirement
- AC 220V ± 10% 50-60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Built-in Dimensions
- 2U rack 19 inch
- Net Weight
- 5.42kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
● Up to 8 units can be extended to control over 128 paging zone
● Remote paging selection can be achieved by using with maximum 4 D-PCS16 CALL STATION
