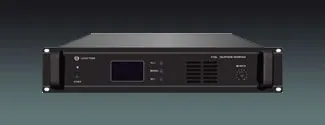

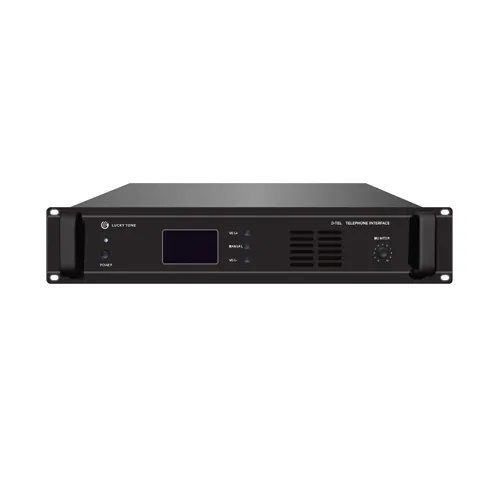

Telephone Interface

ModelD-TEL

● Automatically answer incoming call and proceed broadcast through voice guide operation

Dimensions: 89(H) x 483(W) x 350(D) mm

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 9 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications9

MODEL: D-TEL

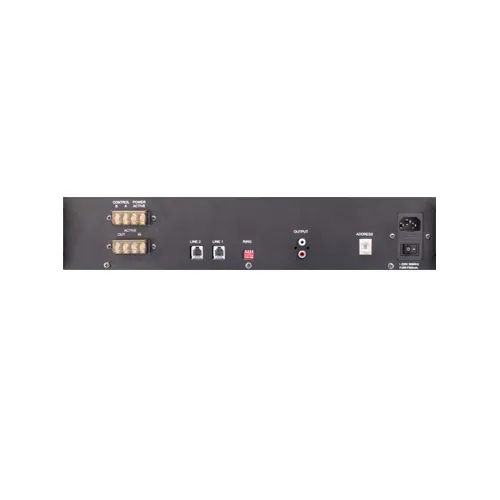

Input: TEL: RJ-11 connector; MIC: 400-775mV(0dB)
Output: Audio Output: 10mV-330V; Active Out: 0V short circuit singal
Phone Monitor: Built-in stereo HiFi full range speaker, power>100mW
Ring Times: 2-5 times
Protection: AC Fuse: 0.5A
Power Consumption: 10~15W
Power Requirement: AC 220V ± 10% 50-60Hz; 24VDC
Dimensions: 89(H) x 483(W) x 350(D) mm

02DescriptionManufacturer's description

What it is.

Features

● ALL CALL or Zone Paging
● Can connect to microphone input for intercommunicating with caller
● Support remote start up and triggering through telephone
● AUTO mode and MANUAL mode selectable
● Built-in monitor loudspeaker for monitoring and volume is adjustable

03Related products

EQ-409Lucky ToneSpeaker Line SupervisionD-LSM10 · Public addressDimensions89(H) x 483(W) x 382(D) mmPower supply110-120V or 220-240V AC, 50/60 Hz;

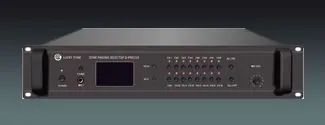

EQ-411Lucky ToneZone Paging SelectorD-PREC16 · Public addressFrequency response60Hz – 16kHz (+/- 3dB)Dimensions89(H) x 483(W) x 350(D) mmWeight5.42kg
