Sheet 05.403
Lucky Tone · Public address

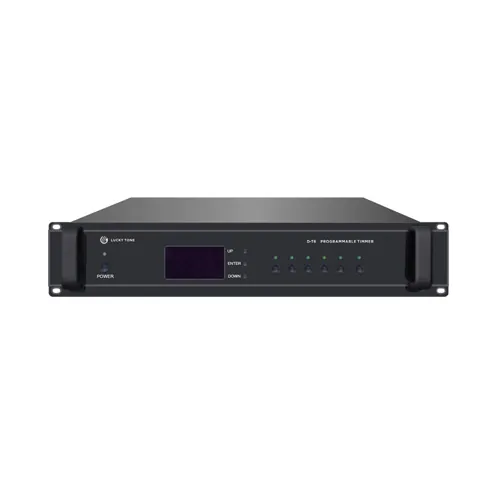

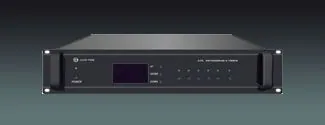

Programmable Timer
ModelD-T6
● A Programmable power supply activating timer
- Output power
- Power of each channel AC220V/1A
- Power supply
- AC 220V +/- 10% 50-60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Weight
- 5.20kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Programmable TimerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- D-T6
- Power Output
- Power of each channel AC220V/1A
- Audio Output
- Chime signal
- Alarm In/Out
- 0V, short circuit signal
- Controls
- 3 menu operation buttons,1 power switch,
- Controls
- 6 manual channel selectors(CH1 ~ CH5,TIMER ) ,
- Controls
- 1 address setting(1digit),1 connection terminal
- Indicators
- POWER, CH1~CH5, TIMER
- Power Consumption
- 10~15W
- Power Supply
- AC 220V +/- 10% 50-60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Net Weight
- 5.20kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- ● Provide power source for up to 6 devices
- ● Scheduled task settings for AUTO power activating management
- ● D-T6 can optionally work with the D-ACPS16 power sequencer
