Sheet 05.300
Lucky Tone · Dante

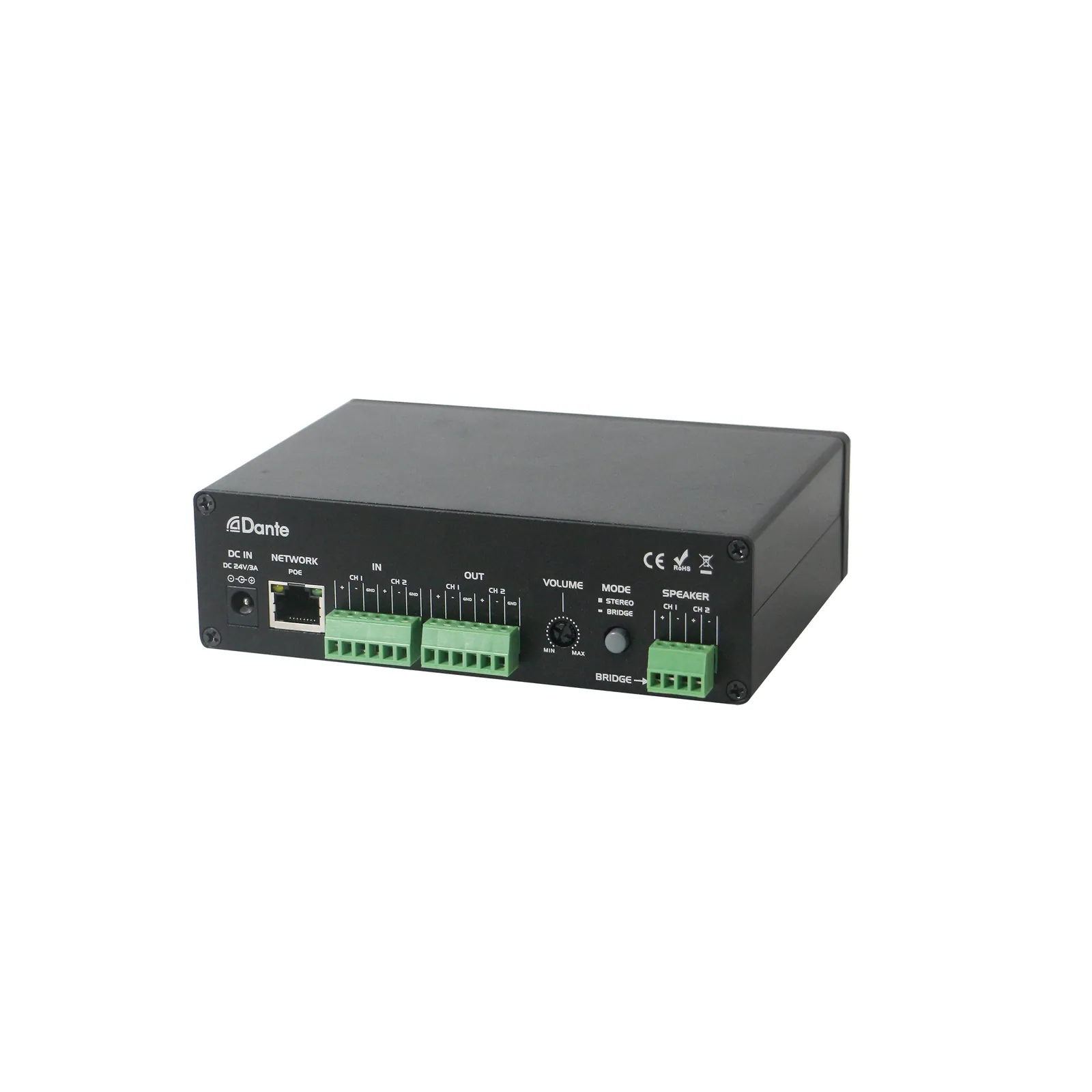

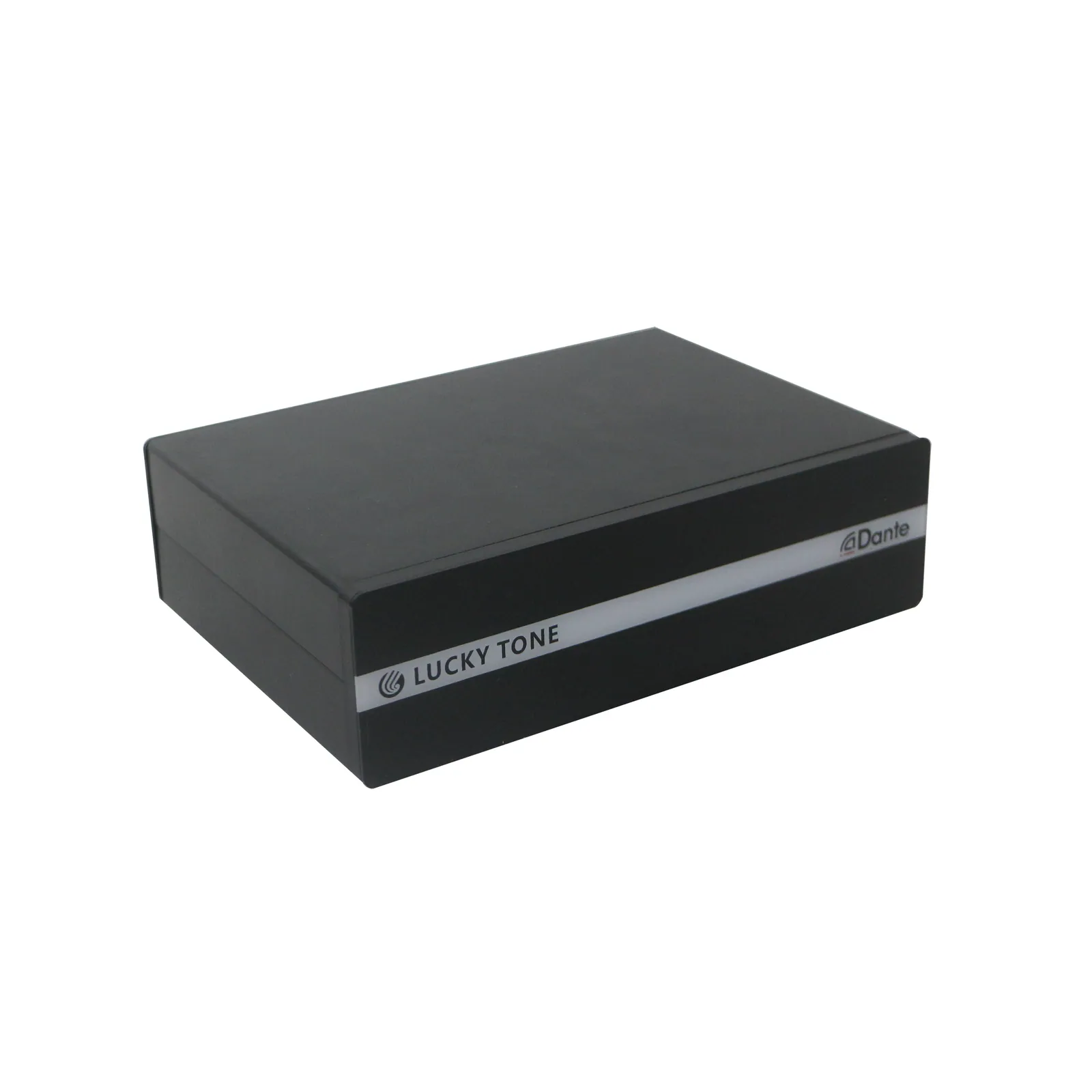

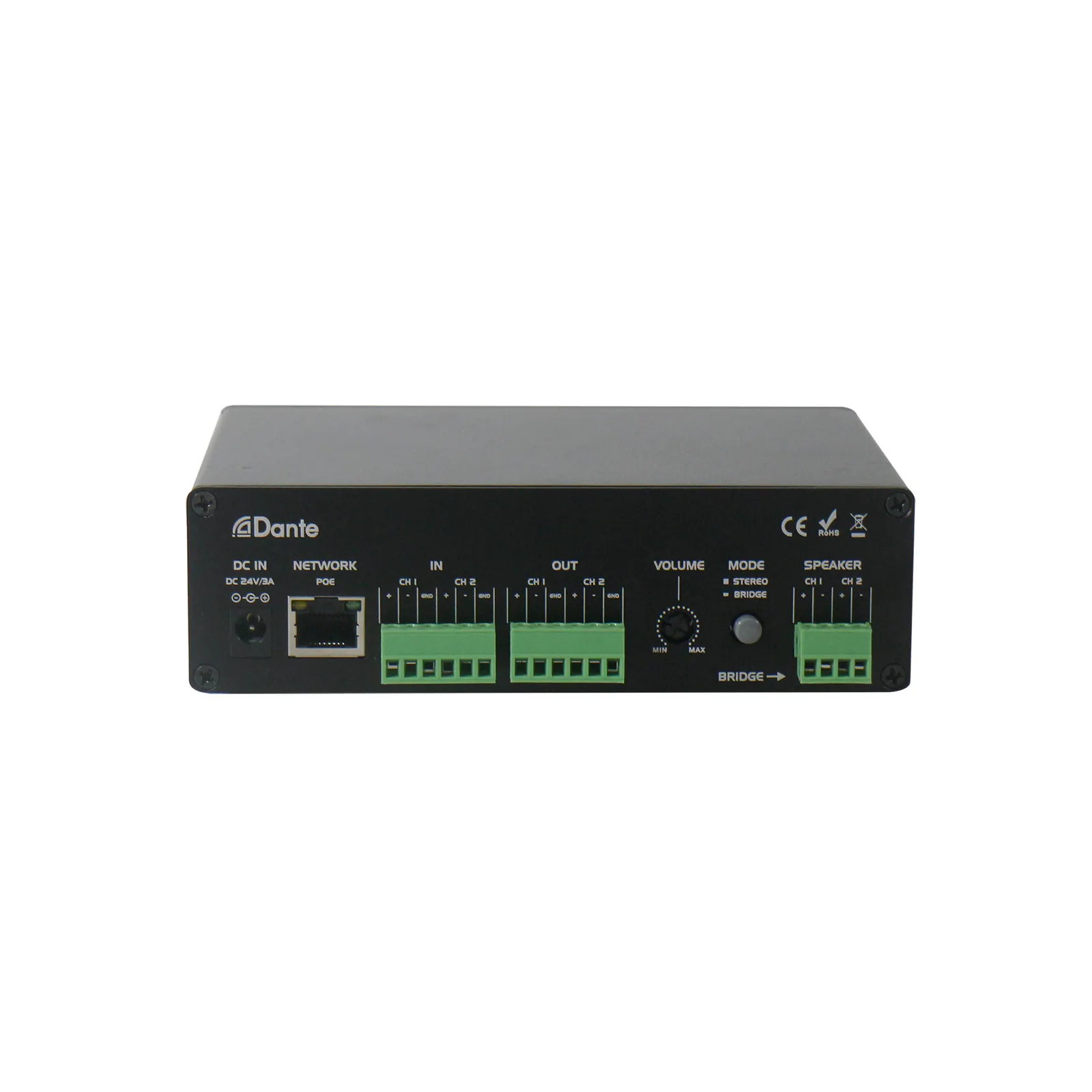

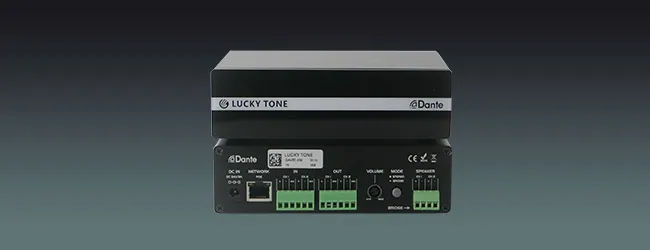

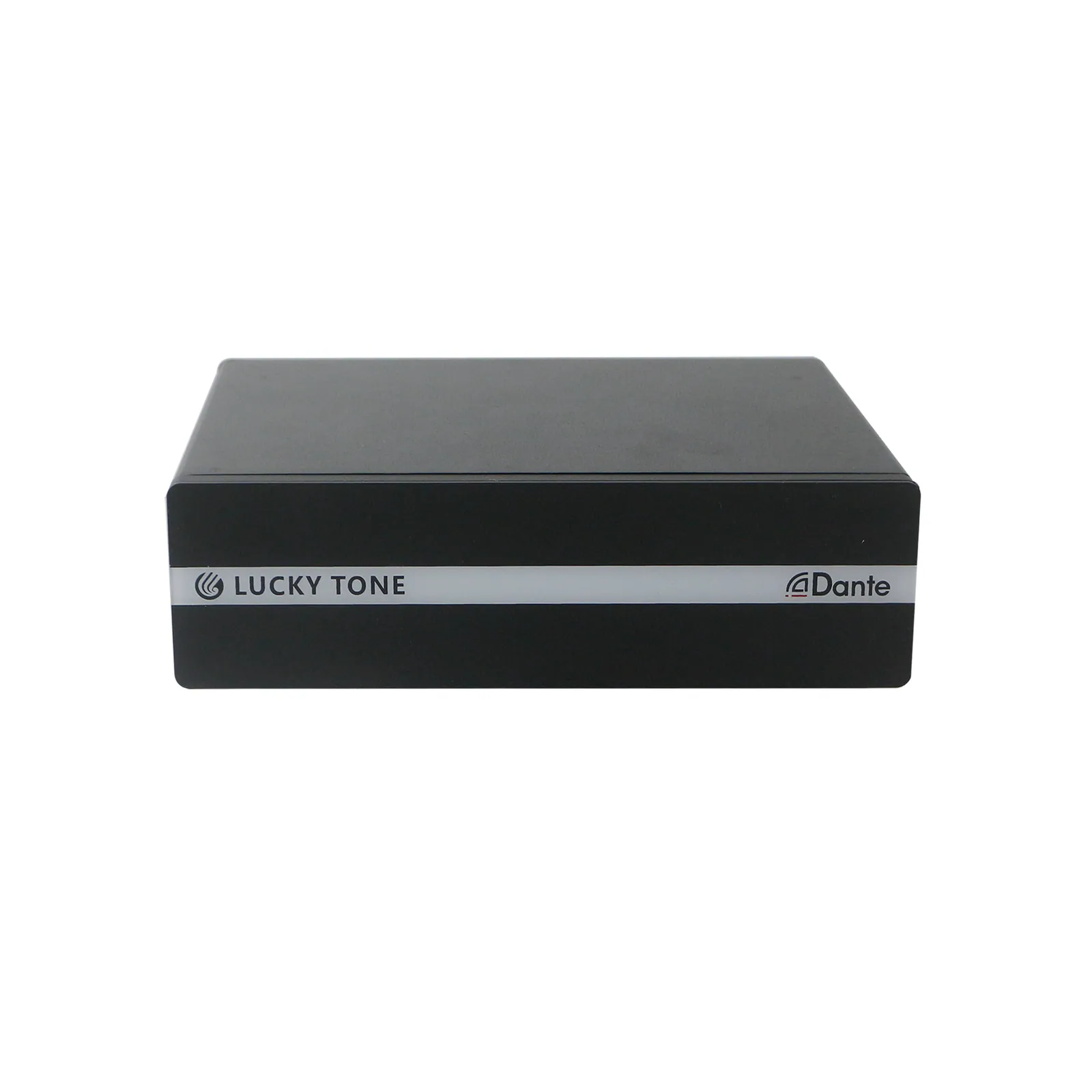

Lucky Tone Dante Network Amplifier DANTE-250
ModelDANTE-250
Dual 30W per channel output ensures powerful and clear audio reproduction.
- Output power
- 2X50W at DC24V, 2X30W at PoE
- Frequency response
- 20Hz-20KHz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Dante Network AmplifierPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 16 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications16
- Model
- DANTE-250
- Dante Audio Channel
- 2
- Network Port
- RJ45
- Output Power
- 2X50W at DC24V, 2X30W at PoE
- Input Sensitivity
- Line Input: 400MV Network Input: 500MV
- THD
- 0.1%
- SNR
- <83dB
- Line Input and Output
- Line Input Channel
- 2
- Line Output Channel
- 2
- Input/Output Signal Level
- 800MV
- Balanced Input Impedance
- 20KΩ
- Unbalanced Input Impedance
- 10KΩ
- Distortion
- 0.008%
- SNR
- <91dB
- Frequency Response
- 20Hz-20KHz
- Power Requirement
- 24V DC or PoE
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
High-Powered Amplification
Dante Connectivity
Integrated Dante technology allows seamless audio networking, enabling efficient and flexible connectivity for various audio devices over a standard Ethernet network.
Dual Line Inputs
Equipped with a 2-channel line input, the amplifier
accommodates multiple audio sources, facilitating easy integration with a variety of audio devices such as mixers, media players, or other compatible equipment.
Dual Line Outputs
Enables the expansion of the system’s capabilities by routing signals to larger amplifiers for increased power and performance.
Speaker Output Options
The amplifier offers 2-channel speaker outputs, allowing for the connection of stereo speaker setups. This provides a versatile solution for distributing audio to multiple zones or achieving a stereo sound experience in different areas.
Versatile Mounting Options

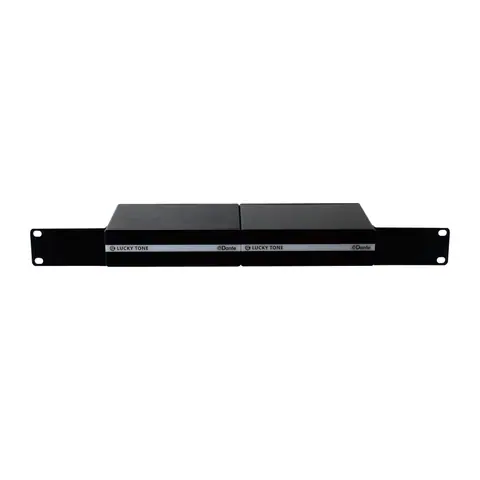

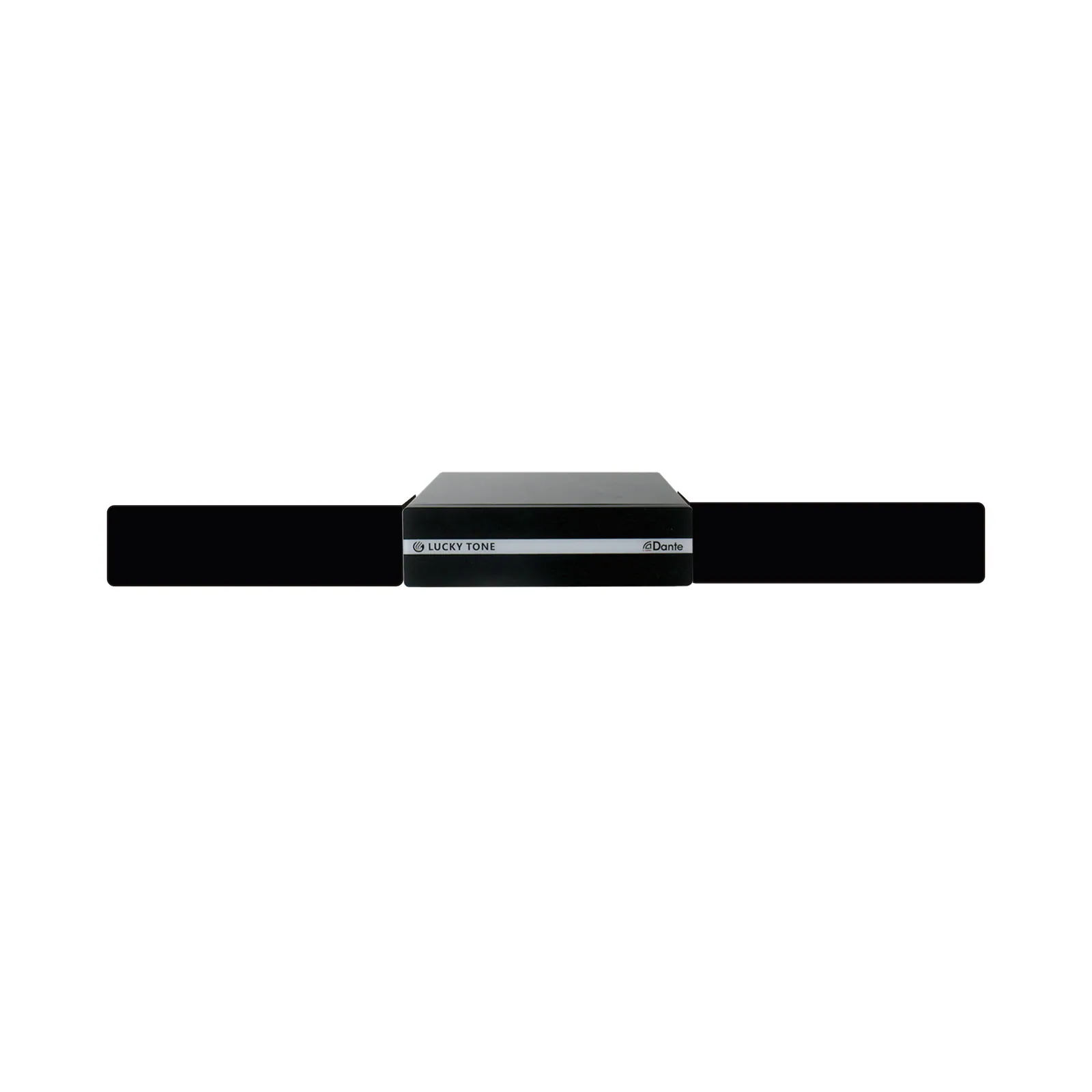

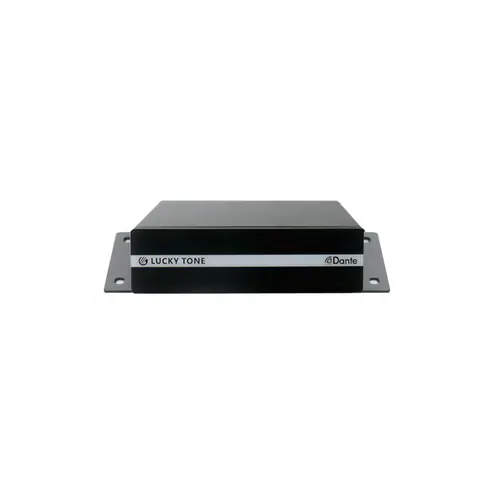

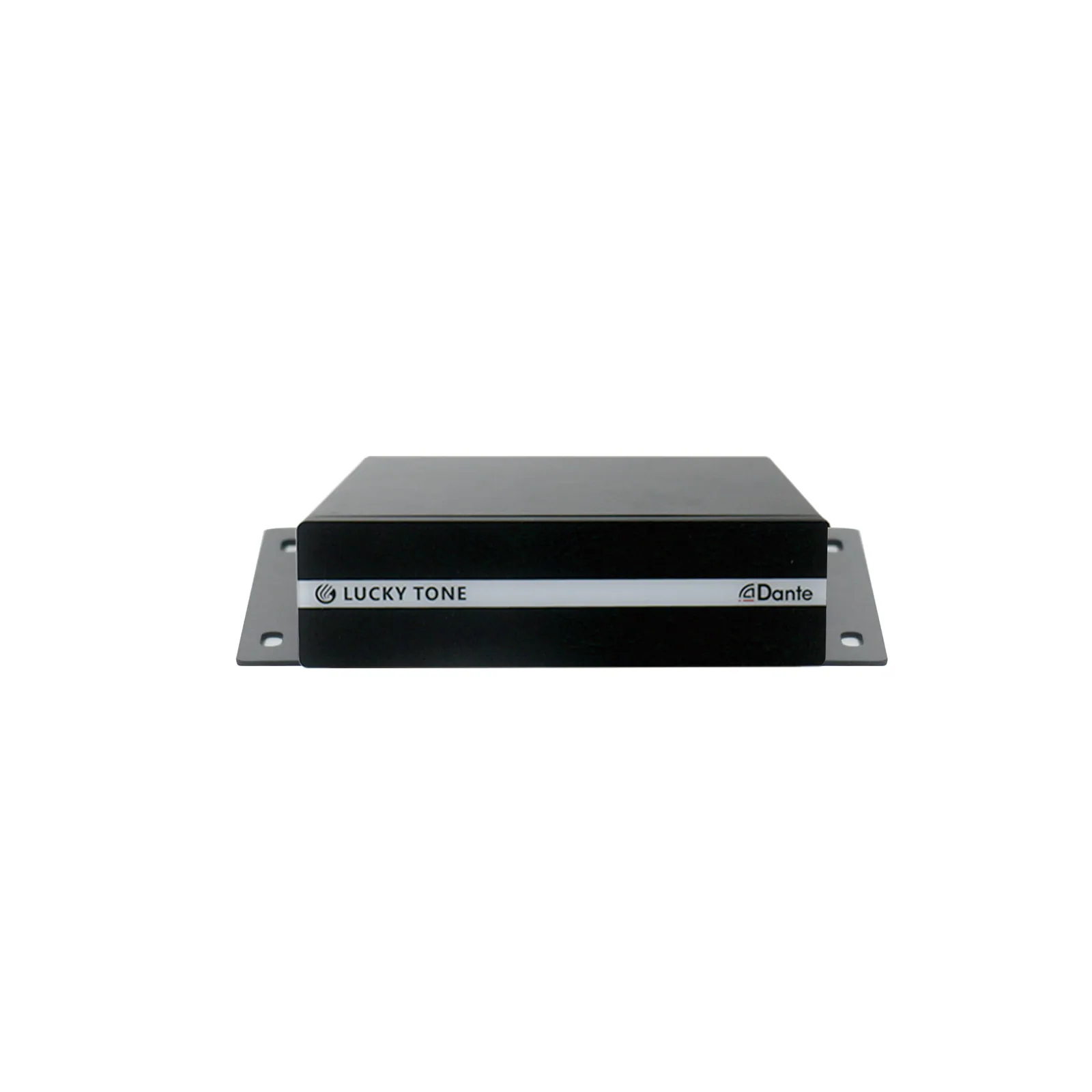

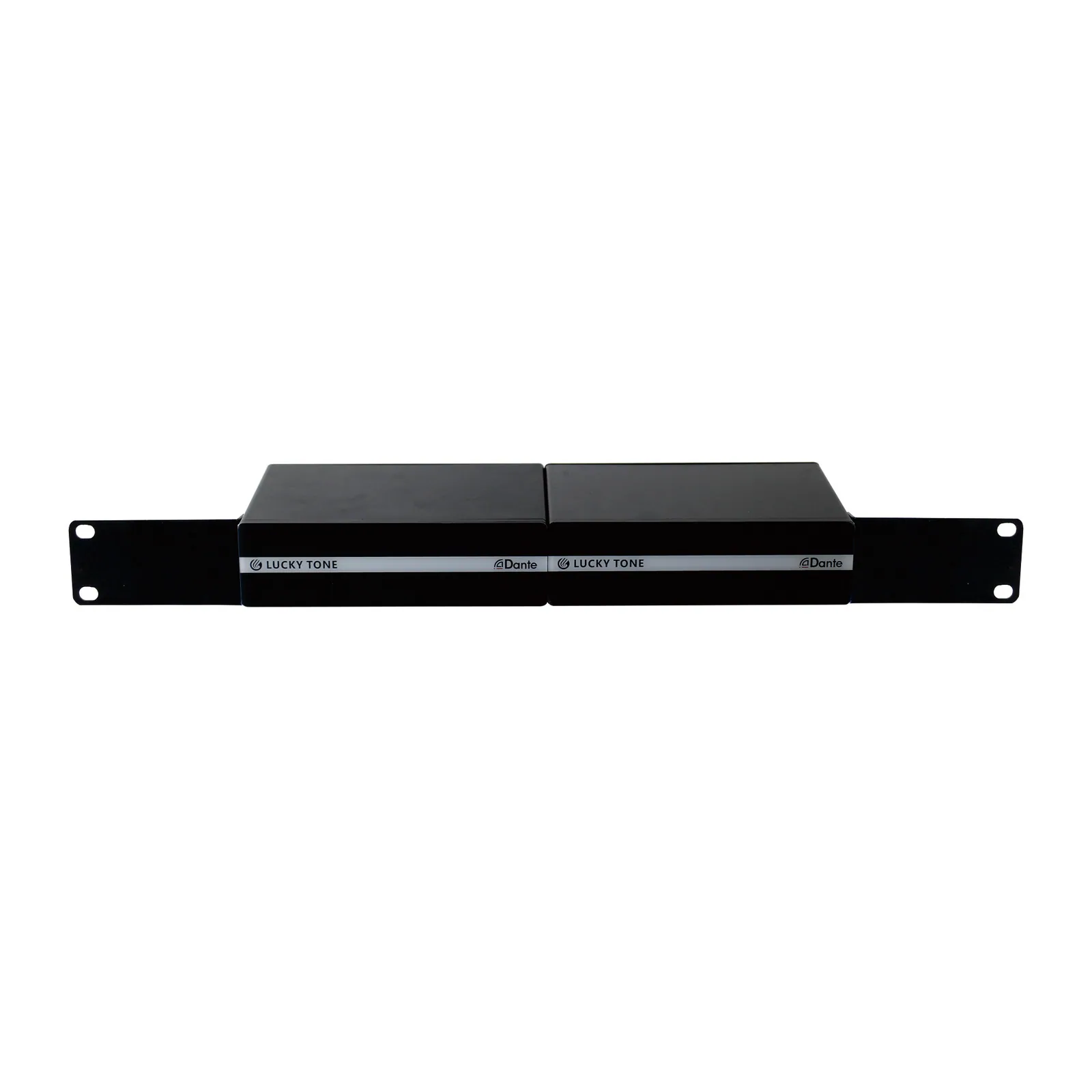

Supports various installation methods, including desktop placement, wall mounting and 2pcs rack mounting.
03Documents1 file · 1.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
