Sheet 05.301
Lucky Tone · Dante

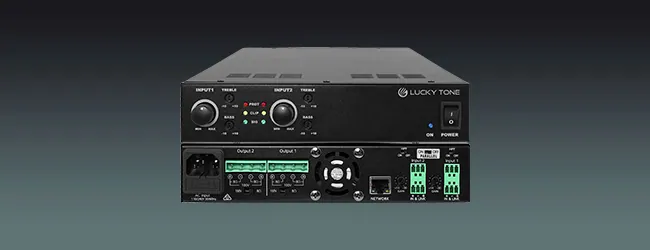

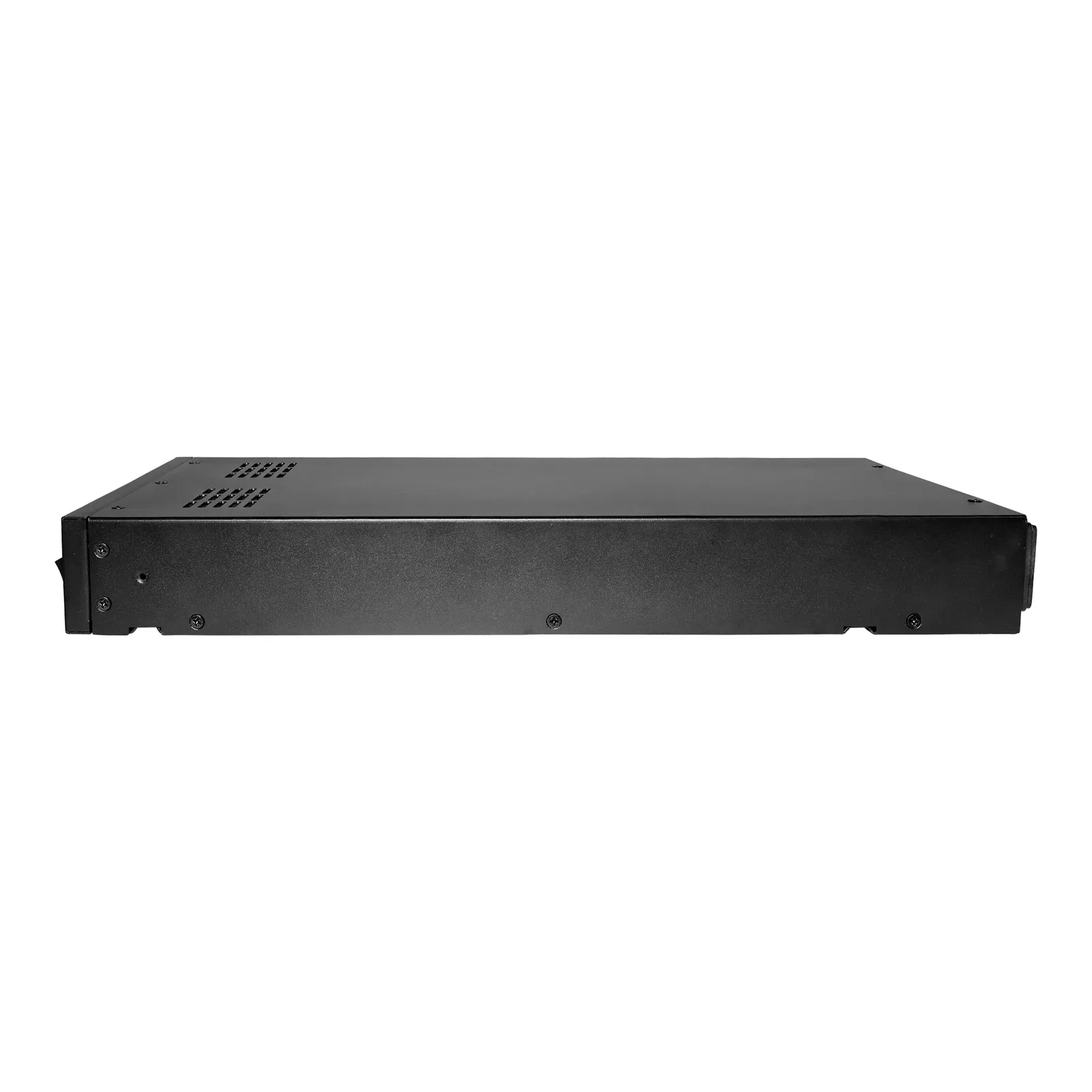

Lucky Tone Dante Network Amplifier HA-1120 Dante HA-2120 Dante / HA-1250 Dante HA-2250 Dante / HA-1500 Dante HA-2500 Dante
ModelHA-1120 Dante HA-2120 Dante / HA-1250 Dante HA-2250 Dante / HA-1500 Dante HA-2500 Dante
Receives input directly through Dante audio network
- Frequency response
- 80Hz~17KHz ( +1dB /-3dB )
- Weight
- 3.3kg/3.6kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Dante Network AmplifierPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | HA-1120 Dante HA-2120 Dante | HA-1250 Dante HA-2250 Dante | HA-1500 Dante HA-2500 Dante |
|---|---|---|---|
| Rated Power at 8ohm | 2x60W/4x60W | 2x120W/4x120W | 2x240W/4x240W |
| Bridged Power at 100V | 120W/2x120W | 240W/2x240W | 480W/2x480W |
| Power Consumption | 195W/360W | 325W/635W | 588W/1120W |
| Network Communication Protocol | Dante | Dante | Dante |
| Network Interface | 10/100Base-TX, RJ45 | 10/100Base-TX, RJ45 | 10/100Base-TX, RJ45 |
| Input sensitivity / Impedance | -0dBu/10kohm Balanced | -0dBu/10kohm Balanced | -0dBu/10kohm Balanced |
| Power Supply Voltage | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz |
| Speaker Output | 100V / 8Ω | 100V / 8Ω | 100V / 8Ω |
| Frequency Response | 80Hz~17KHz ( +1dB /-3dB ) | 80Hz~17KHz ( +1dB /-3dB ) | 80Hz~17KHz ( +1dB /-3dB ) |
| S/N Ratio | >80dB (with A-Weight) | >80dB (with A-Weight) | >80dB (with A-Weight) |
| T.H.D | <1% (at rated power, 1kHz) | <1% (at rated power, 1kHz) | <1% (at rated power, 1kHz) |
| Working Humidity | 90% | 90% | 90% |
| Output Channel | 1 or 2 channel | 1 or 2 channel | 1 or 2 channel |
| Tone Controls | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | Bass:100Hz(±10dB), Treble:10KHz(±10dB) |
| Working Temperature | 0°C~+40°C | 0°C~+40°C | 0°C~+40°C |
| Product Dimension (WxHxD) | 215*44*330 mm/215*44*380 mm (Half-Rack) | 215*44*330 mm/215*44*380 mm (Half-Rack) | 215*44*330 mm/215*44*380 mm (Half-Rack) |
| Net Weight | 3.3kg/3.6kg | 3.3kg/3.6kg | 3.3kg/3.6kg |
02DescriptionManufacturer's description
What it is.
Features
- Expansive Dante network functionality for flexible system expansion
- Seamless Dante-to-amp and amp-to-Dante audio conversion
- Professional-grade SNR and THD+N performance
- Ultra-low inrush current – no sequenced power required
- Dante-enabled: Transmits high-quality, low-latency digital audio over standard Ethernet
- 120Watts ~ 480Watts output
- Advanced protection system includes current limiting, over current and thermal protections
- Desktop type with rack mount bracket
- Two bands tone controls
- Low distortion and low noise level
- Compact in Size and easy to install
Ideal for commercial, educational, transportation, and industrial applications requiring networked audio solutions
