Sheet 05.304
Lucky Tone · Dante

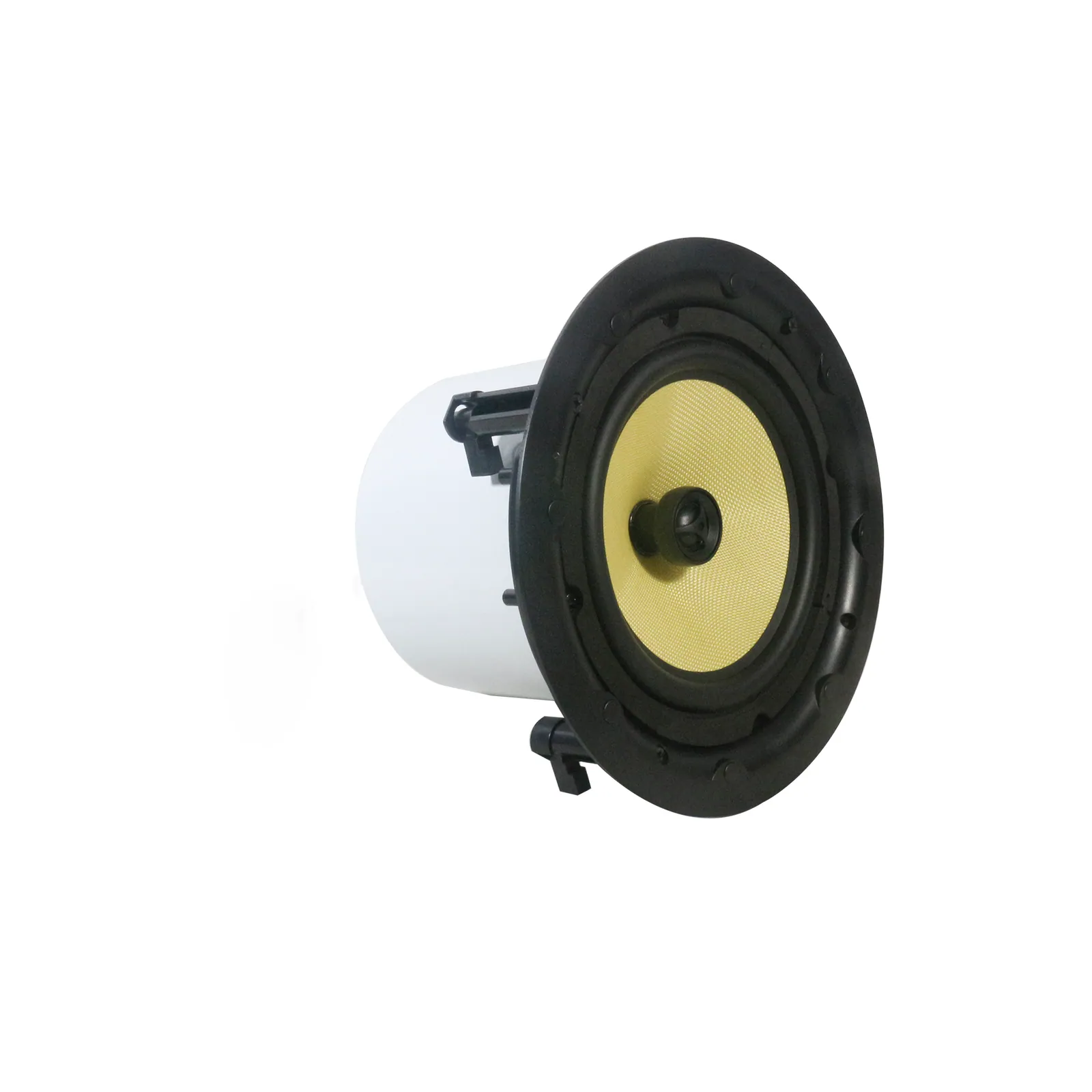

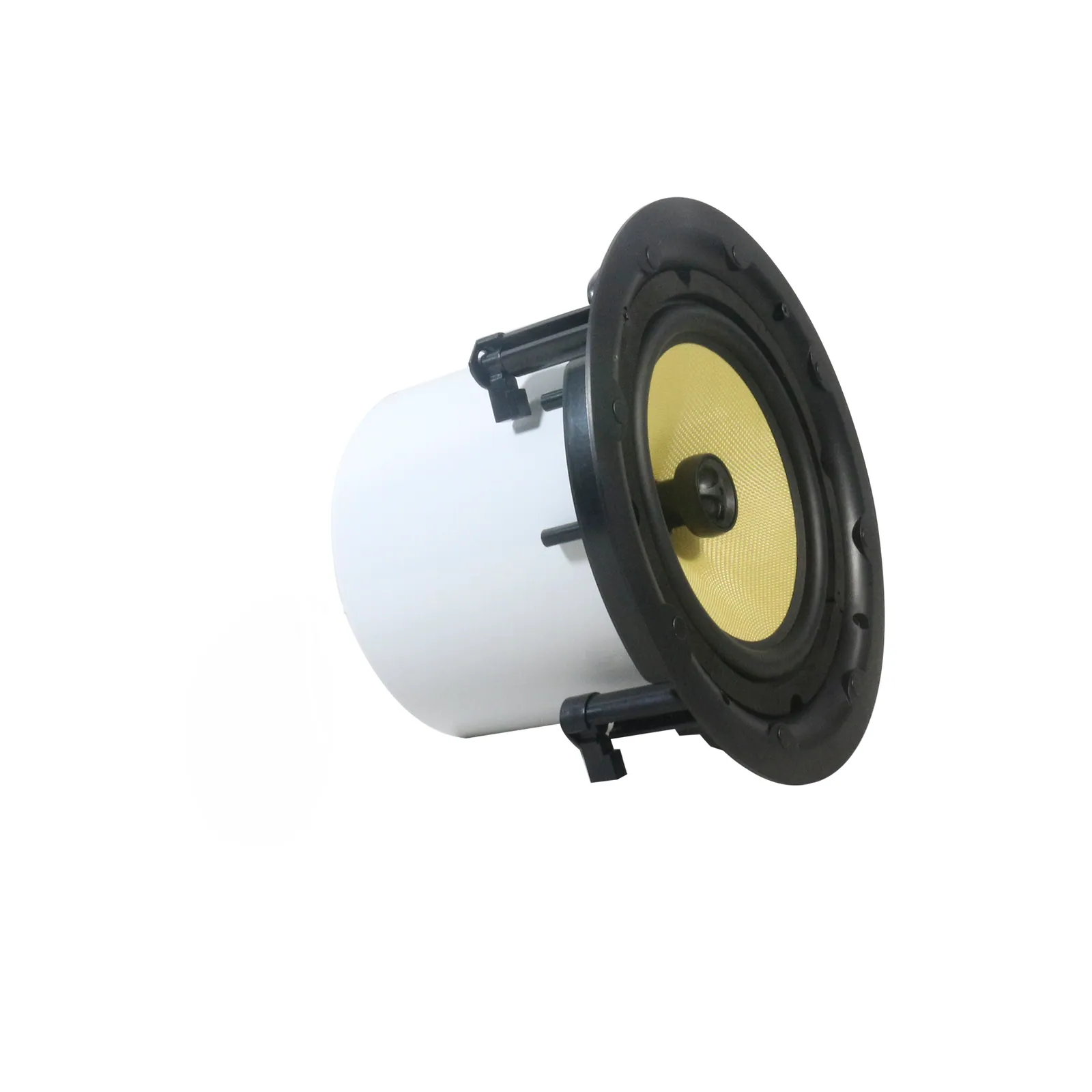

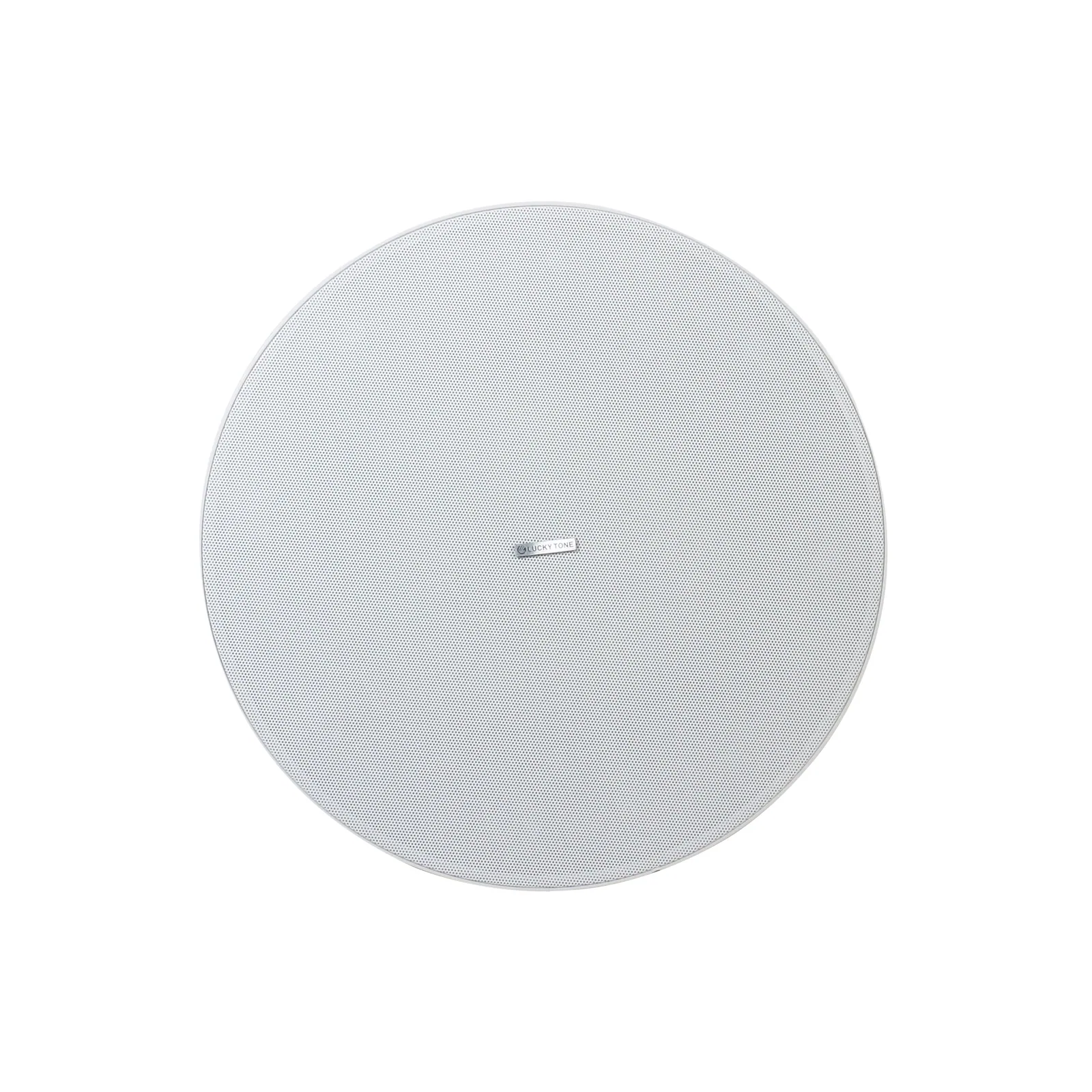

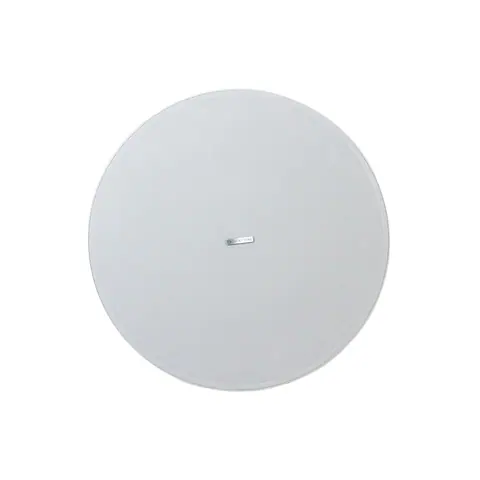

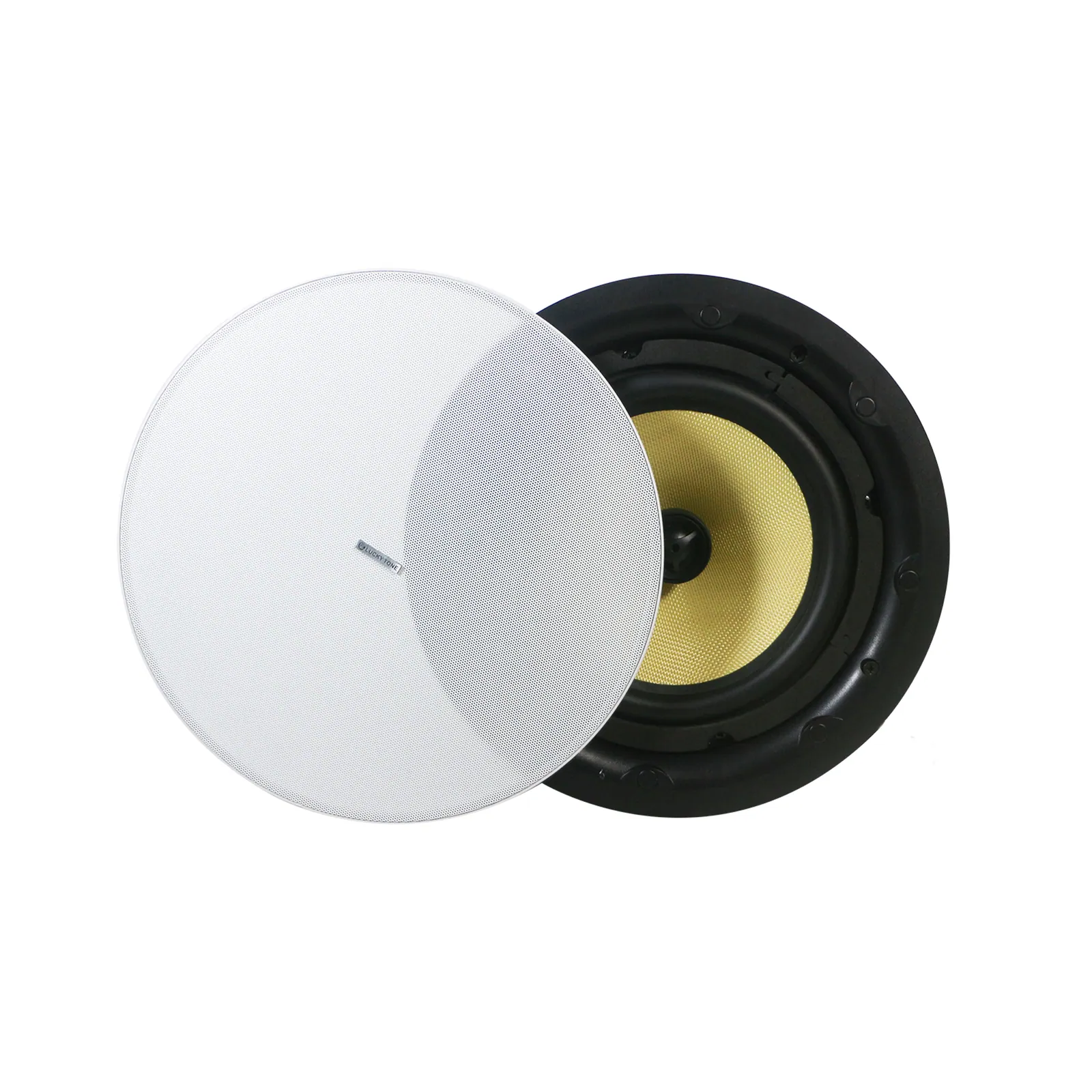

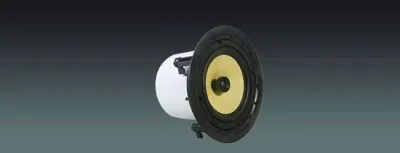

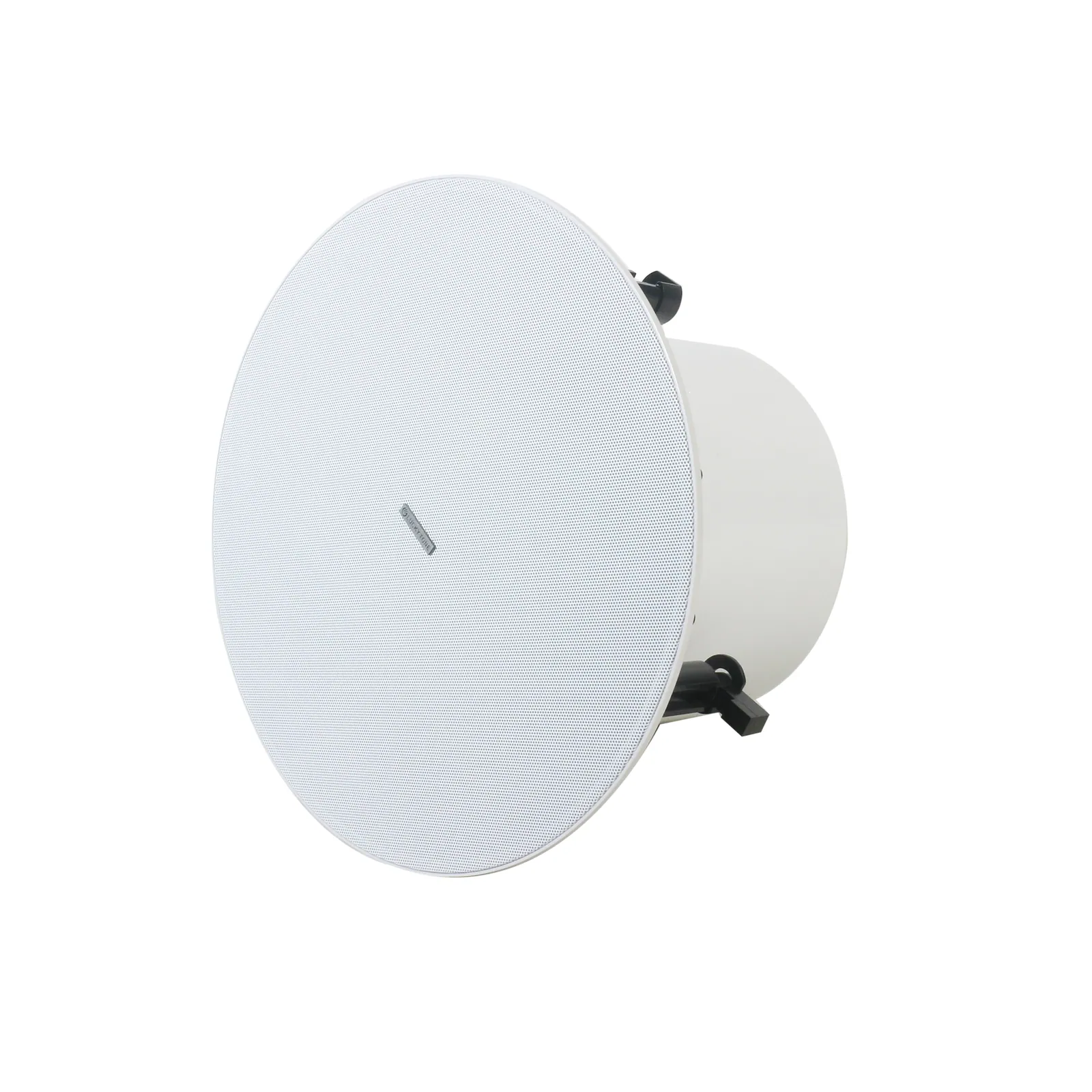

Dante Rimless Ceiling Speaker
ModelDANTE DP 830R POE with DSP
DANTE DP 830R POE with DSP can realize its multifunction the POE power supply, audio transmission and signal control via a RJ45 Ethernet port. It can obtain power supply from any Ethernet switch of 802.3 or above standard.
- Output power
- 30W
- Frequency response
- 65Hz-20kHz
- Dimensions
- Dia 280x180mm
- Weight
- 2.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Dante Rimless Ceiling SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 18 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications18
- Model
- DANTE DP 830R POE with DSP
- Input Interface
- RJ-45
- Audio Input Signal
- Dante™ | Balanced amplified signal
- Cable
- Cat-5 or above
- Output Power
- 30W
- Transmission Rate
- 100M/1000M bps
- Frequency Range
- 65Hz-20kHz
- Sensitivity
- 89dB
- Sound Pressure Level
- 104dB (peak)
- Total Harmonic Distortion
- <0.30%
- Signal to Noise Ratio
- >100dB
- Noise Floor
- <200uV
- System Efficiency
- >70%
- Material
- Metal
- Operation Temperature
- -10 to 50 Degree
- Color
- White
- Dimension
- Dia 280x180mm
- Net Weight
- 2.5kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Description
Over Dante™ Ethernet that transmits 24-bit audio (44.1K/48KHz) and its control signal can be routed through the Dante™ Controller. All these functions can perform remotely on the PC or Mac by Dante Controller Software.
Features
Dante network compatibility for seamless integration and easy audio distribution in networked environments.
Power over Ethernet (PoE) capability for simplified installation and reduced cable clutter.
Built-in Digital Signal Processing (DSP) for enhanced audio performance, providing clear and balanced sound reproduction.
Kevlar driver construction ensures durability and delivers high-quality audio with accurate and natural sound reproduction.
