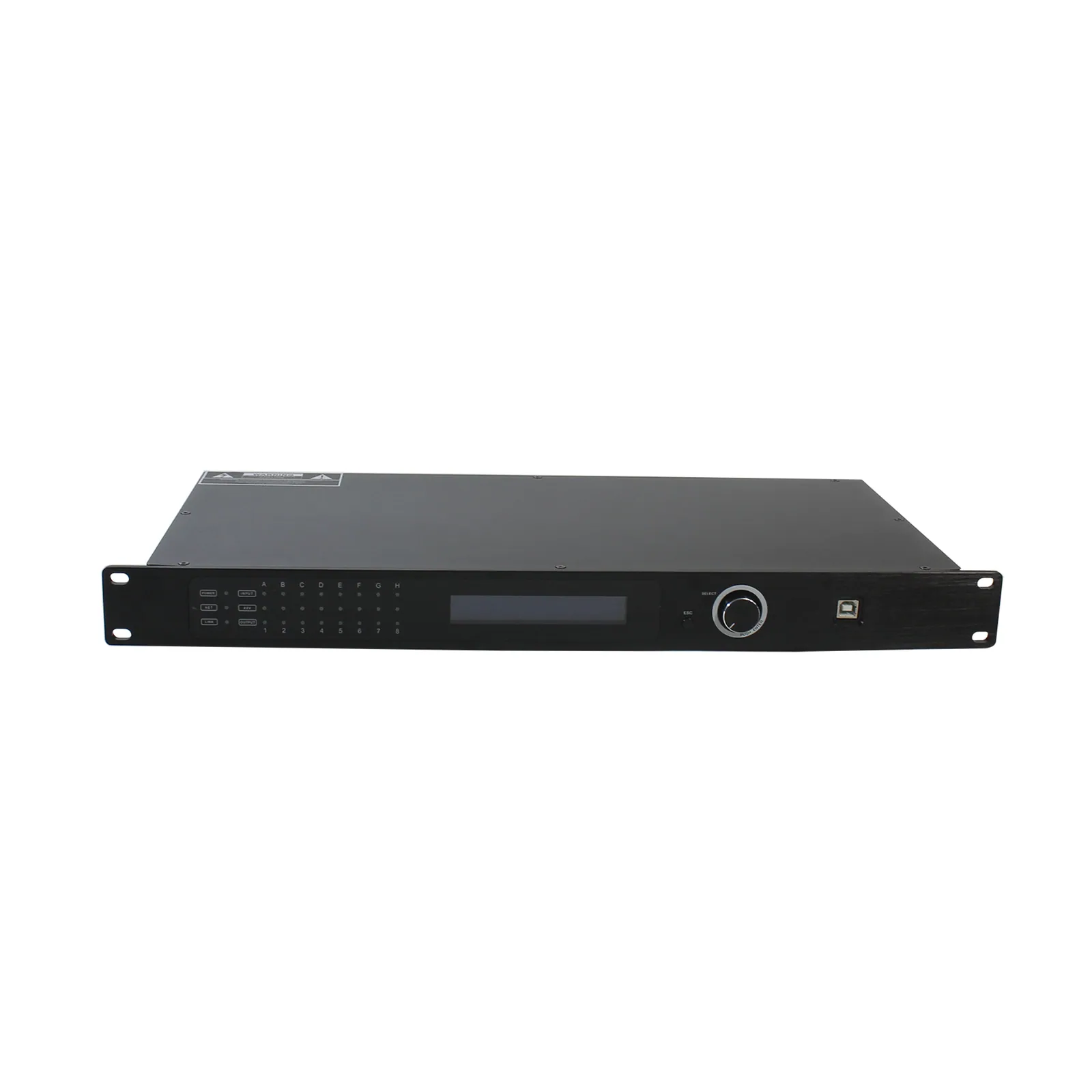

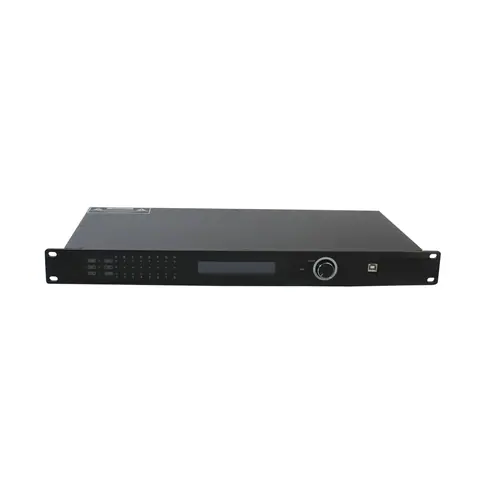

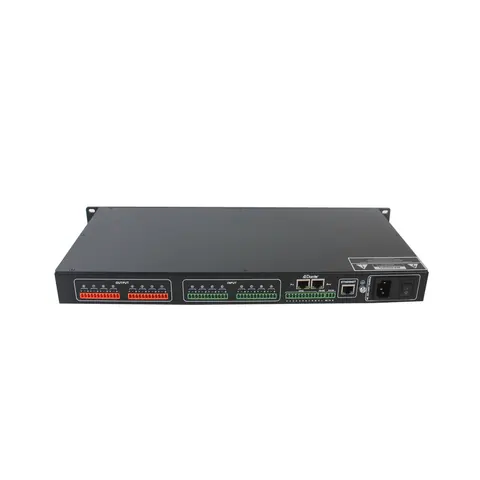

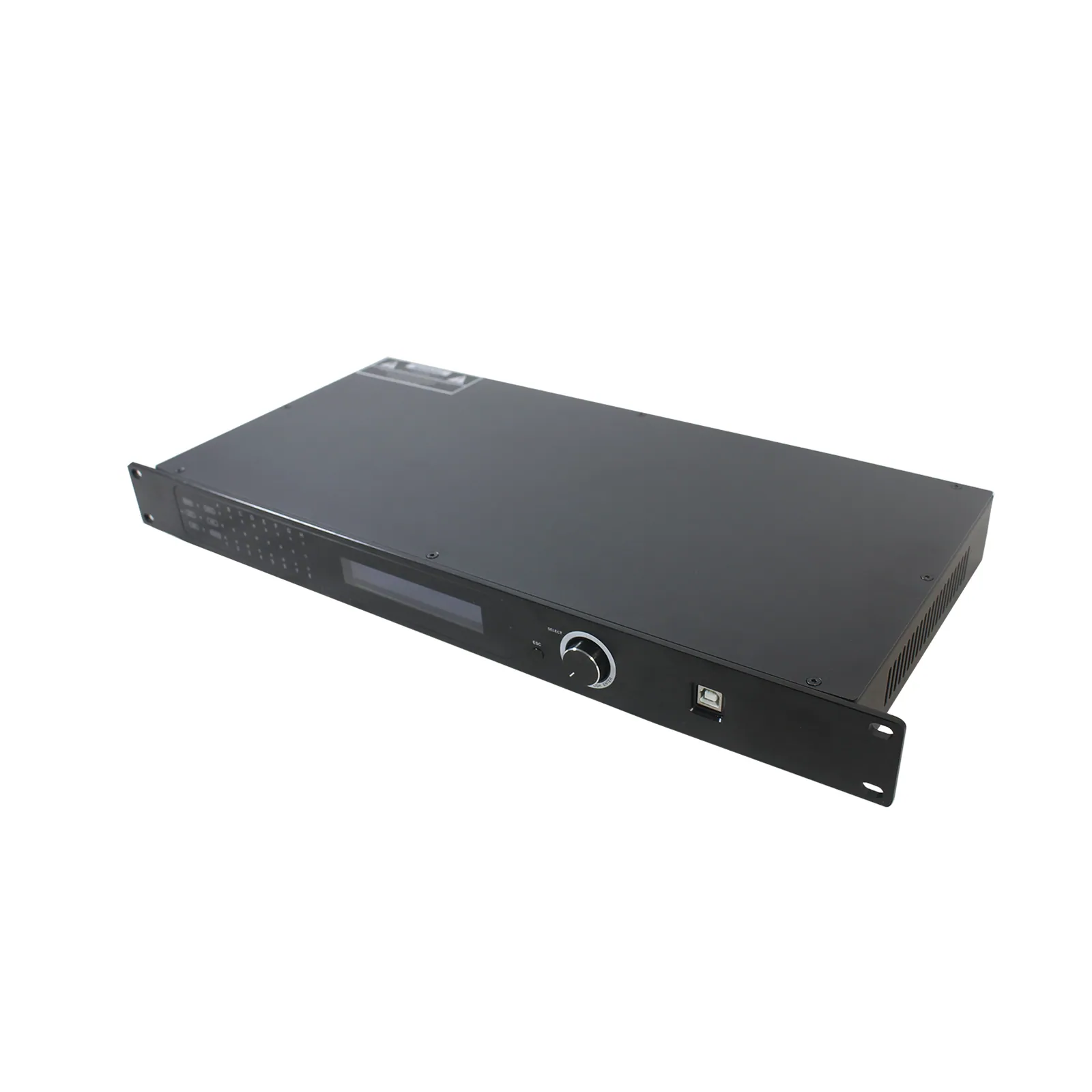

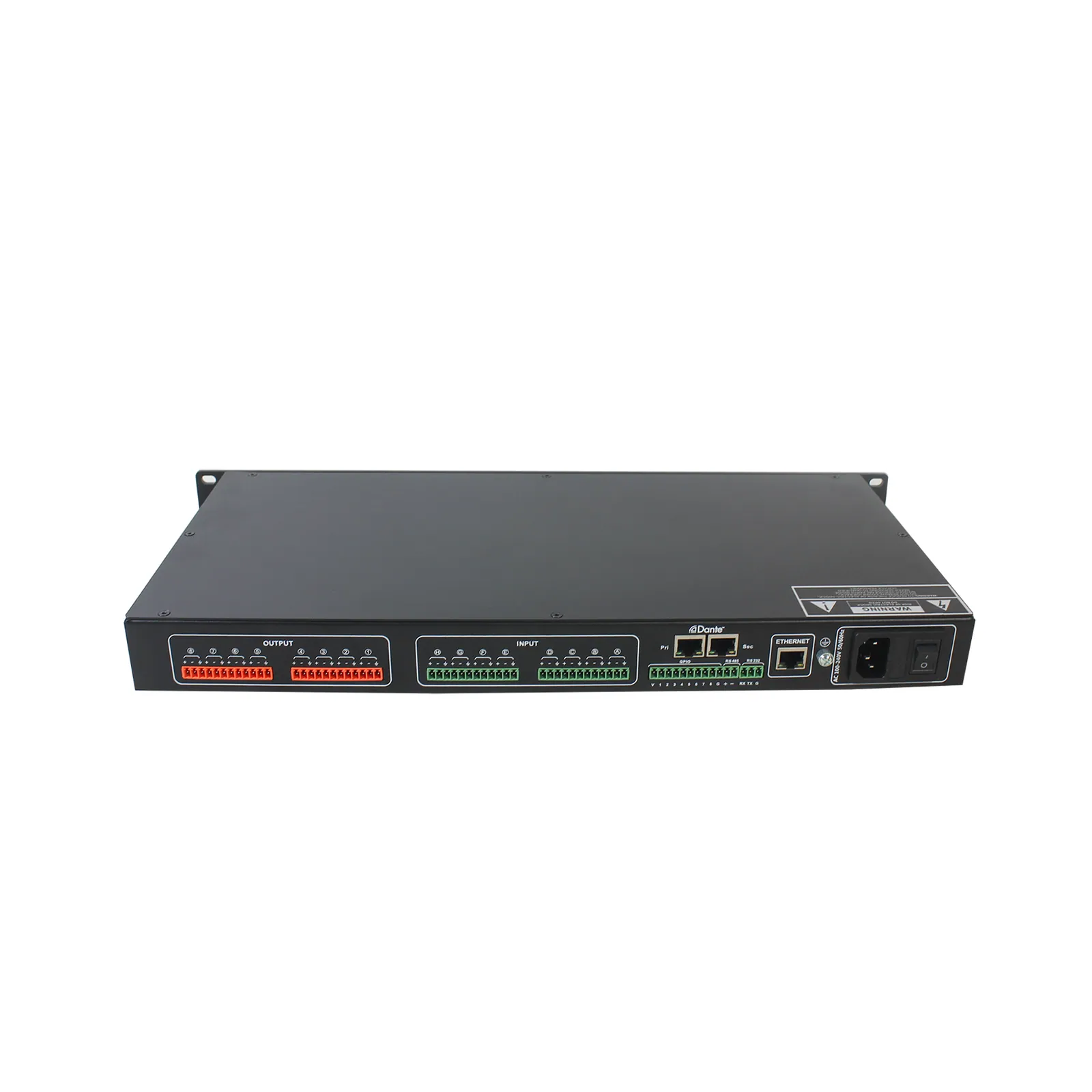

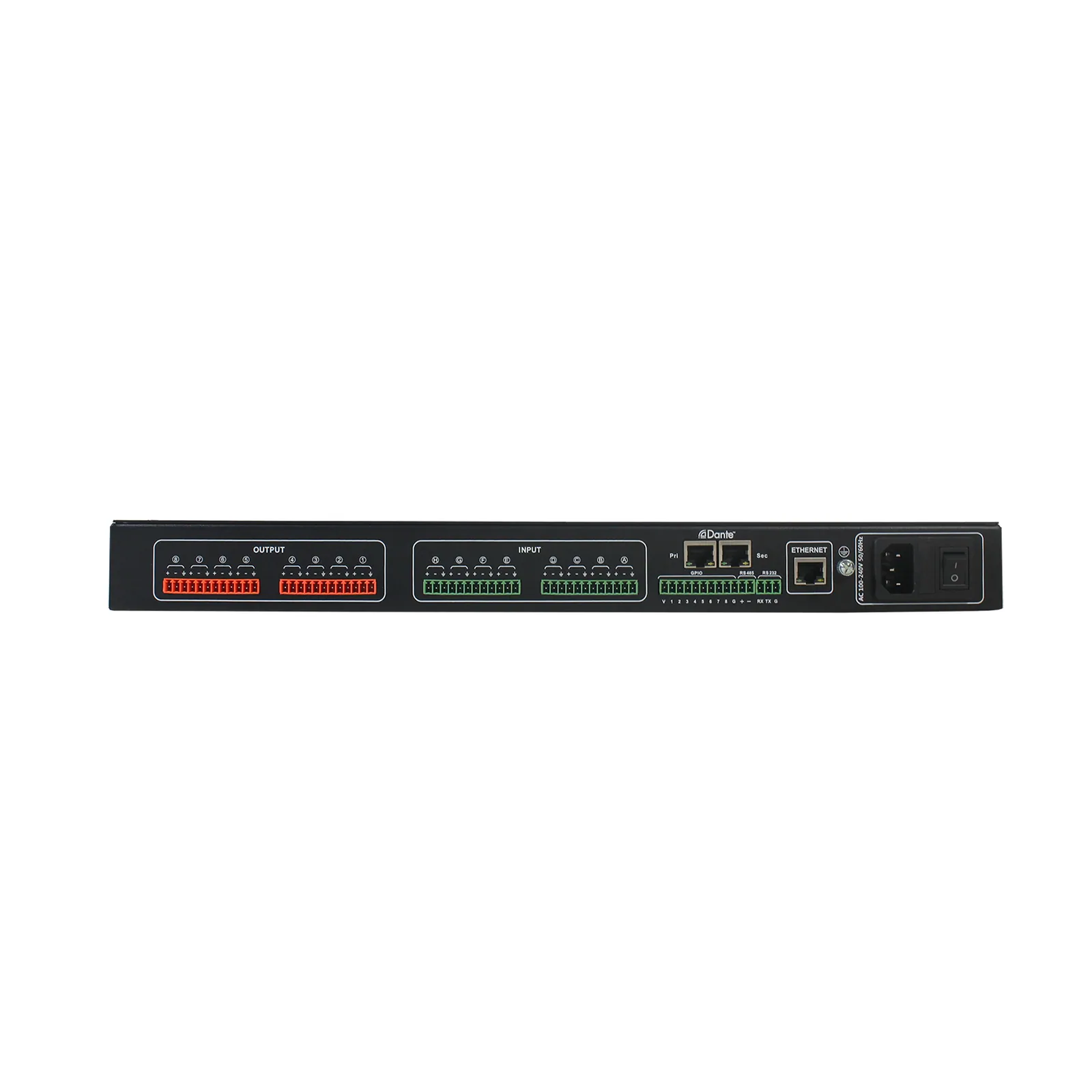

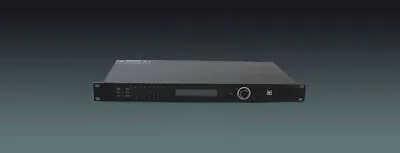

Open architecture Dante 8 In 8 out DSP audio processor

ModelDSP-880 LD+

Frequency response: 20Hz~20kHz

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 17 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications17

MODEL: DSP-880 LD+
Type: Network interface, D/A conversion
Channels: 8 channels mic (with phantom power)/ Line input, 8 channels line output
Network port: 2 Gigabit Ethernet ports
Control ports: 8 GPIO channels and 1 general purpose serial port Rs232
Frequency Response: 20Hz~20kHz
Frequency of sample: 48kHz
Dynamic Range: 118dB
THD+N: <0.002%
Phantom Power: +48V DC 10mA
Gain: 6dB/step (0db-45dB)
AD/DA: 123dB
OPA(operational amplifier): 113 dB
Input Impedance (Balanced): 8kΩ
Output impedance (balanced): 207Ω
SNR: >90dB
Maximum input and output level: +20dBu/10dBv

02DescriptionManufacturer's description

What it is.

The input and output modules of DSP can be customized according to the site conditions. At the same time, it has independent AFC/ AEC/ ANS/ AGC/ gain sharing automatic mixing, threshold automatic mixing and other processing modules. Meet the needs of audio processors and transmission in various places, such as conference rooms, multi-function halls, conference centers, auditoriums, administrative centers, etc.

Customizing operation software makes the configuration more flexible, and it can control Different DSP.

Provides operation interface for customers to realize centralized control of multiple devices. And it can control third-party’s equipment through DUP RS232, Rs485;

AFC (feedback suppression), AEC (echo cancellation), ANS (noise suppression), ANC (noise gain compensation), AGC (automatic gain), gain sharing, threshold automatic mixing, dodger and other processing modules;

8 GPIOs can independently configure with input or output, and they can be used as independent ADC when configuring with input;

Support RS232&UDP central control, UDP port can be set freely, and you can check the control software code

High-quality 24bit A/D and D/A converter
