Sheet 05.168
Lucky Tone · Loudspeakers

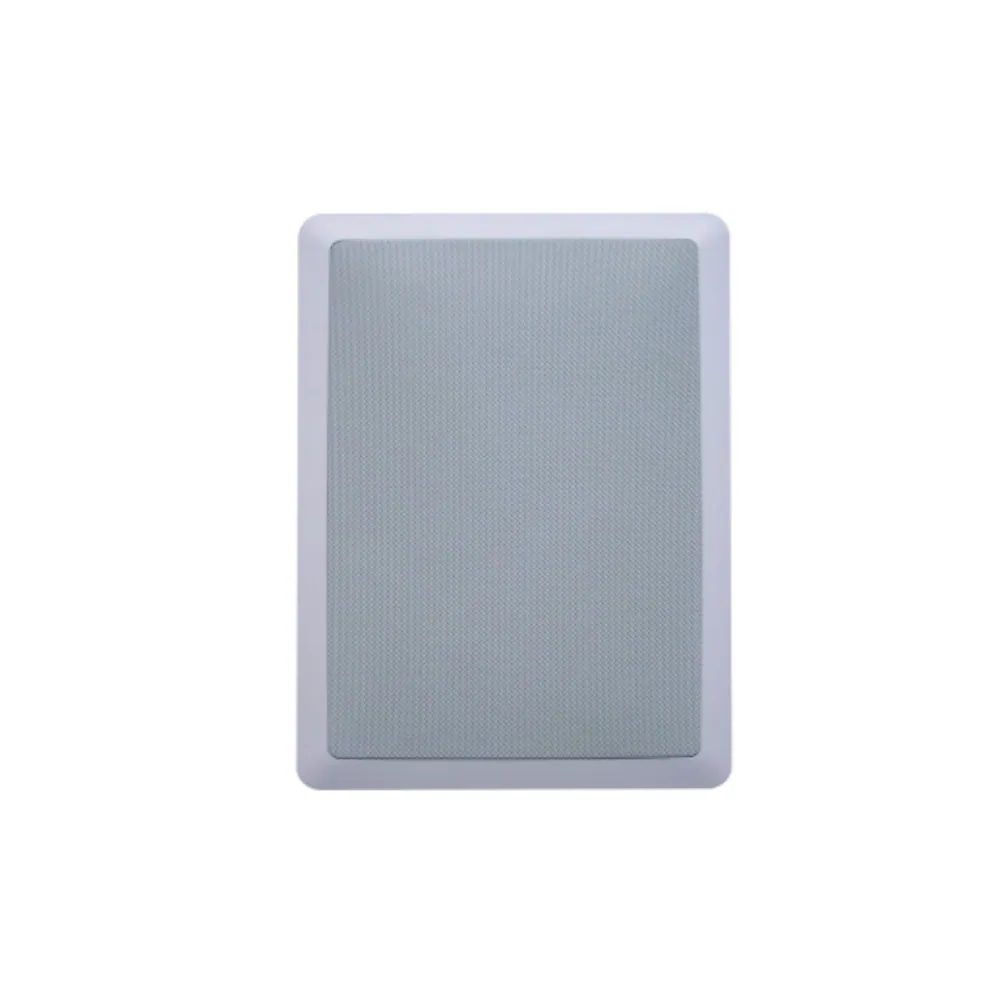

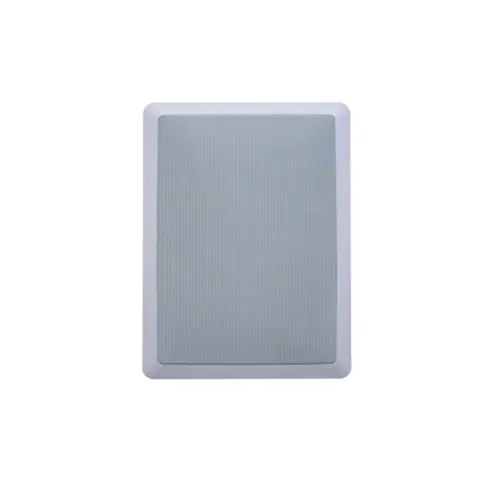

In-wall Speaker
ModelWP-410L / WP-520L / WP-630L / WP-840L
In wall mount speaker at stylist design with
- Weight
- WP-410L: 1.3Kg; WP-520L: 1.5Kg; WP-630L: 2Kg; WP-840L: 2.7Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
In-wall SpeakerPrice on requestRequest a quotation

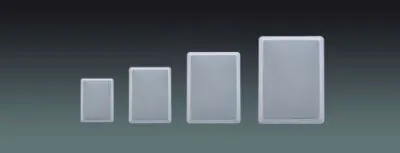

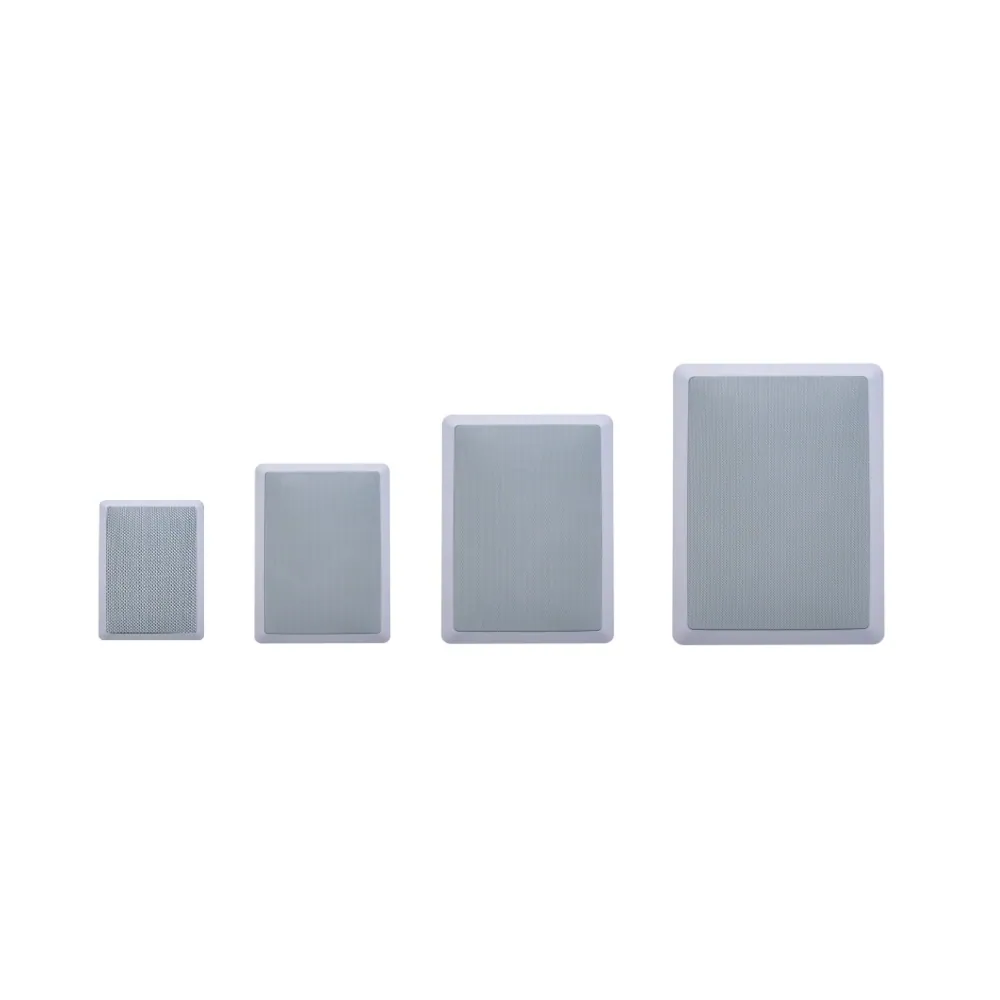

01Models4 models in the family
Models compared.
| MODEL | WP-410L | WP-520L | WP-630L | WP-840L |
|---|---|---|---|---|
| Power at 100V | 10W | 20W | 30W | 40W |
| Power at 70V | 5W | 10W | 15W | 20W |
| SPL( 1W/1M) | 88dB | 88dB | 88dB | 88dB |
| Max SPL@ 1M | 97dB | 100dB | 102dB | 104dB |
| Freq. Response | 100Hz-20KHz | 90Hz-20KHz | 90Hz-20KHz | 90Hz-20KHz |
| Hole cut Size | 195x120mm | 250x160mm | 275x190mm | 325x220mm |
| Product Size | 220x150x70mm | 280x192x75mm | 310x223x85mm | 360x256x100mm |
| Installation | In wall mounted | In wall mounted | In wall mounted | In wall mounted |
| Enclosure Material | ABS | ABS | ABS | ABS |
| Weight | 1.3Kg | 1.5Kg | 2Kg | 2.7Kg |
| Finish | White | White | White | White |
| Speakers | 4″ bass, 1″treble | 5″ bass, 1″treble | 6″ bass, 1″treble | 8″ bass, 1″treble |
02DescriptionManufacturer's description
What it is.
- Excellent frequency response
- 70-100V transformer input, and hi-fi amplification
- The speaker is suitable for both background music and paging.
- Lucky Tone 2016

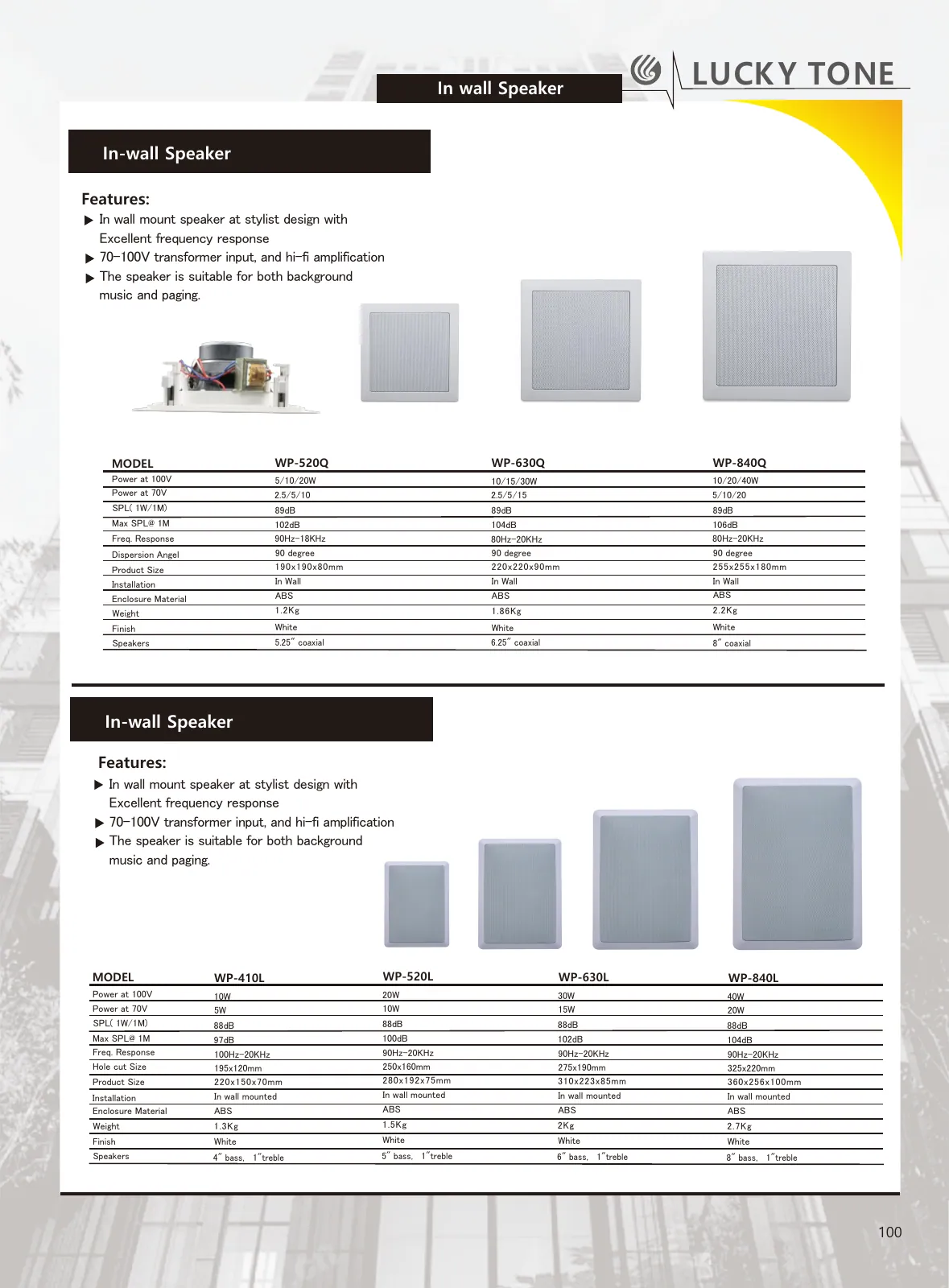

03Documents1 file · 2.0 MB
