Sheet 05.167
Lucky Tone · Loudspeakers

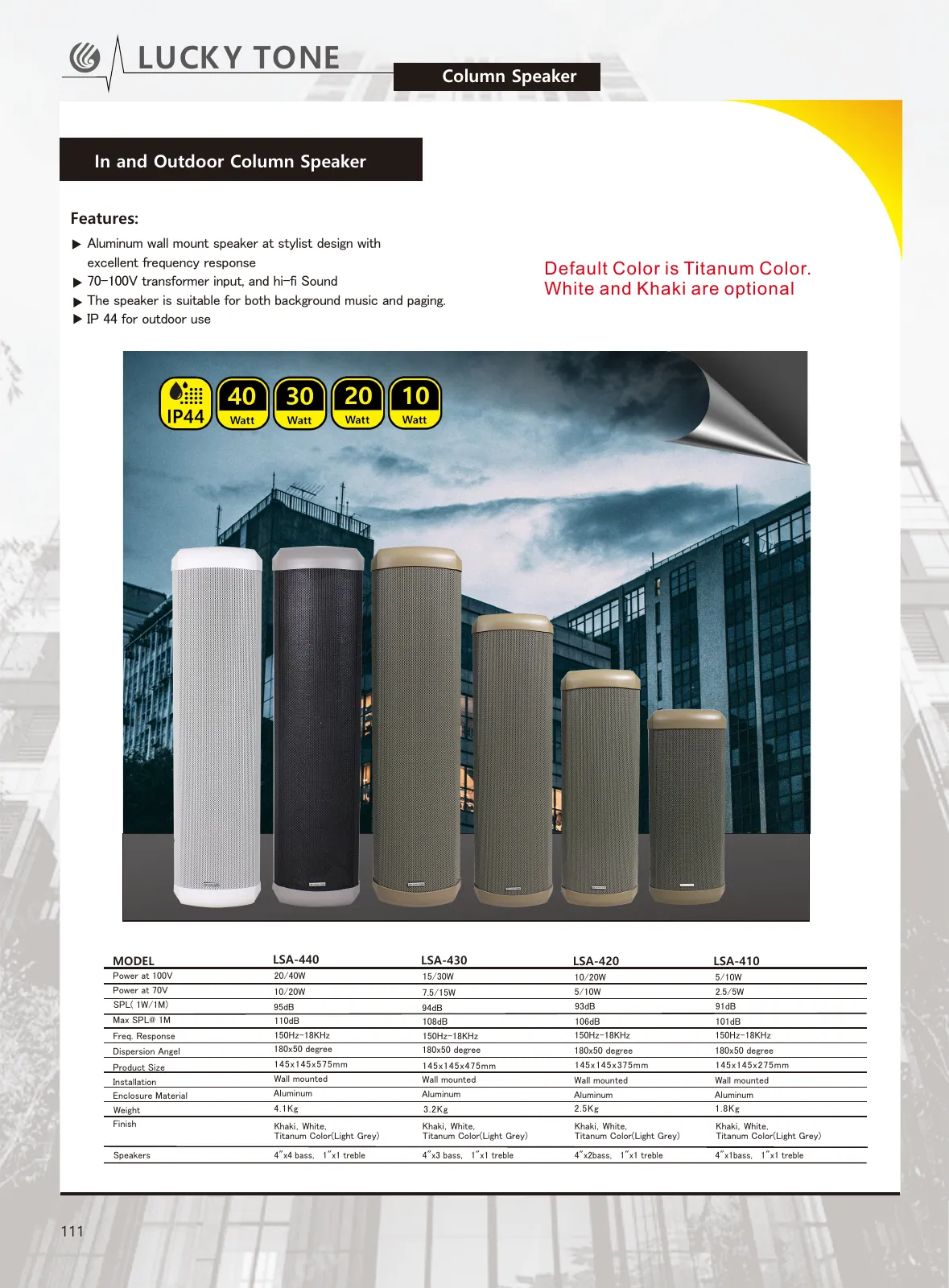

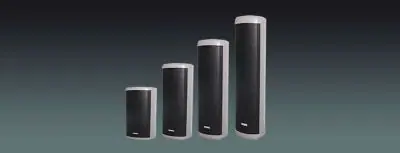

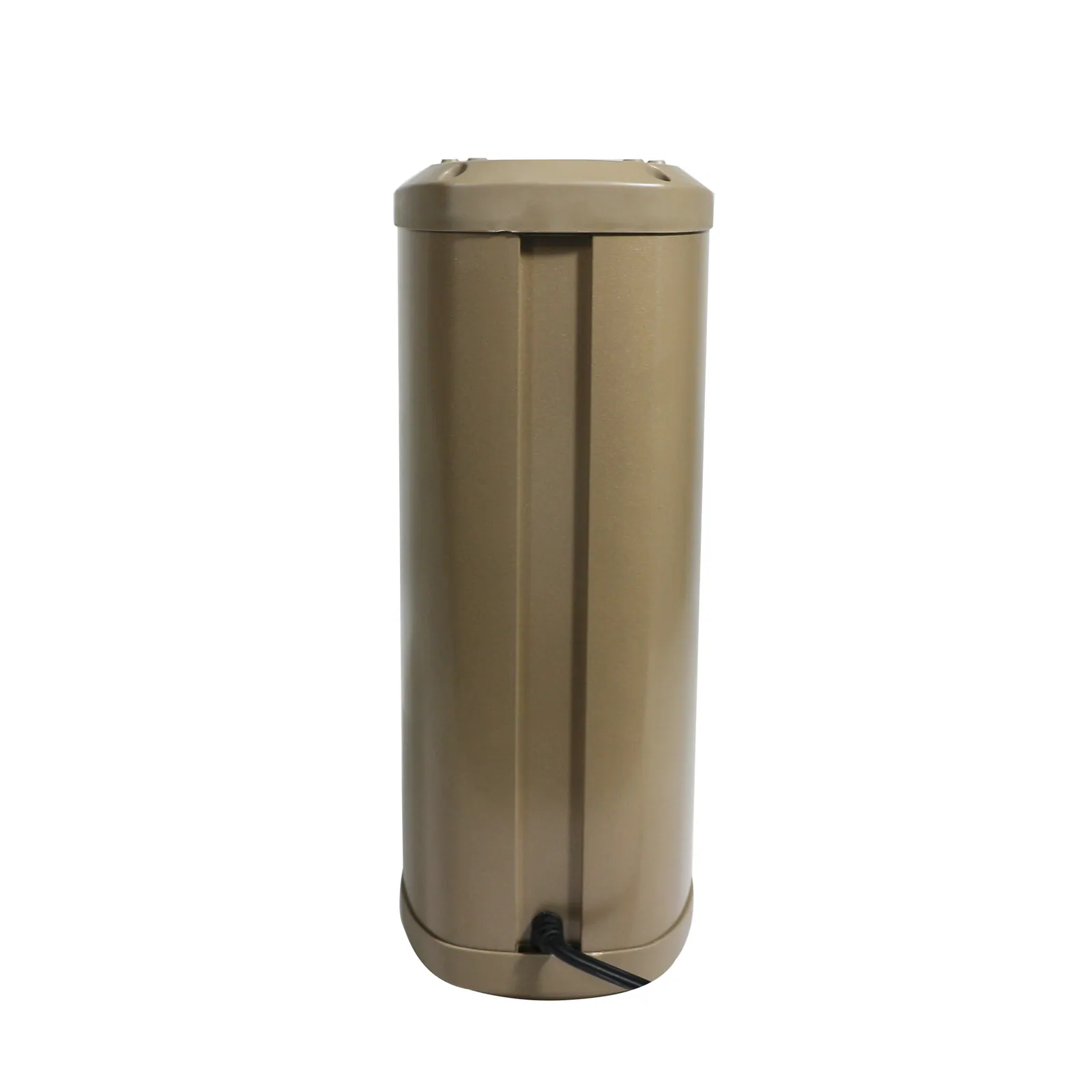

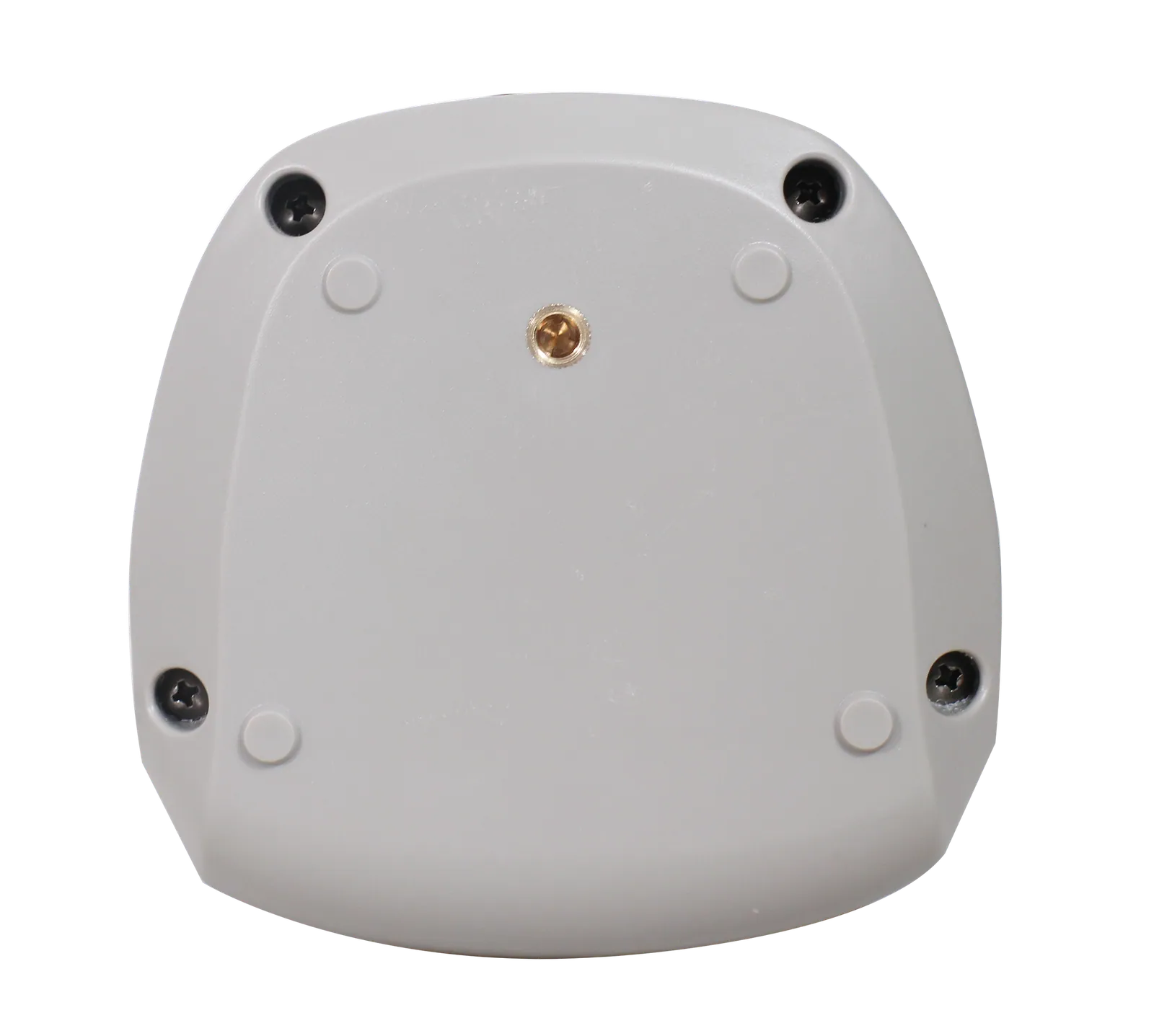

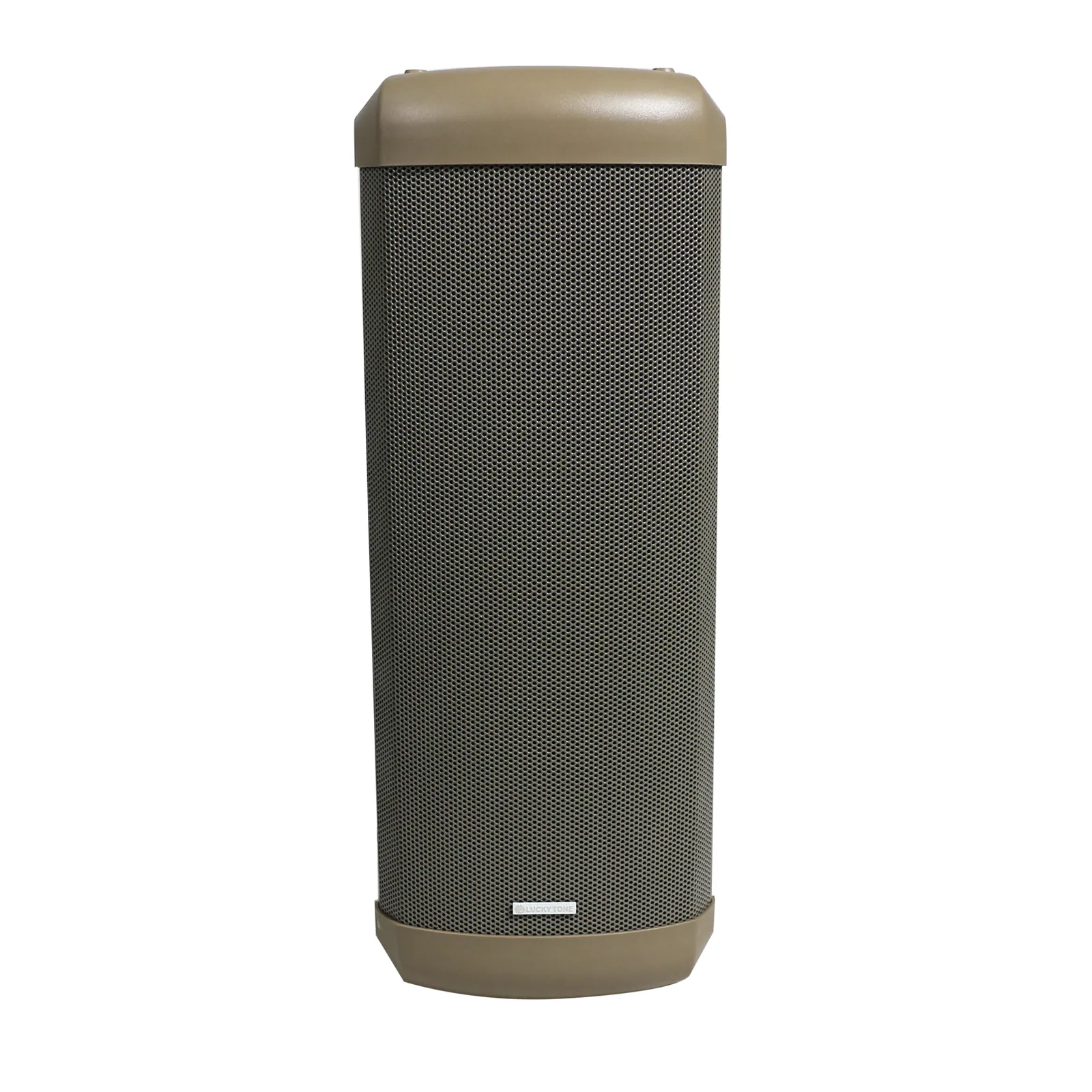

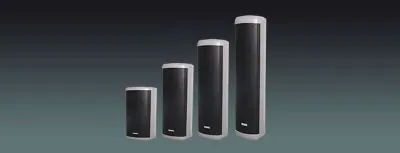

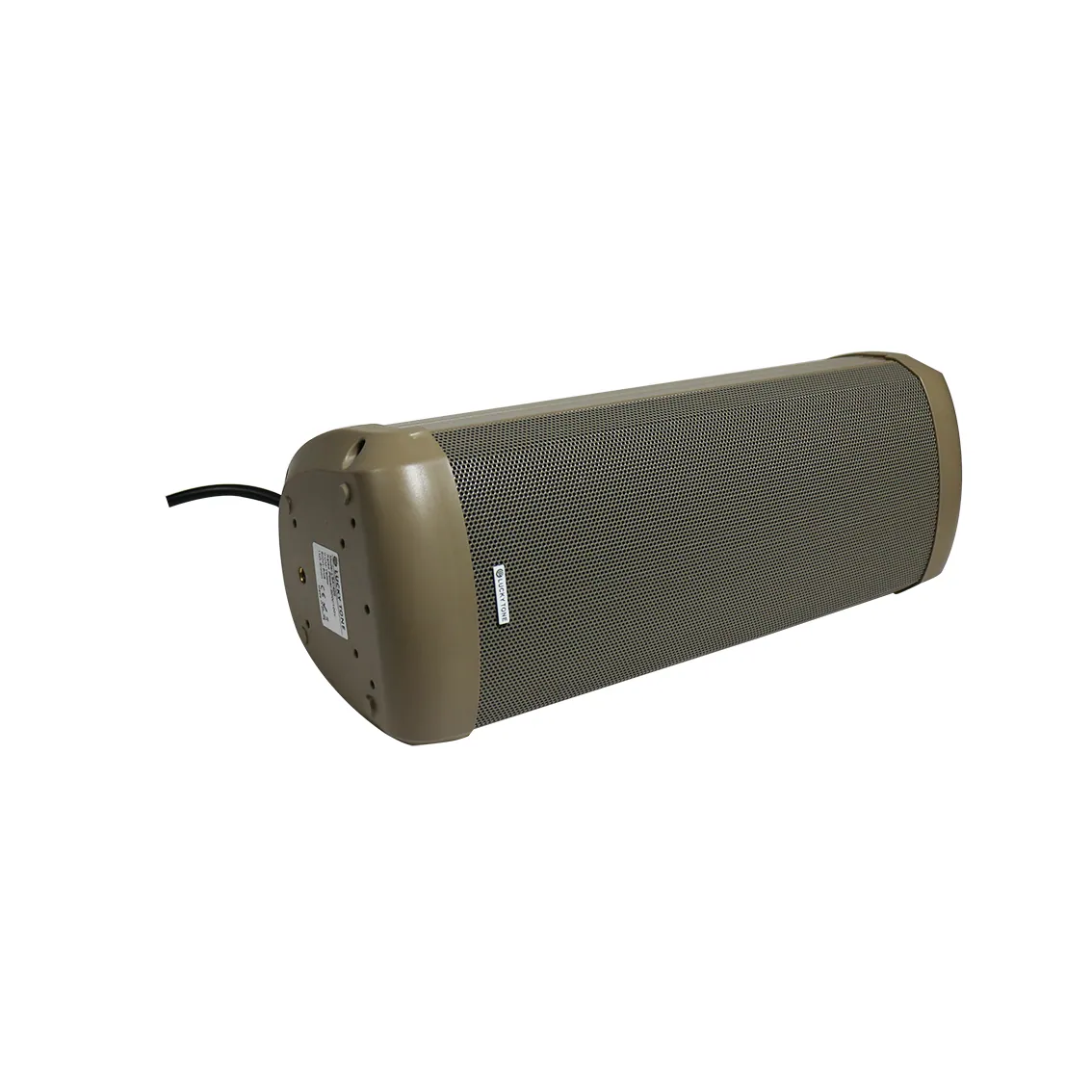

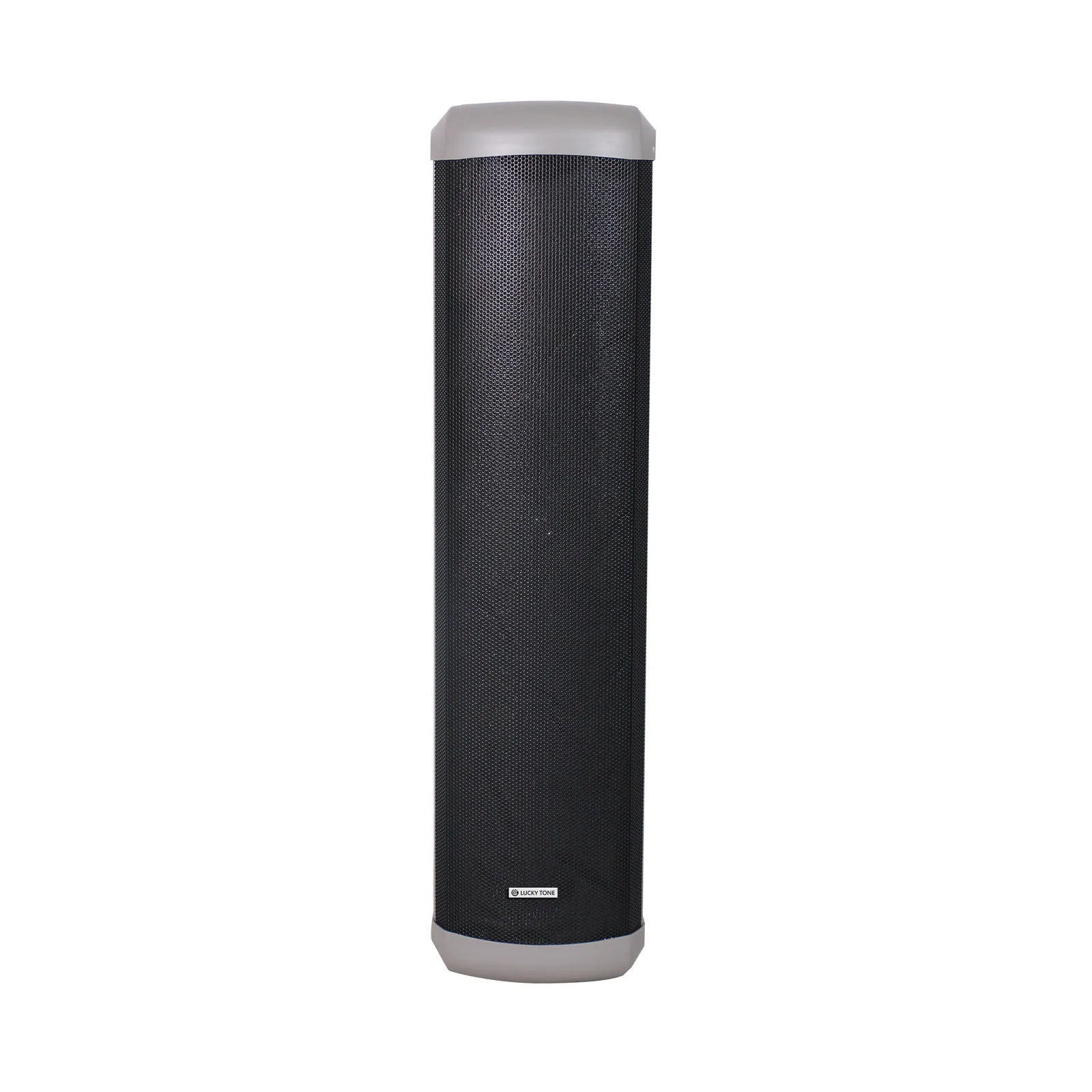

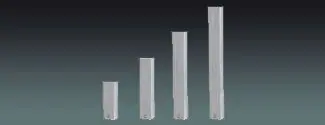

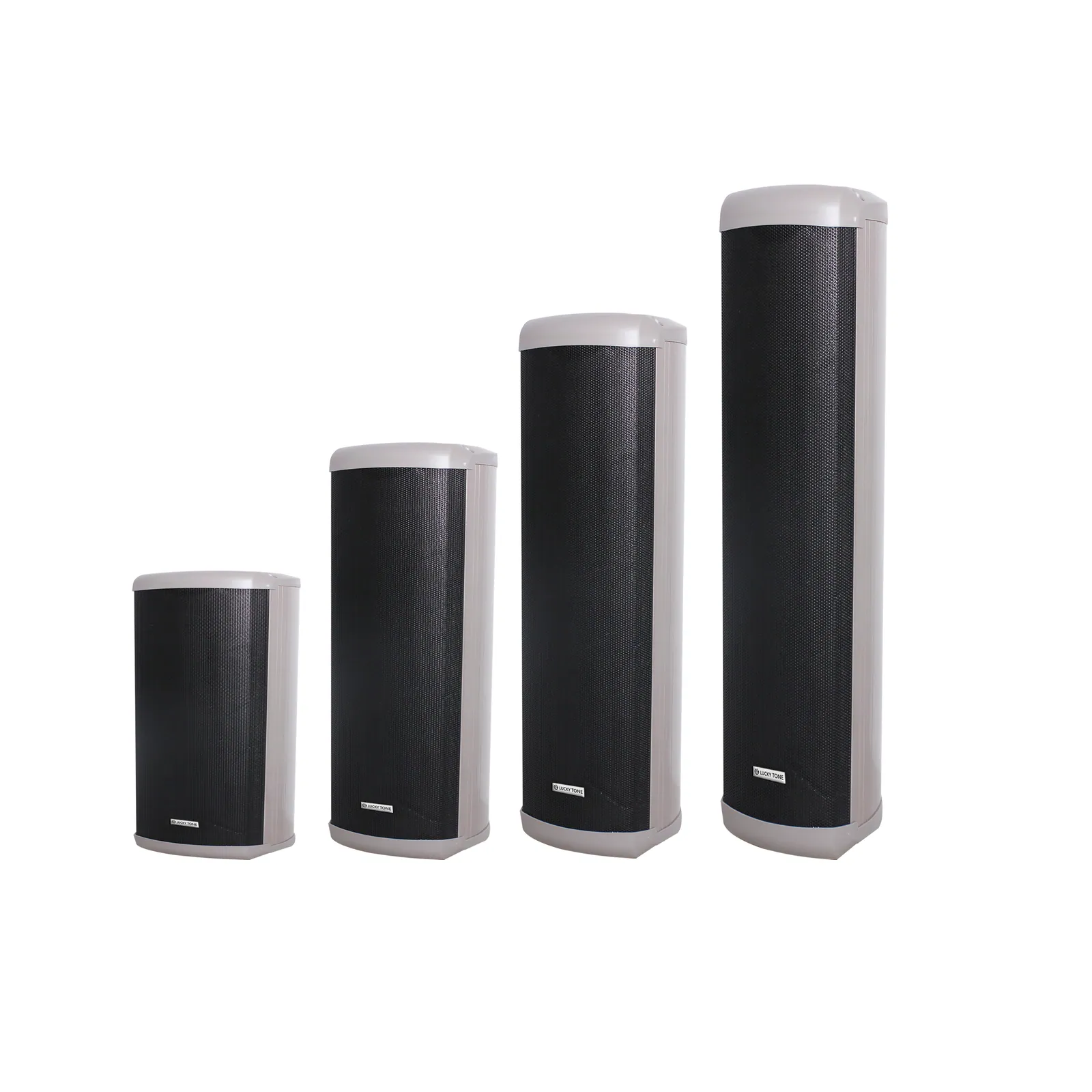

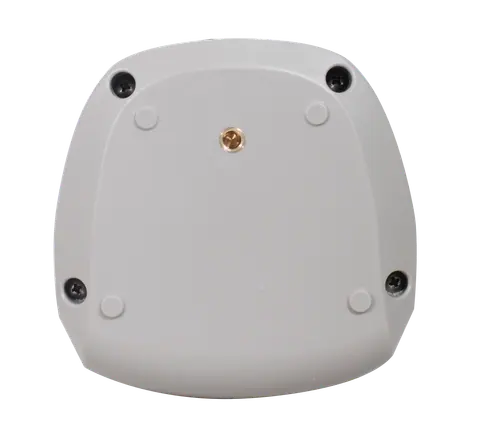

In and Outdoor Column Speaker
ModelLSA-440 / LSA-430 / LSA-420 / LSA-410
Aluminum wall mount speaker at stylist design with excellent frequency response
- Weight
- LSA-440: 4.1Kg; LSA-430: 3.2Kg; LSA-420: 2.5Kg; LSA-410: 1.8Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
In and Outdoor Column SpeakerPrice on requestRequest a quotation
01Models4 models in the family
Models compared.
| MODEL | LSA-440 | LSA-430 | LSA-420 | LSA-410 |
|---|---|---|---|---|
| Power at 100V | 20/40W | 15/30W | 10/20W | 5/10W |
| Power at 70V | 10/20W | 7.5/15W | 5/10W | 2.5/5W |
| SPL( 1W/1M) | 95dB | 94dB | 93dB | 91dB |
| Max SPL@ 1M | 110dB | 108dB | 106dB | 101dB |
| Freq. Response | 150Hz-18KHz | 150Hz-18KHz | 150Hz-18KHz | 150Hz-18KHz |
| Dispersion Angel | 180×50 degree | 180×50 degree | 180×50 degree | 180×50 degree |
| Product Size | 145x145x575mm | 145x145x475mm | 145x145x375mm | 145x145x275mm |
| Installation | Wall mounted | Wall mounted | Wall mounted | Wall mounted |
| Enclosure Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 4.1Kg | 3.2Kg | 2.5Kg | 1.8Kg |
| Finish | Khaki,White, Titanum Color(Light Grey) | Khaki,White, Titanum Color(Light Grey) | Khaki,White, Titanum Color(Light Grey) | Khaki,White, Titanum Color(Light Grey) |
| Speakers | 4″x4 bass, 1″x1 treble | 4″x3 bass, 1″x1 treble | 4″x2 bass, 1″x1 treble | 4″x1 bass, 1″x1 treble |
02DescriptionManufacturer's description
What it is.
- 70-100V transformer input, and hi-fi Sound
- The speaker is suitable for both background music and paging.
- IP 44 for outdoor use
- Default Color is light grey.
- White and Khaki are optional.
03Documents1 file · 5.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
04Related products
In the same range.

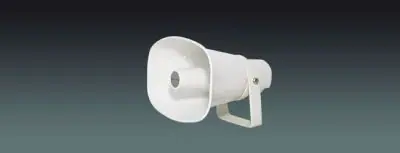

EQ-166Lucky ToneHorn SpeakerHS-69Q · LoudspeakersWeight3Kg

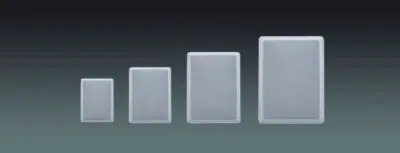

EQ-168Lucky ToneIn-wall SpeakerWP-410L / WP-520L / WP-630L / WP-840L · LoudspeakersWeightWP-410L: 1.3Kg; WP-520L: 1.5Kg; WP-630L: 2Kg; WP-840L: 2.7Kg

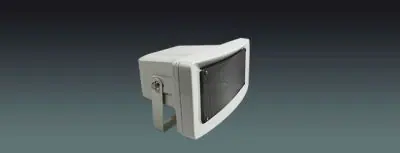

EQ-165Lucky ToneHorn SpeakerHS-68Q · LoudspeakersWeight2.2Kg
