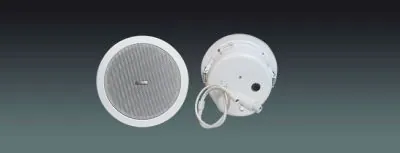

  • Lucky Tone SIP Ceiling Speaker (15W Rated), product photo 1 of 4

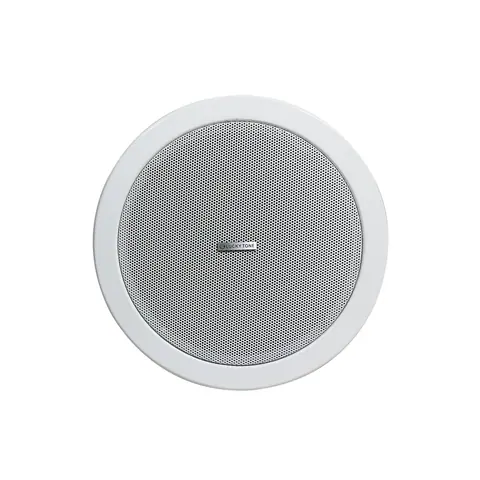

  • Lucky Tone SIP Ceiling Speaker (15W Rated), product photo 2 of 4
  • Lucky Tone SIP Ceiling Speaker (15W Rated), product photo 3 of 4
  • Lucky Tone SIP Ceiling Speaker (15W Rated), product photo 4 of 4
Lucky Tone · IP, SIP and ONVIF

SIP Ceiling Speaker (15W Rated)

ModelIPC-615S / IPC-615SPOE

●With a standard RJ45 network interface and supports online firmware upgrade from long distance

Frequency response
100Hz ~ 18KHz
Power supply
IPC-615S: DC 24V; IPC-615SPOE: POE
Dimensions
Dia 200 x 90 mm
PriceOn request
Request a quotationDiscuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

MODELIPC-615SIPC-615SPOE
Communication ProtocolSIPSIP
Network Interface10/100Base-TX , RJ4510/100Base-TX , RJ45
Speaker SPL (MAX)96dB96dB
DecodingMP3/WMA/WAVMP3/WMA/WAV
Frequency Range100Hz ~ 18KHz100Hz ~ 18KHz
InstallationIn ceilingIn ceiling
Enclosure materialMetalMetal
Power SupplyDC 24VPOE
DimensionDia 200 x 90 mmDia 200 x 90 mm
02DescriptionManufacturer's description

What it is.

Features

  • ●Support MP3, WMA, WAV and more decoding
  • ●This network ceiling loudspeaker integrated with network audio decoding, digital amplifier
  • ●Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
  • ●Metal inclosure with fire dome
03Documents1 file · 1.7 MB

Documents and files.

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
