Sheet 05.319
Lucky Tone · Dante

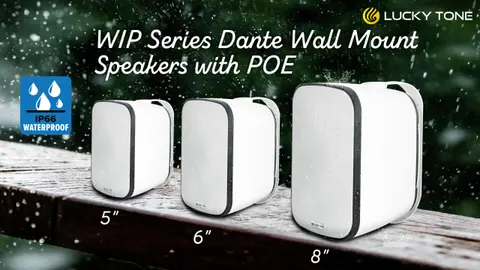

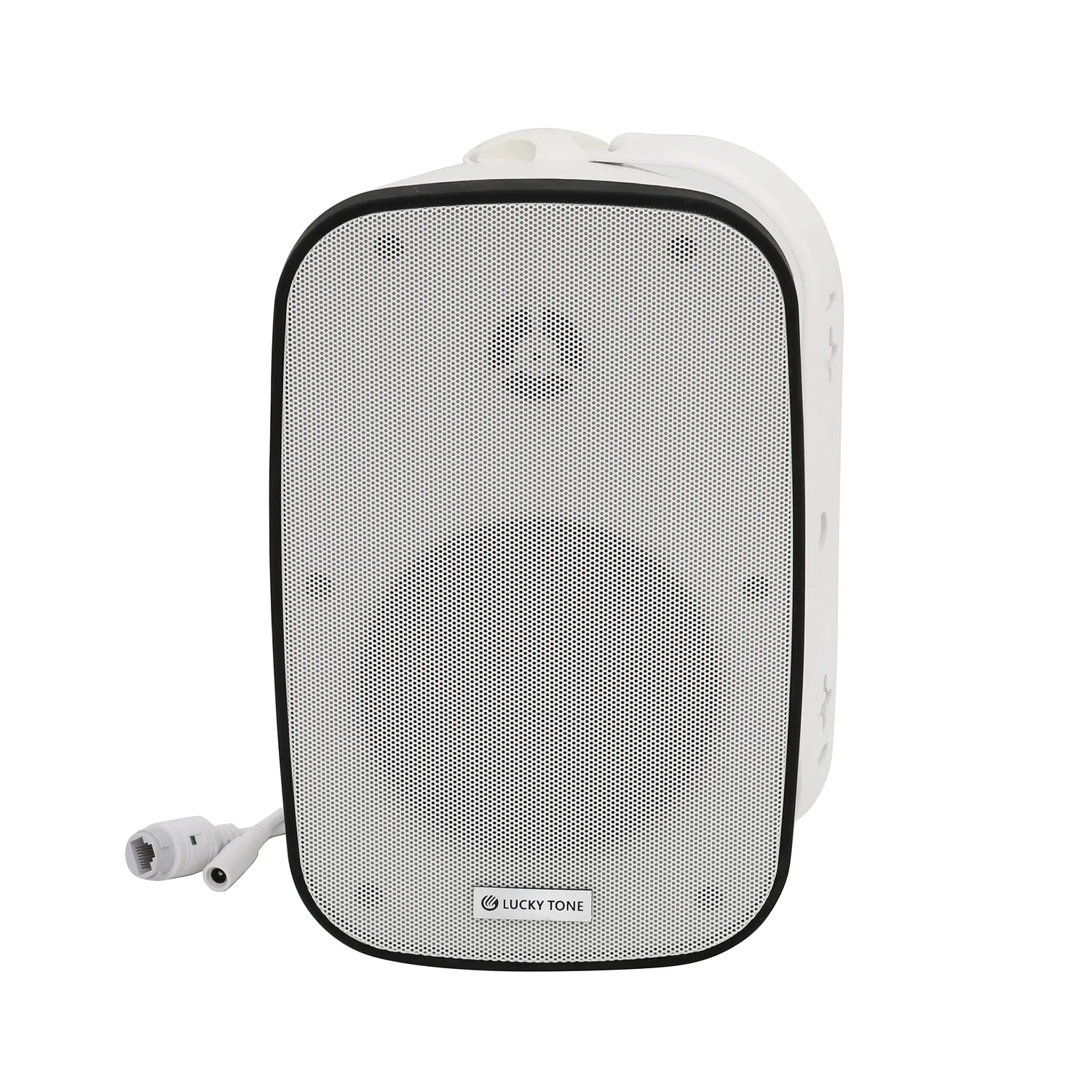

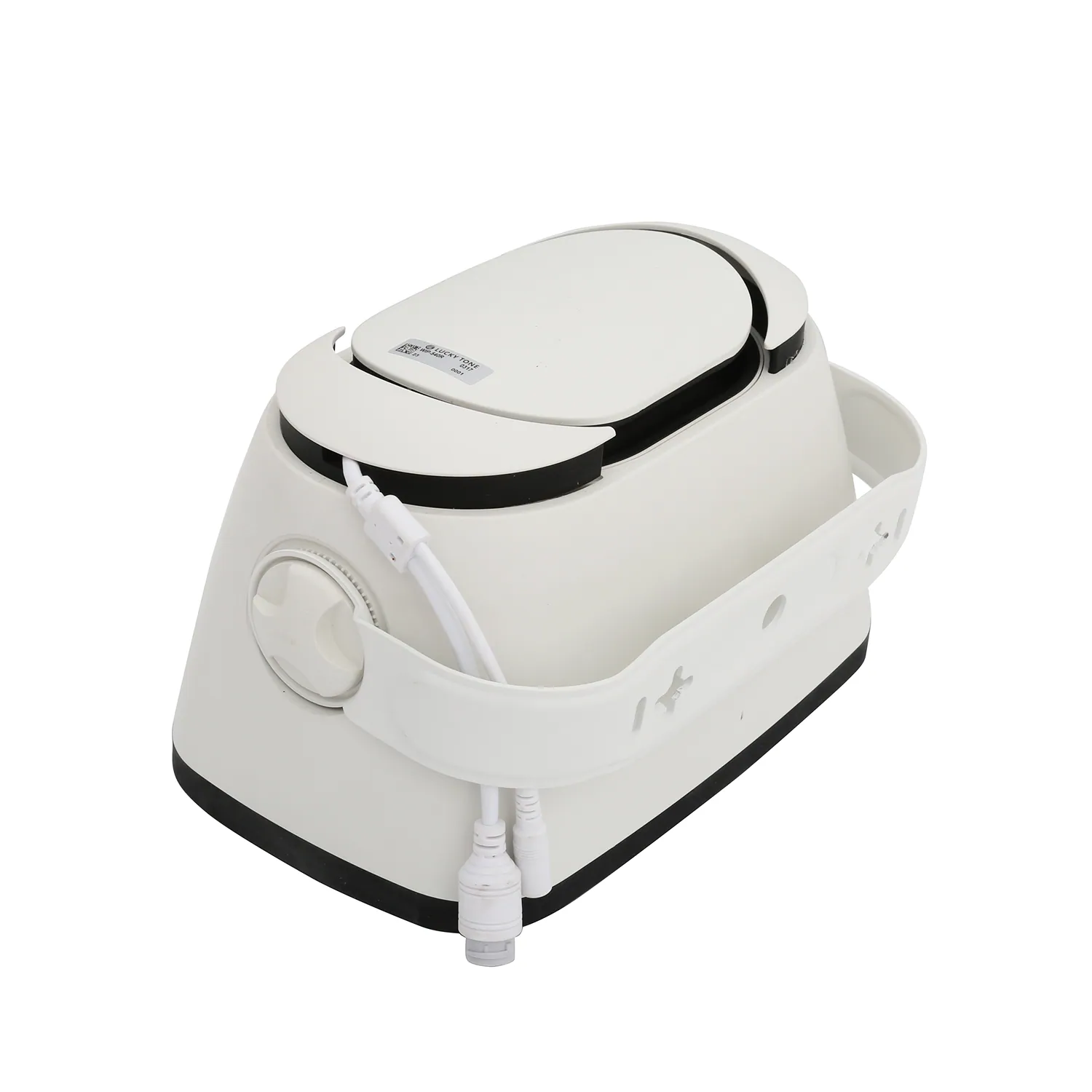

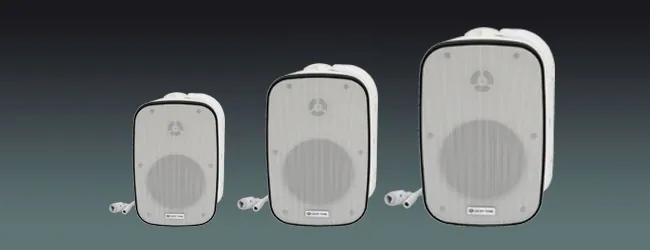

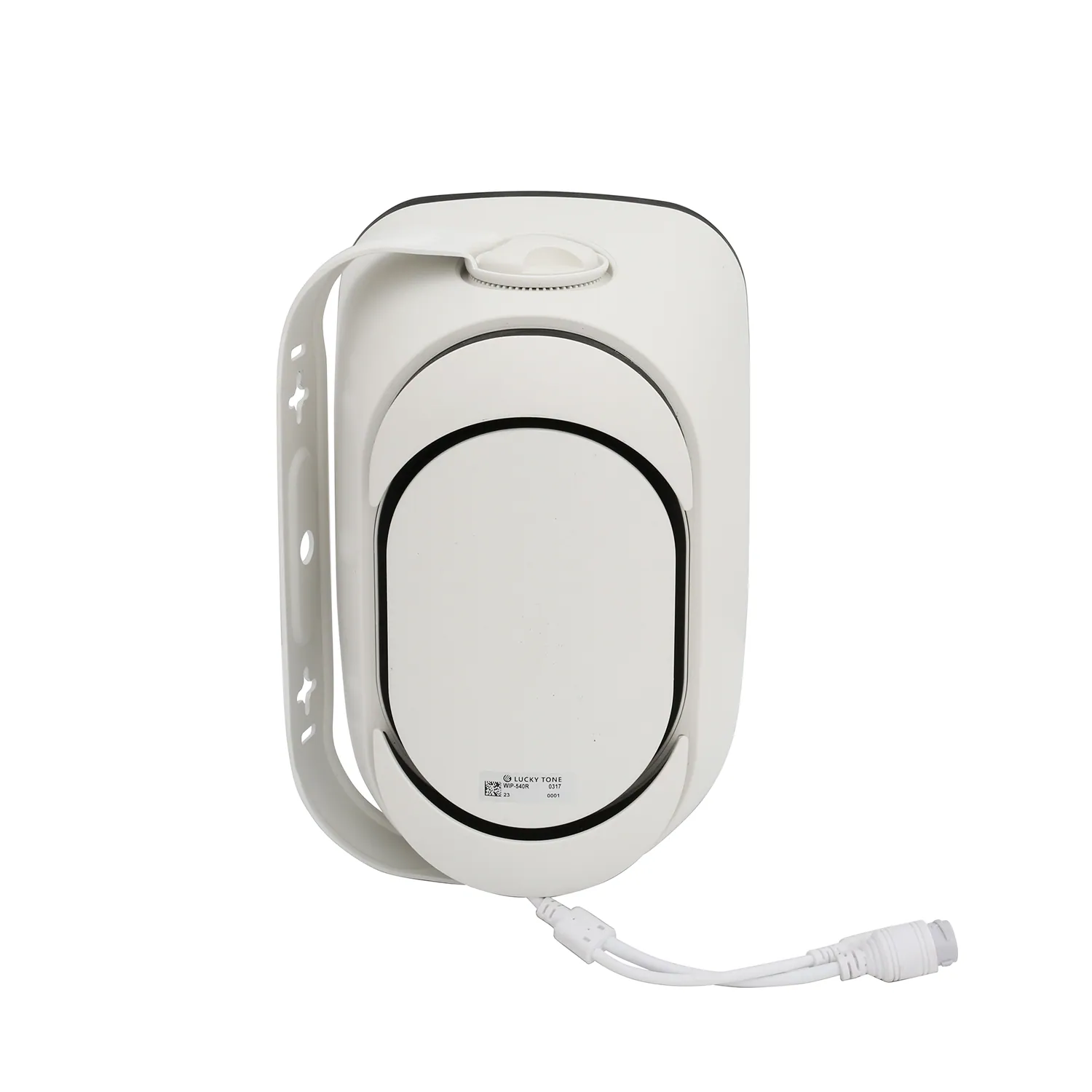

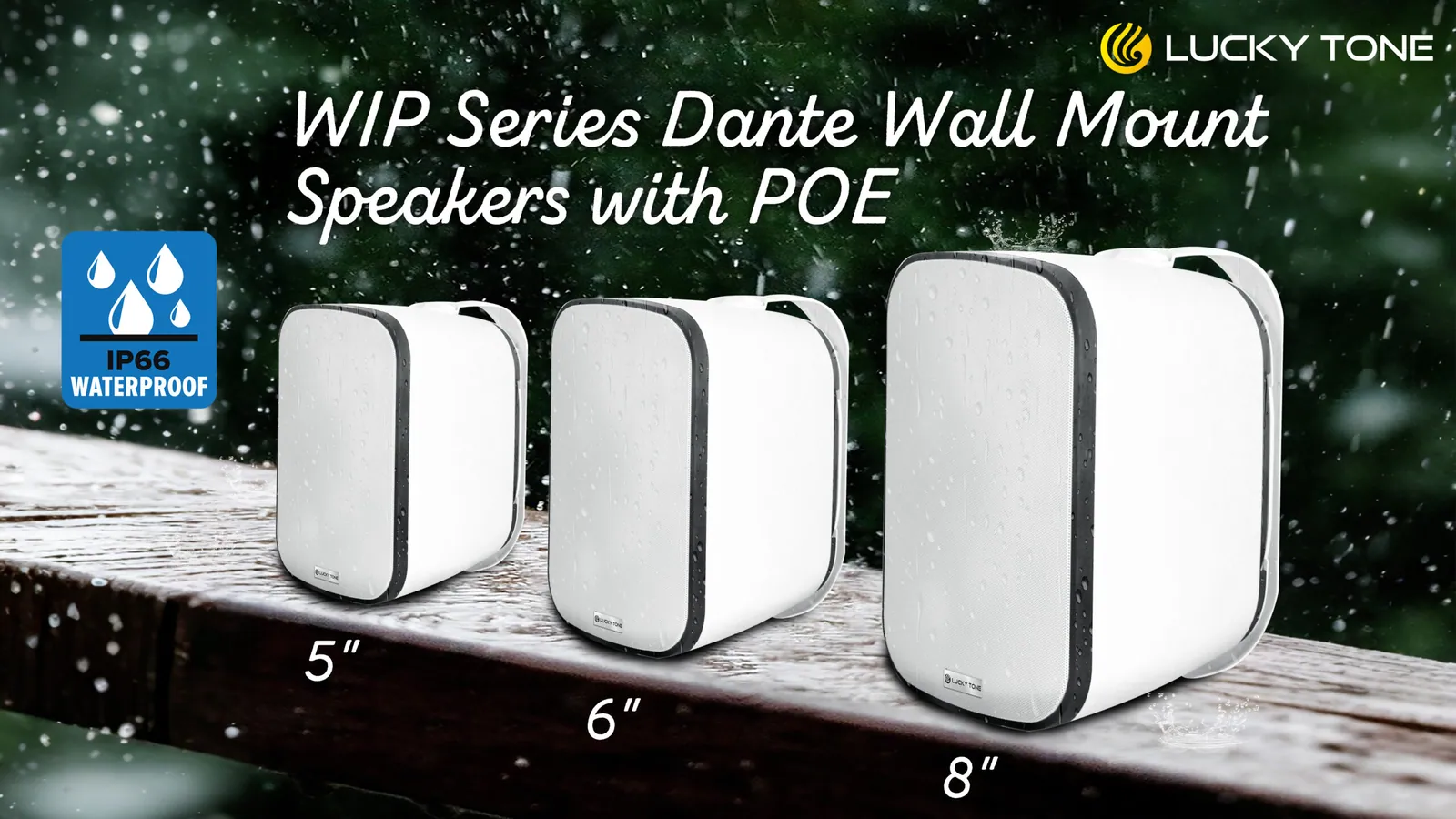

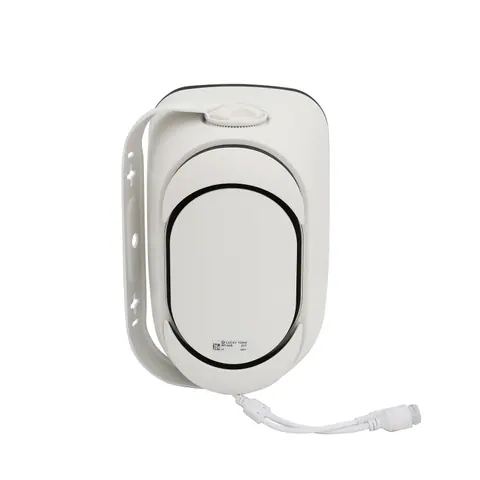

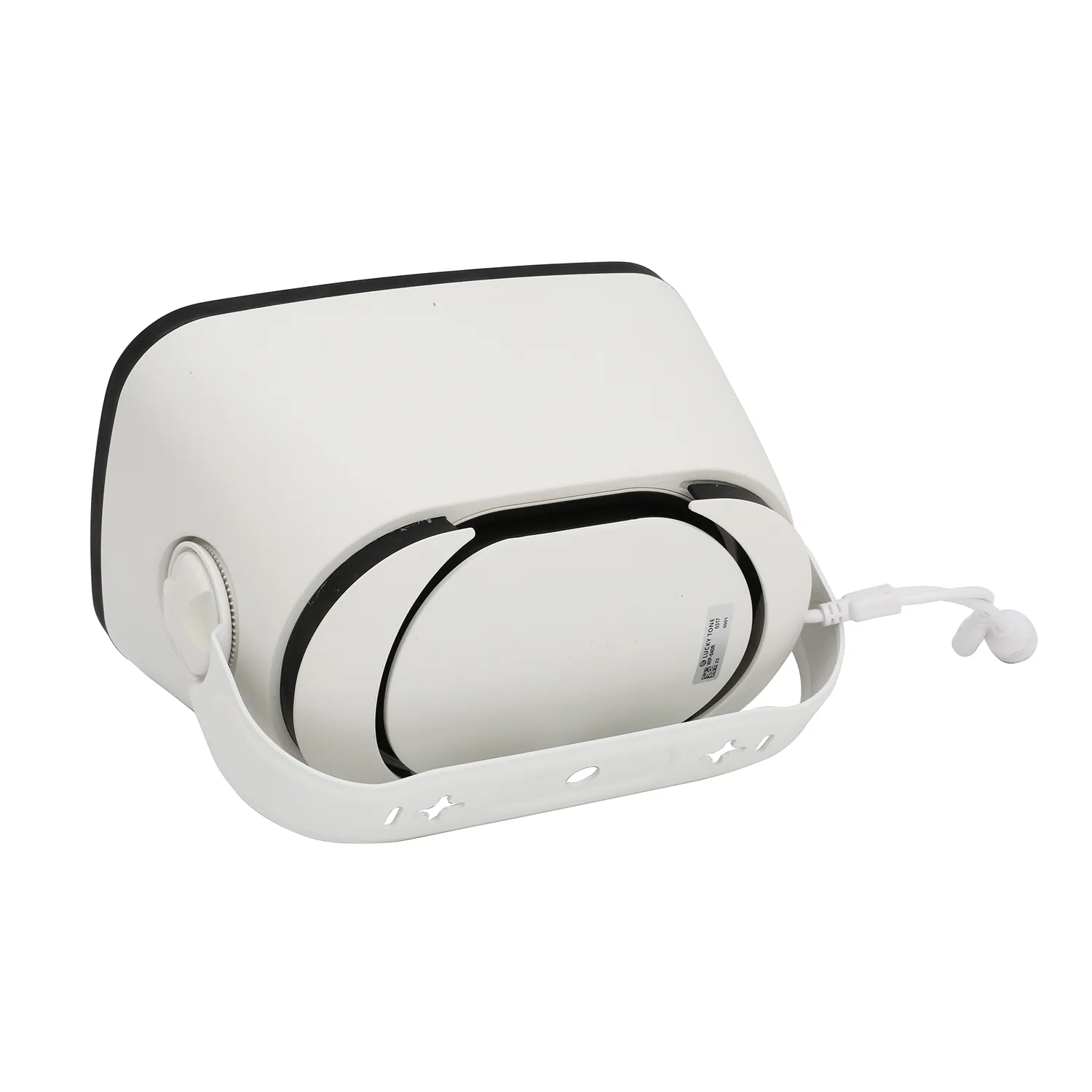

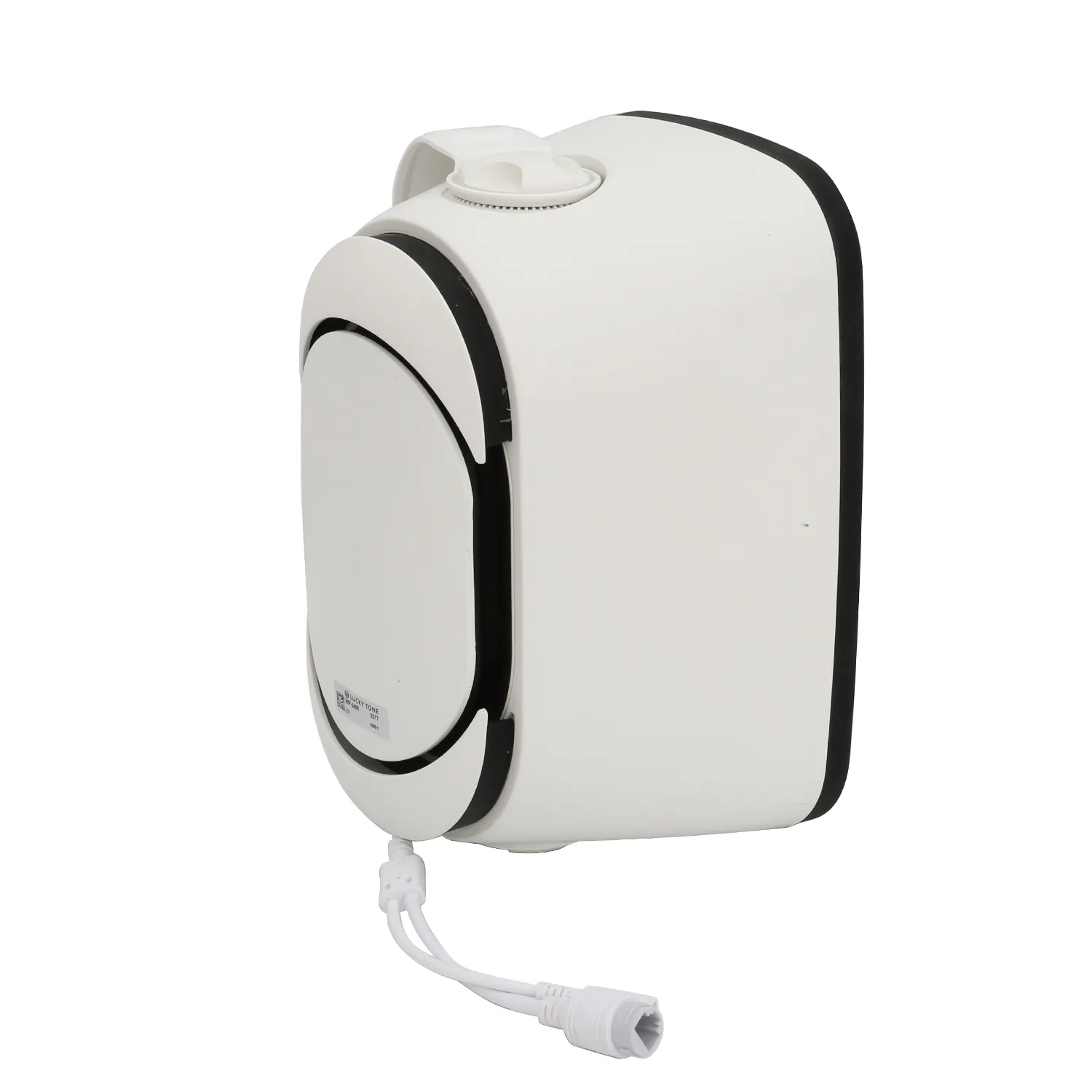

WIP Dante Wall Mounted Speaker with POE
ModelWIP-5 Dante POE / WIP-6 Dante POE / WIP-8 Dante POE
Introducing our cutting-edge Dante Network Wall Mount Speaker designed for both indoor and outdoor commercial audio applications. With its robust IP66 protection, this speaker ensures durability and reliability in any environment.
- Output power
- WIP-5 Dante POE: 40W; WIP-6 Dante POE: 60W; WIP-8 Dante POE: 80W
- Weight
- WIP-5 Dante POE: 3kg; WIP-6 Dante POE: 3.5kg; WIP-8 Dante POE: 4.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
WIP Dante Wall Mounted Speaker with POEPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | WIP-5 Dante POE | WIP-6 Dante POE | WIP-8 Dante POE |
|---|---|---|---|
| Input Interface | Rj45 | Rj45 | Rj45 |
| Audio Input Signal | Dante™ | Balanced amplified signal | Dante™ | Balanced amplified signal | Dante™ | Balanced amplified signal |
| Output Power | 40W | 60W | 80W |
| Impedance | 8ohms | 8ohms | 8ohms |
| Max SPL@ 1M | 98dB | 102dB | 105dB |
| Freq. Response | 100Hz-20KHz | 90Hz-20KHz | 70Hz-20KHz |
| Dispersion Angel | 90×80 degree | 90×80 degree | 90×80 degree |
| Product Size | 285x170x161mm | 285x200x195mm | 382x262x240mm |
| Installation | Wall mount | Wall mount | Wall mount |
| Enclosure Material | ABS | ABS | ABS |
| Weight | 3kg | 3.5kg | 4.5kg |
| Finish | White/Black | White/Black | White/Black |
| Speakers | 5” woofer, 1” tweeter | 6.5” woofer, 1” tweeter | 8” woofer, 1” tweeter |
02DescriptionManufacturer's description
What it is.

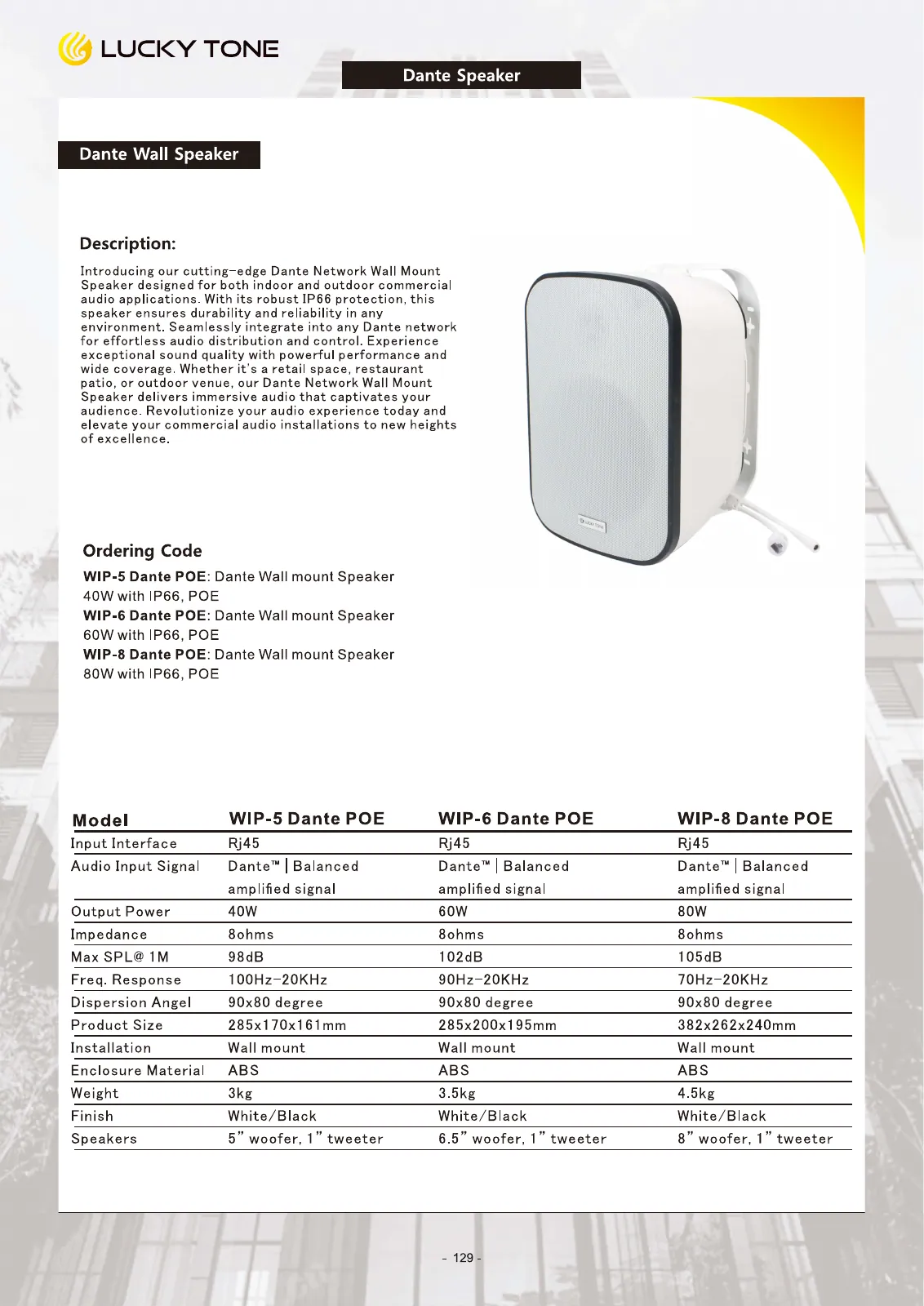

Description
Introducing our cutting-edge Dante Network Wall Mount Speaker designed for both indoor and outdoor commercial audio applications. With its robust IP66 protection, this speaker ensures durability and reliability in any environment. Seamlessly integrate into any Dante network for effortless audio distribution and control. Experience exceptional sound quality with powerful performance and wide coverage. Whether it’s a retail space, restaurant patio, or outdoor venue, our Dante Network Wall Mount Speaker delivers immersive audio that captivates your audience. Revolutionize your audio experience today and elevate your commercial audio installations to new heights of excellence.
Ordering Code
WIP-5 Dante POE
: Dante Wall mount Speaker, 40W with IP66, POE
WIP-6 Dante POE
: Dante Wall mount Speaker, 60W with IP66, POE
WIP-8 Dante POE
: Dante Wall mount Speaker, 80W with IP66, POE
