Sheet 05.350
Lucky Tone · IP, SIP and ONVIF

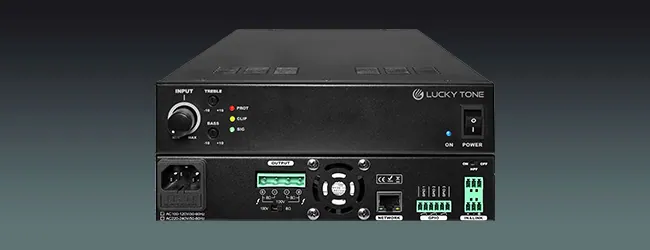

SIP Network Amplifier
ModelHA-1120 SIP / HA-1250 SIP / HA-1500 SIP
Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade
- Frequency response
- 80Hz~17KHz ( +1dB /-3dB )
- Weight
- 3.3kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SIP Network AmplifierPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | HA-1120 SIP | HA-1250 SIP | HA-1500 SIP |
|---|---|---|---|
| Rated Power at 8ohm | 2x60W | 2x120W | 2x240W |
| Bridged Power at 100V | 120W | 240W | 480W |
| Power Consumption | 195W | 325W | 588W |
| Network Communication Protocol | SIP | SIP | SIP |
| Network Interface | 10/100Base-TX, RJ45 | 10/100Base-TX, RJ45 | 10/100Base-TX, RJ45 |
| Decoding | MP3/WMA/WAV | MP3/WMA/WAV | MP3/WMA/WAV |
| Input sensitivity / Impedance | -0dBu/10kohm Unbalanced / Balanced | -0dBu/10kohm Unbalanced / Balanced | -0dBu/10kohm Unbalanced / Balanced |
| Power Supply Voltage | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz | AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz |
| Speaker Output | 100V / 8Ω | 100V / 8Ω | 100V / 8Ω |
| Frequency Response | 80Hz~17KHz ( +1dB /-3dB ) | 80Hz~17KHz ( +1dB /-3dB ) | 80Hz~17KHz ( +1dB /-3dB ) |
| S/N Ratio | >80dB (with A-Weight) | >80dB (with A-Weight) | >80dB (with A-Weight) |
| T.H.D | <1% (at rated power, 1kHz) | <1% (at rated power, 1kHz) | <1% (at rated power, 1kHz) |
| Working Humidity | 90% | 90% | 90% |
| Tone Controls | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | Bass:100Hz(±10dB), Treble:10KHz(±10dB) |
| Working Temperature | 0°C~+40°C | 0°C~+40°C | 0°C~+40°C |
| Product Dimension (WxHxD) | 215*44*330 mm (Half-Rack) | 215*44*330 mm (Half-Rack) | 215*44*330 mm (Half-Rack) |
| Net Weight | 3.3kg | 3.3kg | 3.3kg |
02DescriptionManufacturer's description
What it is.
Features
- Support MP3, WMA, WAV and more decoding
- With a standard RJ45 network interface and supports online firmware upgrade from long distance
- 120Watts ~ 480Watts output
- Advanced protection system includes current limiting, over current and thermal protections
- Desktop type with rack mount bracket
- Two bands tone controls
- Low distortion and low noise level
- Compact in Size and easy to install
- Ideal commercial and industrial use
03Documents1 file · 667 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
