Sheet 05.123
Lucky Tone · Loudspeakers

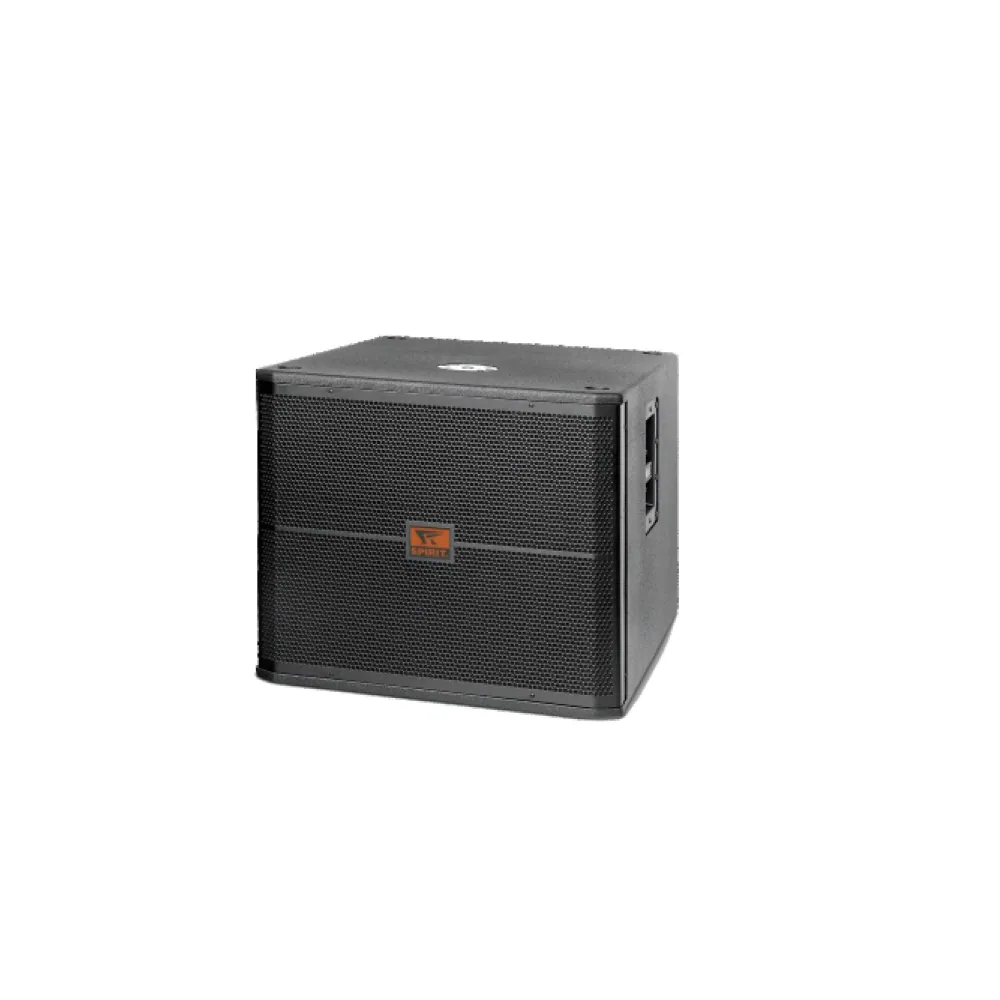

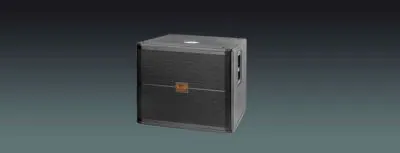

18″ High Power Subwoofer
ModelPSRX718S
The PSRX718S subwoofer’s compact design is equally at home as a small, high-performance satellite subwoofer system or as a building block for larger subwoofer arrays.
- Frequency response
- 31 Hz – 220 Hz (-10 dB)
- Dimensions
- 508 mm x 597 mm x 749 mm
- Weight
- 36 kg (79 lb.)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
18″ High Power SubwooferPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 9 values
What this product is, in numbers.
PDFSpecifications677 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications9
- MODEL
- PSRX718S
- Rated/Continuous/Peak power
- 800W/1600W/3200W
- Maximum SPL
- 122dB/125dB/128dB
- Sensitivity(1m/1W)
- 96dB
- Frequency Range
- 31 Hz – 220 Hz (-10 dB)
- Dimensions
- 508 mm x 597 mm x 749 mm
- (H x W x D)
- (20.0 in x 23.5 in x 29.5 in)
- Frequency Response
- 34 Hz – 220 Hz (±3 dB)
- Net Weight
- 36 kg (79 lb.)
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- 18 inch, 2268H Differential Drive® woofer for extended low frequency output.
- Large port area for reduced distortion.
- 20mm threaded pole socket for solid, secure satellite speaker mounting.
- 18 inch plywood subwoofer
- High power, reliable and performance
- Suitable for tour sound

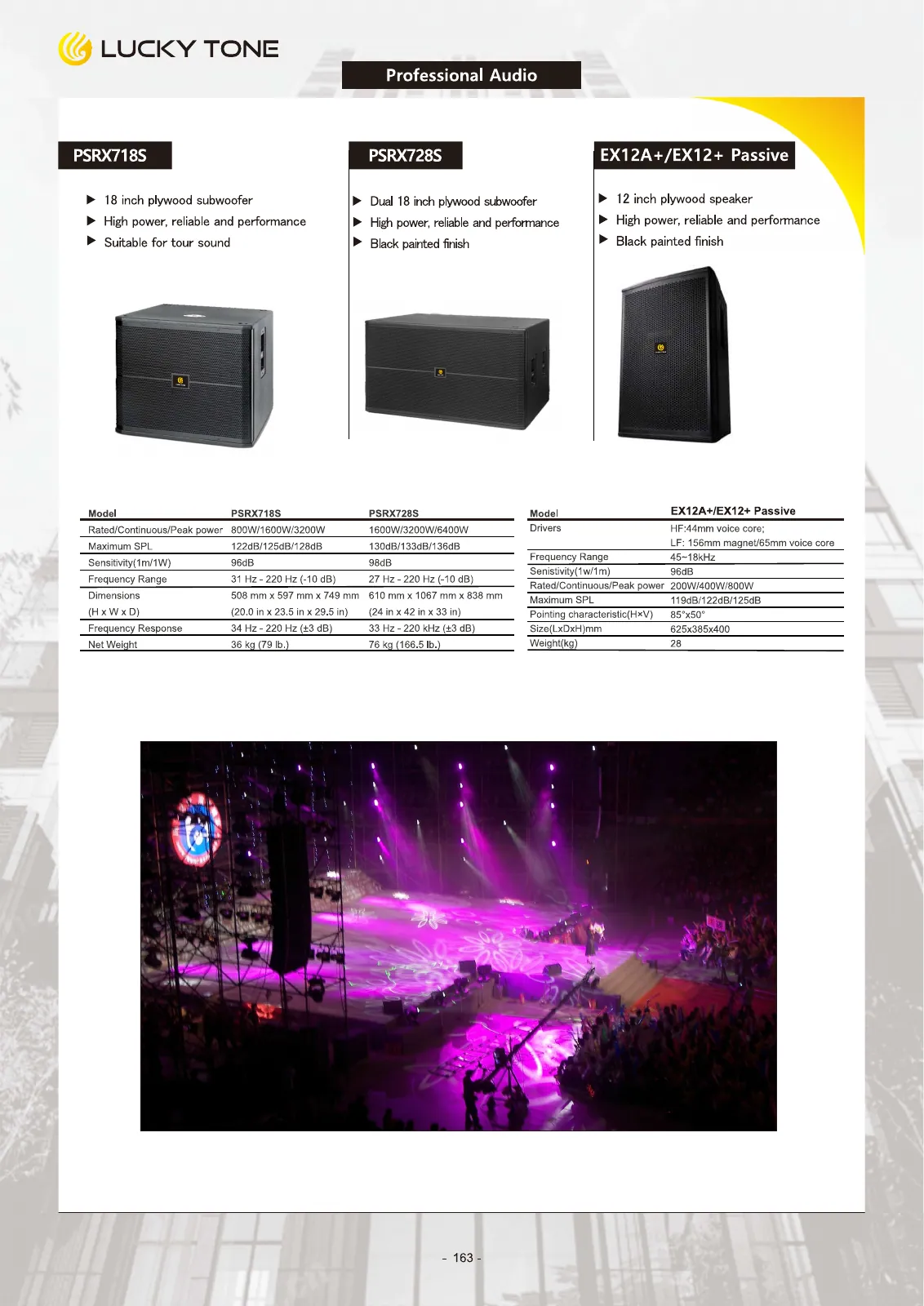

03Documents1 file · 677 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
